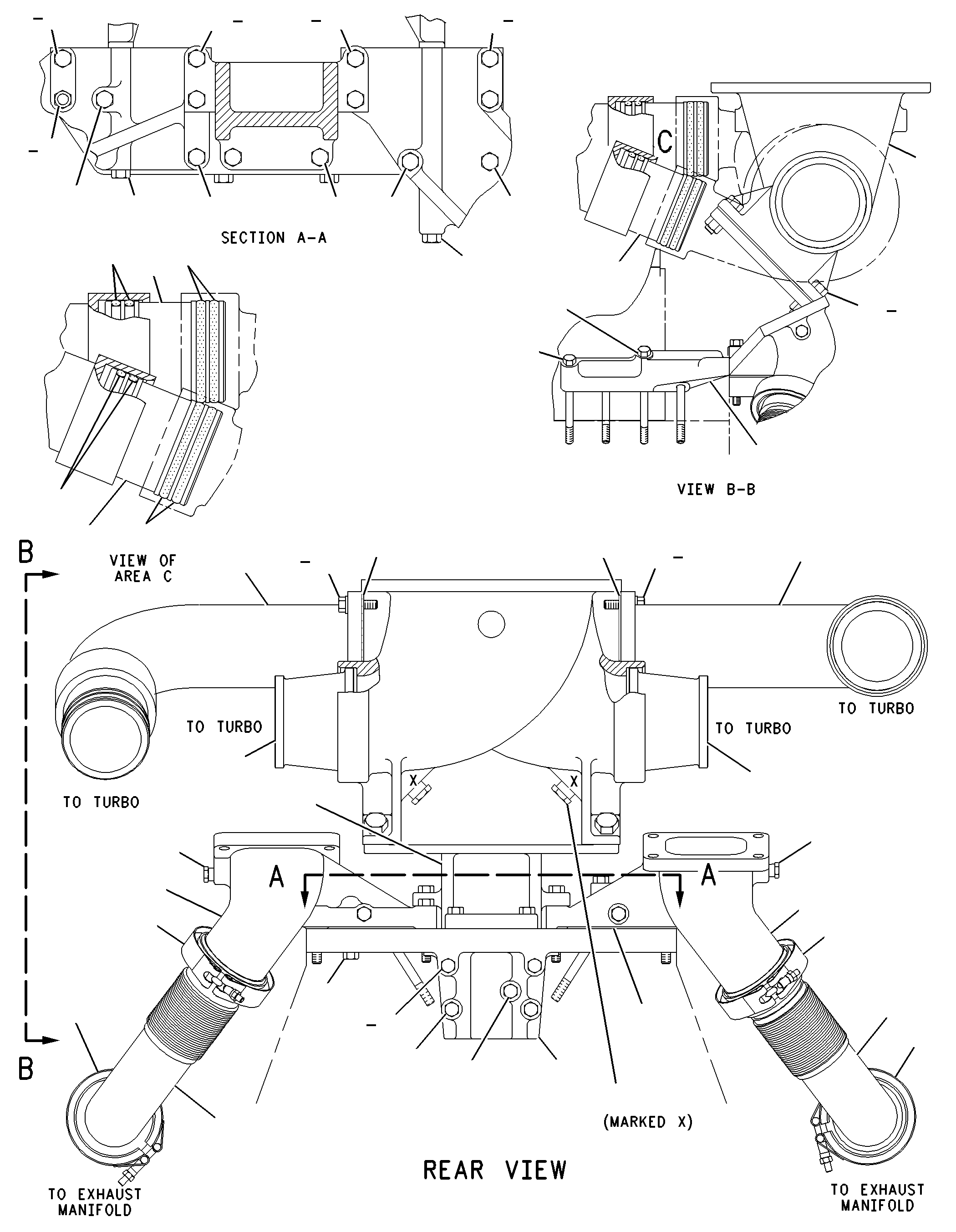

8N-8625 LINES GP-AIRS/N 81Z16612-99999

Group No: 8N-8625
Part NumberPart NameQty
12284321 ELBOW-EXHAUST1
12284332 ELBOW-EXHAUST1
8N08793 CLAMP4
6I28554 TUBE AS (EXHAUST RH)1
13322325 TUBE AS (EXHAUST LH)1
6N71526 SUPPORT-ELBOW1
6N71497 SUPPORT-ELBOW1
3N33688 PIPE-EXHAUST1
7N22779 COUPLING-EXHAUST2
1A518310 BOLT (3/8-16X4.75-IN)3
4N184911 TUBE-AIR2
5P570012 SEAL-O-RING8
4N852313 PIPE-OUTLET (LH)1
4N867714 PIPE-OUTLET (RH)1
0S158715 BOLT (1/2-13X1.75-IN)4
0S159116 BOLT (3/8-16X1.5-IN)4
2M841117 STUD-TAPERLOCK (80-MM)1
9S875218 NUT-FULL (3/8-16-THD)3
1A202919 BOLT (3/8-16X1.125-IN)2
0S160820 BOLT (3/8-16X3.75-IN)2
0L114321 BOLT (3/8-16X2.5-IN)4
9F899922 BOLT (3/8-16X7-IN)1
0S161923 BOLT (3/8-16X3-IN)4
3B191524 BOLT (3/8-16X1.375-IN)8
5M289425 WASHER-HARD (10.2X18.5X2.5-MM THK)8
4J438226 PLUG-PIPE (1/2-14-THD)2
5B263827 BOLT (3/8-16X5.25-IN)2
5M621328 PLUG-PIPE (1/4-18-THD)2
1A596429 BOLT (3/8-16X4.5-IN)1
1F795830 NUT-FULL (1/2-13-THD)4
6N673431 SUPPORT-HOUSING (RH)1
6N673332 SUPPORT-HOUSING (LH)1
245834233 GASKET2
0L207034 BOLT (3/8-16X2.25-IN)2
0T057335 BOLT (3/8-16X2.75-IN)3
0L135236 BOLT (3/8-16X3.25-IN)4
