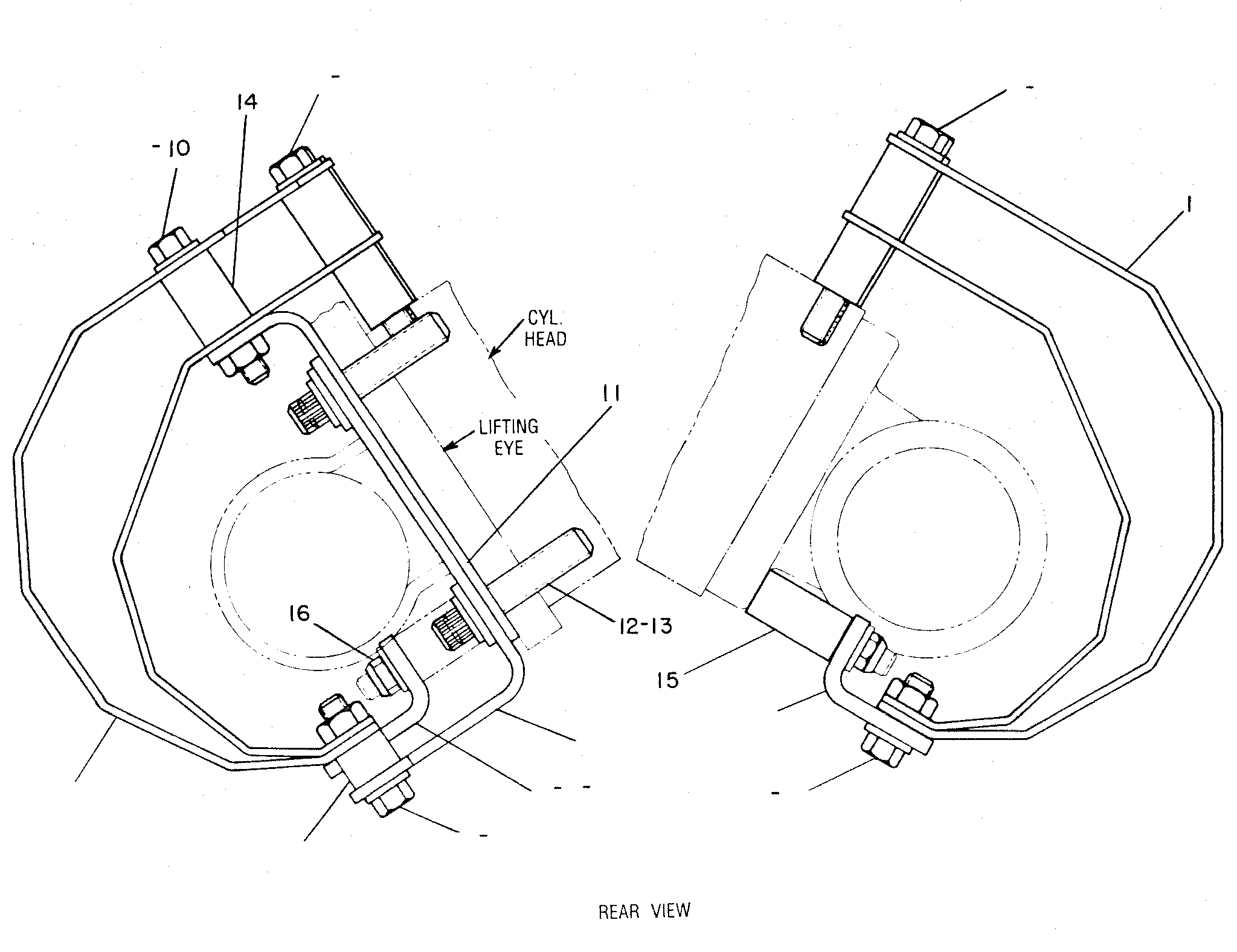

4W-4890 SHIELD GP-MANIFOLDS/N 81Z14501-99999

Group No: 4W-4890
Part NumberPart NameQty
4W48841 SHIELD AS1
1F0750NUT-WELD (3/8-16-THD)6
2M6102PIPE6
2R1376SPACER (0.594X0.75X1.09-IN THK)6
4W47012 SHIELD AS1
1F0750NUT-WELD (3/8-16-THD)7
2M6102PIPE6
2R1376SPACER (0.594X0.75X1.09-IN THK)6
0S16193 BOLT (3/8-16X3-IN)12
4W47044 PLATE6
0S15945 BOLT (3/8-16X1-IN)12
5M28946 WASHER-HARD (10.2X18.5X2.5-MM THK)26
4W47067 PLATE1
0S15888 BOLT (3/8-16X1.25-IN)1
8B86799 SPACER (0.406X0.75X0.44-IN THK)1
0S159010 BOLT (3/8-16X2-IN)1
4W489211 PLATE AS1
1F0750NUT-WELD (3/8-16-THD)1
5P585512 BOLT-12 POINT HEAD (1/2-13X1.75-IN)2
5P824513 WASHER-HARD (13.5X25.5X3-MM THK)2
2R137614 SPACER (0.594X0.75X1.09-IN THK)1
2S377015 SPACER (11X19X33.5-MM THK)12
2N276616 LOCKNUT (3/8-16-THD)14
