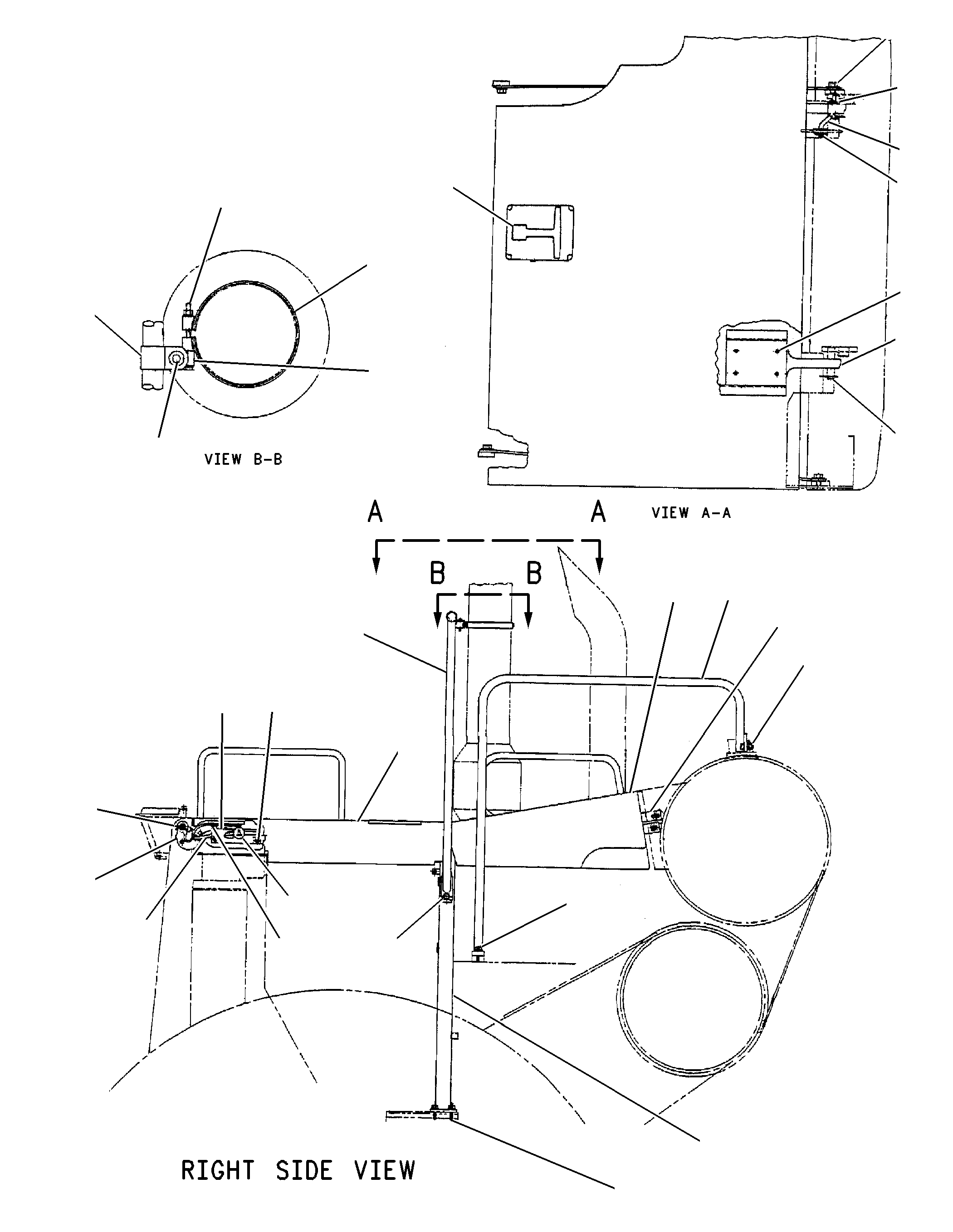

128-3701 HOOD GP-SCRAPERS/N 6PR1-100

Group No: 128-3701
Part NumberPart NameQty
5T80621 ROD AS2
0T0431WASHER (10.3X19X2.5-MM THK)(2.5MM THK)1
2G8768WASHER (10.5X53.8X3-MM THK)1
8W28912 BAR2
2G87683 WASHER (10.5X53.8X3-MM THK)2
3B46154 PIN-COTTER4
2G82635 BRACKET4
9M39146 BEARING-ALIGNING (19.05-MM ID)4
5P03707 LOCK PIN4
4L64548 BOLT (3/8-16X1-IN)16
7X05789 WASHER-HARD (10.2X32X2.5-MM THK)16
5T871910 LATCH2
5T806311 PLATE1
5M306212 BOLT (3/8-16X0.75-IN)2
8T489613 WASHER-HARD (10.2X18.5X2.5-MM THK)6
6G911514 HOOD AS1
6C3679RIVET-POP24
6G945515 RAIL AS1
7X034416 BOLT (5/8-11X1.375-IN)4
8T412217 WASHER-HARD (17X32X3.5-MM THK)4
6G945618 RAIL AS1
3J6034PLATE1
5P107619 WASHER-HARD (13.5X30X4-MM THK)6
8T891920 BOLT (1/2-13X1.75-IN)4
8T422321 WASHER-HARD (13.5X25.5X3-MM THK)4
6V818822 NUT (1/2-13-THD)2
6G890823 HOOD AS1
129299624 SUPPORT AS1
1U4198LUG (45MM OAL)1
2V4615LUG (35MM OAL)1
4V7412BOSS (3/8-16-THD)1
5J4259SPACER (22-MM THK)2
7V4655BLOCK2
9D6168BOSS (3/8-16-THD)2
8T939825 BOLT (3/4-10X1.75-IN)4
8T499426 WASHER-HARD (20X36.5X3.5-MM THK)4
8T938327 BOLT (1/2-13X0.75-IN)4
5P107528 WASHER-HARD (10.2X22.5X3-MM THK)2
8W308929 CLAMP1
8T937930 BOLT (3/8-16X4.25-IN)1
8T250131 BOLT (3/8-16X2-IN)1
6V880132 NUT (3/8-16-THD)2
7N881733 BLOCK1
6K169434 CLIP1
