System And Components

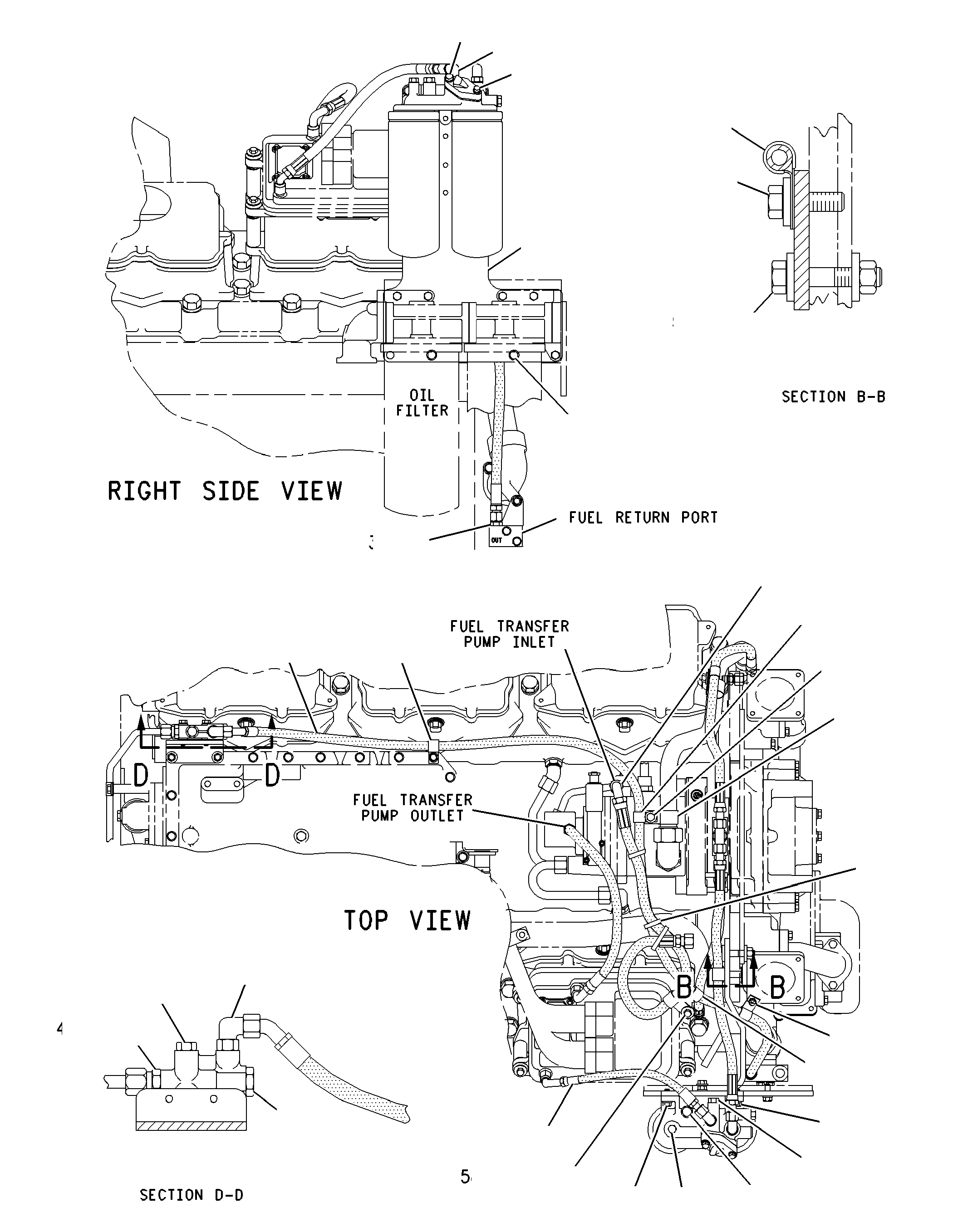

151-1356 LINES GP-FUEL FILTERS/N 80M1046-UP
Group No: 151-1356
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 0985687 | 1 TEE | 1 | |
| 8L2786 | 2 SEAL-O-RING | 3 | |
| 8L2779 | 3 SEAL-O-RING | 10 | |
| 1022240 | 4 SENSOR GP-TEMPERATURE (3-PIN)(FUEL) | 1 | |
| 1190960 | 5 BRACKET | 1 | |
| 1256795 | 6 HOSE AS | 1 | |
| 6V8636 | 7 CONNECTOR | 4 | |
| 6V5049 | 8 SEAL-O-RING | 19 | |
| 6V8634 | 9 CONNECTOR | 1 | |
| 1256796 | 10 HOSE AS | 1 | |
| 5P7854 | 11 CLIP (LOOP) | 2 | |
| 8M2773 | 12 CLIP (LOOP) | 4 | |
| 0S1594 | 13 BOLT (3/8-16X1-IN) | 8 | |
| 1R0749 | 14 FILTER-FUEL (ADVANCED EFFICIENCY) | 2 | |
| 9S8752 | 15 NUT-FULL (3/8-16-THD) | 2 | |
| 1256797 | 16 HOSE AS | 1 | |
| 1256798 | 17 HOSE AS | 1 | |
| 9X6458 | 18 WASHER-HARD (10.2X22.5X3-MM THK) | 6 | |
| 0S1588 | 19 BOLT (3/8-16X1.25-IN) | 1 | |
| 5M2894 | 20 WASHER-HARD (10.2X18.5X2.5-MM THK) | 5 | |
| 6N2946 | 21 BASE AS-FUEL FILTER | 1 | |
| 6V5049 | SEAL-O-RING | 1 | |
| 9S4167 | STUD-HOLLOW (1-14X1.47-IN) | 2 | |
| 9S8004 | PLUG (9/16-18-THD) | 1 | |
| 6N4414 | 22 COVER-FILTER BASE | 1 | |
| 1P0436 | 23 GASKET (FUEL PRIMING PUMP) | 1 | |
| 9S4191 | 24 PLUG (9/16-18-THD) | 4 | |
| 6V8724 | 25 ELBOW | 3 | |
| 8N9798 | 26 PLATE | 1 | |
| 7B2742 | 27 BOLT (1/4-20X1.25-IN) | 1 | |
| 5P0537 | 28 WASHER-HARD (7.2X14.5X2-MM THK) | 1 | |
| 1B2790 | 29 BOLT (5/16-18X1.375-IN) | 1 | |
| 9M1974 | 30 WASHER-HARD (8.8X16X2-MM THK) | 5 | |
| 9S4182 | 31 PLUG (7/16-20-THD) | 1 | |
| 6V5048 | 32 SEAL-O-RING | 1 | |
| 1571377 | 33 HOSE AS | 1 | |
| 0S1585 | 34 BOLT (1/2-13X1.5-IN) | 1 | |
| 6Y3407 | 35 HOSE AS | 1 | |
| 1F7958 | 36 NUT-FULL (1/2-13-THD) | 1 | |
| 2821915 | 37 VALVE GP-CHECK (FUEL) | 1 | |
| 1B3057 | 38 CLIP | 1 | |
| 1165819 | 39 BRACKET | 1 | |
| 1230555 | 40 MANIFOLD | 1 | |
| 1B9575 | 41 BOLT (5/16-18X1.56-IN) | 4 | |
| 8T6876 | 42 ELBOW | 2 | |
| 0336033 | 43 SEAL-O-RING | 4 | |
| 1154316 | 44 TUBE AS | 1 | |
| 6V9873 | 45 CONNECTOR | 2 | |
| 1154321 | 46 TUBE AS | 1 | |
| 7D1649 | 47 WASHER-HARD (13.5X32X5-MM THK) | 3 | |
| 9S8004 | 48 PLUG (9/16-18-THD) | 4 | |
| 6N5587 | 49 PLATE | 1 | |
| 1359981 | 50 JUNCTION BLOCK | 1 | |
| 9S1366 | 51 BOLT (1/2-13X2.5-IN) | 1 | |
| 1S6420 | 52 CLIP | 1 | |
| 4D7735 | 53 CLIP | 1 | |
| 1363310 | 54 HOSE AS | 1 | |
| 4F3508 | 55 BOLT (5/16-18X6.5-IN) | 1 | |
| 9N0869 | 56 WASHER-HARD (8.8X25.5X2-MM THK) | 2 | |
| 8S0948 | 57 CLIP | 1 | |
| 2K5870 | 58 SPACER (0.675X0.428X2.06-IN THK) | 1 | |
| 3S2093 | 59 STRAP-CABLE | 2 |
