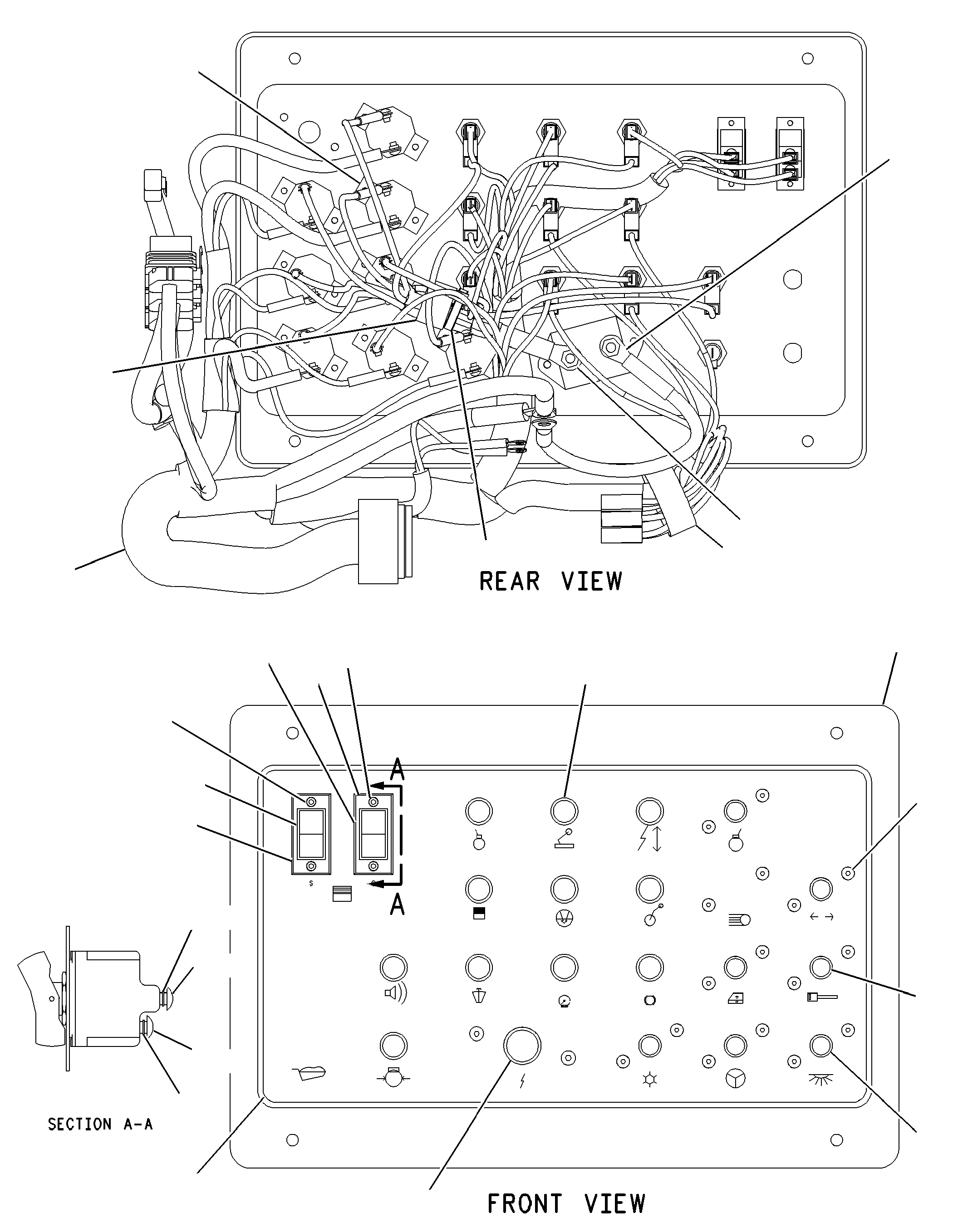

Assembly
100%

177-0220 PANEL GP-CIRCUIT BREAKERS/N 7CS228-UP

Group No: 177-0220
Part NumberPart NameQty
3S20931 STRAP-CABLE1
6T63292 BEZEL2
6V89273 BOLT-SOCKET HEAD (6-32X0.5-IN)4
7N84194 TERMINAL-BLADE4
7U48915 SCREW (10-32X1-IN)2
16198496 COVER1
17310677 WIRE AS1
17702178 WIRE AS1
17702199 FILM-IDENTIFICATION (FUSE, CIRCUIT BREAKER)1
179948410 HARNESS AS (CIRCUIT BREAKER)1
3E729411 CIRCUIT BREAKER AS (105-AMPERE)1
1H3244LOCKWASHER2
6V8365SCREW-MACHINE (1/4-28X0.5-IN)2
3K878212 FUSE (10-AMPERE)11
3T266213 CIRCUIT BREAKER AS (15-AMPERE, AUTOMATIC RESET)1
6V8376SCREW-MACHINE (8-32X0.25-IN)2
9B7233LOCKWASHER2
4K512214 HOLDER AS-FUSE11
1390178CAP1
6T364215 CIRCUIT BREAKER AS (10-AMPERE)2
6V8376SCREW-MACHINE (8-32X0.25-IN)2
9B7233LOCKWASHER2
6T364316 CIRCUIT BREAKER AS (15-AMPERE)5
6V8376SCREW-MACHINE (8-32X0.25-IN)2
9B7233LOCKWASHER2
6T606617 SWITCH AS-ROCKER (CLEAR)1
6V837417A SCREW-MACHINE (6-32X0.25-IN)2
3L818717B LOCKWASHER2
7U489218 SCREW (8-32X0.75-IN)16
1P081019 TAPE-ELECTRICAL1
6T606620 SWITCH AS-ROCKER (SET-SCROLL)1
6V8374SCREW-MACHINE (6-32X0.25-IN)2
3L8187LOCKWASHER2
