System And Components

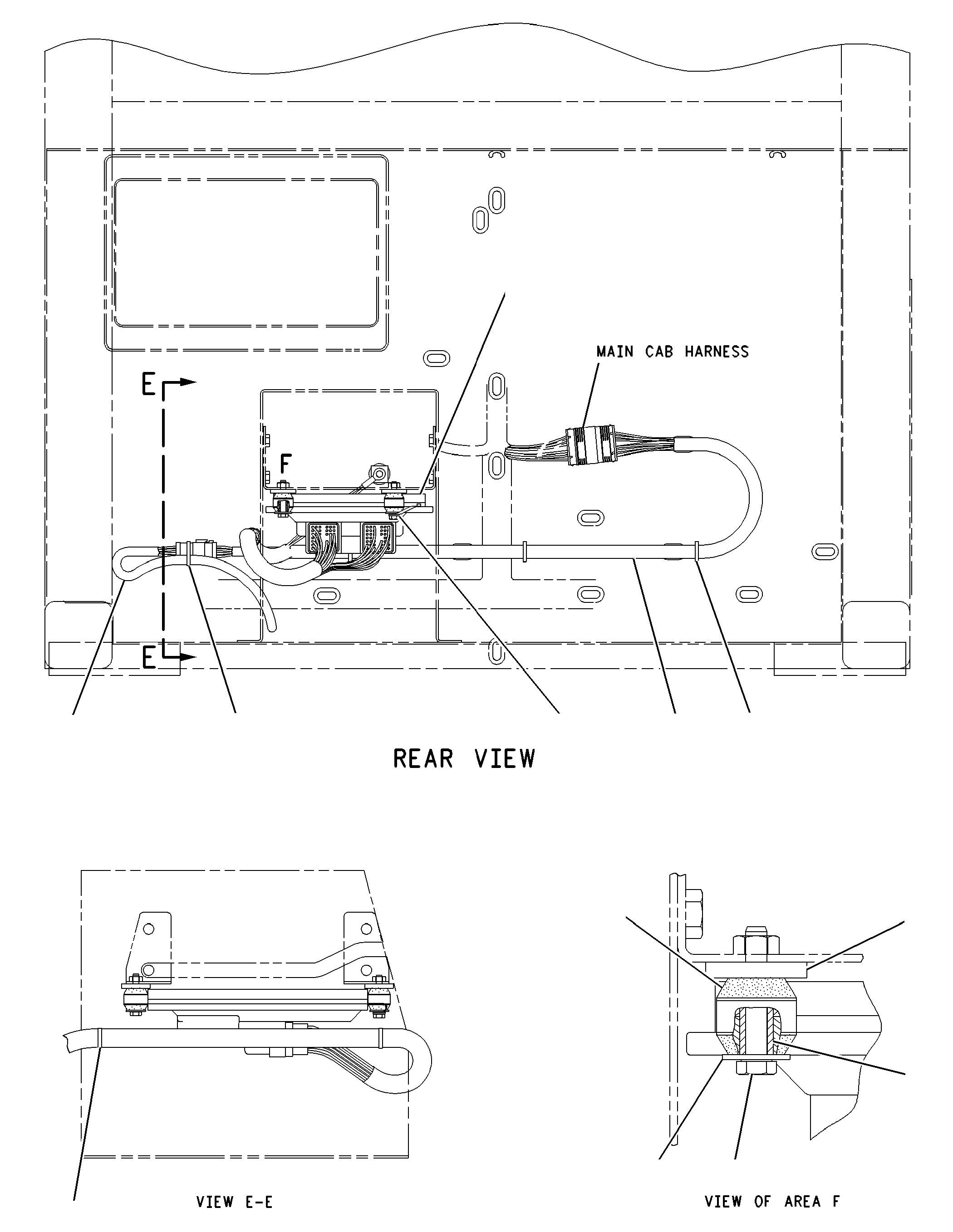

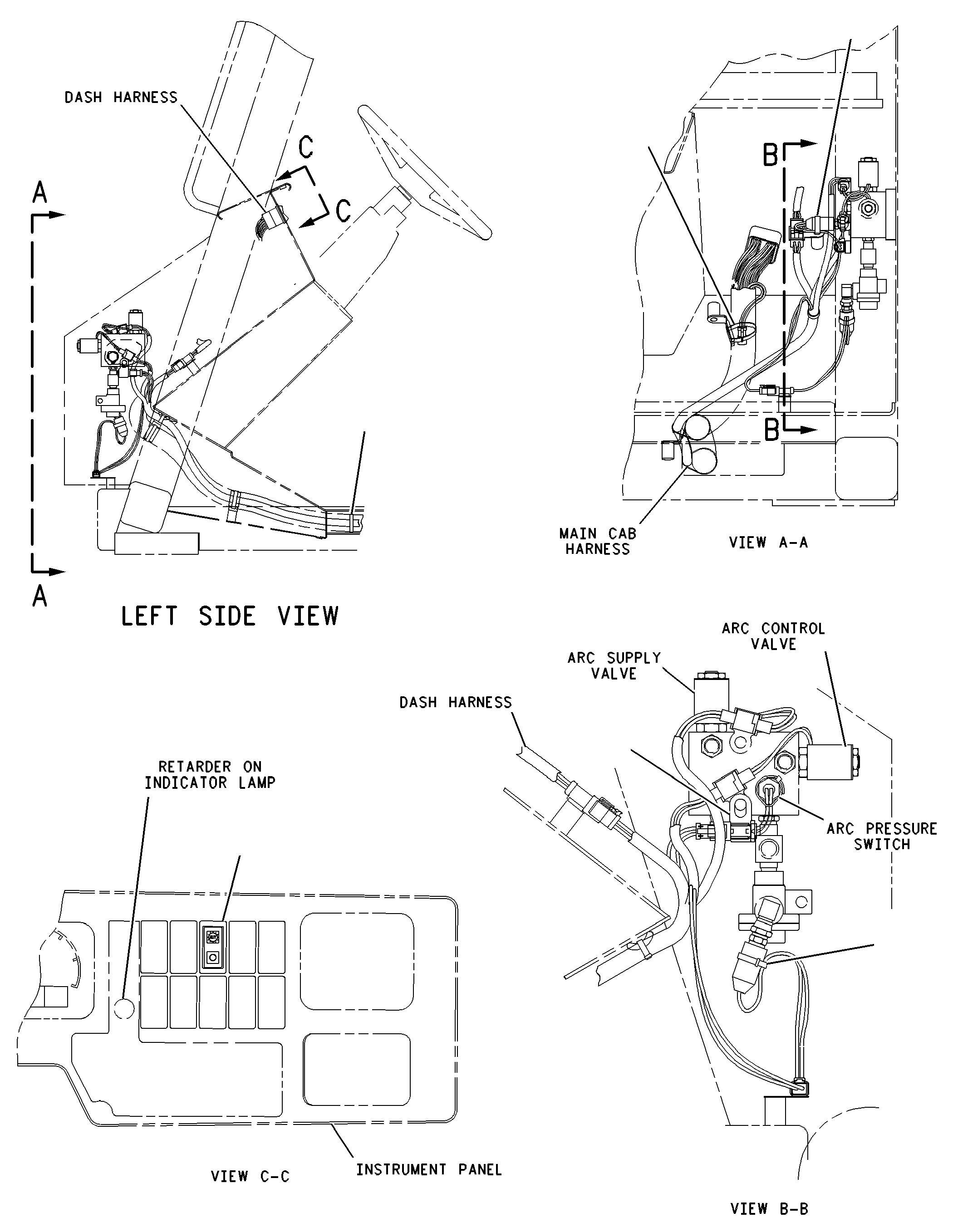

174-3753 WIRING GP-AUTOMATIC RETARDER -CABS/N 7CS1-807
Group No: 174-3753
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 1646899 | 1 ELECTRONICS GP-MACHINE (AUTOMATIC RETARDER) | 1 | |
| 8T6912 | 2 BOLT (M8X1.25X50-MM) | 4 | |
| 9N0869 | 3 WASHER-HARD (8.8X25.5X2-MM THK) | 4 | |
| 8T9655 | 4 MOUNT-ISOLATION | 8 | |
| 9S8413 | 5 WASHER-RETAINING (0.344X1.5X0.23-IN THK) | 4 | |
| 6I1418 | 6 SPACER (8.2X12.7X28.7-MM THK) | 4 | |
| 1630956 | 7 HARNESS AS-CONTROL (INTEGRATED BRAKE) | 1 | |
| 1552265 | KIT-CONNECTING PLUG (8-PIN) | 1 | |
| 1028806 | KIT-RECEPTACLE (8-PIN) | 1 | |
| 1106846 | PLUG AS-CONNECTOR (40-PIN) | 1 | |
| 1106844 | SEAL | 4 | |
| 2L8069 | TERMINAL-RING (2-GA TO 10-GA, 3/8-IN SCREW) | 1 | |
| 8T8729 | PIN-CONNECTOR (16-GA TO 20-GA) | 20 | |
| 8T8730 | SOCKET-CONNECTOR (16-GA TO 20-GA) | 65 | |
| 9G3695 | PLUG-SEAL | 60 | |
| 9X0146 | RECEPTACLE AS-CONNECTOR (24-PIN) | 1 | |
| 1106848 | PLUG AS-CONNECTOR (40-PIN) | 1 | |
| 1106844 | SEAL | 1 | |
| 1630957 | 8 HARNESS AS-VALVE (AUTOMATIC RETARDER CONTROL) | 1 | |
| 1552270 | KIT-CONNECTING PLUG (2-PIN) | 2 | |
| 1552271 | KIT-CONNECTING PLUG (4-PIN) | 1 | |
| 1028806 | KIT-RECEPTACLE (8-PIN) | 1 | |
| 7N7779 | SOCKET-CONNECTOR (14-GA TO 18-GA) | 2 | |
| 7N7780 | PIN-CONNECTOR (14-GA TO 18-GA) | 2 | |
| 7N9738 | HOUSING-RECEPTACLE (14-GA TO 18-GA) | 2 | |
| 9G3695 | PLUG-SEAL | 3 | |
| 1193662 | TUBE-HEAT SHRINK (10.85-MM DIA)(7-CM) | ||
| 1257875 | TUBE-HEAT SHRINK (7.44-MM DIA)(5-CM) | ||
| 9X3402 | SOCKET-CONNECTOR (16-GA TO 18-GA) | 6 | |
| 1261768 | SOCKET-CONNECTOR (14-GA TO 16-GA) | 6 | |
| 9X3401 | PIN-CONNECTOR (16-GA TO 18-GA) | 7 | |
| 1261767 | PIN-CONNECTOR (14-GA TO 16-GA) | 7 | |
| 7K1181 | 9 STRAP-CABLE | 14 | |
| 1160118 | 10 CLIP | 1 | |
| 1701326 | 11 SWITCH AS-ROCKER (24-VOLT)(AUTOMATIC RETARDER ON/OFF) | 1 | |
| 8T4224 | 12 WASHER-HARD (8.8X16X2-MM THK) | 1 |
