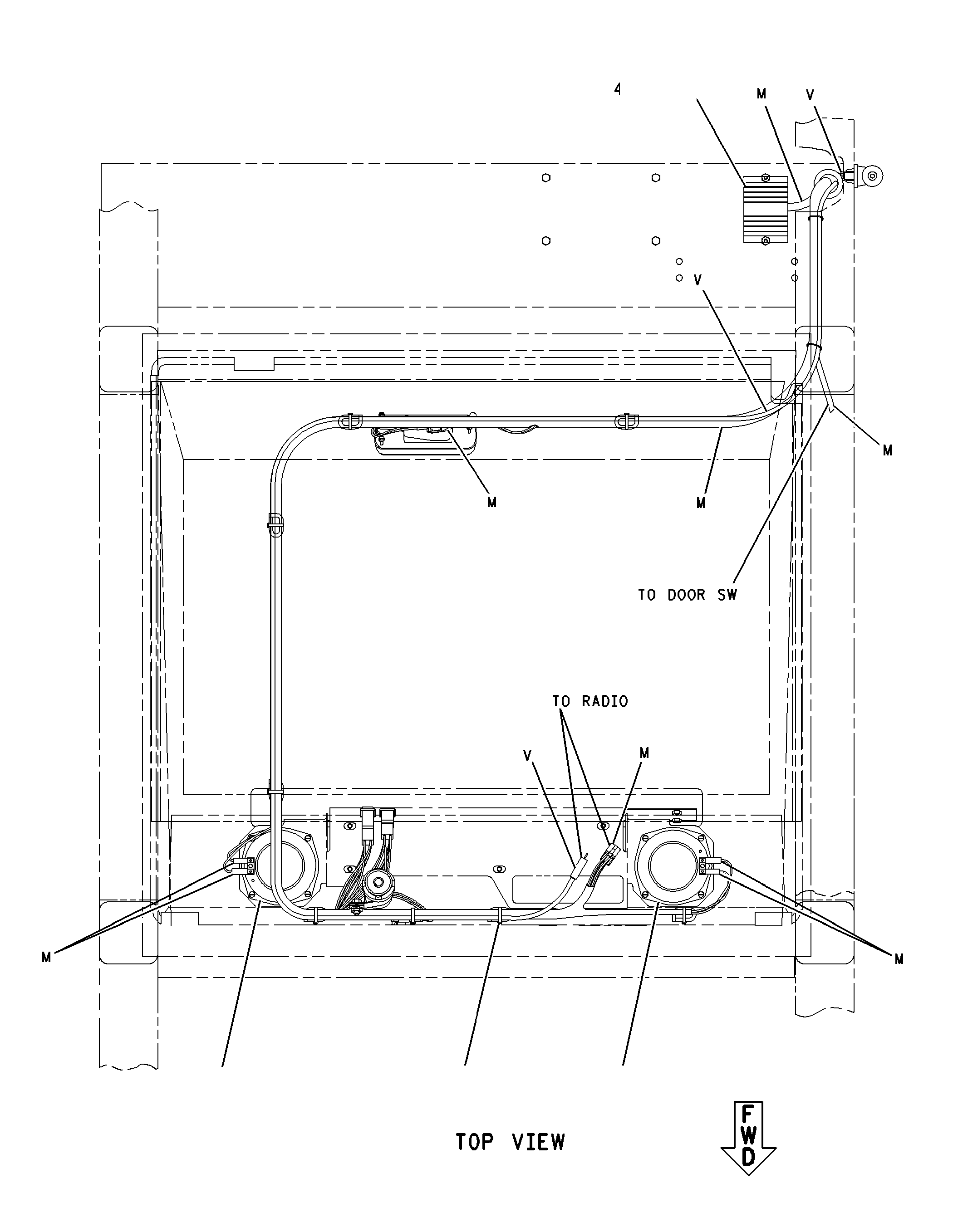

162-5322 WIRING GP-CABS/N 7CS1-227

Group No: 162-5322

Part Number	Part Name	Qty
1619850	1 PANEL GP-CIRCUIT BREAKER	1
9X2042	2 SCREW-TRUSS HEAD (M6X1X12-MM)	8
3E5239	3 RELAY AS (24-VOLT)	13
2N3479	4 SCREW (10-24X0.5-IN)	14
8T0328	5 WASHER-HARD (5.5X10X1-MM THK)	4
6D3033	6 SCREW-SOCKET HEAD (4-40X0.5-IN)	4
6V9497	7 WASHER-HARD (3.2X6X0.5-MM THK)	4
6B4540	8 NUT (4-40-THD)	4
8C6354	9 CAP-RECEPTACLE (ET CONNECTOR)	1
9G8451	10 BLOCK AS (POWER)	1
1H3244	LOCKWASHER	1
4B4276	WASHER (7X16X1.6-MM THK)	2
4L7124	BOLT (1/4-20X1.25-IN)	1
6V8185	NUT (1/4-20-THD)	2
5S7349	11 BOLT (1/4-20X0.5-IN)	15
8T4205	12 WASHER-HARD (7.2X14.5X2-MM THK)	17
5P7854	13 CLIP (LOOP)	1
1656652	14 PLATE AS	1
1F0750	NUT-WELD (3/8-16-THD)	4
9D6621	NUT-WELD (10-24-THD)	4
9F6445	NUT-WELD (1/4-20-THD)	12
5M3062	15 BOLT (3/8-16X0.75-IN)	11
5P1075	16 WASHER-HARD (10.2X22.5X3-MM THK)	8
1722359	17 HARNESS AS (TRANSMISSION)	1
8T4896	18 WASHER-HARD (10.2X18.5X2.5-MM THK)	10
1080358	19 FLASHER AS (24-VOLT)	1
1035526	20 CONTROL GP-MONITOR (BACKLIGHT DIMMER)	1
5P2675	21 BOLT (1/4-20X1.75-IN)	2
9G9150	22 CLIP	1
1726142	23 HARNESS AS-RADIO (OVERHEAD)	1
1246704	24 RESISTOR AS (ETHER SOLENOID LOAD)(START AID)	1
3T3047	25 CLIP AS	1
5T9327	26 GROMMET	1
3S2093	27 STRAP-CABLE	31
1630954	28 HARNESS AS-MONITOR (ELECTRONIC MONITORING SYSTEM)	1
1S0994	29 CLIP (LOOP)	1
5S7379	30 BOLT (3/8-16X0.875-IN)	7
1630842	31 PLATE (DIAGNOSTIC PANEL)	1
1631285	32 FILM-IDENTIFICATION (SERVICE)(ELECTRONIC TOOL CONNECTION)	1
1722360	33 HARNESS AS (MAIN CAB)	1
8T9405	34 BOLT-SOCKET HEAD (M4X0.7X16-MM)	16
8C9660	35 WASHER (4.6X7.9X0.8-MM THK)	16
1602445	36 SWITCH GP-PRESSURE (SECONDARY & PARKING BRAKE)	1
7N7779	SOCKET-CONNECTOR (14-GA TO 18-GA)	1
7N7780	PIN-CONNECTOR (14-GA TO 18-GA)	1
7N9738	HOUSING-RECEPTACLE (14-GA TO 18-GA)	1
1068704	37 SUPPRESSOR AS-ARC (KEY START SWITCH)	1
1028802	KIT-RECEPTACLE (2-PIN)	1
3E3365	WEDGE-RECEPTACLE LOCK (2-PIN)	1
8T8729	PIN-CONNECTOR (16-GA TO 20-GA)	2
9W3072	38 ANTENNA AS	1
9D4068	39 SWITCH-PUSH BUTTON (DOOR PUSH TYPE)	1
1191733	40 CONVERTER-POWER (24-VOLT TO 12-VOLT)	1
1305300	41 CLIP	4
4B4274	42 WASHER (5.5X13X1.2-MM THK)	2
8C9678	43 LAMP GP-DOME (24-VOLT)	1
5L4507	44 SCREW-MACHINE (10-32X0.875-IN)	3
9F8125	45 LOCKWASHER	3
3T3045	46 CLIP AS	1
4E1411	47 BUSHING-TERMINAL	1
1533962	48 SENSOR GP-PRESSURE (AIR SYSTEM)	1
4P8134	49 CLIP (LADDER)(10.5MM ID)	5
4P7581	50 CLIP (LADDER)	1
1437884	51 MODULE AS (INTERMITTENT WIPER)	1
3E8771	52 SWITCH AS (24-VOLT)(HAZARD WARNING LIGHTS)	1
1126166	ACTUATOR	1
1655674	LAMP-LED (24-VOLT)	1
3P3839	53 GROMMET	1
9R7941	54 SOCKET AS (24 VOLT)	1
9R7980	COVER	1
9R7935	55 WASHER-SHOULDER (18.5X27X2-MM THK)	2
7K1181	56 STRAP-CABLE	31
3E6328	57 ALARM GP (24-VOLT)(ACTION)	1
6T7695	58 SPEAKER AS-RADIO	2
1172932	59 CABLE AS-COAXIAL (RADIO)	1
6D4636	60 CLIP (LOOP)	1
1034977	61 SWITCH AS-PRESSURE (MANUAL RETARDER)	1
8T8729	PIN-CONNECTOR (16-GA TO 20-GA)	1
9X0435	62 ADAPTER	1
3J7354	63 SEAL-O-RING	1
1532869	64 FILM-IDENTIFICATION (RELAY)	1
1328259	65 PLATE	1
5C9553	66 BOLT (M6X1X16-MM)	2
9X8256	67 WASHER (6.6X12X2-MM THK)	2
5C2890	68 NUT (M6X1-THD)	2
1160118	69 CLIP	1
3E2034	70 SWITCH AS-PRESSURE (SERVICE BRAKE)	1
7N7779	SOCKET-CONNECTOR (14-GA TO 18-GA)	1
7N7780	PIN-CONNECTOR (14-GA TO 18-GA)	1
7N9738	HOUSING-RECEPTACLE (14-GA TO 18-GA)	1
1667781	71 SWITCH AS-PRESSURE (STOP LAMP)	1
6V8378	NUT (10-32-THD)	2
8F1434	LOCKWASHER	2
3T3048	72 CLIP AS	2
1690169	73 BRACKET AS	1
1F0750	NUT-WELD (3/8-16-THD)	1
1172311	74 SOCKET-AUXILIARY POWER (12-VOLT)	1
