System And Components

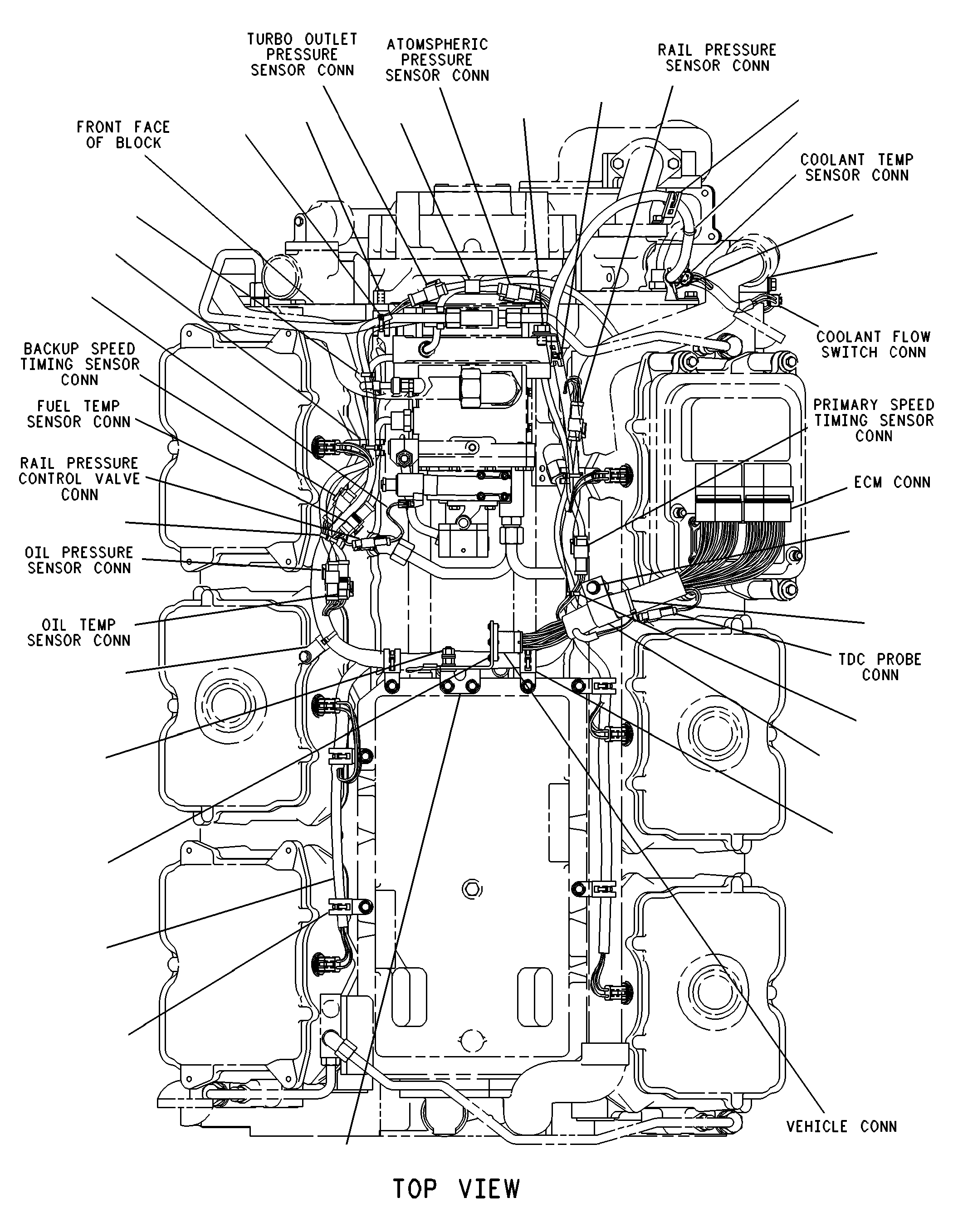

118-9692 WIRING GP-ENGINES/N 80M1046-UP
Group No: 118-9692
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 1113247 | 1 HARNESS AS-ENGINE | 1 | |
| 8T8737 | PLUG-SEAL | 7 | |
| 1010205 | PLUG AS-CONNECTOR (40-PIN) | 1 | |
| 1106844 | SEAL | 1 | |
| 1010204 | PLUG AS-CONNECTOR (40-PIN) | 1 | |
| 1106844 | SEAL | 1 | |
| 1552271 | KIT-CONNECTING PLUG (4-PIN) | 6 | |
| 1552260 | KIT-CONNECTING PLUG (3-PIN) | 3 | |
| 1552270 | KIT-CONNECTING PLUG (2-PIN) | 3 | |
| 9X1343 | RECEPTACLE AS-CONNECTOR (40-PIN) | 1 | |
| 1028803 | KIT-RECEPTACLE (3-PIN) | 6 | |
| 1028802 | KIT-RECEPTACLE (2-PIN) | 1 | |
| 1108213 | 2 BRACKET AS | 1 | |
| 4M0200 | STUD-WELD (3/8-16X1.5-IN) | 1 | |
| 9X6258 | 3 SCREW-MACHINE (6-32X0.5-IN) | 4 | |
| 4B5324 | 4 WASHER (3.9X9.6X1.2-MM THK) | 4 | |
| 4P7581 | 5 CLIP (LADDER) | 8 | |
| 3S2093 | 6 STRAP-CABLE | 20 | |
| 1210596 | 7 HARNESS AS-WIRING | 1 | |
| 1028802 | KIT-RECEPTACLE (2-PIN) | ||
| 1305300 | 8 CLIP | 1 | |
| 4P8134 | 9 CLIP (LADDER)(FLAT) | 4 | |
| 0S1594 | 10 BOLT (3/8-16X1-IN) | 1 | |
| 5M2894 | 11 WASHER-HARD (10.2X18.5X2.5-MM THK) | 2 | |
| 6V8801 | 12 NUT (3/8-16-THD) | 2 | |
| 8T4896 | 13 WASHER-HARD (10.2X18.5X2.5-MM THK) | 3 | |
| 0S0509 | 14 BOLT (3/8-16X0.75-IN) | 1 | |
| 4D7388 | 15 CLIP | 1 | |
| 0S1620 | 16 BOLT (1/2-13X0.75-IN) | 1 | |
| 5P8245 | 17 WASHER-HARD (13.5X25.5X3-MM THK) | 1 | |
| 8M2772 | 18 CLIP (LOOP) | 1 | |
| 4P7429 | 19 CLIP (LADDER) | 1 |
