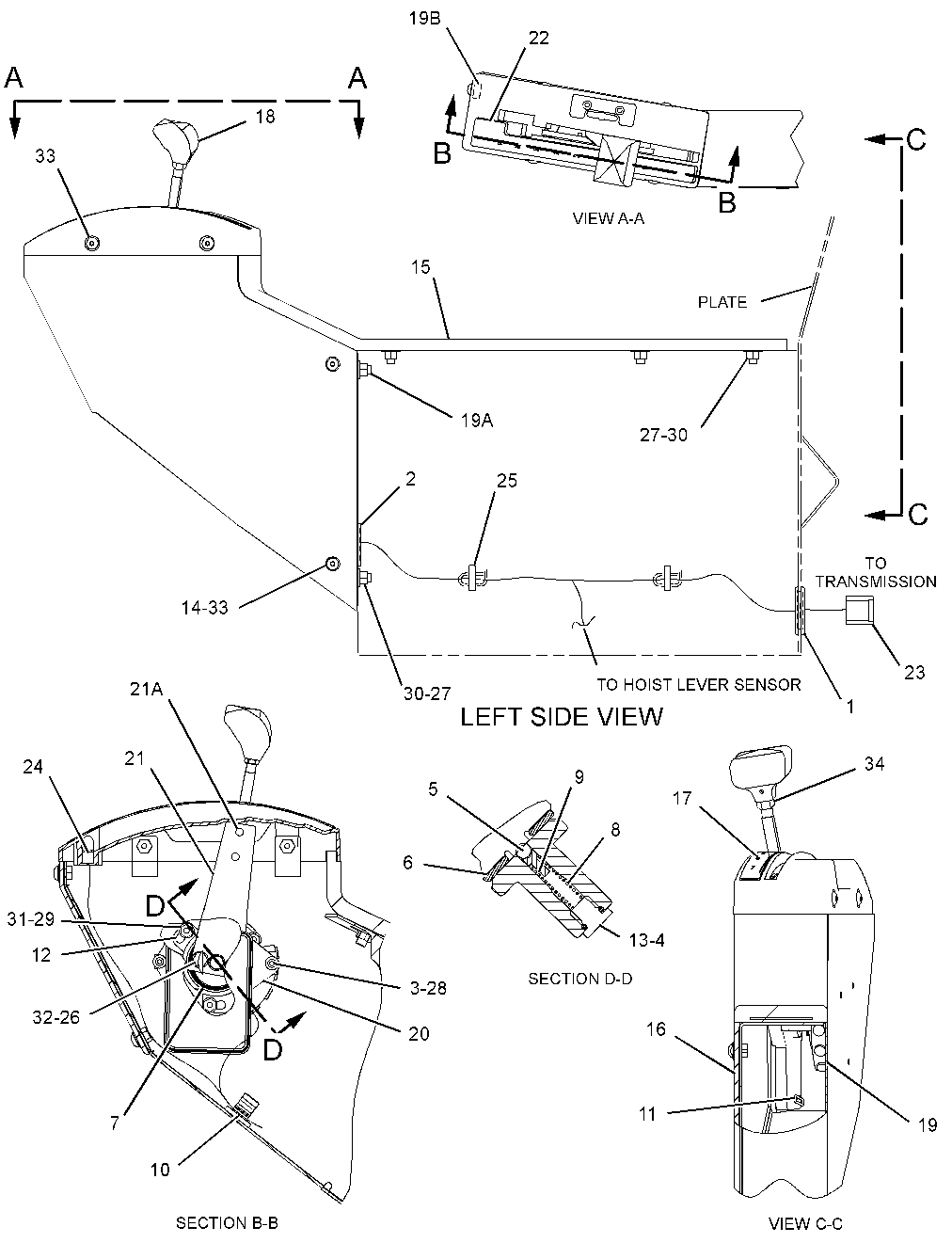

137-0057 CONSOLE GP-OPERATORS/N 7CS1-UP

Group No: 137-0057

Part Number	Part Name	Qty
3E6754	1 GROMMET	1
3H2900	2 GROMMET	1
3L2540	3 BOLT-SOCKET HEAD (10-24X0.75-IN)	2
4J7533	4 SEAL-O-RING	4
5B9318	5 BALL	4
6G0001	6 SHAFT	1
6G4092	7 BUSHING	2
6G4093	8 SPRING	4
6G4134	9 PIN	4
8E1123	10 CLIP	1
8L8413	11 STRAP-CABLE (WHITE)	1
8W0976	12 HOUSING	1
9S8001	13 PLUG (5/16-24-THD)	4
1146658	14 WASHER (6.5X17X1-MM THK)	4
1253356	15 COVER AS	1
1253357	16 COVER AS	1
1253360	17 COVER AS	1
1253365	18 KNOB (TRANSMISSION SHIFT LEVER)	1
1266450	19 PLATE AS	1
8D5476	19A STUD-WELD (3/8-16X0.75-IN)	4
6V9632	19B NUT-WELD (M6X1-THD)	8
1267896	20 SENSOR GP-POSITION (TRANSMISSION SHIFT LEVER)	1
1279190	21 LEVER AS (TRANSMISSION SHIFT LEVER)	1
6B3057	21A RIVET	2
1279499	22 FILM-INSTRUCTION (TRANSMISSION CONTROL)	1
1605073	23 HARNESS AS-CONSOLE (TRANSMISSION CONTROL)	1
9G3695	PLUG-SEAL	2
9W3086	KEY-POLARIZING	1
9W8087	GUSSET	8
9W3089	HOUSING	1
1071984	SOCKET-LAMP	1
1071985	TERMINAL	2
9X3402	SOCKET-CONNECTOR (16-GA TO 18-GA)	17
1261768	SOCKET-CONNECTOR (14-GA TO 16-GA)	17
1552255	KIT-CONNECTING PLUG (12-PIN)	1
1552270	KIT-CONNECTING PLUG (2-PIN)	1
1552260	KIT-CONNECTING PLUG (3-PIN)	1
1028802	KIT-RECEPTACLE (2-PIN)	1
1636508	24 LAMP-LED (24-VOLT, WHITE)	1
3S2093	25 STRAP-CABLE	2
5K0906	26 BOLT (5/16-18X0.625-IN)	2
5P1075	27 WASHER-HARD (10.2X22.5X3-MM THK)	8
6V7699	28 WASHER-HARD (5.5X13X1.6-MM THK)	2
6V8185	29 NUT (1/4-20-THD)	3
6V8801	30 NUT (3/8-16-THD)	8
8T4205	31 WASHER-HARD (7.2X14.5X2-MM THK)	3
8T4224	32 WASHER-HARD (8.8X16X2-MM THK)	2
9X2042	33 SCREW-TRUSS HEAD (M6X1X12-MM)	8
2A5351	34 NUT-JAM (3/8-24-THD)	1
