System And Components

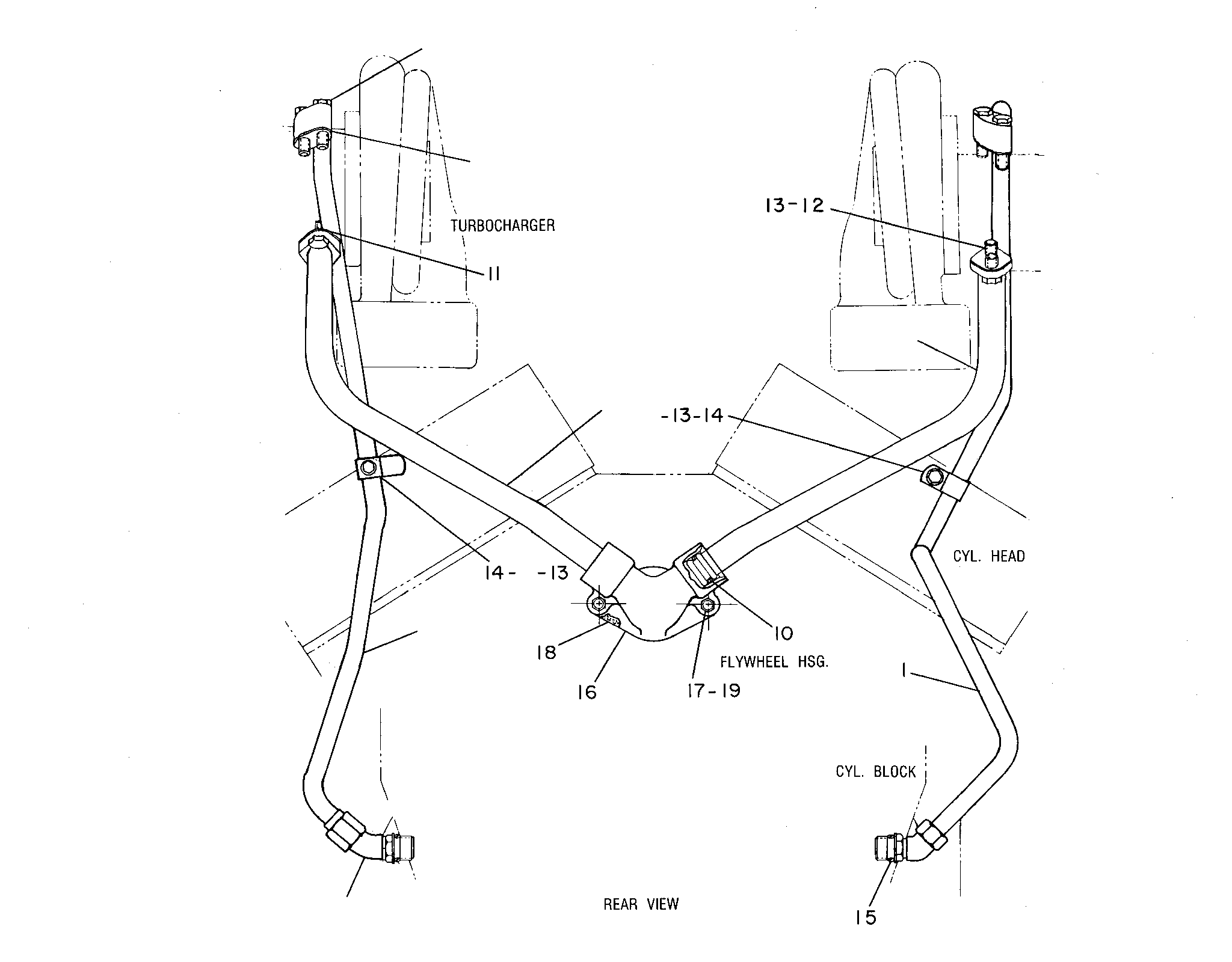

2W-3203 LINES GP-TURBOCHARGER OILS/N 38S16484-UP
Group No: 2W-3203
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 4W5927 | 1 TUBE AS-SUPPLY (RIGHT HAND) | 1 | |
| 4W5928 | 2 TUBE AS-SUPPLY (LEFT HAND) | 1 | |
| 6M7476 | 3 ELBOW | 2 | |
| 1986068 | 4 SEAL-INTEGRAL | 2 | |
| 0S0509 | 5 BOLT (3/8-16X0.75-IN) | 1 | |
| 0S1571 | 6 BOLT (3/8-16X1.75-IN) | 4 | |
| 0L1351 | 7 BOLT (3/8-16X0.875-IN) | 1 | |
| 2W1779 | 8 TUBE AS (RIGHT HAND) | 1 | |
| 2W1781 | 9 TUBE AS (LEFT HAND) | 1 | |
| 1123540 | 10 SEAL-O-RING | 2 | |
| 1262702 | 11 SEAL-INTEGRAL | 2 | |
| 1A2029 | 12 BOLT (3/8-16X1.125-IN) | 4 | |
| 5M2894 | 13 WASHER-HARD (10.2X18.5X2.5-MM THK) | 7 | |
| 9M8406 | 14 CLIP (LOOP) | 2 | |
| 1144427 | 15 SEAL-O-RING | 2 | |
| 2W1777 | 16 ELBOW | 1 | |
| 9S8752 | 17 NUT-FULL (3/8-16-THD) | 2 | |
| 9L6924 | 18 GASKET | 1 | |
| 3B2523 | 19 STUD | 2 |
