System And Components

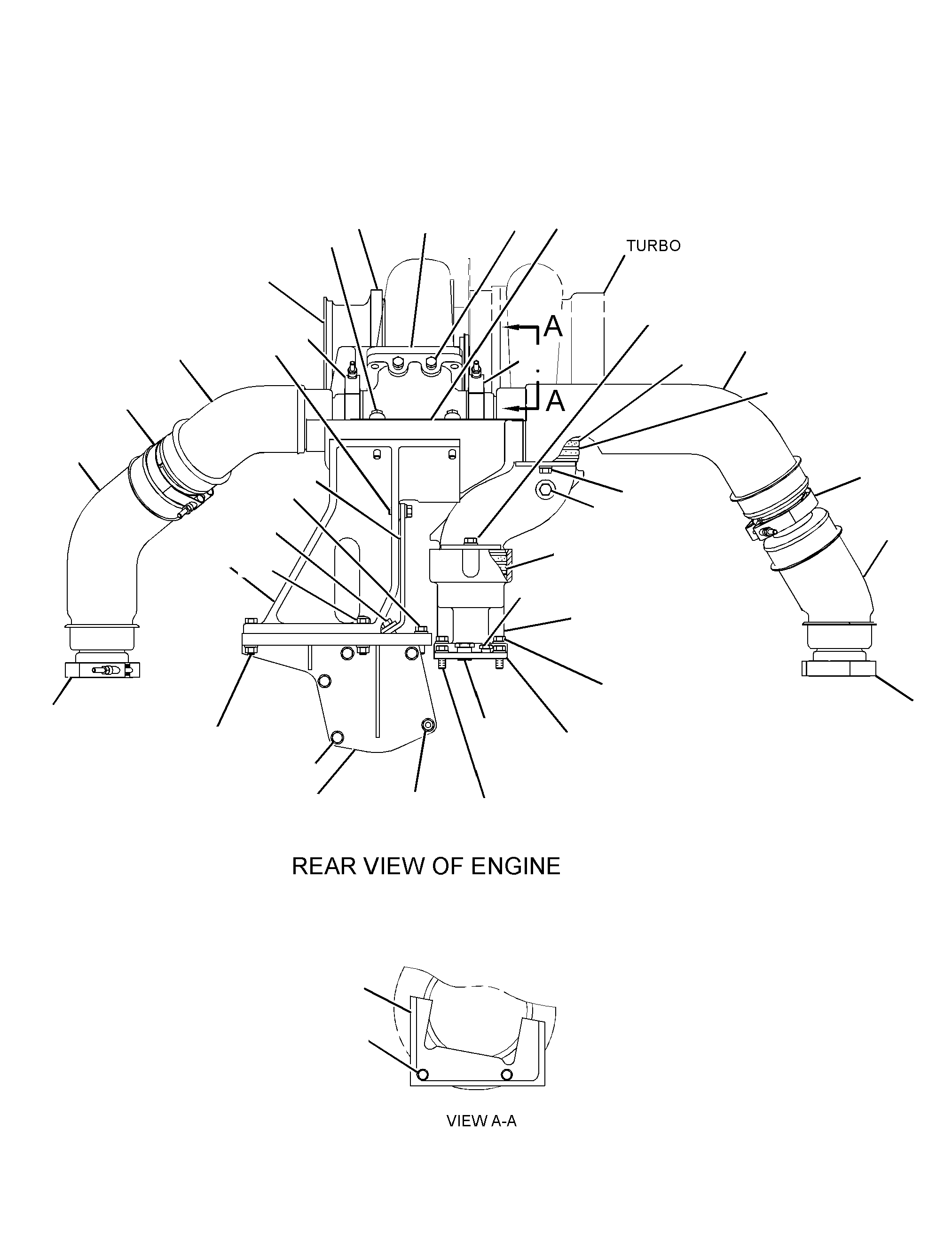

9Y-1035 LINES GP-AIRS/N 38S16484-UP
Group No: 9Y-1035
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 8N0879 | 1 CLAMP | 4 | |
| 1333565 | 2 TUBE AS-EXHAUST (LOWER LH) | 1 | |
| 8N0878 | 3 CLAMP | 2 | |
| 1069408 | 4 SEAL-EXHAUST | 2 | |
| 1W0481 | 5 RING-EXHAUST SEAL | 2 | |
| 1333566 | 6 TUBE AS-EXHAUST (UPPER LH) | 1 | |
| 9Y1102 | 7 COUPLING | 1 | |
| 7E3205 | 8 MANIFOLD-INLET | 1 | |
| 1236979 | 9 CLAMP-V BAND | 1 | |
| 5M6213 | 10 PLUG-PIPE (1/4-18-THD) | 2 | |
| 4L8337 | 11 SEAL-O-RING | 2 | |
| 9Y2149 | 12 TUBE AS-EXHAUST (UPPER RH) | 1 | |
| 9Y2148 | 13 TUBE AS-EXHAUST (LOWER RH) | 1 | |
| 7W3145 | 14 PLATE | 2 | |
| 0S1594 | 15 BOLT (3/8-16X1-IN) | 14 | |
| 5M2894 | 16 WASHER-HARD (10.2X18.5X2.5-MM THK) | 25 | |
| 5P2755 | 17 BOLT-HIGH TEMPERATURE (3/8-16X2.75-IN) | 4 | |
| 7N9389 | 18 PIPE | 1 | |
| 8T6765 | 19 PLUG-PIPE (1/4-18-THD) | 4 | |
| 5S1188 | 20 SEAL-O-RING | 2 | |
| 9N1081 | 21 ADAPTER-TRANSFER PIPE | 1 | |
| 0S1591 | 22 BOLT (3/8-16X1.5-IN) | 6 | |
| 4N2564 | 23 GASKET | 1 | |
| 4N2565 | 24 PLATE-MANIFOLD | 1 | |
| 6N2331 | 25 GASKET | 1 | |
| 7W6492 | 26 PLUG-PIPE (1/2-14-THD) | 1 | |
| 7C8034 | 27 SUPPORT AS | 1 | |
| 7W5648 | 28 GASKET | 1 | |
| 0S1571 | 29 BOLT (3/8-16X1.75-IN) | 4 | |
| 9S8752 | 30 NUT-FULL (3/8-16-THD) | 4 | |
| 7N9424 | 31 PLATE | 1 | |
| 0S1608 | 32 BOLT (3/8-16X3.75-IN) | 2 | |
| 9J8583 | 33 WASHER | 2 | |
| 0S1588 | 34 BOLT (3/8-16X1.25-IN) | 1 | |
| 7W1096 | 35 SUPPORT-TURBOCHARGER | 1 | |
| 8N2258 | 36 SHIELD AS-BOTTOM | 1 | |
| 6V5044 | NUT-WELD (5/16-18-THD) | 7 | |
| 9M4136 | SPACER (0.438X0.75X0.5-IN THK) | 5 | |
| 6F7012 | 37 STUD-TAPERLOCK (3/8-16X1.57-IN) | 1 | |
| 5P9959 | 38 BOLT (5/16-18X0.5-IN) | 2 | |
| 9M1974 | 39 WASHER-HARD (8.8X16X2-MM THK) | 2 | |
| 1W6186 | 40 SHIELD AS | 1 | |
| 6V5044 | NUT-WELD (5/16-18-THD) | 2 |
