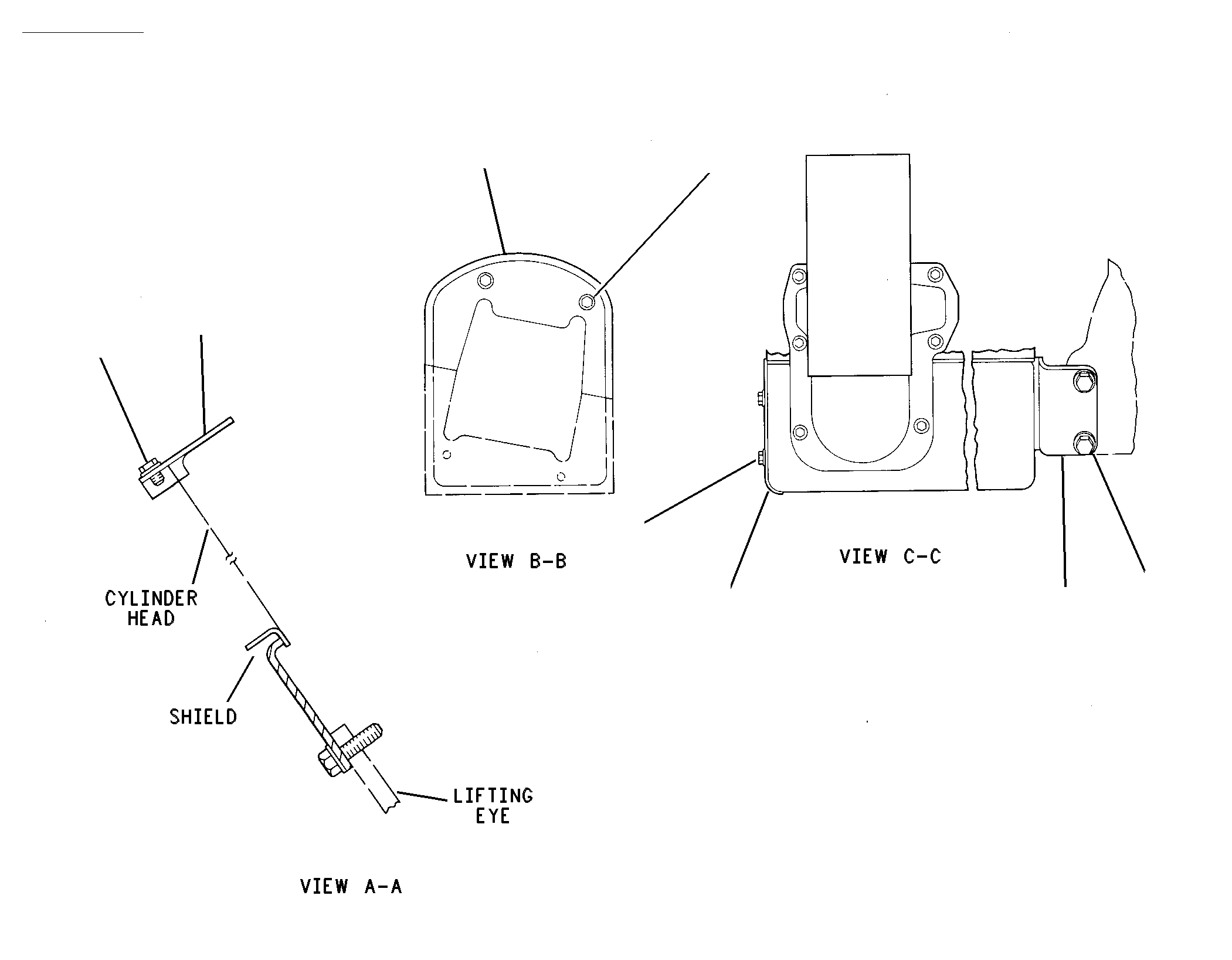

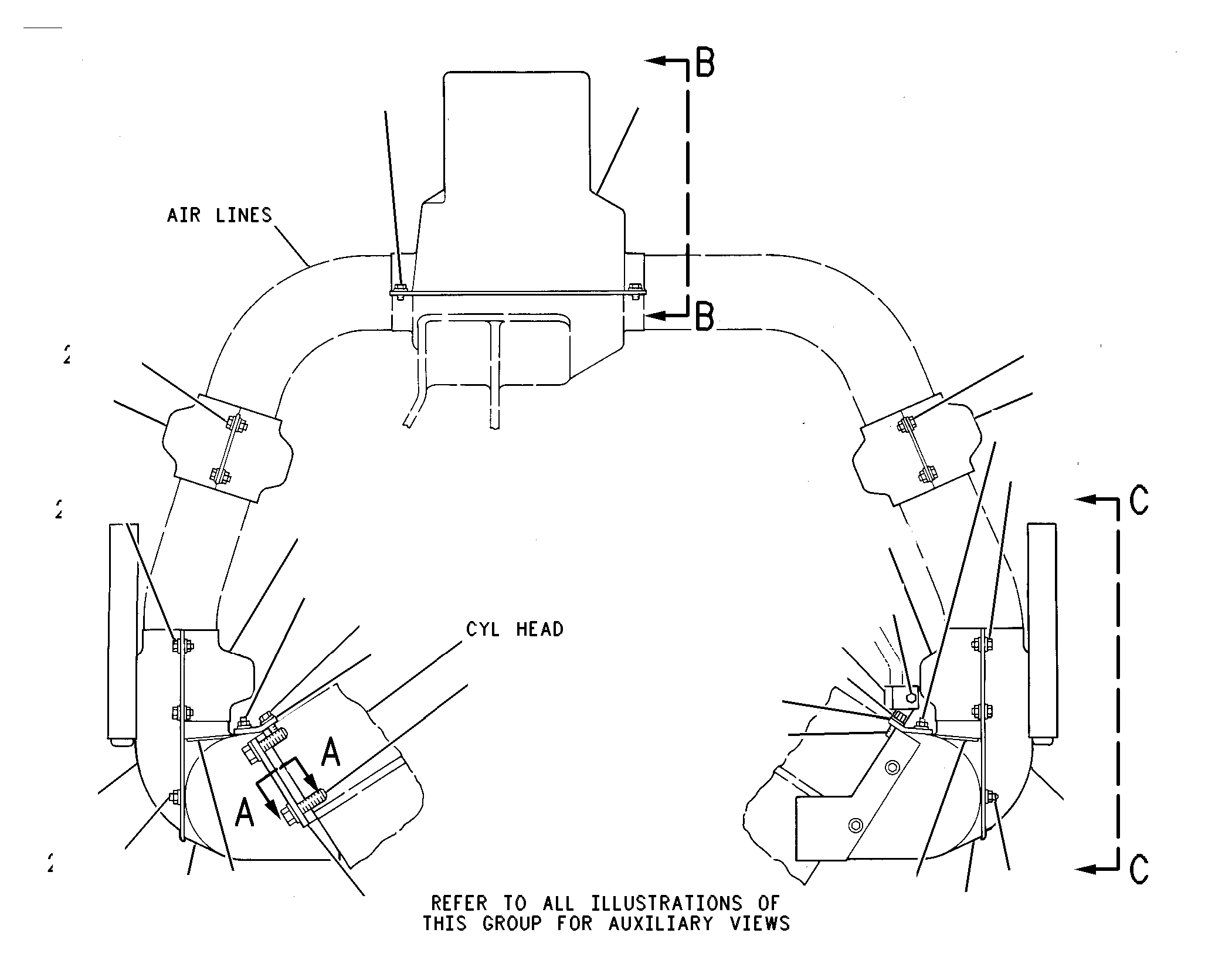

9Y-3321 SHIELD GP-MANIFOLDS/N 38S16484-UP

Group No: 9Y-3321
Part NumberPart NameQty
5M28941 WASHER-HARD (10.2X18.5X2.5-MM THK)14
9M19742 WASHER-HARD (8.8X16X2-MM THK)55
8N23683 SHIELD AS (TURBO TOP)1
2H37554 BOLT (5/16-18X0.43-IN)23
1B53545 NUT-FULL (5/16-18-THD)32
1N33006 SHIELD AS4
9Y45707 SHIELD AS2
6V27128 STUD16
9Y45749 SHIELD AS-MANIFOLD (RH)1
6V5044NUT-WELD (5/16-18-THD)10
8N161610 SHIELD AS2
8N161911 SHIELD AS2
0S159412 BOLT (3/8-16X1-IN)12
1W339713 PLATE2
0S158714 BOLT (1/2-13X1.75-IN)2
5P8245WASHER-HARD (13.5X25.5X3-MM THK)2
8N795315 PLATE1
9Y457316 SHIELD AS (LH)1
6V5044NUT-WELD (5/16-18-THD)10
1N473417 CLAMP2
2P091118 ANGLE1
0L114319 BOLT (3/8-16X2.5-IN)1
1D471720 NUT (3/8-16-THD)1
5P995921 BOLT (5/16-18X0.5-IN)6
1W618522 SHIELD AS1
6V5044NUT-WELD (5/16-18-THD)2
8N795423 PLATE2
8N795324 PLATE1
9M197425 WASHER-HARD (8.8X16X2-MM THK)6
0S158726 BOLT (1/2-13X1.75-IN)2
5P8245WASHER-HARD (13.5X25.5X3-MM THK)2
