System And Components

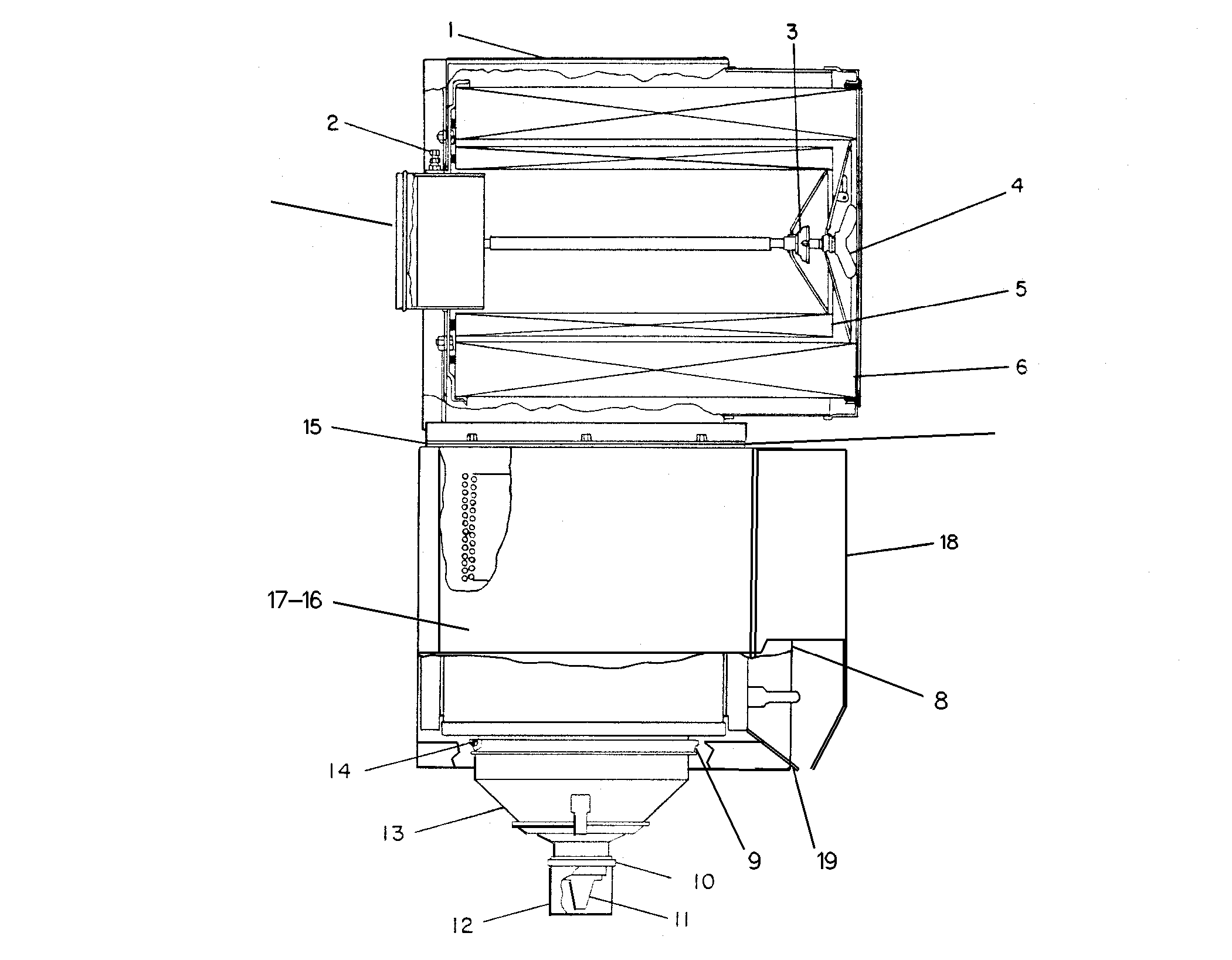

7E-4621 AIR CLEANER GPS/N 2BW1-139
Group No: 7E-4621
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 7W9858 | 1 AIR CLEANER AS | 1 | |
| 7W0629 | 2 ADAPTER AS-FILTER | 1 | |
| 7W0444 | 3 NUT AS | 1 | |
| 3B4618 | PIN-COTTER | 1 | |
| 1N8161 | 4 NUT-WING | 1 | |
| 5S4279 | GASKET | 1 | |
| 0066850 | RETAINER (RING) | 1 | |
| 1W3636 | 5 FILTER ELEMENT AS-AIR (SECONDARY)(AIR CLEANER) | 1 | |
| 1W3637 | 6 FILTER ELEMENT AS-AIR (PRIMARY)(AIR CLEANER) | 1 | |
| 1170051 | 7 FLANGE AS (AIR CLEANER) | 1 | |
| 5N8615 | 8 BODY AS | 1 | |
| 5N7834 | 9 CLAMP AS | 1 | |
| 9M7959 | 10 CLAMP-HOSE | 1 | |
| 1S5485 | 11 VALVE-DUST | 1 | |
| 1S5465 | 12 GUARD-DUST | 1 | |
| 2W9069 | 13 CUP AS-PRECLEANER | 1 | |
| 2M0879 | 14 SEAL-O-RING | 1 | |
| 7W9856 | 15 GASKET | 2 | |
| 7E4622 | 16 SHIELD-SIDE (LH) | 1 | |
| 7E4623 | 17 SHIELD-SIDE (RH) | 1 | |
| 7E4624 | 18 SHIELD-FRONT | 1 | |
| 7E4625 | 19 SHIELD (BOTTOM) | 1 | |
| 7W9857 | 20 GASKET | 2 |
