System And Components

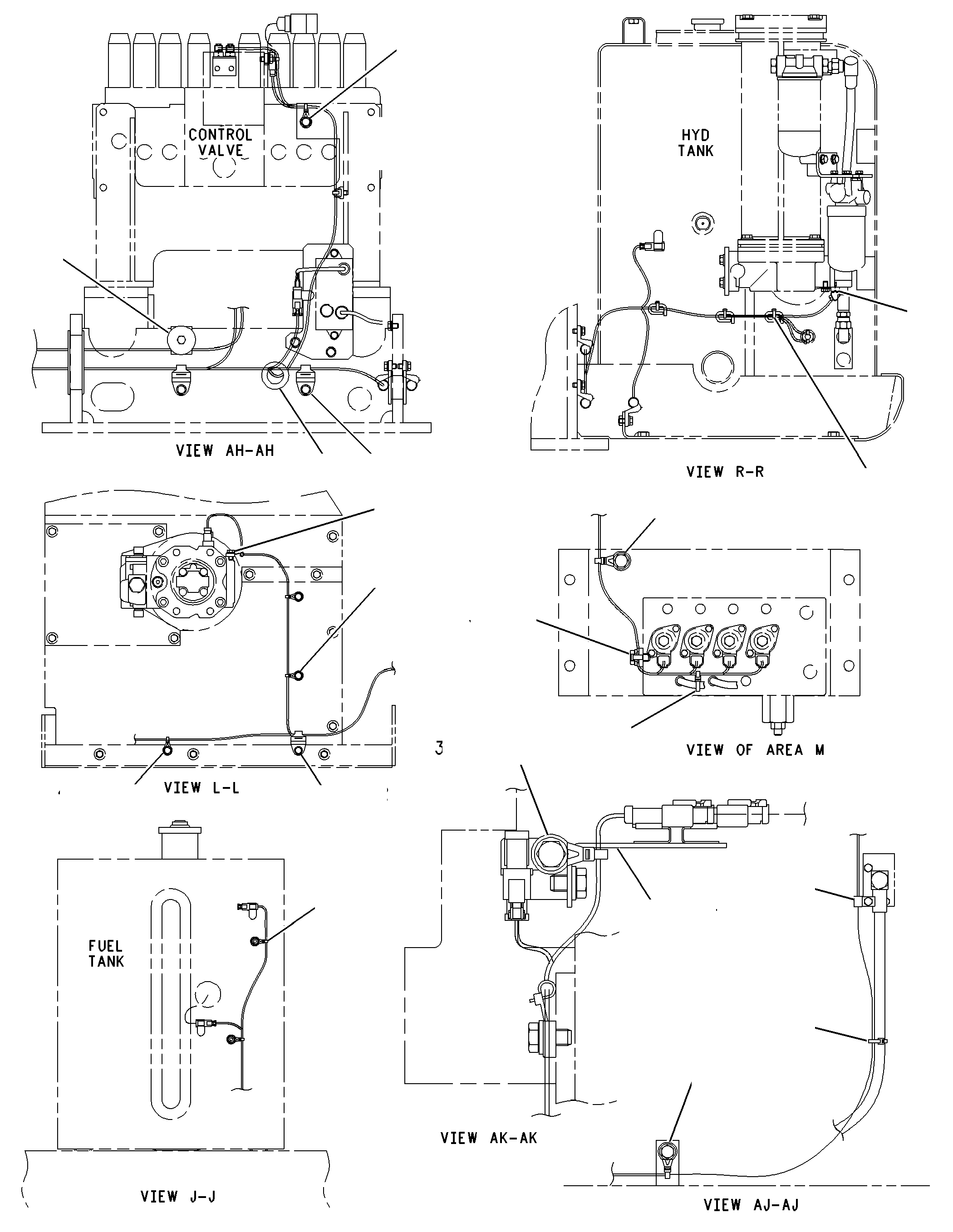

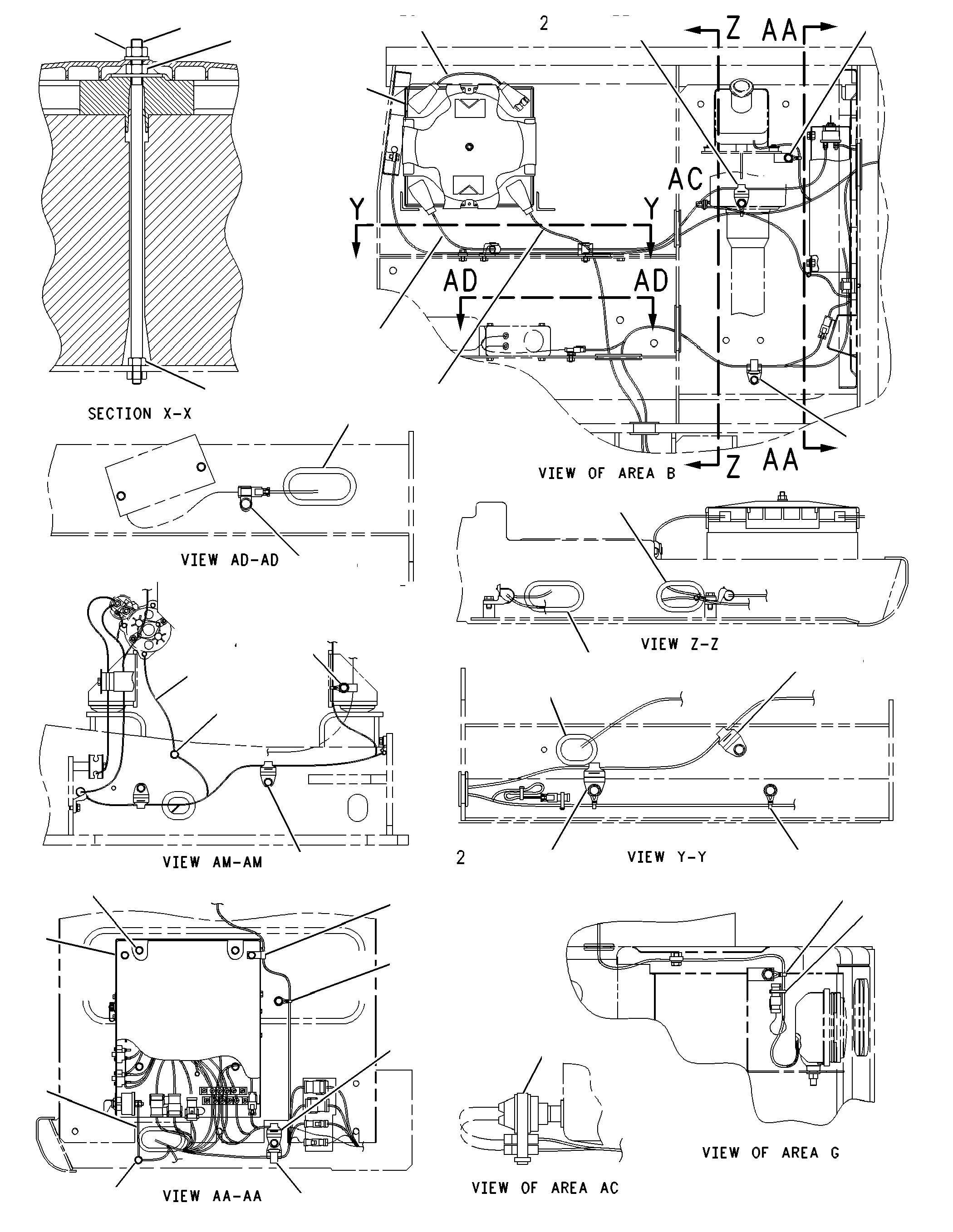

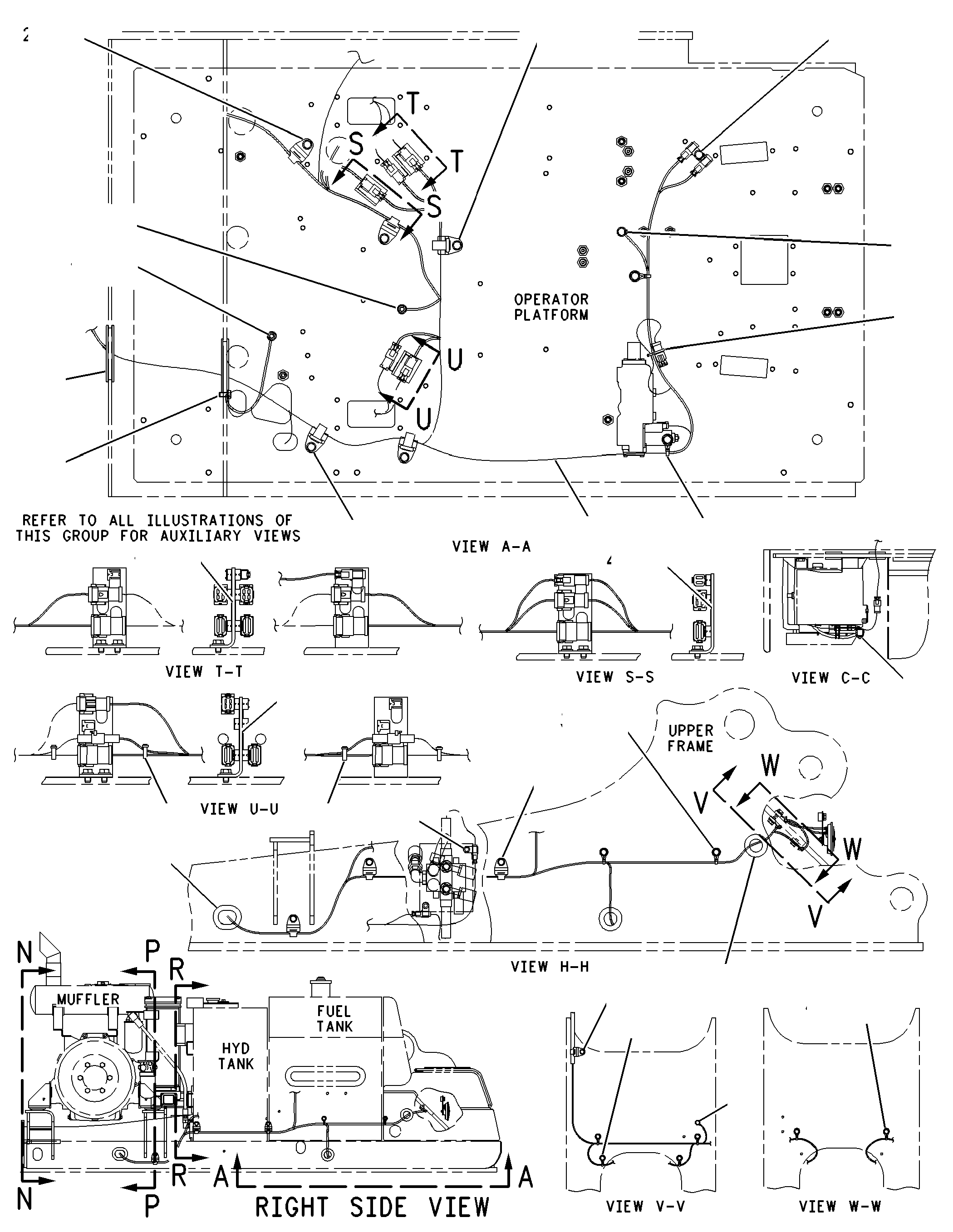

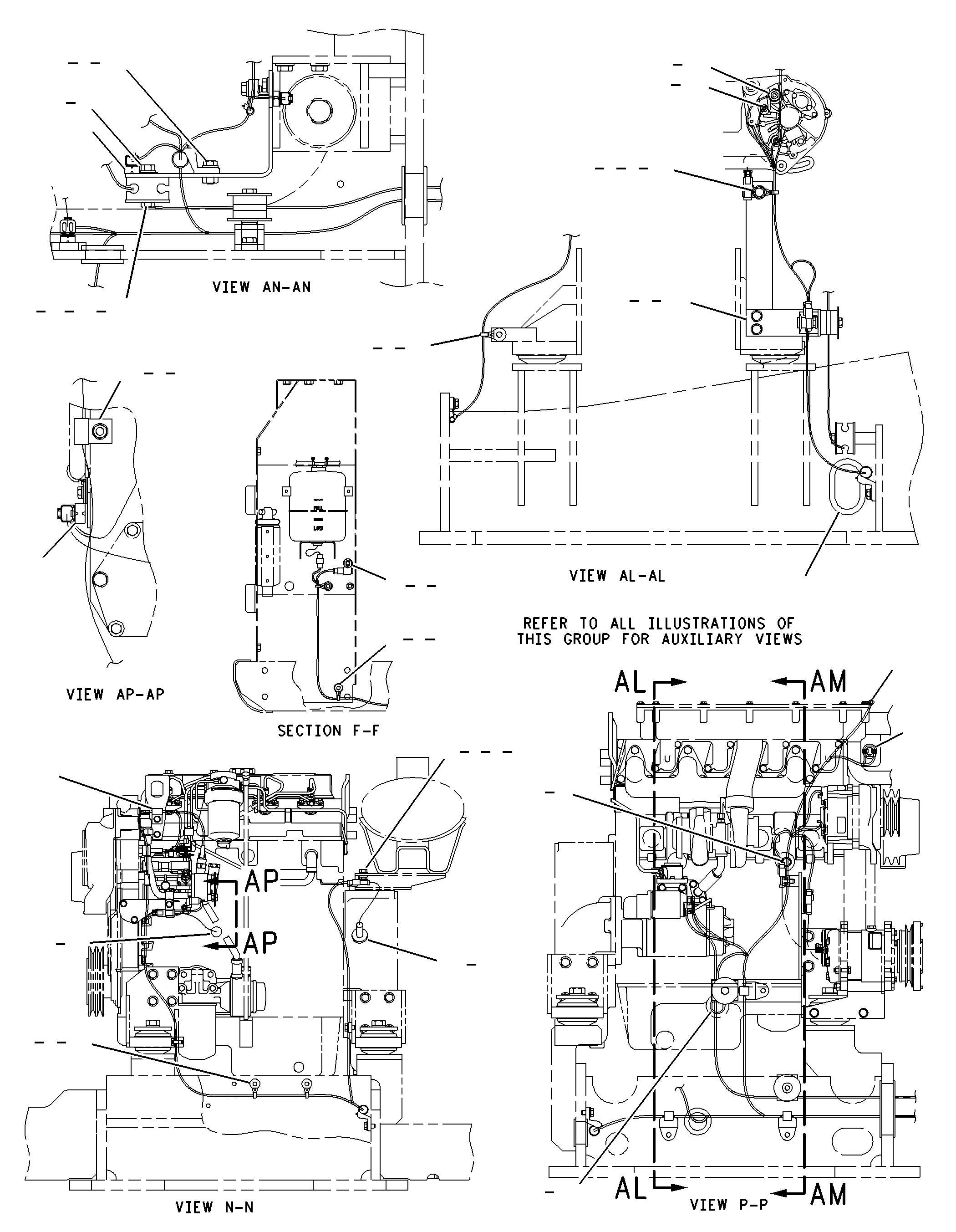

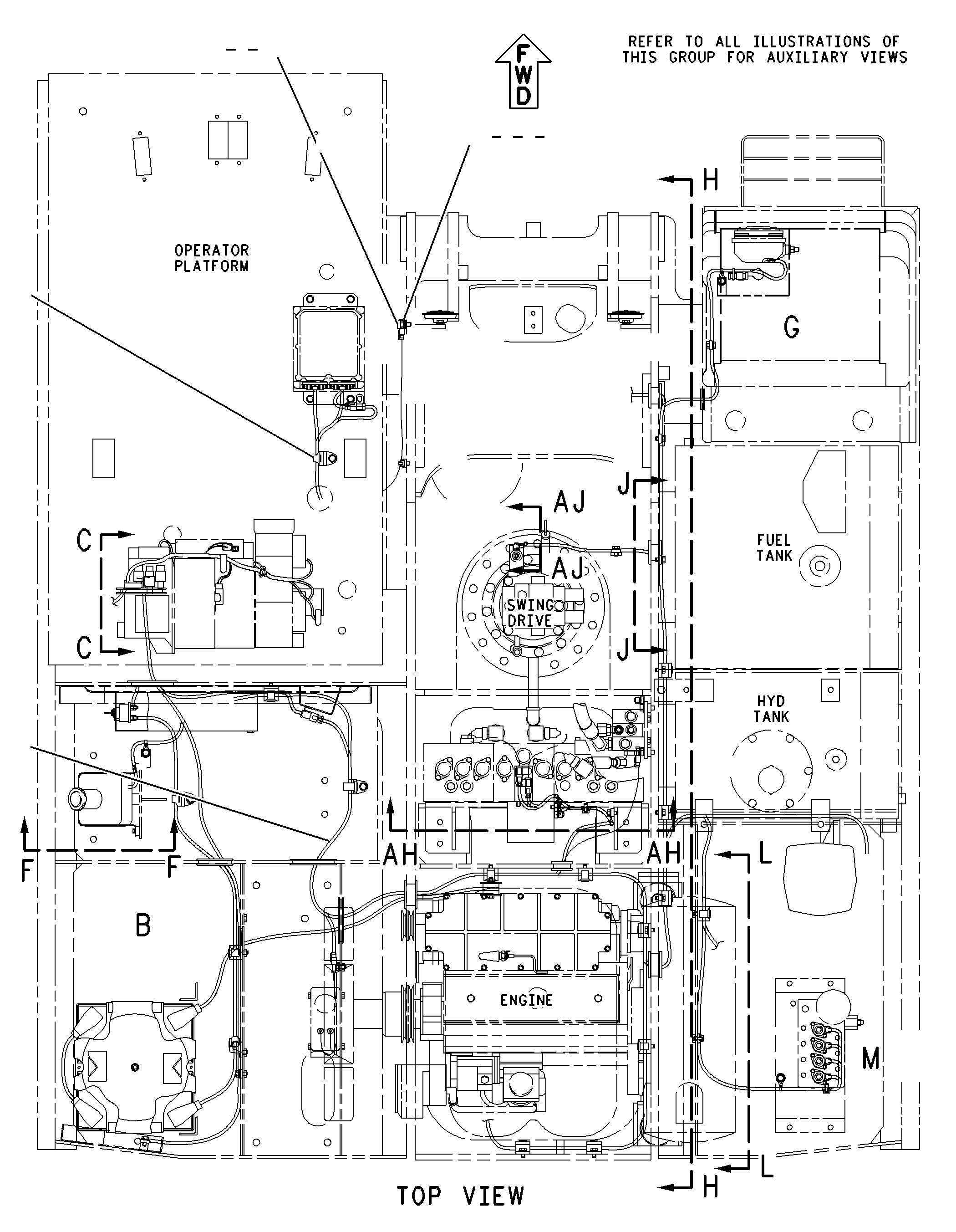

152-6909 BATTERY & WIRING GPS/N 5SW579-UP
Group No: 152-6909
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 1920699 | 1 HARNESS AS | 1 | |
| 1028802 | KIT-RECEPTACLE (2-PIN) | 1 | |
| 1028803 | KIT-RECEPTACLE (3-PIN) | 1 | |
| 1028801 | KIT-RECEPTACLE (12-PIN) | 1 | |
| 1552255 | KIT-CONNECTING PLUG (12-PIN) | 1 | |
| 1552260 | KIT-CONNECTING PLUG (3-PIN) | 1 | |
| 1552270 | KIT-CONNECTING PLUG (2-PIN) | 1 | |
| 1552274 | KIT-CONNECTING PLUG (6-PIN) | 1 | |
| 1114837 | 2 CLIP | 17 | |
| 8T4137 | 3 BOLT (M10X1.5X20-MM) | 46 | |
| 8T4121 | 4 WASHER-HARD (11X21X2.5-MM THK) | 88 | |
| 3S2093 | 5 STRAP-CABLE | 10 | |
| 1160118 | 6 CLIP | 11 | |
| 8T4133 | 7 NUT (M10X1.5-THD) | 7 | |
| 8T4191 | 8 BOLT (M10X1.5X16-MM) | 23 | |
| 1160230 | 9 BRACKET AS | 1 | |
| 1160229 | 10 BRACKET AS | 2 | |
| 1114838 | 11 CLIP | 5 | |
| 1114839 | 12 STRAP | 5 | |
| 7X2621 | 13 BOLT (M10X1.5X12-MM) | 1 | |
| 1114836 | 14 CLIP | 37 | |
| 1920698 | 15 HARNESS AS | 1 | |
| 1028802 | KIT-RECEPTACLE (2-PIN) | 1 | |
| 1028803 | KIT-RECEPTACLE (3-PIN) | 1 | |
| 1028805 | KIT-RECEPTACLE (6-PIN) | 1 | |
| 1028806 | KIT-RECEPTACLE (8-PIN) | 1 | |
| 1028801 | KIT-RECEPTACLE (12-PIN) | 1 | |
| 1552255 | KIT-CONNECTING PLUG (12-PIN) | 1 | |
| 1552265 | KIT-CONNECTING PLUG (8-PIN) | 1 | |
| 1552260 | KIT-CONNECTING PLUG (3-PIN) | 1 | |
| 1552270 | KIT-CONNECTING PLUG (2-PIN) | 1 | |
| 1552274 | KIT-CONNECTING PLUG (6-PIN) | 1 | |
| 7Y3196 | 16 GROMMET | 4 | |
| 7G1060 | 17 STRAP AS-GROUND | 1 | |
| 1343299 | 18 GROMMET | 2 | |
| 7Y8167 | 19 GROMMET (50-MM ID) | 1 | |
| 8T4196 | 20 BOLT (M10X1.5X35-MM) | 2 | |
| 0932064 | 21 GROMMET | 1 | |
| 8T4136 | 22 BOLT (M10X1.5X25-MM) | 9 | |
| 5I8304 | 23 ROD | 1 | |
| 8T4226 | 24 WASHER-PLATED (10.5X45X3-MM THK) | 1 | |
| 5C7261 | 25 NUT (M8X1.25-THD) | 2 | |
| 1343344 | 26 STRAP AS | 1 | |
| 1920696 | 27 PANEL GP-CIRCUIT BREAKER | 1 | |
| 4D8123 | 28 CLIP (LOOP) | 1 | |
| 3T5760 | 29 BATTERY GP (12-VOLT, 750-CCA) | 2 | |
| 6W6005 | 30 HOLD-DOWN-BATTERY | 1 | |
| 5I8270 | 31 COVER-BATTERY | 1 | |
| 1160080 | 32 CABLE AS (JUMPER) | 1 | |
| 5P0761 | CABLE (00-GA, RED)(31CM) | ||
| 7N5274 | COVER AS-TERMINAL (BLACK) | 1 | |
| 8N1725 | COVER AS-TERMINAL (RED) | 1 | |
| 3S6050 | TERMINAL AS-BATTERY (NEGATIVE) | 1 | |
| 3S6049 | TERMINAL AS-BATTERY (POSITIVE) | 1 | |
| 1M6119 | BOLT (5/16-18X1.375-IN) | 2 | |
| 1M6120 | NUT (5/16-18-THD) | 2 | |
| 8T4195 | 33 BOLT (M10X1.5X30-MM) | 1 | |
| 1400905 | 34 CABLE AS | 1 | |
| 1S7252 | TERMINAL-CABLE (00-GA, 3/8-IN SCREW) | 1 | |
| 5P0761 | CABLE (00-GA, RED)(170CM) | ||
| 8N0869 | COVER-TERMINAL (RED) | 1 | |
| 8N1725 | COVER AS-TERMINAL (RED) | 1 | |
| 3S6049 | TERMINAL AS-BATTERY (POSITIVE) | 1 | |
| 1M6119 | BOLT (5/16-18X1.375-IN) | 1 | |
| 1M6120 | NUT (5/16-18-THD) | 1 | |
| 1343275 | 35 CABLE AS | 1 | |
| 1S7252 | TERMINAL-CABLE (00-GA, 3/8-IN SCREW) | 1 | |
| 5P0747 | CABLE (00-GA, BLACK)(132CM) | ||
| 7N5274 | COVER AS-TERMINAL (BLACK) | 1 | |
| 9G8909 | COVER-TERMINAL (BLACK) | 1 | |
| 3S6050 | TERMINAL AS-BATTERY (NEGATIVE) | 1 | |
| 1M6119 | BOLT (5/16-18X1.375-IN) | 1 | |
| 1M6120 | NUT (5/16-18-THD) | 1 | |
| 7Y5497 | 36 GROMMET | 1 | |
| 8M2771 | 37 CLIP | 1 | |
| 7I2673 | 38 STRAP-CABLE | 2 | |
| 7Y8170 | 39 GROMMET | 1 | |
| 6G2256 | 40 CLAMP | 2 | |
| 6G2263 | 41 SPACER (10.5X19X28.5-MM THK) | 2 | |
| 8T4182 | 42 BOLT (M10X1.5X45-MM) | 1 | |
| 2G8767 | 43 WASHER (10.5X60X3-MM THK) | 3 | |
| 1211074 | 44 BRACKET AS (7.94MM ID) | 1 | |
| 1321806 | 45 STRAP AS-GROUND | 1 | |
| 8T4185 | 46 BOLT (M10X1.5X50-MM) | 1 | |
| 1400908 | 47 BRACKET AS | 1 | |
| 5C2874 | 48 NUT (M5X0.8-THD) | 2 | |
| 8T0328 | 49 WASHER-HARD (5.5X10X1-MM THK) | 2 | |
| 5P4116 | 50 WASHER-HARD (8.8X20.5X2-MM THK) | 1 | |
| 5I4366 | 51 GROMMET | 1 | |
| 1124009 | 52 SENDER-TEMPERATURE | 1 | |
| 0985800 | 53 WASHER-COPPER (16.2X20X1.5-MM THK) | 1 | |
| 2130677 | 54 SWITCH AS-LIQUID LEVEL | 1 | |
| 6V5050 | 55 SEAL-O-RING | 1 | |
| 5P9297 | 56 CLIP (LOOP) | 1 | |
| 6V2455 | 57 SENSOR GP-SPEED | 1 | |
| 3E3365 | WEDGE-RECEPTACLE LOCK (2-PIN) | 1 | |
| 8T8729 | PIN-CONNECTOR (16-GA TO 20-GA) | 2 | |
| 9X1386 | SLEEVE (14CM) | ||
| 1102555 | 58 ADAPTER | 1 | |
| 5I8005 | 59 SWITCH-PRESSURE (PRESSURE)(ENGINE OIL) | 1 | |
| 5P9085 | 60 CLIP (LOOP) | 1 | |
| 8L5008 | 61 ELBOW-PIPE | 1 | |
| 9M8406 | 63 CLIP (LOOP) | 2 | |
| 4D7794 | 64 CLIP | 2 | |
| 6D3479 | 65 CLIP (LOOP) | 1 |
