System And Components

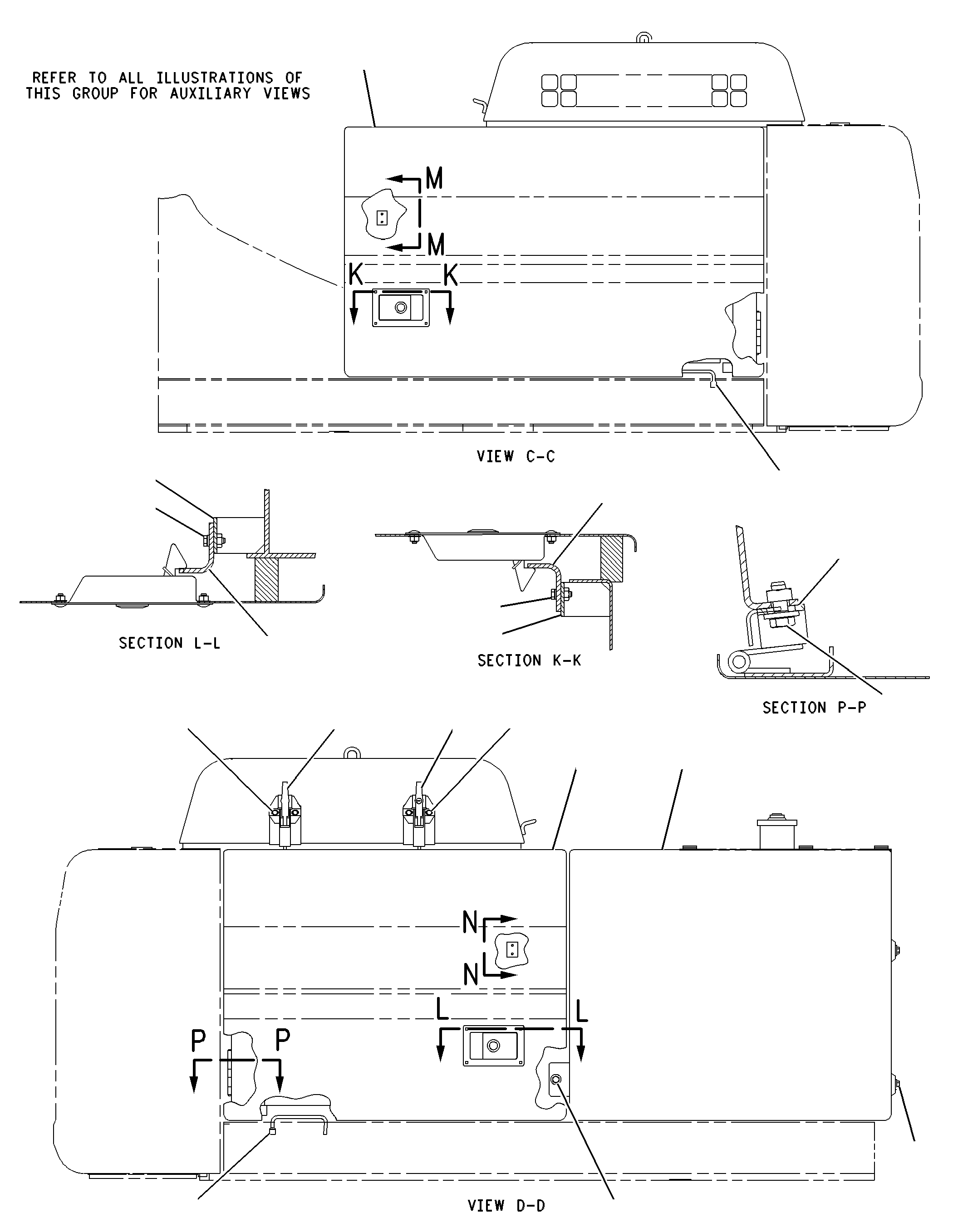

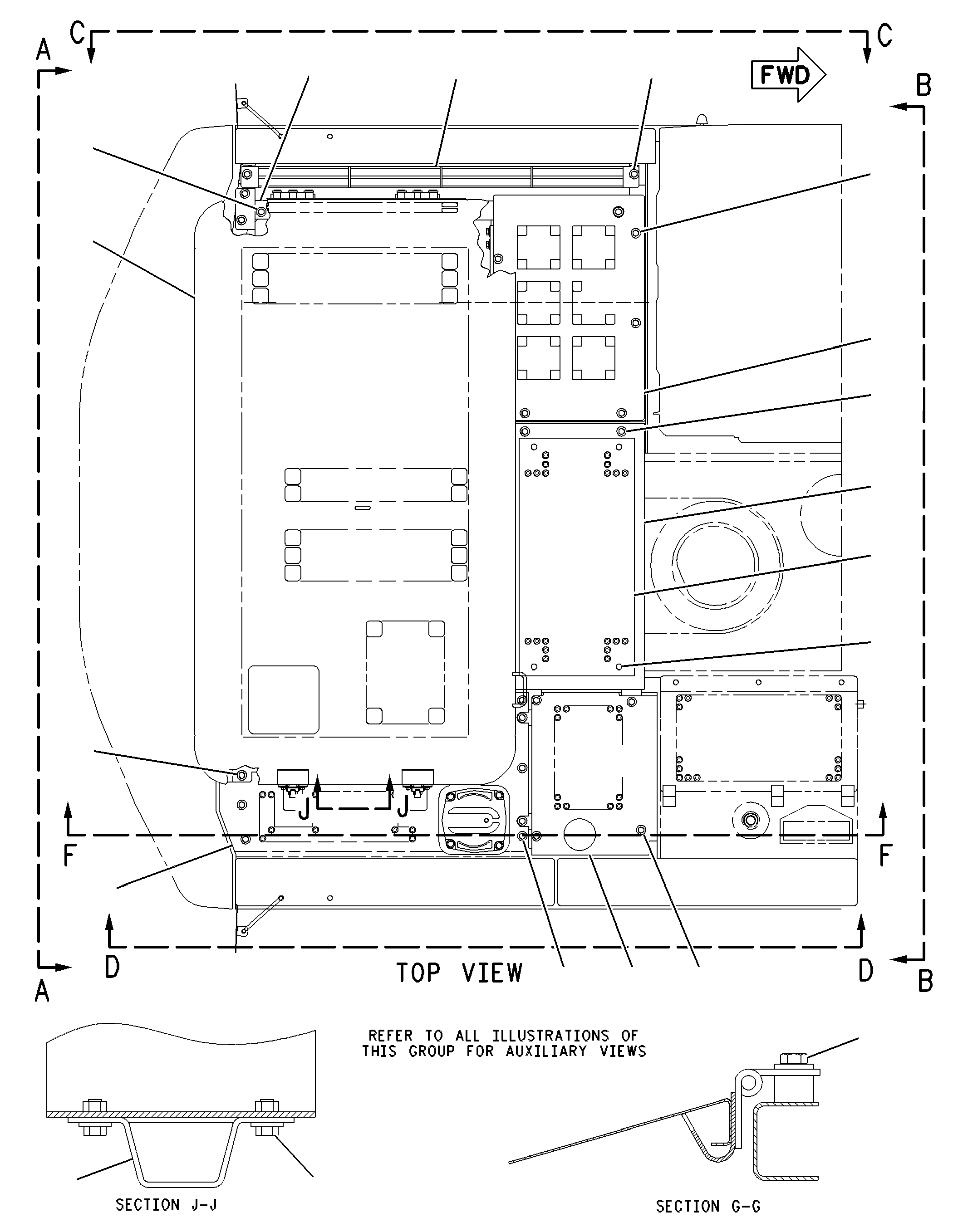

150-0107 HOOD & GUARD GPS/N 5SW1-UP
Group No: 150-0107
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 1527380 | 1 HOOD GP-ENGINE | 1 | |
| 8T4192 | 2 BOLT (M12X1.75X25-MM) | 89 | |
| 1391718 | 3 SUPPORT AS | 1 | |
| 1420973 | 4 SHEET AS | 1 | |
| 1449275 | 5 SHEET AS | 1 | |
| 1351437 | 6 SHEET | 1 | |
| 7Y6190 | 7 BOLT (M8X1.25X20-MM) | 4 | |
| 5C7261 | 8 NUT (M8X1.25-THD) | 4 | |
| 8T4224 | 9 WASHER-HARD (8.8X16X2-MM THK) | 12 | |
| 1420974 | 10 SHEET AS | 1 | |
| 1391698 | 11 SHEET AS | 1 | |
| 1420979 | 12 SUPPORT AS | 1 | |
| 1391693 | 13 SHEET AS | 1 | |
| 1391715 | LINER | 1 | |
| 1449345 | LINER | 1 | |
| 1449402 | 14 ANGLE AS | 1 | |
| 1219016 | 15 SHEET | 1 | |
| 1391743 | 16 SHEET AS | 1 | |
| 1420931 | 17 SUPPORT AS | 1 | |
| 1420975 | 18 ANGLE AS | 1 | |
| 1420916 | 19 SUPPORT AS | 1 | |
| 1391735 | 20 SUPPORT AS | 1 | |
| 4I0117 | 21 LATCH AS | 1 | |
| 1R9958 | 22 LATCH AS | 1 | |
| 8T4200 | 23 BOLT (M8X1.25X16-MM) | 4 | |
| 1351343 | 24 DOOR GP-ACCESS | 1 | |
| 1421007 | 25 SHEET AS | 1 | |
| 1025673 | 26 ROD | 2 | |
| 1351348 | 27 DOOR GP-ACCESS | 1 | |
| 1391688 | 28 SHEET AS | 1 | |
| 1391690 | 29 SHEET AS | 1 | |
| 1525641 | 30 SHEET | 1 | |
| 4I0118 | 31 HOOK AS | 2 | |
| 1391713 | 32 SHEET AS | 1 | |
| 1391715 | LINER | 1 | |
| 1420937 | 33 SHEET AS | 1 | |
| 1420940 | LINER | 1 | |
| 1351395 | 34 SHEET AS | 1 | |
| 1351397 | LINER | 1 | |
| 1351398 | LINER | 1 | |
| 1527377 | 35 SUPPORT AS | 1 | |
| 0951321 | 36 PIN-CLEVIS | 2 | |
| 3B4618 | 37 PIN-COTTER | 2 | |
| 8T4121 | 38 WASHER-HARD (11X21X2.5-MM THK) | 5 | |
| 1420922 | 39 SUPPORT | 1 | |
| 1420934 | 40 GUIDE AS | 1 | |
| 4I2598 | 41 STRIKER | 2 | |
| 8T4138 | 42 BOLT (M6X1X20-MM) | 8 | |
| 5P4115 | 43 WASHER-HARD (7.2X19X2-MM THK) | 8 | |
| 0873908 | 44 SHIM (1-MM THK) | 4 | |
| 0873909 | 45 SHIM (2-MM THK) | 4 | |
| 1025080 | 46 STRIP | 1 | |
| 4I8019 | 47 SUPPORT | 2 | |
| 8T0269 | 48 BOLT-SOCKET HEAD (M6X1X20-MM) | 4 | |
| 9X8256 | 49 WASHER (6.6X12X2-MM THK) | 8 | |
| 5C9553 | 50 BOLT (M6X1X16-MM) | 4 | |
| 6I6033 | 51 STOP | 2 | |
| 7I1418 | 52 SUPPORT AS | 1 | |
| 0878894 | 53 SHIM (2-MM THK) | 6 | |
| 0878895 | 54 SHIM (1-MM THK) | 6 | |
| 0878896 | 55 SHIM (0.5-MM THK) | 12 | |
| 1227017 | 56 GROMMET | 1 | |
| 1449403 | 57 SUPPORT AS | 1 | |
| 1358572 | 58 BOLT AS | 6 | |
| 5P1076 | WASHER-HARD (13.5X30X4-MM THK) | 1 | |
| 8T4179 | BOLT (M12X1.75X20-MM) | 1 | |
| 8T4189 | 59 BOLT (M8X1.25X20-MM) | 4 | |
| 5P1076 | 60 WASHER-HARD (13.5X30X4-MM THK) | 6 |
