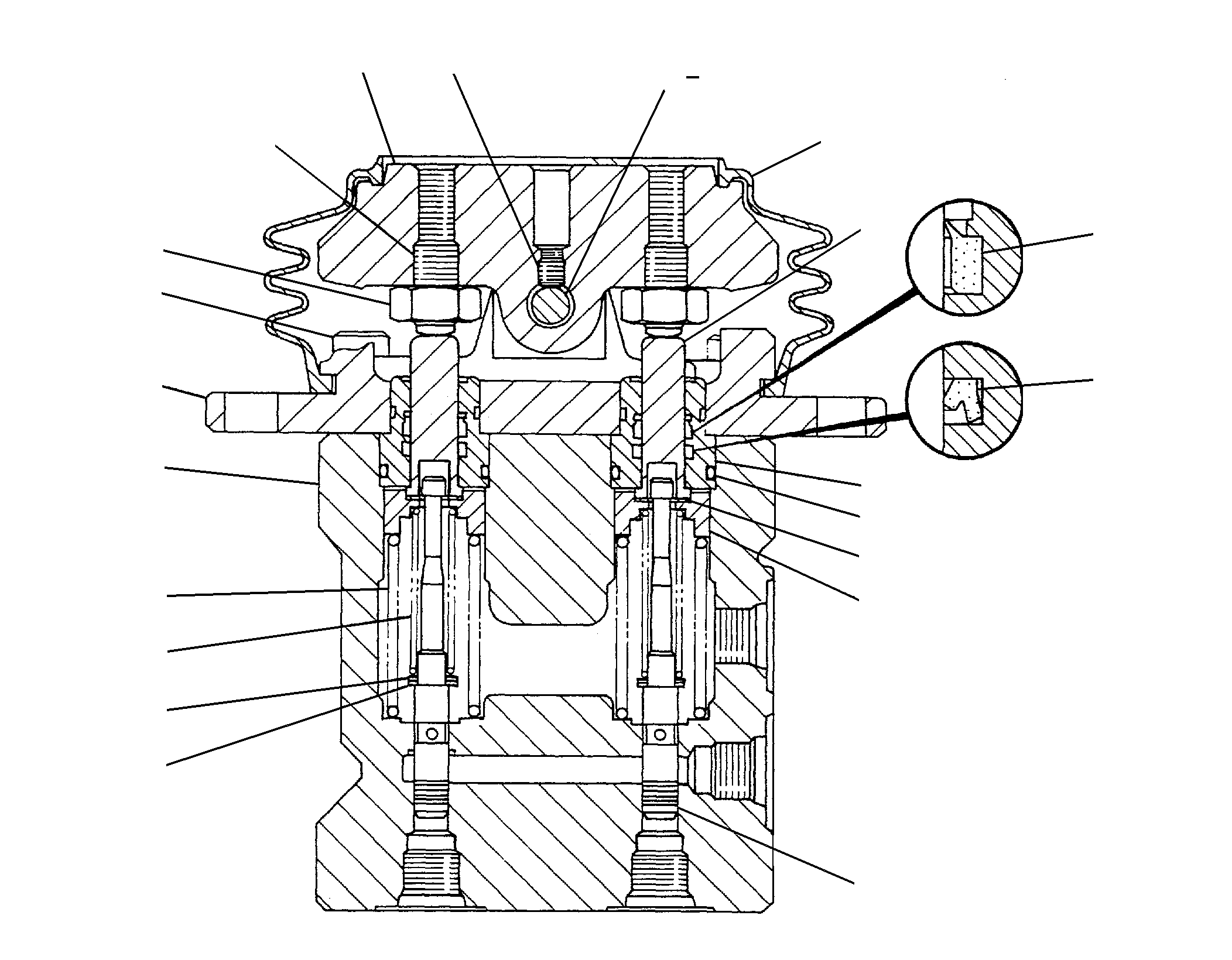

Assembly
100%

121-1814 VALVE GP-PILOTS/N 5SW1-UP

Group No: 121-1814
Part NumberPart NameQty
09961321 HOUSING1
08757072 COVER1
08744483 BOLT-SOCKET HEAD (M8X1.25X30-MM)2
8T41334 NUT (M10X1.5-THD)2
08747105 SETSCREW (M10X21-MM)2
08757086 PEDAL1
09512607 SETSCREW-SOCKET (M6X1X6-MM)1
08757098 BELLOWS1
08747049 ROD2
099613510 SCRAPER2
094087611 SEAL2
087470312 PLUG2
095158613 SEAL-O-RING2
099613614 WASHER (5.1X12.5X1-MM THK)4
099614015 SEAT2
099613916 SPOOL2
099614117 WASHER (6.1X11X1.5-MM THK)2
099613718 WASHER (6.1X9X0.2-MM THK)2
099614219 SPRING2
121181520 SPRING2
099614421 BUSHING-TERMINAL2
099614522 CAMSHAFT1
