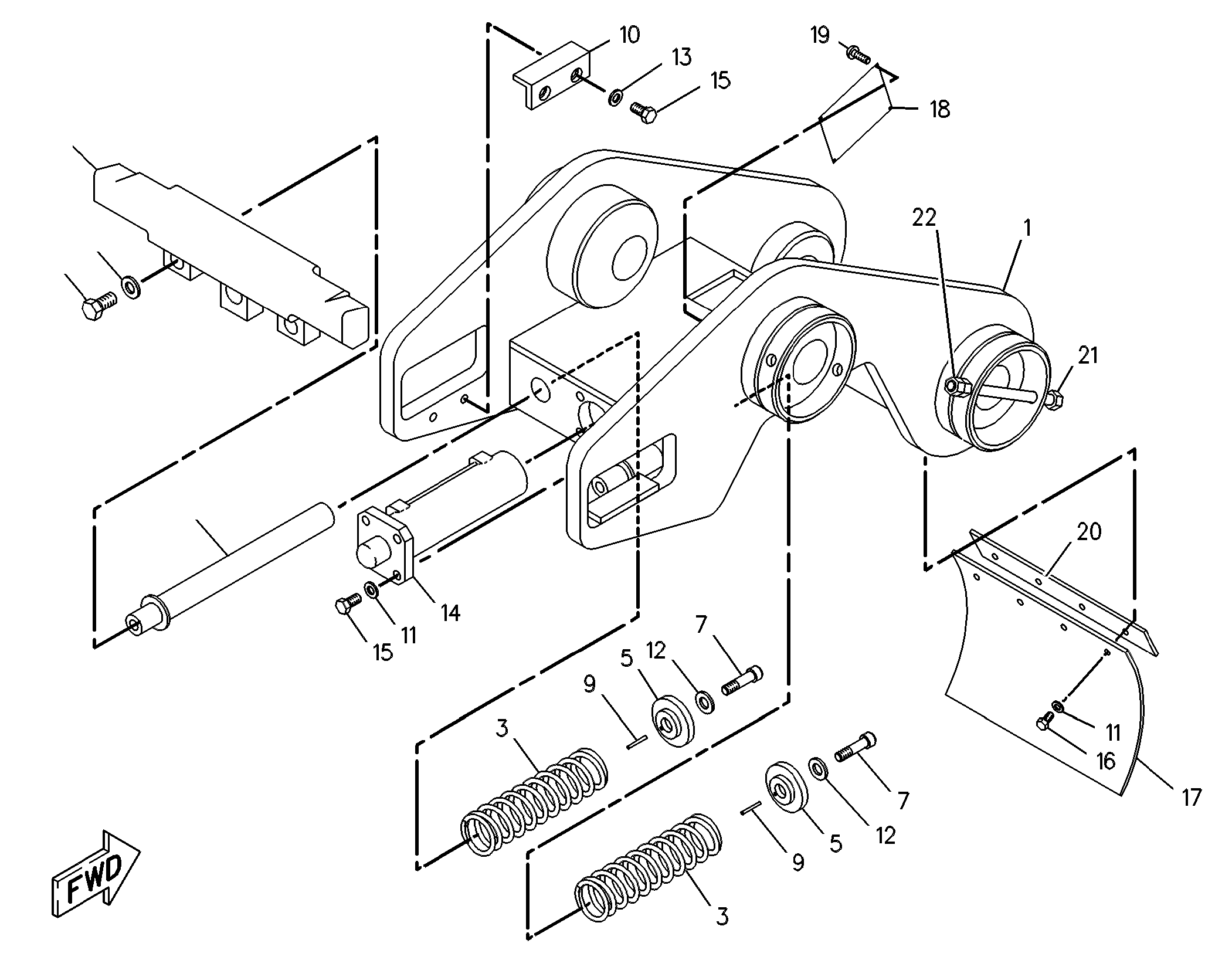

110-7284 COUPLER GP-QUICKS/N 5SW1-UP

Group No: 110-7284
Part NumberPart NameQty
11072851 COUPLER AS-QUICK1
11078212 BAR AS1
11072793 SPRING2
11072784 ROD AS2
11072805 COVER-SPRING2
9X82576 WASHER (17.5X30X3.5-MM THK)2
7X33437 BOLT-LOCKING (M12X1.75X60-MM)2
7X25548 BOLT (M16X2X70-MM)2
11075959 PIN-SPRING2
110900410 PLATE2
0T043111 WASHER (10.3X19X2.5-MM THK)7
7X339212 WASHER-HARD (13.5X22.5X3-MM THK)2
8T412113 WASHER-HARD (11X21X2.5-MM THK)4
113002514 CYLINDER AS1
8T419615 BOLT (M10X1.5X35-MM)8
8T413716 BOLT (M10X1.5X20-MM)3
110729517 DEFLECTOR1
115805818 PLATE-IDENTIFICATION1
4B415819 SCREW-DRIVE (NO 4X0.25-IN)4
119066420 BAR1
8T638321 BOLT (M16X2X200-MM)2
8T413222 NUT (M16X2-THD)4
