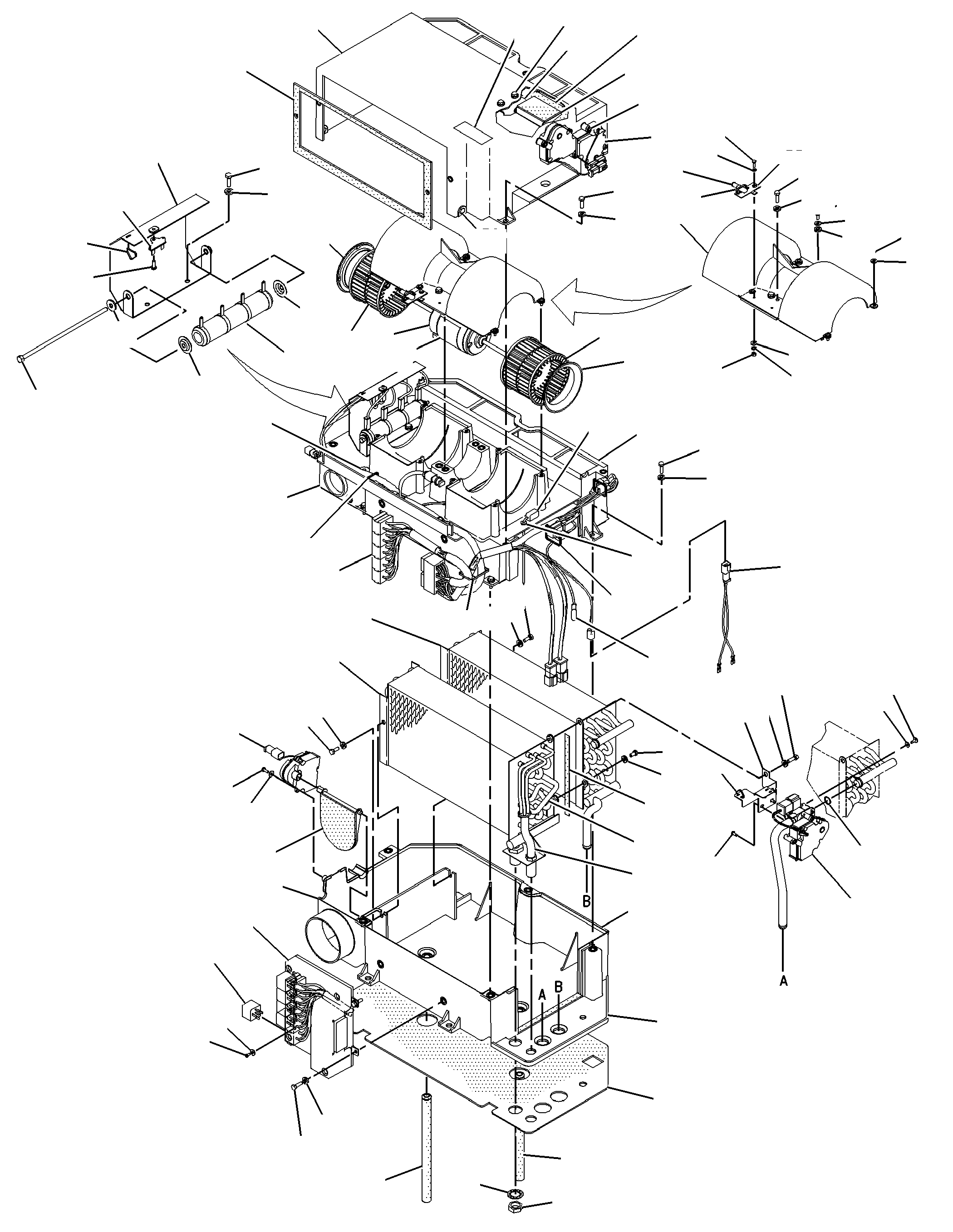

System And Components
126-3376 AIR CONDITIONER GPS/N 5SW1-283
Group No: 126-3376
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 2H3922 | 1 LOCKWASHER | 1 | |
| 3E6477 | 2 RELAY AS (24-VOLT) | 5 | |
| 3S2093 | 3 STRAP-CABLE | 11 | |
| 5K3546 | 4 PLUG-BUTTON | 1 | |
| 6T6708 | 5 WASHER (7X28.6X4.1-MM THK) | 2 | |
| 6V1668 | 6 WASHER (6.5X29.1X3-MM THK) | 2 | |
| 7F2050 | 7 LOCKNUT (3/4-16-THD) | 1 | |
| 8C3756 | 8 FILM-IDENTIFICATION (AIR CONDITIONER) | 1 | |
| 8C7581 | 9 SCREW-MACHINE (M4X0.7X8-MM) | 5 | |
| 8T0337 | 10 SCREW-MACHINE (M4X0.7X12-MM) | 18 | |
| 8T4171 | 11 BOLT (M6X1X12-MM) | 1 | |
| 8T4205 | 12 WASHER-HARD (7.2X14.5X2-MM THK) | 27 | |
| 9X2185 | 13 SCREW (8-15X0.44-IN) | 4 | |
| 9X8117 | 14 TUBE AS | 2 | |
| 9X8498 | 15 BOLT (M6X1X180-MM) | 1 | |
| 1003426 | 16 WHEEL AS-BLOWER | 2 | |
| 1259740 | 17 RESISTOR | 1 | |
| 1307198 | 18 ACTUATOR | 3 | |
| 1318438 | 19 CASE AS | 1 | |
| 1318439 | 20 CASE AS | 1 | |
| 1318440 | 21 HOUSING AS | 1 | |
| 1318442 | 22 PLATE-ORIFICE | 2 | |
| 1318443 | 23 CASE AS | 1 | |
| 1318444 | 24 DOOR | 1 | |
| 1318445 | 25 DOOR | 1 | |
| 1318446 | 26 DOOR | 1 | |
| 1324910 | 27 COIL AS-EVAPORATOR | 1 | |
| 1327348 | 28 HARNESS AS | 1 | |
| 1552270 | KIT-CONNECTING PLUG (2-PIN) | 1 | |
| 1028804 | KIT-RECEPTACLE (4-PIN) | 1 | |
| 1552274 | KIT-CONNECTING PLUG (6-PIN) | 1 | |
| 1028805 | KIT-RECEPTACLE (6-PIN) | 1 | |
| 1337154 | 29 BRACKET AS | 1 | |
| 1337156 | 30 GASKET | 1 | |
| 1337157 | 31 GASKET | 1 | |
| 1337158 | 32 GASKET | 1 | |
| 1337159 | 33 GASKET | 1 | |
| 1337404 | 34 GASKET | 1 | |
| 1337405 | 35 BRACKET | 1 | |
| 1337406 | 36 BRACKET AS | 1 | |
| 1338714 | 37 GROMMET | 1 | |
| 1338715 | 38 GROMMET | 2 | |
| 1339012 | 39 FUSE (15-AMPERE)(THERMAL) | 1 | |
| 1339013 | 40 SENSOR (TEMPERATURE) | 2 | |
| 1339014 | 41 SENSOR-TEMPERATURE (EVAPORATOR) | 1 | |
| 1339015 | 42 CONTROL GP-AIR & TEMPERATURE | 1 | |
| 1808007 | CONTROL GP-HEAT & AIR COND (TEMPERATURE CONTROL)(AIR & TEMPERATURE CONTROL) | 1 | |
| 1340227 | 43 HARNESS AS | 1 | |
| 1028802 | KIT-RECEPTACLE (2-PIN) | 1 | |
| 1366505 | 44 INSULATION | 2 | |
| 1413024 | 45 COIL AS-HEATER | 1 | |
| 1413025 | 46 VALVE AS-WATER (HEATER & AIR CONDITIONER) | 1 | |
| 4B4863 | WASHER (4.7X11X1.2-MM THK) | 4 | |
| 1240312 | SCREW-PAN HEAD (8-16X0.32-IN) | 4 | |
| 4M6582 | SEAL-O-RING | 1 | |
| 1413026 | 47 BRACKET | 1 | |
| 4B4274 | 48 WASHER (5.5X13X1.2-MM THK) | 23 | |
| 4M6582 | 49 SEAL-O-RING | 1 | |
| 5C9553 | 50 BOLT (M6X1X16-MM) | 4 | |
| 8T4138 | 51 BOLT (M6X1X20-MM) | 20 | |
| 5P7070 | 52 INSULATION-STRIP (0.35M) | ||
| 5P5637 | 53 SEAL (0.2M) | ||
| 5C2874 | 54 NUT (M5X0.8-THD) | 1 | |
| 8T6631 | 55 SCREW-MACHINE (8-32X0.5-IN) | 1 | |
| 0960192 | 56 LOCKWASHER | 2 | |
| 1240312 | 57 SCREW-PAN HEAD (8-16X0.32-IN) | 4 | |
| 4B4863 | 58 WASHER (4.7X11X1.2-MM THK) | 4 | |
| 1741486 | 59 MOTOR AS-BLOWER (24-VOLT, A/C, HEATER) | 1 | |
| 1028802 | KIT-RECEPTACLE (2-PIN) | 1 | |
| 9W0852 | PIN-CONNECTOR (14-GA TO 16-GA) | 2 | |
| 3E3365 | WEDGE-RECEPTACLE LOCK (2-PIN) | 1 | |
| 5P5942 | 60 SEAL (0.52M) | ||
| 5P5942 | 61 SEAL (0.5M) | ||
| 5P5942 | 62 SEAL (0.35M) | ||
| 5P7070 | 63 INSULATION-STRIP (0.15M) | ||
| 9G0398 | KIT-MOTOR BRUSH (HEATER & AIR CONDITIONER) | 1 |
