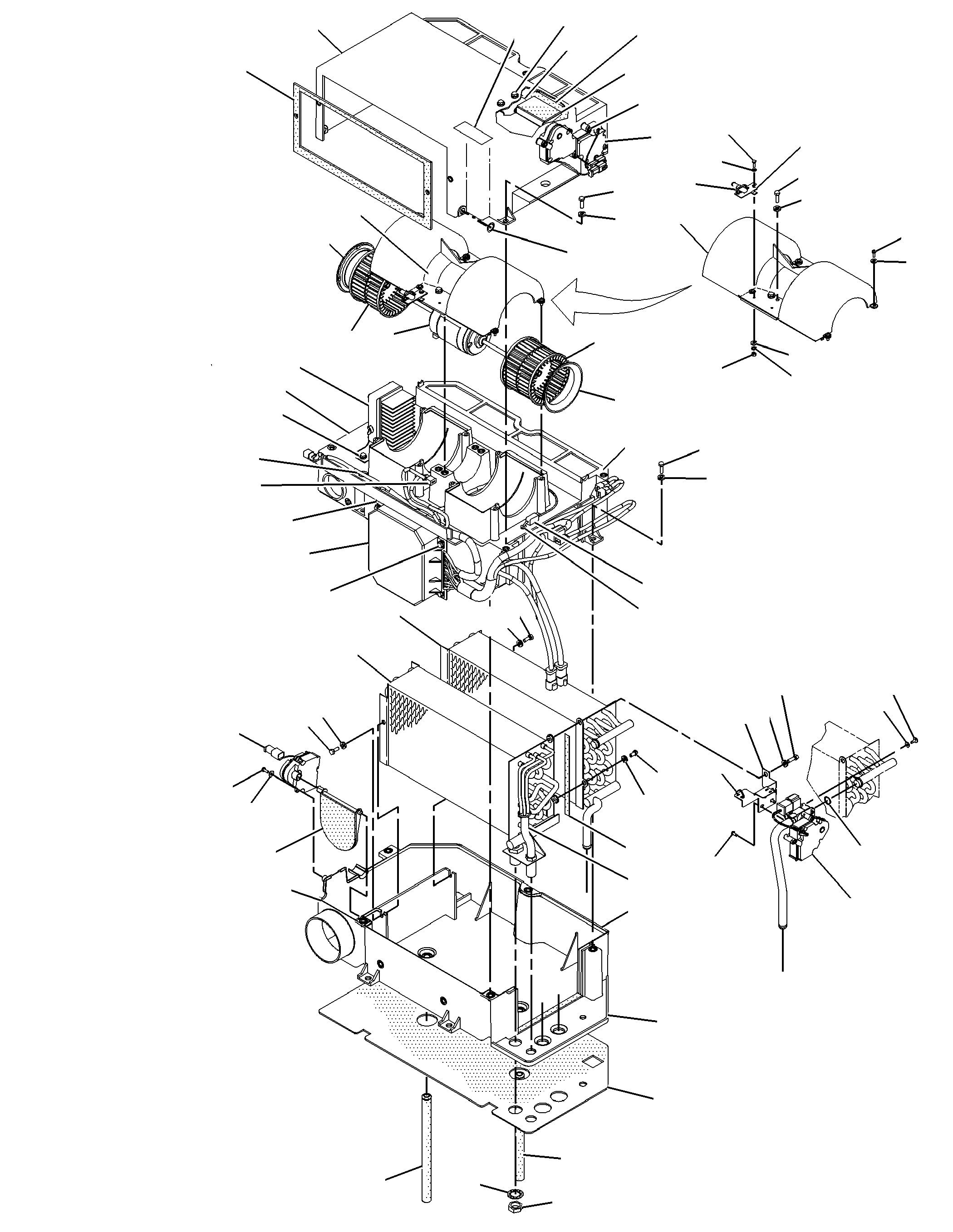

System And Components
152-5085 AIR CONDITIONER GPS/N 5SW284-UP
Group No: 152-5085
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 2H3922 | 1 LOCKWASHER | 1 | |
| 3S2093 | 2 STRAP-CABLE | 9 | |
| 4V5091 | 3 GROMMET | 1 | |
| 5K3546 | 4 PLUG-BUTTON | 1 | |
| 7F2050 | 5 LOCKNUT (3/4-16-THD) | 1 | |
| 8C3756 | 6 FILM-IDENTIFICATION (AIR CONDITIONER) | 1 | |
| 8T0337 | 7 SCREW-MACHINE (M4X0.7X12-MM) | 17 | |
| 8T4171 | 8 BOLT (M6X1X12-MM) | 1 | |
| 8T4205 | 9 WASHER-HARD (7.2X14.5X2-MM THK) | 27 | |
| 9X2185 | 10 SCREW (8-15X0.44-IN) | 3 | |
| 9X8117 | 11 TUBE AS | 2 | |
| 1003426 | 12 WHEEL AS-BLOWER | 2 | |
| 1293178 | 13 LOCKNUT (M6X1-THD) | 1 | |
| 2201827 | 14 ACTUATOR | 3 | |
| 1318438 | 15 CASE AS | 1 | |
| 1318439 | 16 CASE AS | 1 | |
| 1318440 | 17 HOUSING AS | 1 | |
| 1318442 | 18 PLATE-ORIFICE | 2 | |
| 1318443 | 19 CASE AS | 1 | |
| 1318444 | 20 DOOR | 1 | |
| 1318445 | 21 DOOR | 1 | |
| 1318446 | 22 DOOR | 1 | |
| 1324910 | 23 COIL AS-EVAPORATOR | 1 | |
| 1337154 | 24 BRACKET AS | 1 | |
| 1337156 | 25 GASKET | 1 | |
| 1337157 | 26 GASKET | 1 | |
| 1337158 | 27 GASKET | 1 | |
| 1337159 | 28 GASKET | 1 | |
| 1337404 | 29 GASKET | 1 | |
| 1338714 | 30 GROMMET | 1 | |
| 1338715 | 31 GROMMET | 2 | |
| 1339014 | 32 SENSOR-TEMPERATURE (AIR CONDITIONER REFRIGERANT) | 1 | |
| 1366505 | 33 INSULATION | 2 | |
| 1413024 | 34 COIL AS-HEATER | 1 | |
| 2065155 | 35 VALVE AS-WATER | 1 | |
| 4B4863 | WASHER (4.7X11X1.2-MM THK) | 4 | |
| 4M6582 | SEAL-O-RING | 1 | |
| 1240312 | SCREW-PAN HEAD (8-16X0.32-IN) | 4 | |
| 1413026 | 36 BRACKET | 1 | |
| 1501387 | 37 CONTROL GP-AIR & TEMPERATURE | 1 | |
| 1501390 | 38 CONTROL-SPEED | 1 | |
| 1554923 | 39 BRACKET | 1 | |
| 1554925 | 40 BRACKET | 1 | |
| 1568315 | 41 SCREW-PAN HEAD (10-16X0.5-IN) | 4 | |
| 1597591 | 42 PLATE | 2 | |
| 1741486 | 43 MOTOR AS-BLOWER (24-VOLT, A/C, HEATER) | 1 | |
| 3E3365 | WEDGE-RECEPTACLE LOCK (2-PIN) | 1 | |
| 9W0852 | PIN-CONNECTOR (14-GA TO 16-GA) | 2 | |
| 1028802 | KIT-RECEPTACLE (2-PIN) | 1 | |
| 4B4274 | 44 WASHER (5.5X13X1.2-MM THK) | 18 | |
| 4M6582 | 45 SEAL-O-RING | 1 | |
| 5C9553 | 46 BOLT (M6X1X16-MM) | 4 | |
| 6V7357 | 47 BOLT (M6X1X25-MM) | 4 | |
| 8T4138 | 48 BOLT (M6X1X20-MM) | 16 | |
| 5P4610 | 49 INSULATION-STRIP (1-M) | ||
| 5P5637 | 50 SEAL (0.2-M) | ||
| 5C2874 | 51 NUT (M5X0.8-THD) | 1 | |
| 8T0288 | 52 BOLT (M5X0.8X12-MM) | 1 | |
| 0960192 | 53 LOCKWASHER | 2 | |
| 1240312 | 54 SCREW-PAN HEAD (8-16X0.32-IN) | 4 | |
| 4B4863 | 55 WASHER (4.7X11X1.2-MM THK) | 4 | |
| 5P5942 | 56 SEAL (0.52-M) | ||
| 5P5942 | 57 SEAL (0.5-M) | ||
| 5P5942 | 58 SEAL (0.35-M) | ||
| 5P5942 | 59 SEAL (0.46-M) |
