System And Components

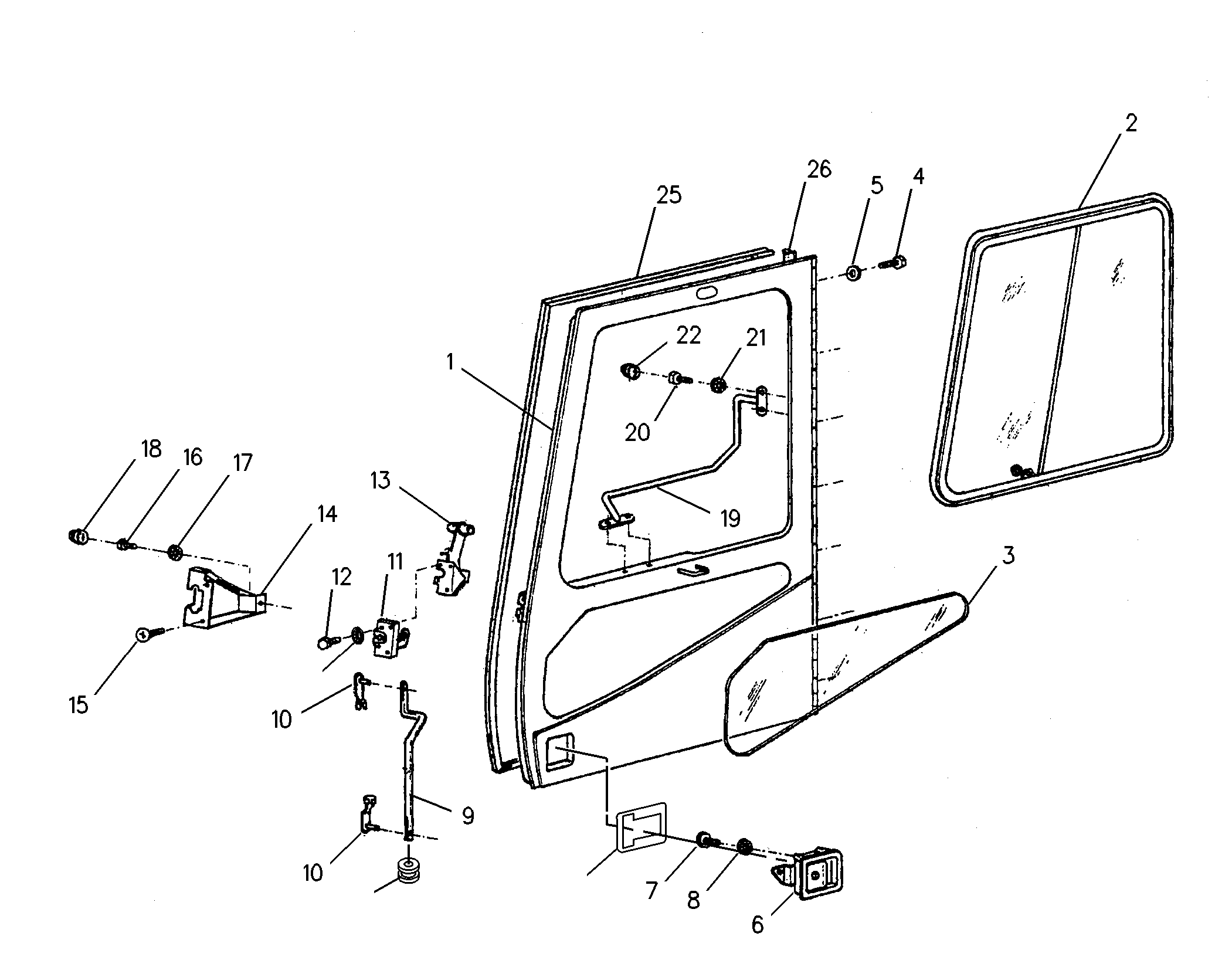

114-5331 DOOR GP-CABS/N 5SW1-UP
Group No: 114-5331
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 1398382 | 1 DOOR AS | 1 | |
| 1417358 | 2 WINDOW GP-DOOR | 1 | |
| 1145336 | 3 GLASS | 1 | |
| 8T4136 | 4 BOLT (M10X1.5X25-MM) | 7 | |
| 5P1075 | 5 WASHER-HARD (10.2X22.5X3-MM THK) | 7 | |
| 7X2483 | 6 HANDLE AS | 1 | |
| 8Y4501 | SPRING-HANDLE | 1 | |
| 9B1722 | 7 SCREW (10-24X0.5-IN) | 4 | |
| 1H0159 | 8 LOCKWASHER | 4 | |
| 6C9082 | 9 ROD | 1 | |
| 6C8986 | 10 CLIP-AXLE | 2 | |
| 8Y6376 | 11 LATCH AS-DOOR | 1 | |
| 8T4971 | 12 BOLT (M6X1X30-MM) | 4 | |
| 8Y6375 | 13 HANDLE GP-DOOR | 1 | |
| 8Y6974 | KNOB | 2 | |
| 8T2659 | LOCKNUT (M4X0.7-THD) | 1 | |
| 6V9492 | SCREW-MACHINE (M4X0.7X25-MM) | 1 | |
| 8Y8315 | SPRING-HANDLE | 1 | |
| 0966166 | WASHER-HARD (4.5X9X1-MM THK) | 2 | |
| 6C9085 | 14 COVER-LOCK | 1 | |
| 1199453 | 15 SCREW (M6X1X16-MM) | 2 | |
| 5C9553 | 16 BOLT (M6X1X16-MM) | 1 | |
| 8C3398 | 17 LOCKWASHER | 5 | |
| 6C9089 | 18 NUT-CAP | 1 | |
| 1285826 | 19 HANDLE AS | 1 | |
| 8T4200 | 20 BOLT (M8X1.25X16-MM) | 3 | |
| 7H3937 | 21 LOCKWASHER | 3 | |
| 6C8996 | 22 CAP | 3 | |
| 6C9222 | 23 GASKET | 1 | |
| 9D7303 | 24 GROMMET | 1 | |
| 6C9095 | 25 SEAL | 1 | |
| 1222358 | 26 SEAL (170-CM) |
