System And Components

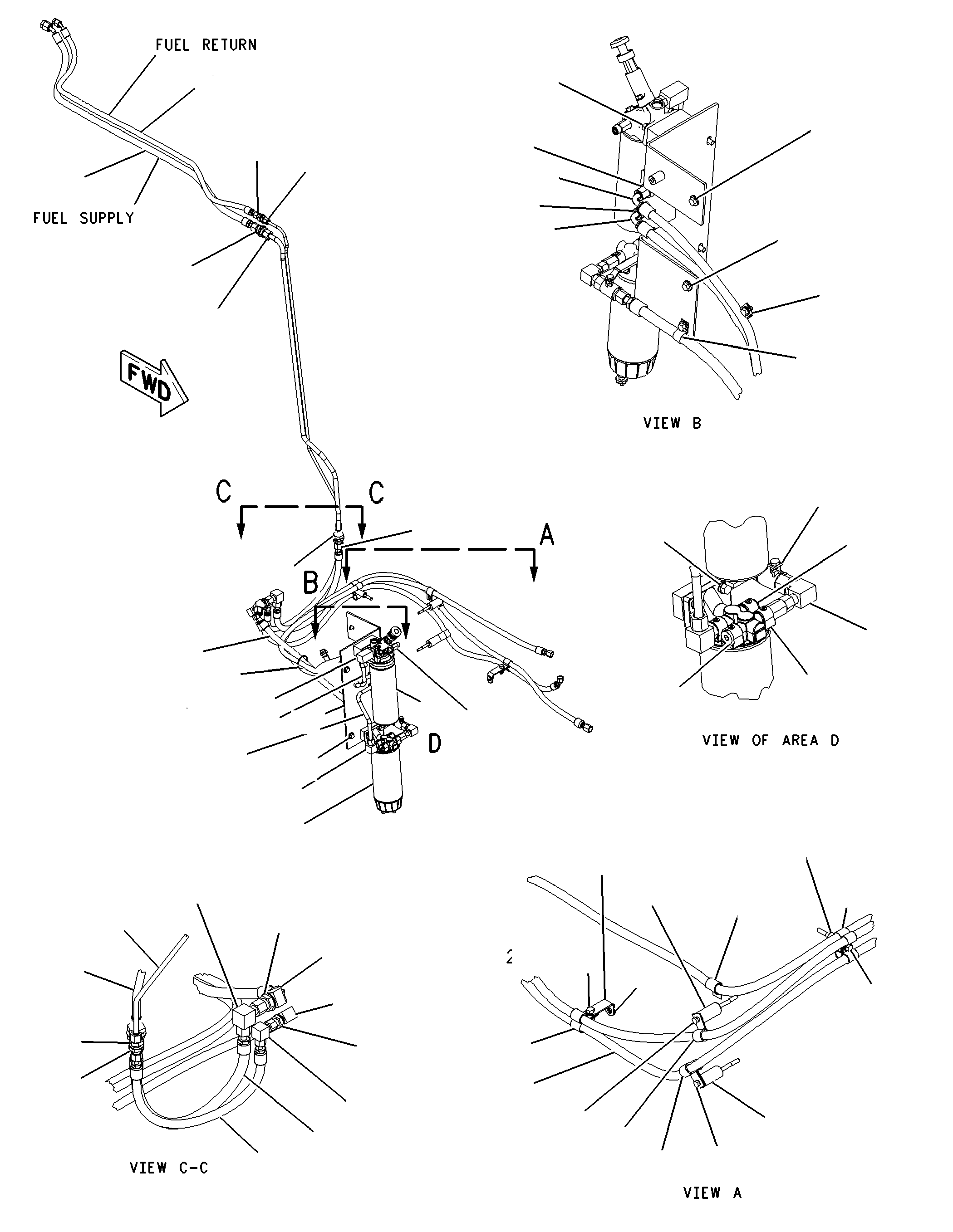

Assembly
100%

156-4176 LINES GP-FUELS/N AXF1-UP

Group No: 156-4176
Part NumberPart NameQty
3G40051 LINK1
5T22722 TUBE AS1
5T22733 TUBE AS1
6V83674 LOCKWASHER3
9M92245 SPACER (0.406X0.75X1.688-IN THK)1
13356716 FILTER GP-WATER SEP & FUEL1
16638437 FILTER GP-FUEL1
16969678 HOSE AS1
16970319 HOSE AS1
169706910 HOSE AS1
169707011 HOSE AS1
169707212 TUBE AS1
169707513 PLATE AS1
170028414 TUBE AS1
176124315 HOSE AS1
176124416 HOSE AS1
176157817 HOSE AS1
176157918 HOSE AS1
033603319 SEAL-O-RING7
1S099420 CLIP (LOOP)1
2H392421 LOCKWASHER3
3S866422 CLIP5
4D773523 CLIP5
4L645424 BOLT (3/8-16X1-IN)3
5C956325 SPACER (11.02X26.67X55-MM THK)2
5M306226 BOLT (3/8-16X0.75-IN)5
5P107527 WASHER-HARD (10.2X22.5X3-MM THK)5
5P816728 BOLT (3/8-16X0.625-IN)1
6D283429 CLIP1
6V504930 SEAL-O-RING2
6V862531 ELBOW1
6V880132 NUT (3/8-16-THD)1
6V898033 ELBOW1
6V898934 ELBOW1
6V899435 UNION (STRAIGHT)2
6V899536 UNION (STRAIGHT)2
6V899637 UNION2
6V916838 NUT (11/16-16-THD)3
6V916939 NUT (13/16-16-THD)2
6V917040 NUT-BULKHEAD (1-14-THD)3
6V985041 ELBOW (90 DEG)1
6V985242 ELBOW (SWIVEL)(90 DEG)1
7K118143 STRAP-CABLE1
7X027944 BOLT (5/16-18X4.75-IN)2
7X029045 BOLT (3/8-16X3.5-IN)1
8L274646 SEAL-O-RING7
8L277947 SEAL-O-RING9
8L278648 SEAL-O-RING5
8T007549 CONNECTOR1
8T007650 CONNECTOR1
8T250251 BOLT (3/8-16X1.125-IN)2
8T489652 WASHER-HARD (10.2X18.5X2.5-MM THK)7
8T546453 VALVE-BALL (FUEL)1
8T752154 ELBOW1
9N086955 WASHER-HARD (8.8X25.5X2-MM THK)1
9S800556 PLUG (3/4-16-THD)2
9X209157 ELBOW (SWIVEL)1
