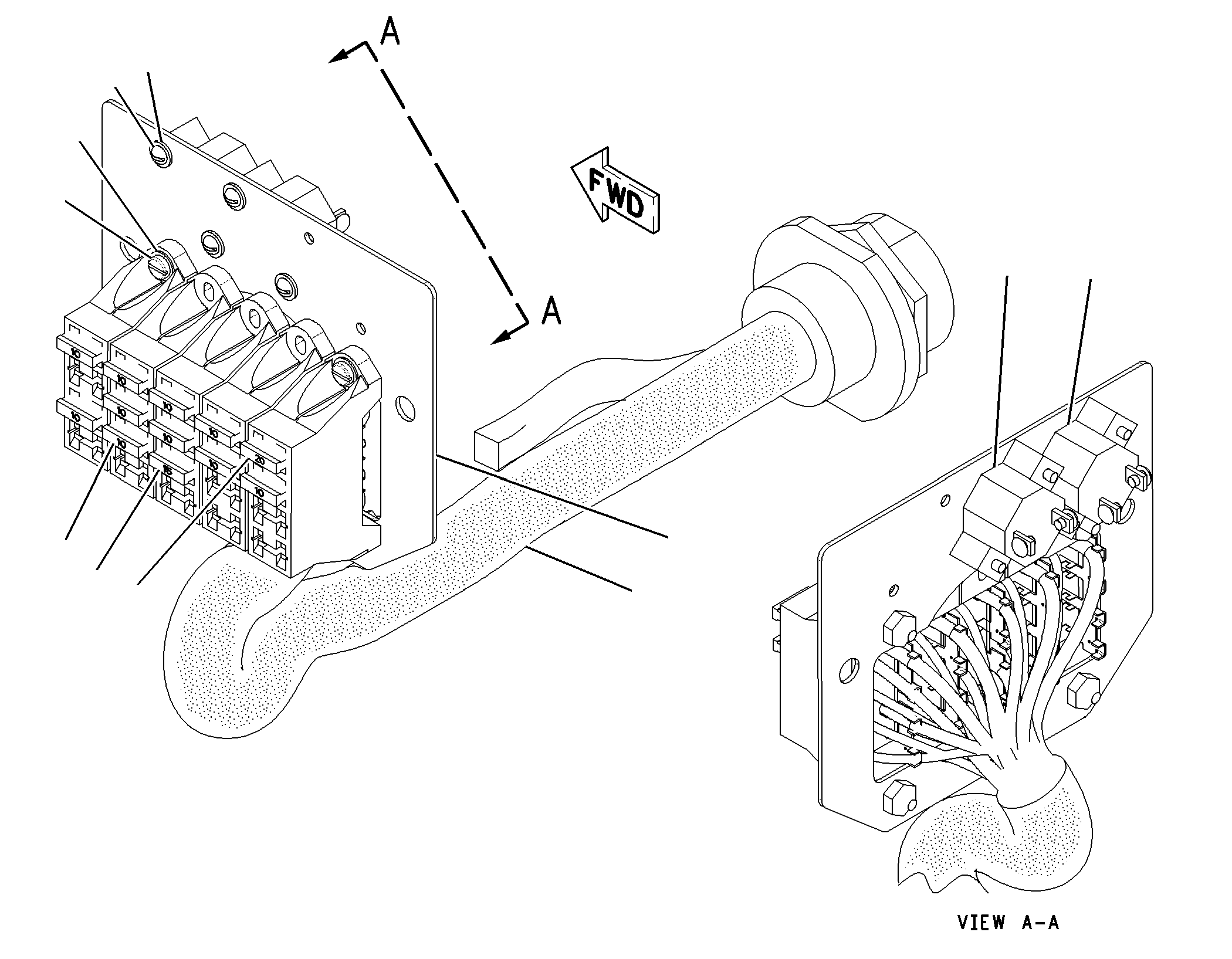

164-7224 PANEL GP-CIRCUIT BREAKERS/N AXF1-UP

Group No: 164-7224
Part NumberPart NameQty
9W14411 FUSE (15-AMPERE)1
9W14422 FUSE (10-AMPERE)10
9W14463 FUSE (20-AMPERE)1
16599404 BLOCK AS-FUSE1
8N1517RECEPTACLE AS-CONNECTOR (25-PIN)1
8N1522NUT (2-1/4-16-THD)1
8N1521BELL AS-END1
16601315 PLATE AS1
9D6621NUT-WELD (10-24-THD)4
1644988PLATE1
2A32116 WASHER (5.5X12.3X0.8-MM THK)4
2N34807 SCREW-MACHINE (10-24X0.75-IN)4
3D97998 SCREW-MACHINE (8-32X0.875-IN)4
3T26629 CIRCUIT BREAKER AS (15-AMPERE, AUTOMATIC RESET)(HEADLAMP)1
6V8376SCREW-MACHINE (8-32X0.25-IN)2
9B7233LOCKWASHER2
4B486310 WASHER (4.7X11X1.2-MM THK)4
9G988211 CIRCUIT BREAKER AS (10-AMPERE)(DOME/PANEL LAMP)1
6V8376SCREW-MACHINE (8-32X0.25-IN)2
9B7233LOCKWASHER2
