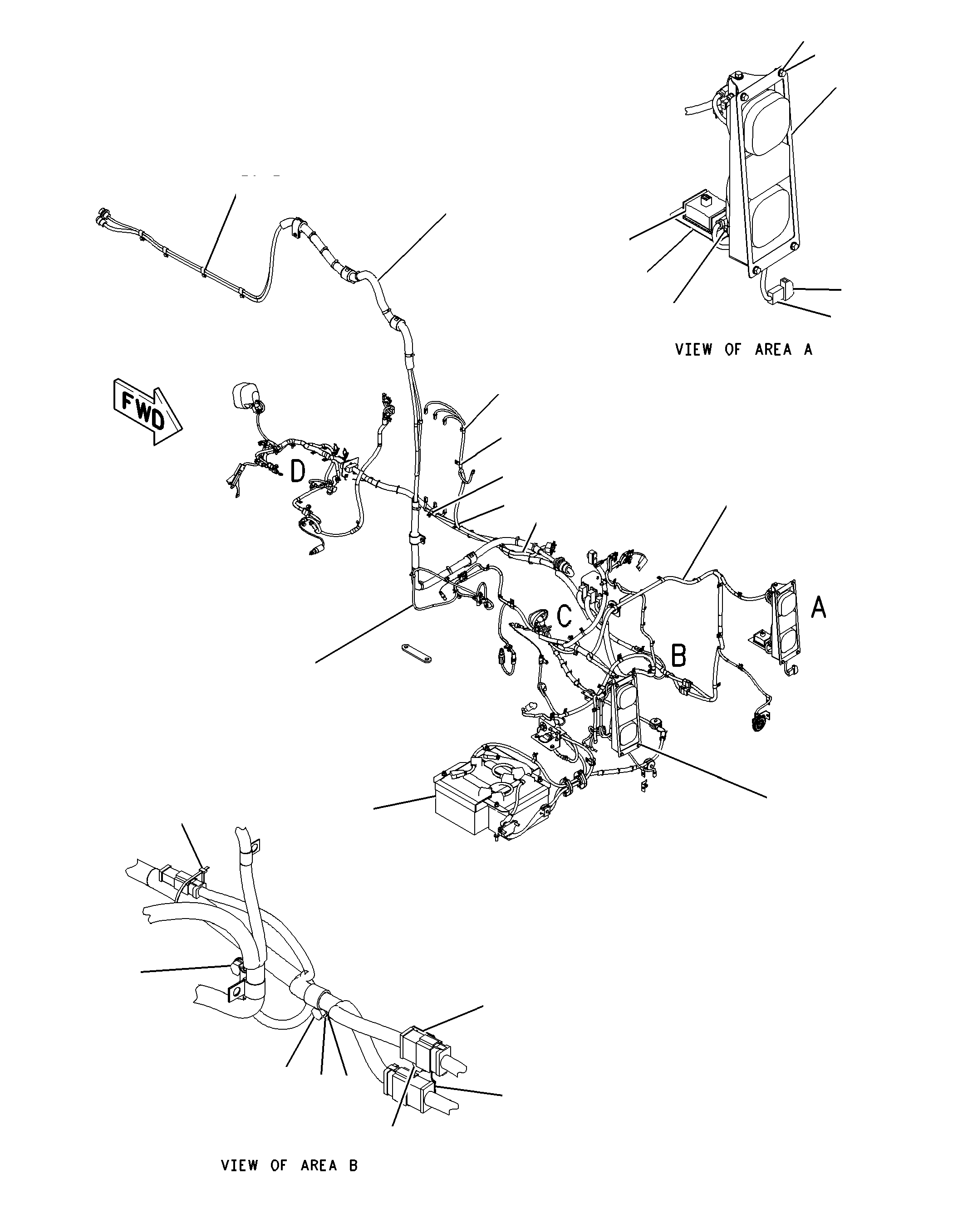

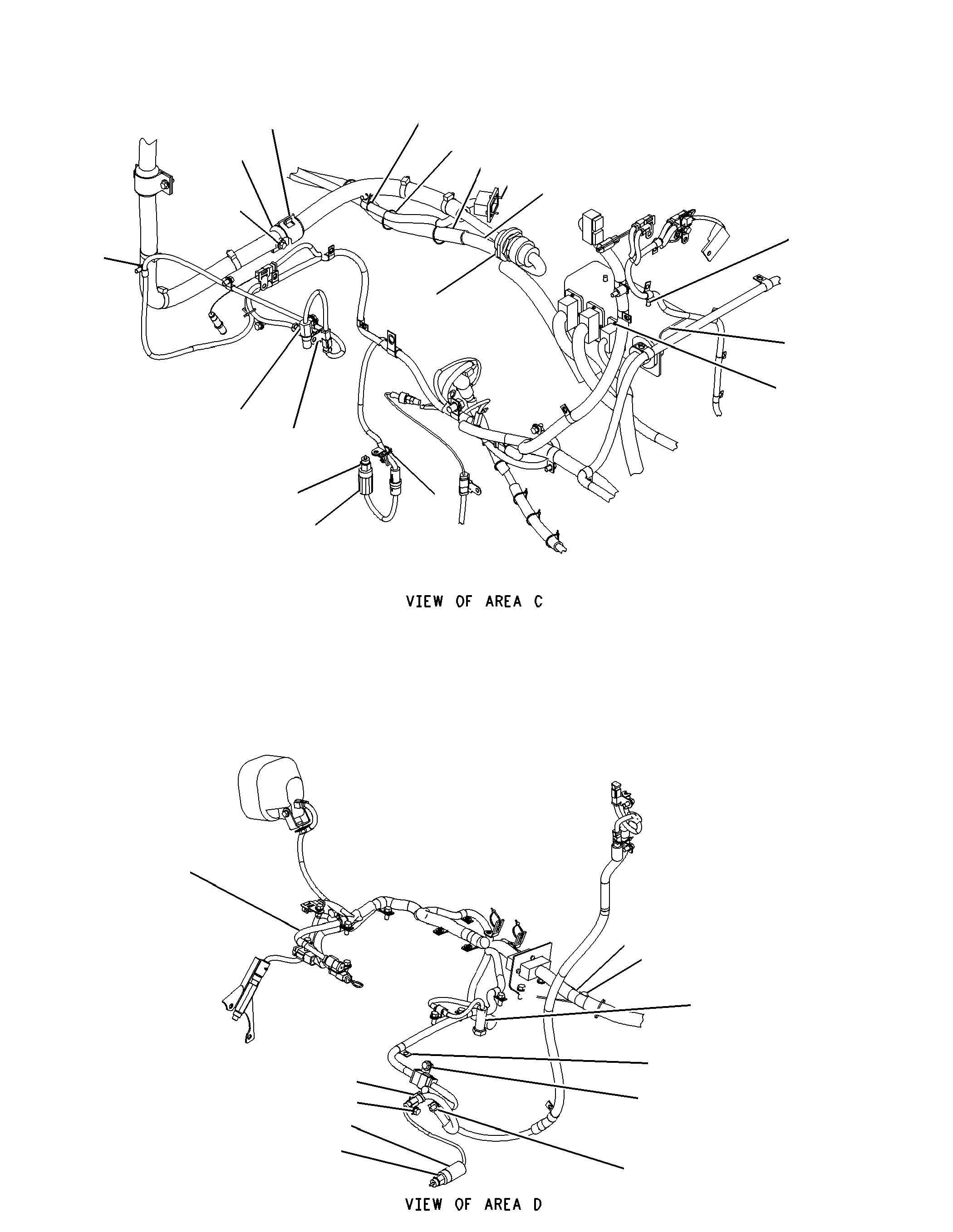

156-4741 WIRING GP-CHASSISS/N AXF1-502
Group No: 156-4741
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 3E5169 | 1 GUARD-SWITCH | 1 | |
| 3E8700 | 2 SENSOR GP-TEMPERATURE (HYDRAULIC OIL) | 1 | |
| 3S2093 | 3 STRAP-CABLE | 2 | |
| 8T9792 | 4 SWITCH AS-PRESSURE (PARK BRAKE) | 1 | |
| 7N7779 | SOCKET-CONNECTOR (14-GA TO 18-GA) | 1 | |
| 7N7780 | PIN-CONNECTOR (14-GA TO 18-GA) | 2 | |
| 7N7781 | HOUSING-RECEPTACLE (14-GA TO 18-GA) | 1 | |
| 8X9792 | 5 PLATE | 1 | |
| 9G9150 | 6 CLIP | 1 | |
| 1191733 | 7 CONVERTER-POWER (24-VOLT TO 12-VOLT) | 1 | |
| 1310784 | 8 SENSOR GP-TEMPERATURE (CONVERTER/RETARDER OIL) | 1 | |
| 1358659 | 9 GUARD | 1 | |
| 1392116 | 10 SWITCH GP-TOGGLE (GROUND LEVEL SHUT-DOWN) | 1 | |
| 3E3371 | WEDGE-RECEPTACLE LOCK (3-PIN) | 1 | |
| 6T3631 | NUT-HEX (15/32-32-THD) | 2 | |
| 6T3632 | LOCKWASHER | 1 | |
| 6T3633 | RING-LOCKING | 1 | |
| 1863735 | PIN-CONNECTOR (16-GA TO 18-GA) | 3 | |
| 1445661 | 11 SWITCH AS-PRESSURE (FUEL FILTER) | 1 | |
| 2M9780 | SEAL-O-RING | 1 | |
| 1028802 | KIT-RECEPTACLE (2-PIN)(INCL WEDGE & RECEPTACLE AS) | 1 | |
| 3E3365 | WEDGE-RECEPTACLE LOCK (2-PIN) | 1 | |
| 6V3922 | SEAL-O-RING | 1 | |
| 8T8729 | PIN-CONNECTOR (16-GA TO 20-GA) | 2 | |
| 9X1813 | SLEEVE | 14 | |
| 1615776 | 12 HARNESS AS-CHASSIS (HYDRAULIC) | 1 | |
| 9X0145 | RECEPTACLE AS-CONNECTOR (24-PIN)(IMPLEMENT ELECTRONIC) | 1 | |
| 1552270 | KIT-CONNECTING PLUG (2-PIN) | 6 | |
| 1615778 | 13 HARNESS AS-CHASSIS | 1 | |
| 1552255 | KIT-CONNECTING PLUG (12-PIN)(MAIN CHASSIS GROUND) | 1 | |
| 1552270 | KIT-CONNECTING PLUG (2-PIN)(PROPORTIONAL RETARDER CONTROL) | 1 | |
| 1028802 | KIT-RECEPTACLE (2-PIN)(PROPORTIONAL RETARDER CONTROL) | 1 | |
| 1028801 | KIT-RECEPTACLE (12-PIN)(MAIN CHASSIS GROUND) | ||
| 8N1514 | PLUG AS-CONNECTOR (37-PIN) | 1 | |
| 9X0141 | PLUG AS-CONNECTOR (40-PIN) | 1 | |
| 9X1343 | RECEPTACLE AS-CONNECTOR (40-PIN) | 1 | |
| 9X7148 | RECEPTACLE AS-CONNECTOR (40-PIN) | 1 | |
| 1684581 | 14 LAMP GP-FLOOD | 2 | |
| 1689935 | 15 PLATE AS | 1 | |
| 1836561 | 16 WIRING GP-ENGINE | 1 | |
| 1836562 | 17 WIRING GP-POWER TRAIN | 1 | |
| 1836563 | 18 WIRING GP-TRACTOR | 1 | |
| 1836564 | 19 BATTERY & WIRING GP | 1 | |
| 1836567 | 20 WIRING GP-HITCH | 1 | |
| 0338248 | 21 CLIP (LOOP) | 1 | |
| 1305300 | 22 CLIP | 6 | |
| 1S0994 | 23 CLIP (LOOP) | 1 | |
| 3J1907 | 24 SEAL-O-RING | 2 | |
| 3K0360 | 25 SEAL-O-RING | 2 | |
| 4D7794 | 26 CLIP | 3 | |
| 4D9517 | 27 CLIP | 1 | |
| 4K8864 | 28 CLIP (LOOP) | 1 | |
| 4L6454 | 29 BOLT (3/8-16X1-IN) | 1 | |
| 5K8451 | 30 CLIP (LOOP) | 4 | |
| 5M3062 | 31 BOLT (3/8-16X0.75-IN) | 30 | |
| 5P1075 | 32 WASHER-HARD (10.2X22.5X3-MM THK) | 2 | |
| 5P6944 | 33 ADAPTER | 2 | |
| 5P7468 | 34 CLIP (SLOT) | 1 | |
| 5P7469 | 35 CLIP (TAB) | 1 | |
| 5P8444 | 36 GROMMET (37-MM ID) | 1 | |
| 6D4636 | 37 CLIP (LOOP) | 2 | |
| 7K1181 | 38 STRAP-CABLE | 7 | |
| 8M2770 | 39 CLIP (LOOP) | 1 | |
| 8M2773 | 40 CLIP (LOOP) | 2 | |
| 8T4896 | 41 WASHER-HARD (10.2X18.5X2.5-MM THK) | 29 | |
| 8T9405 | 42 BOLT-SOCKET HEAD (M4X0.7X16-MM) | 16 | |
| 9M8406 | 43 CLIP (LOOP) | 1 |
