System And Components

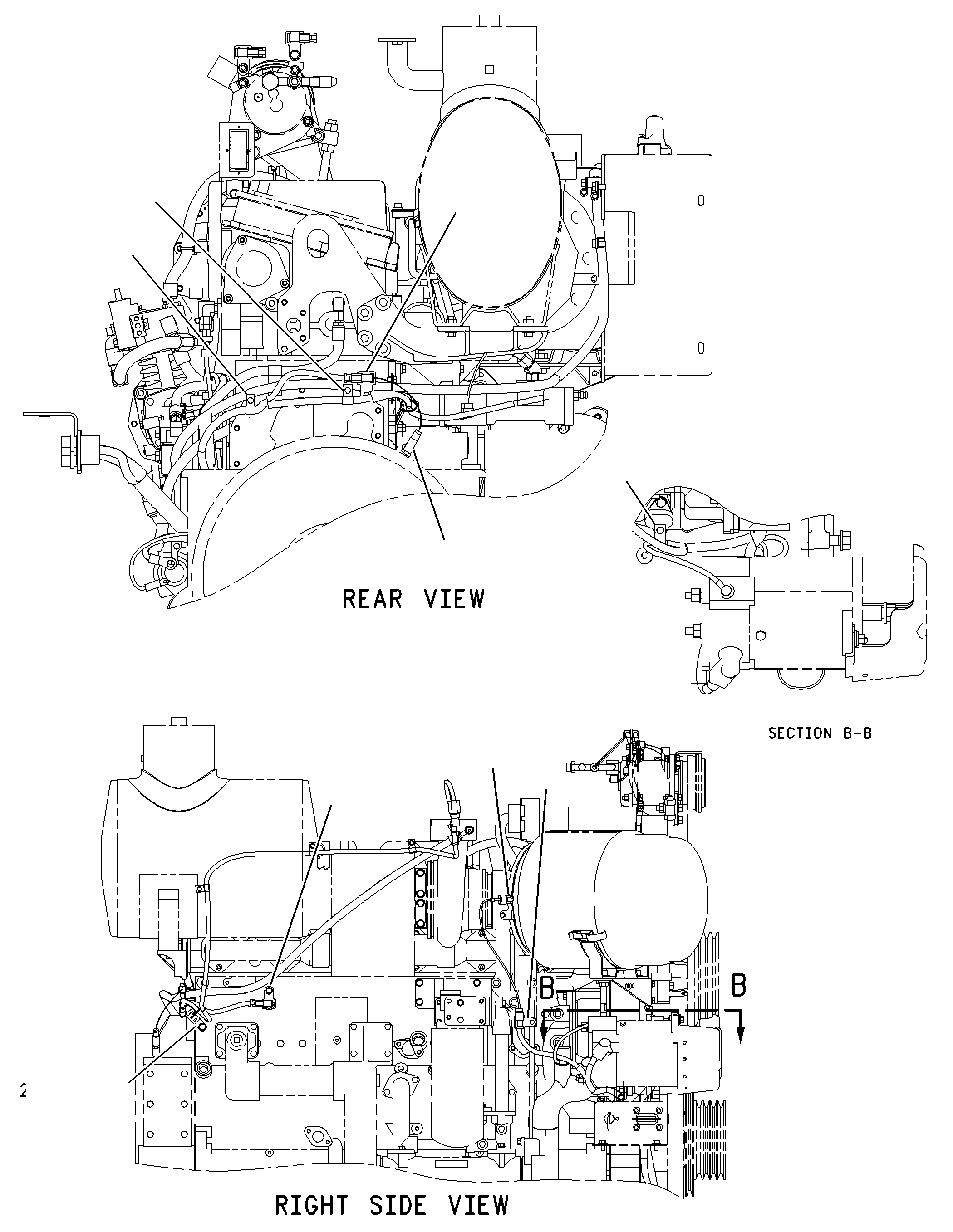

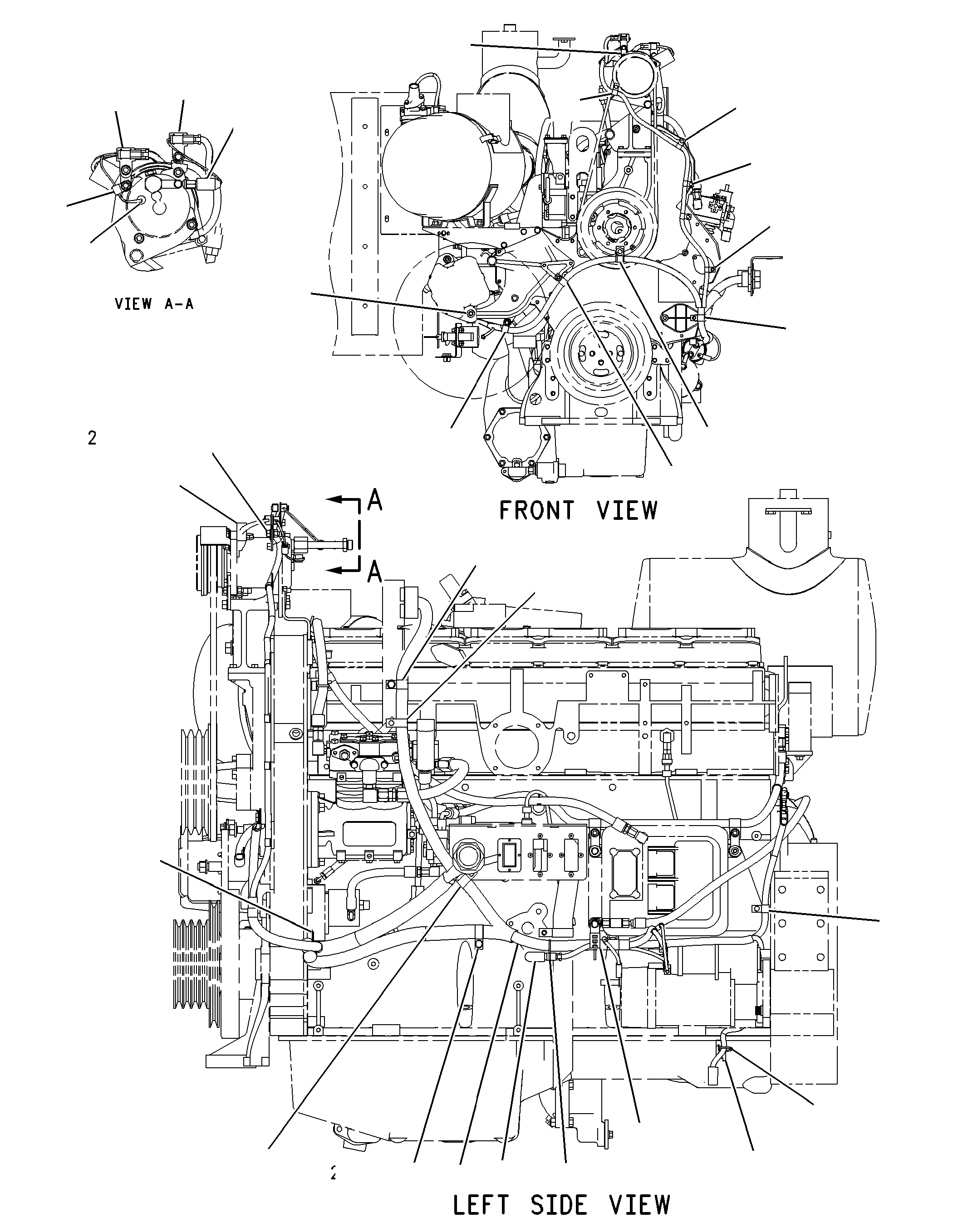

183-6561 WIRING GP-ENGINES/N AXF1-UP
Group No: 183-6561
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 2S3770 | 1 SPACER (11X19X33.5-MM THK) | 1 | |
| 3E7842 | 2 RESISTOR AS (STARTER DIAGNOSTIC) | 1 | |
| 3E3365 | WEDGE-RECEPTACLE LOCK (2-PIN) | 1 | |
| 5P5677 | WIRE (18-GA, BLACK) | ||
| 6T3610 | RESISTOR | 1 | |
| 1863735 | PIN-CONNECTOR (16-GA TO 18-GA) | 2 | |
| 1028802 | KIT-RECEPTACLE (2-PIN) | 1 | |
| 3S2093 | 3 STRAP-CABLE | 3 | |
| 5N2126 | 4 CONNECTOR (THERMOCOUPLE)(TURBO INLET AIR) | 1 | |
| 7K1181 | 5 STRAP-CABLE | 1 | |
| 9R2926 | 6 PLATE | 1 | |
| 1145333 | 7 SWITCH AS-PRESSURE (A/C) | 1 | |
| 3E3365 | WEDGE-RECEPTACLE LOCK (2-PIN) | 1 | |
| 1863735 | PIN-CONNECTOR (16-GA TO 18-GA) | 2 | |
| 9X1386 | SLEEVE (25CM) | ||
| 1028802 | KIT-RECEPTACLE (2-PIN) | 1 | |
| 1160118 | 8 CLIP | 1 | |
| 1496371 | 9 SWITCH AS-PRESSURE (A/C COMPRESSOR CLUTCH)(A/C LOW) | 1 | |
| 3E3365 | WEDGE-RECEPTACLE LOCK (2-PIN) | 1 | |
| 1863735 | PIN-CONNECTOR (16-GA TO 18-GA) | 2 | |
| 1028802 | KIT-RECEPTACLE (2-PIN)(A/C) | 1 | |
| 1615779 | 10 HARNESS AS-ENGINE | 1 | |
| 1028802 | KIT-RECEPTACLE (2-PIN) | 1 | |
| 1028803 | KIT-RECEPTACLE (3-PIN)(TURBO INLET PRESSURE SENSOR) | 1 | |
| 1552271 | KIT-CONNECTING PLUG (4-PIN) | 1 | |
| 8N1517 | RECEPTACLE AS-CONNECTOR (25-PIN) | 1 | |
| 9X0145 | RECEPTACLE AS-CONNECTOR (24-PIN) | 1 | |
| 9X0141 | PLUG AS-CONNECTOR (40-PIN) | 1 | |
| 1552269 | PLUG AS-CONNECTOR (2-PIN) | 7 | |
| 1619926 | 11 SENSOR GP-PRESSURE (TURBO INLET AIR) | 1 | |
| 1697443 | 12 TIMER AS-ON DELAY (24-VOLT)(A/C PROTECTION MODULE) | 1 | |
| 1863735 | PIN-CONNECTOR (16-GA TO 18-GA) | 4 | |
| 1028804 | KIT-RECEPTACLE (4-PIN) | 1 | |
| 1895746 | 13 SENSOR GP-SPEED (TACHOMETER) | 1 | |
| 1305300 | 14 CLIP | 5 | |
| 1S0994 | 15 CLIP (LOOP) | 3 | |
| 3J7354 | 16 SEAL-O-RING | 1 | |
| 4D7794 | 17 CLIP | 7 | |
| 4K8302 | 18 CLIP (LOOP) | 1 | |
| 4P7581 | 19 CLIP (LADDER) | 2 | |
| 4P8134 | 20 CLIP (LADDER) | 1 | |
| 5K3294 | 21 CLIP | 1 | |
| 5M2894 | 22 WASHER-HARD (10.2X18.5X2.5-MM THK) | 1 | |
| 5M3062 | 23 BOLT (3/8-16X0.75-IN) | 2 | |
| 5S7379 | 24 BOLT (3/8-16X0.875-IN) | 1 | |
| 6D4246 | 25 CLIP (LOOP) | 2 | |
| 6V1889 | 26 CLIP (LOOP) | 1 | |
| 6V8801 | 27 NUT (3/8-16-THD) | 1 | |
| 8M2770 | 28 CLIP (LOOP) | 4 | |
| 8M2773 | 29 CLIP (LOOP) | 2 | |
| 8T4223 | 30 WASHER-HARD (13.5X25.5X3-MM THK) | 1 | |
| 8T4224 | 31 WASHER-HARD (8.8X16X2-MM THK) | 1 | |
| 8T4896 | 32 WASHER-HARD (10.2X18.5X2.5-MM THK) | 6 | |
| 8T5391 | 33 BOLT (5/16-18X0.5-IN) | 1 | |
| 8T9377 | 34 BOLT (3/8-16X2.25-IN) | 1 | |
| 9X7378 | 35 SEAL-O-RING | 2 |
