System And Components

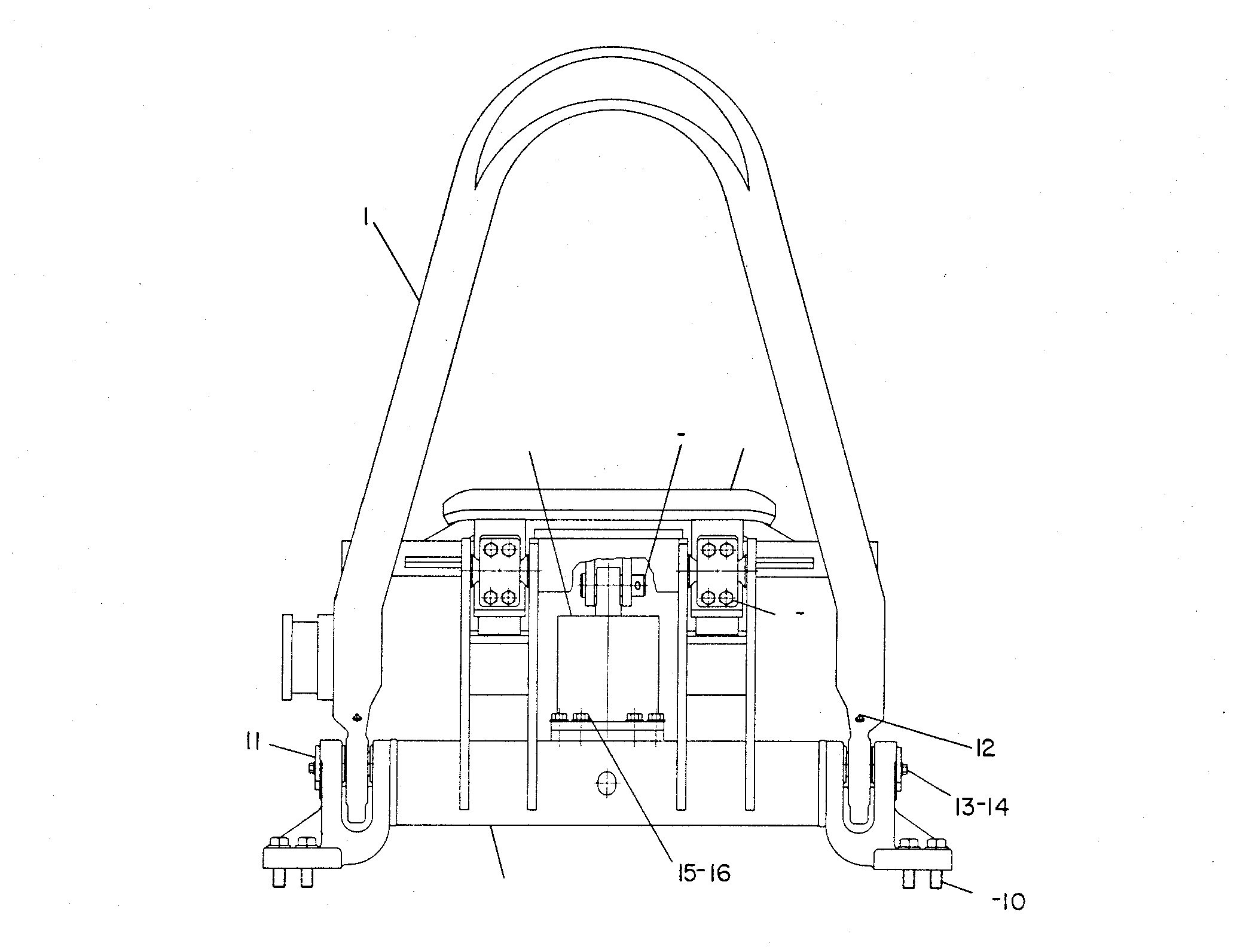

4T-5421 BLOCK GP-PUSH-PULLS/N AXF1-UP
Group No: 4T-5421
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 4T5422 | 1 BAIL AS | 1 | |
| 9M1328 | BEARING-SELF-ALIGNING | 2 | |
| 8X5433 | 2 SPRING GP | 1 | |
| 1108281 | 3 PIN | 1 | |
| 3B5325 | 4 PIN-COTTER | 1 | |
| 4T5428 | 5 SUPPORT AS | 1 | |
| 4T5432 | SUPPORT | 1 | |
| 4T5433 | SUPPORT | 1 | |
| 4T5430 | PIN | 2 | |
| 4T5429 | RETAINER | 2 | |
| 8J4918 | 6 CAP-BEARING | 2 | |
| 7X0371 | 7 BOLT (3/4-10X3.75-IN) | 8 | |
| 8J5129 | 8 PLATE AS-PUSH | 1 | |
| 5P2249 | GUSSET | 2 | |
| 5P2351 | GUSSET | 2 | |
| 8J5011 | BEARING | 2 | |
| 8J5167 | TUBE | 2 | |
| 1D4638 | 9 BOLT (1-8X3.5-IN) | 16 | |
| 8T5361 | 10 WASHER-HARD (28X49X5-MM THK) | 16 | |
| 4T5434 | 11 PIN AS | 2 | |
| 3B8489 | 12 FITTING-GREASE (1/8-27 PTF)(PUSH/PULL-BAIL) | 2 | |
| 8T8917 | 13 BOLT (1/2-13X1.25-IN) | 2 | |
| 8T4223 | 14 WASHER-HARD (13.5X25.5X3-MM THK) | 2 | |
| 7X0365 | 15 BOLT (3/4-10X1.5-IN) | 8 | |
| 8T4994 | 16 WASHER-HARD (20X36.5X3.5-MM THK) | 8 |
