System And Components

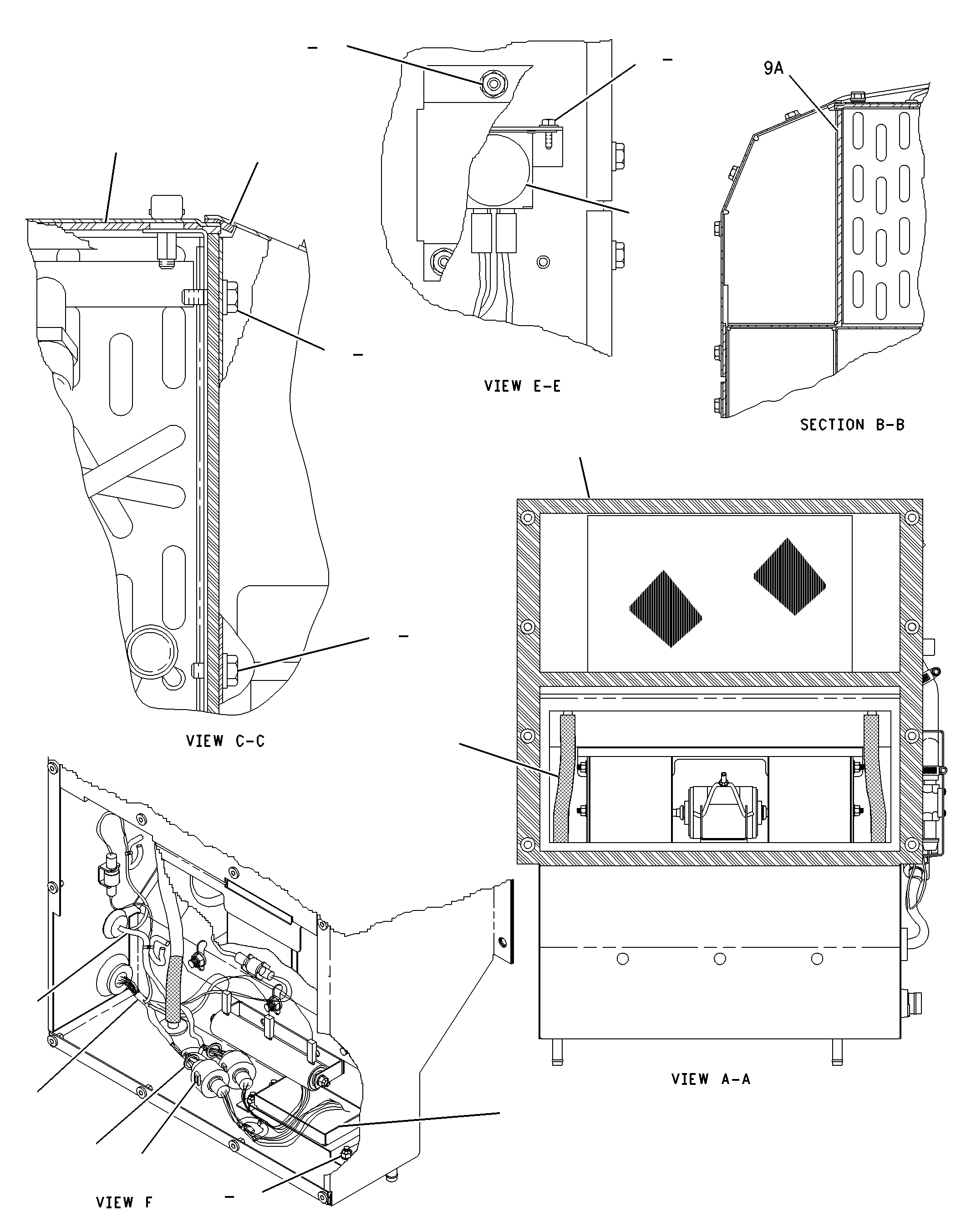

119-3144 AIR CONDITIONER GPS/N AXF1-UP
Group No: 119-3144
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 3E6256 | 1 COIL AS-HEATER | 1 | |
| 3E6257 | 2 COIL AS-EVAPORATOR | 1 | |
| 1741494 | 3 MOTOR AS-BLOWER (24-VOLT, A/C, HEATER) | 1 | |
| 9W0852 | PIN-CONNECTOR (14-GA TO 16-GA) | 2 | |
| 1028802 | KIT-RECEPTACLE (2-PIN) | 1 | |
| 8P5141 | 4 PLATE-ORIFICE | 2 | |
| 1010121 | 5 COVER | 1 | |
| 1245683 | 6 BRACKET | 1 | |
| 1020340 | 7 COVER | 1 | |
| 6V2496 | 9 SEAL (.5-M) | ||
| 1245697 | 10 GASKET | 1 | |
| 1245698 | 11 GASKET | 1 | |
| 1245699 | 12 GASKET | 1 | |
| 1245700 | 13 GASKET | 1 | |
| 1245701 | 14 GASKET | 1 | |
| 5P1075 | 15 WASHER-HARD (10.2X22.5X3-MM THK) | 9 | |
| 6V8801 | 16 NUT (3/8-16-THD) | 8 | |
| 0688993 | 17 GROMMET | 1 | |
| 3S2093 | 18 STRAP-CABLE | 8 | |
| 1013093 | 19 PLATE AS | 1 | |
| 9V7451 | NUT-WELD (1/4-20-THD) | 2 | |
| 7X0499 | NUT-CLINCH (1/4-20-THD) | 1 | |
| 1361953 | 20 HOSE (16-CM) | ||
| 9X2488 | 21 CLAMP-HOSE | 2 | |
| 1245705 | 22 GASKET | 1 | |
| 1022886 | 23 CAP AS | 1 | |
| 1010123 | 24 COVER AS | 1 | |
| 7T1099 | LINK | 1 | |
| 5P7070 | 25 INSULATION-STRIP (.8-M) | ||
| 8C3756 | 26 FILM-IDENTIFICATION (AIR CONDITIONER) | 1 | |
| 6V8185 | 27 NUT (1/4-20-THD) | 6 | |
| 8T4205 | 28 WASHER-HARD (7.2X14.5X2-MM THK) | 47 | |
| 1022885 | 29 CAP AS | 1 | |
| 3E0400 | 30 WHEEL AS-BLOWER | 2 | |
| 0374838 | CLAMP | 1 | |
| 1498195 | 31 VALVE AS-WATER | 1 | |
| 7N7779 | SOCKET-CONNECTOR (14-GA TO 18-GA) | 3 | |
| 7N7780 | PIN-CONNECTOR (14-GA TO 18-GA) | 2 | |
| 9G3670 | HOUSING-PLUG | 1 | |
| 9G3695 | PLUG-SEAL | 2 | |
| 1245702 | 32 GASKET | 1 | |
| 9G9154 | 33 CLIP | 1 | |
| 5M3062 | 34 BOLT (3/8-16X0.75-IN) | 1 | |
| 9X2185 | 35 SCREW (8-15X0.44-IN) | 4 | |
| 3E9865 | 36 LOCKNUT (1/4-20-THD) | 12 | |
| 1245687 | 37 CASE AS | 1 | |
| 1012784 | 38 PLATE AS | 1 | |
| 7T1099 | LINK | 1 | |
| 6V3320 | 39 SCREW-MACHINE (1/4-20X7.5-IN) | 1 | |
| 6V1668 | 40 WASHER (6.5X29.1X3-MM THK) | 2 | |
| 9G1950 | 41 RESISTOR | 1 | |
| 8C4586 | 42 CLAMP | 2 | |
| 1018307 | 43 COVER AS | 1 | |
| 6V7728 | 44 BOLT (M6X1X45-MM) | 1 | |
| 1245703 | 45 GASKET | 1 | |
| 1018306 | 46 COVER AS | 1 | |
| 4M5281 | 47 BOLT (1/4-20X0.75-IN) | 25 | |
| 8M2771 | 48 CLIP | 1 | |
| 5S7349 | 49 BOLT (1/4-20X0.5-IN) | 1 | |
| 2R2376 | 50 WASHER (7X16X0.8-MM THK) | 2 | |
| 3R5742 | 51 SCREW-THUMB | 2 | |
| 1245704 | 52 GASKET | 1 | |
| 3E6945 | 53 HARNESS AS-HEATER & AIR COND | 1 | |
| 3E6946 | 54 HARNESS AS-HEATER & AIR COND | 1 | |
| 1552270 | KIT-CONNECTING PLUG (2-PIN) | 1 | |
| 9G3658 | 55 CLIP | 2 | |
| 1498217 | 56 CONTROL AS-BOARD | 1 | |
| 7N7779 | SOCKET-CONNECTOR (14-GA TO 18-GA) | 5 | |
| 7N7780 | PIN-CONNECTOR (14-GA TO 18-GA) | 5 | |
| 9G3670 | HOUSING-PLUG | 1 | |
| 9G3676 | HOUSING-RECEPTACLE | 1 | |
| 9G3695 | PLUG-SEAL | 4 | |
| 3E5464 | 57 SWITCH AS-THERMOSTAT (HVAC)(A/C) | 1 | |
| 3B4501 | 58 LOCKWASHER | 2 | |
| 8T6631 | 59 SCREW-MACHINE (8-32X0.5-IN) | 2 | |
| 1352933 | 60 GASKET | 1 | |
| 5P4829 | 61 TUBE (.9M) | ||
| 5P0878 | 62 SEAL (.2-M) | ||
| 1293178 | 63 LOCKNUT (M6X1-THD) | 1 |
