System And Components

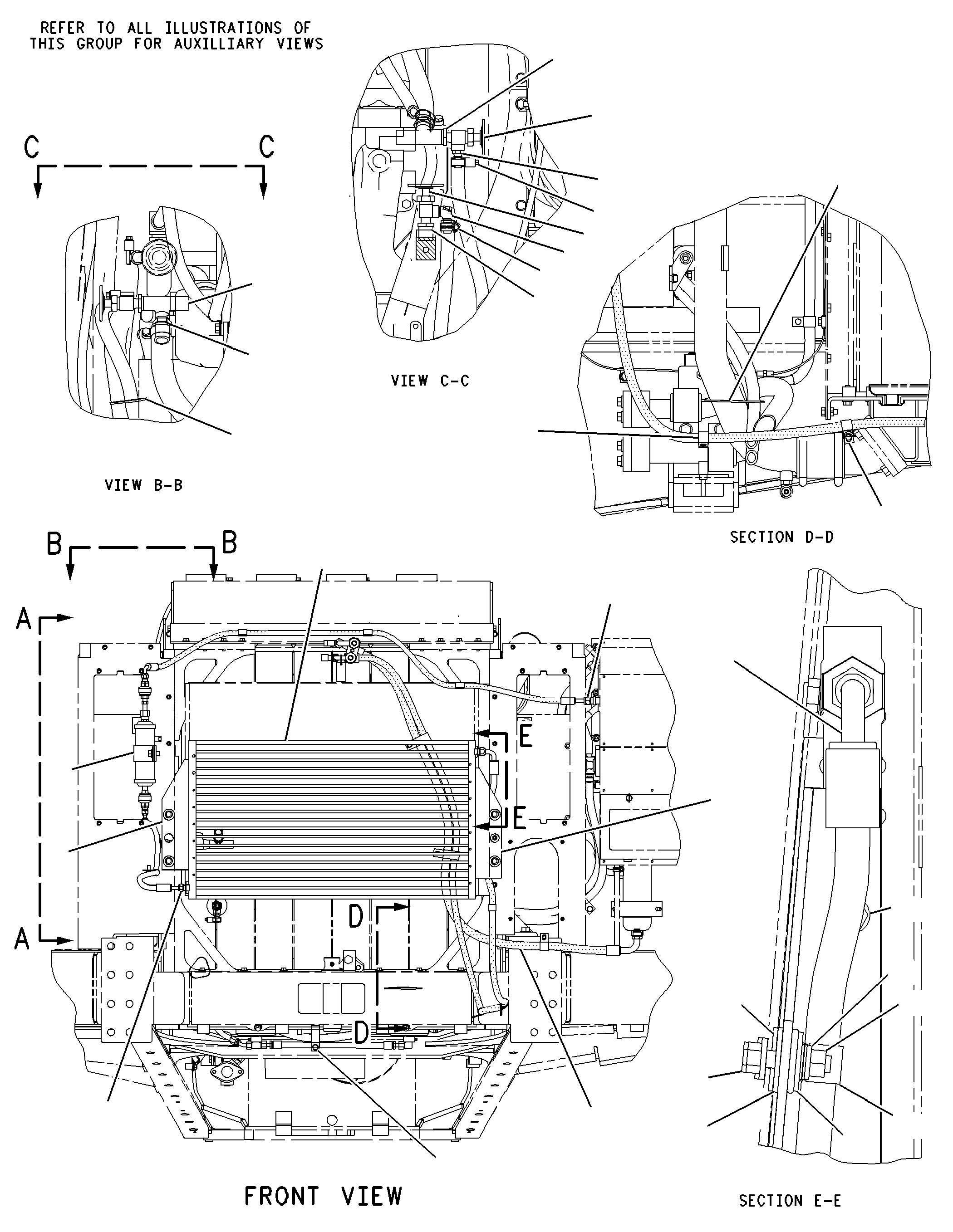

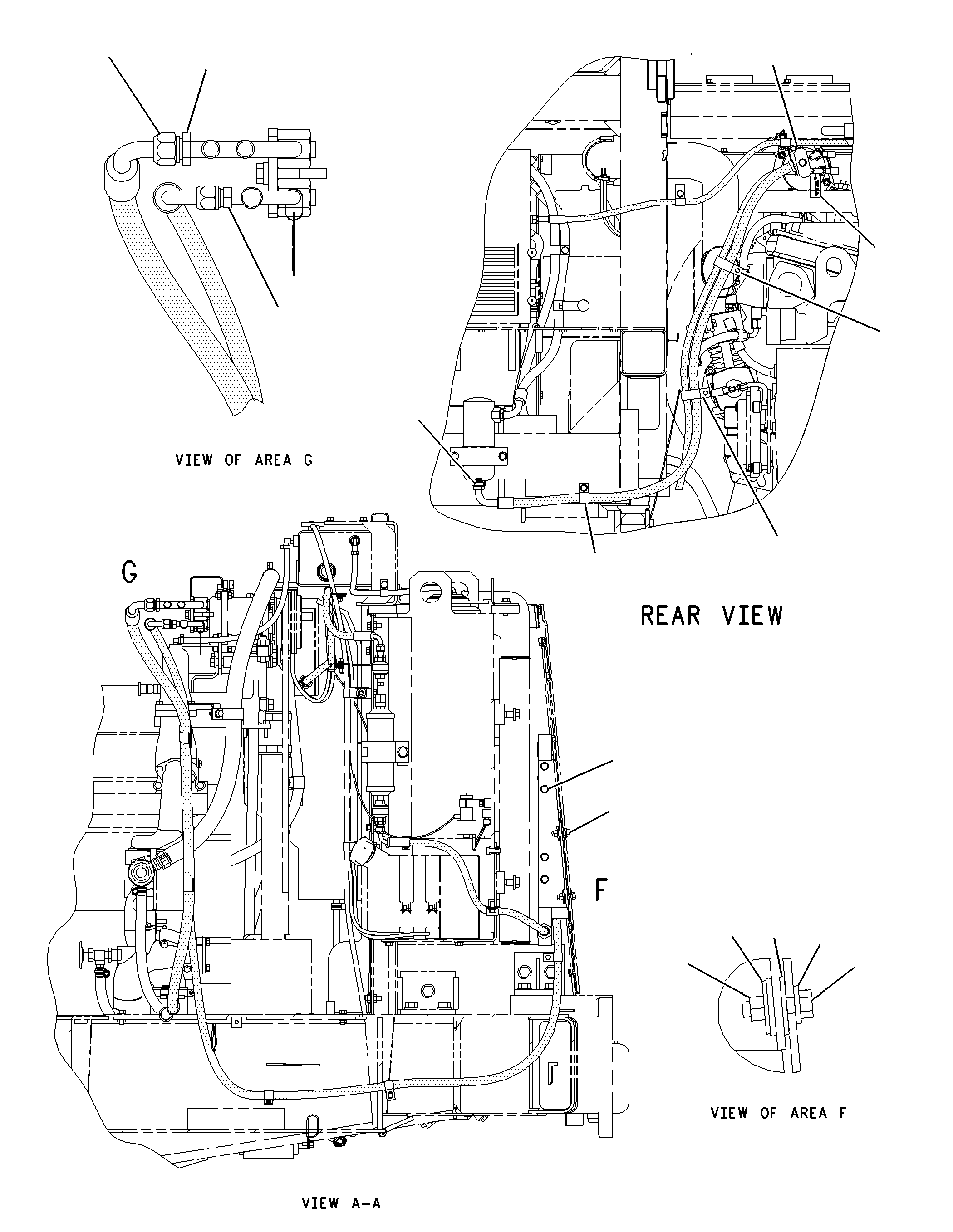

156-2872 LINES GP-HEATER & AIR CONDS/N AXF1-UP
Group No: 156-2872
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 7K1181 | 1 STRAP-CABLE | 2 | |
| 9X2488 | 2 CLAMP-HOSE | 2 | |
| 0086904 | 3 FITTING | 1 | |
| 1673899 | 4 HOSE AS | 1 | |
| 1680247 | 5 HOSE AS | 1 | |
| 1724264 | 6 BRACKET | 1 | |
| 1724265 | 7 BRACKET | 1 | |
| 1789370 | 8 LINES GP-AIR CONDITIONER | 1 | |
| 1878661 | 9 FITTING AS-AIR CONDITIONER | 1 | |
| 3E4051 | CAP-SEAL (LOW SIDE CHARGE PORT) | 1 | |
| 3E4057 | VALVE AS (REFRIGERANT, LOW SIDE) | 1 | |
| 1724880 | CAP-SEAL | 1 | |
| 1807180 | CORE-VALVE (LOW SIDE) | 1 | |
| 1807181 | BODY-VALVE | 1 | |
| 0532313 | 10 CONNECTOR | 1 | |
| 1140061 | 11 PLATE-INSTRUCTION (NO SERVICE-READ OMM) | 1 | |
| 1N8559 | 12 TEE-SERVICE | 1 | |
| 1P6356 | 13 PLATE | 1 | |
| 3E4066 | 14 FITTING AS-AIR CONDITIONER | 1 | |
| 3E4052 | CAP-SEAL (HIGH SIDE CHARGE PORT) | 1 | |
| 3E4058 | VALVE AS (REFRIGERANT, HIGH SIDE) | 1 | |
| 4S1962 | 15 CLIP (LOOP) | 1 | |
| 5M3062 | 16 BOLT (3/8-16X0.75-IN) | 10 | |
| 5P1075 | 17 WASHER-HARD (10.2X22.5X3-MM THK) | 4 | |
| 4L9337 | 18 BOLT (3/8-16X1.5-IN) | 4 | |
| 6B4661 | 19 BUSHING-REDUCER | 2 | |
| 6D1641 | 20 CLIP (LOOP) | 3 | |
| 6D4246 | 21 CLIP (LOOP) | 4 | |
| 6N8744 | 22 MOUNT | 4 | |
| 6V8801 | 23 NUT (3/8-16-THD) | 4 | |
| 7D7026 | 24 CONNECTOR-HOSE | 1 | |
| 8L8413 | 25 STRAP-CABLE (WHITE) | 1 | |
| 8N7486 | 26 CONDENSER AS | 1 | |
| 8T4222 | 27 WASHER-PLATED (11X32X2.5-MM THK) | 4 | |
| 8T4896 | 28 WASHER-HARD (10.2X18.5X2.5-MM THK) | 11 | |
| 8T6466 | 29 BOLT (M10X1.5X60-MM) | 1 | |
| 8T7934 | 30 WASHER-HARD (11X21X5-MM THK) | 1 | |
| 9N3666 | 31 VALVE-MANUAL (SHUTOFF COOLANT RETURN) | 1 | |
| 9N3666 | 31A VALVE-MANUAL (SHUTOFF COOLANT SUPPLY) | 1 | |
| 9X7380 | 32 SEAL-O-RING | 1 | |
| 9X7381 | 33 SEAL-O-RING | 3 | |
| 9X7382 | 34 SEAL-O-RING | 1 | |
| 9X7383 | 35 SEAL-O-RING | 1 | |
| 9X7385 | 36 SEAL-O-RING | 2 |
