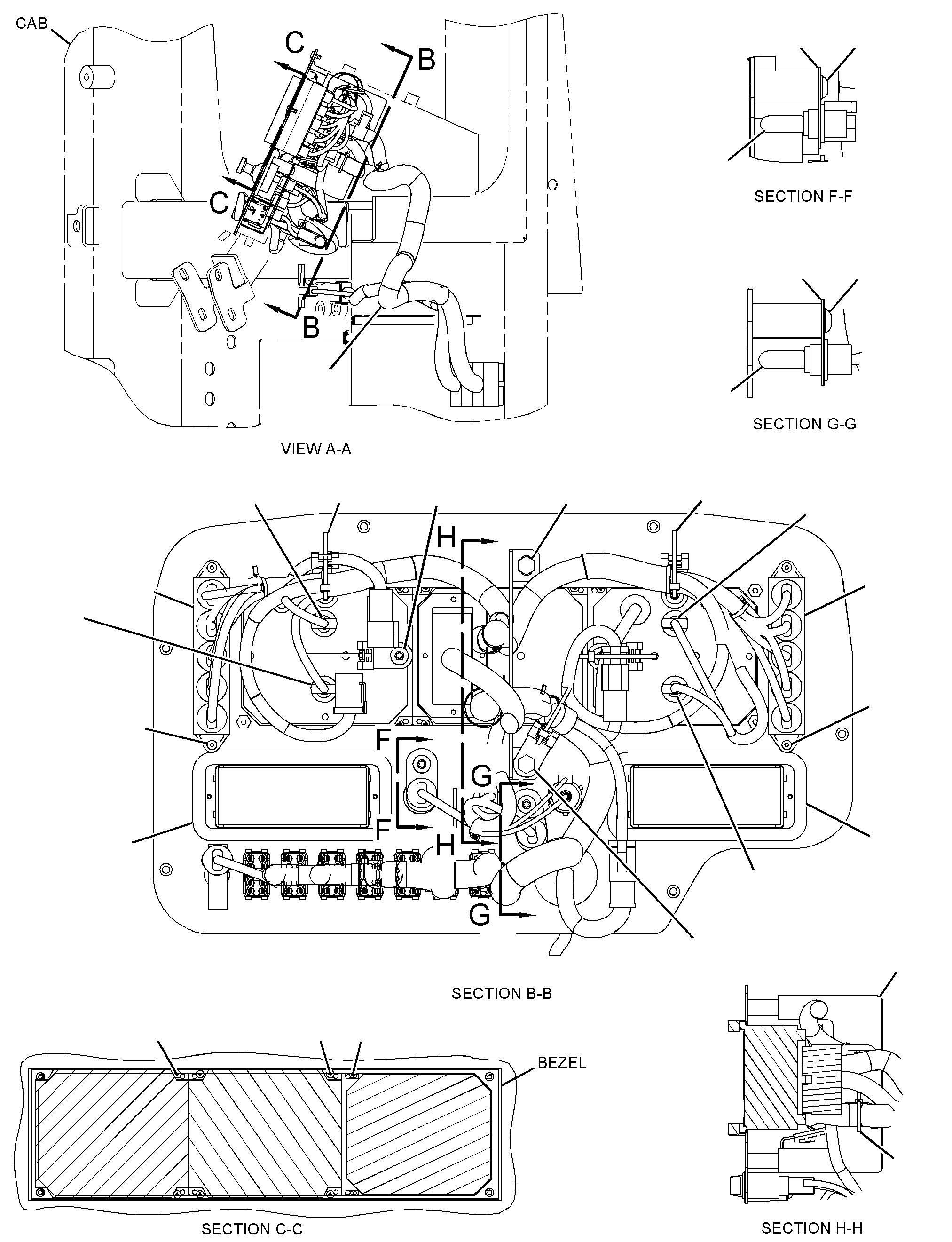

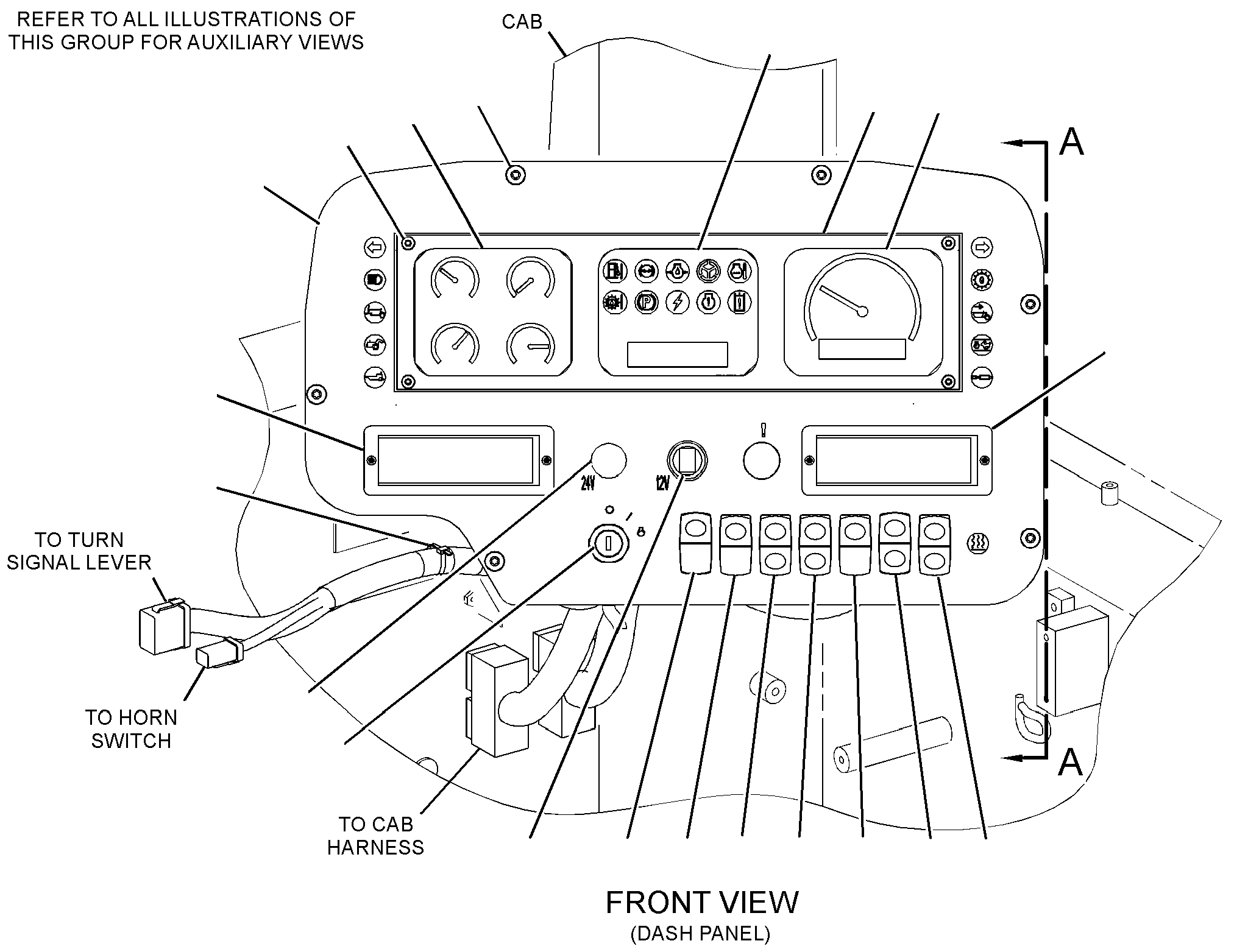

264-6750 PANEL GP-INSTRUMENTS/N AXF1-UP

Group No: 264-6750
Part NumberPart NameQty
3S20931 STRAP-CABLE3
7K11812 STRAP-CABLE5
8Y63883 LOUVER AS-VENT2
9W03354 LIGHTER AS-CIGAR (24-VOLT)1
10055685 BEZEL1
33600676 LAMP-LED (24-VOLT, WHITE)17
11078878 SWITCH AS-START (KEY)1
1863735PIN-CONNECTOR (16-GA TO 18-GA)4
7T6799NUT-MOUNTING (1-32-THD)1
1028804KIT-RECEPTACLE (4-PIN)1
11723119 SOCKET-AUXILIARY POWER (12-VOLT)1
190348210 MODULE GP-SPEEDOMETER & TACH (INSTRUMENT PANEL)1
166667411 MODULE2
168226012 PLATE2
168698113 MODULE GP-QUAD GAUGE (INSTRUMENT PANEL)1
184329414 SEAL2
218323115 BRACKET AS1
236460816 SWITCH AS-ROCKER (MODE SELECT)1
236461617 SWITCH AS-ROCKER (24-VOLT)1
243076818 SWITCH AS-ROCKER (NEUTRAL START)1
243076919 SWITCH AS-ROCKER (REAR ENGINE)1
243077220 SWITCH AS-ROCKER (SCRAPER MODE)1
249548021 SWITCH AS-ROCKER (24-VOLT)(BOWL FLOODLIGHT)1
251353922 SWITCH AS-ROCKER (24-VOLT)(HEADLIGHT)1
254619023 FILM-IDENTIFICATION (CATERPILLAR MONITORING SYSTEM)1
256867724 HARNESS AS-PANEL1
3S2093STRAP-CABLE13
9X0194TERMINAL AS1
3T8369TERMINAL-SOLDER1
5P4571TERMINAL-BLADE (14-GA TO 16-GA)1
5P4571TERMINAL-BLADE (14-GA TO 16-GA)1
8T8730SOCKET-CONNECTOR (16-GA TO 20-GA)86
8T8737PLUG-SEAL38
8T9834PLUG AS-CONNECTOR (40-PIN)1
3E4367RING-RETAINING1
3E8557BOLT (M5X0.8X39.37-MM)1
9X3132SEAL-CONNECTOR (40-PIN)2
5P6271CONNECTOR AS1
9X7147PLUG AS-CONNECTOR (40-PIN)1
9X0141PLUG AS-CONNECTOR (40-PIN)1
3E4367RING-RETAINING1
3E8557BOLT (M5X0.8X39.37-MM)1
9X3490SEAL-CONNECTOR (40-PIN)2
9X3402SOCKET-CONNECTOR (16-GA TO 18-GA)26
1071984SOCKET-LAMP13
1071985TERMINAL26
1135183SOCKET-LAMP4
1135184TERMINAL-RECEPTACLE (16-GA TO 18-GA)8
1193662TUBE-HEAT SHRINK (10.85-MM DIA)(52-CM)
1257874TUBE-HEAT SHRINK (5.72-MM DIA)(30-CM)
1257875TUBE-HEAT SHRINK (7.44-MM DIA)(15-CM)
1552255KIT-CONNECTING PLUG (12-PIN)1
1552271KIT-CONNECTING PLUG (4-PIN)1
1552270KIT-CONNECTING PLUG (2-PIN)1
1552274KIT-CONNECTING PLUG (6-PIN)2
1851860SEAL-WIRE39
1851861SEAL-WIRE4
2025397PLUG27
2457434KIT-CONNECTING PLUG (10-PIN)7
1552255KIT-CONNECTING PLUG (12-PIN)1
1552270KIT-CONNECTING PLUG (2-PIN)1
1552274KIT-CONNECTING PLUG (6-PIN)2
259633325 PLATE AS1
264674326 FILM-SWITCH PANEL1
252450327 CONTROL GP-UNPROGRAMMED (CATERPILLAR MONITORING SYSTEM)1
104209128 SCREW-FLAT HEAD (6-20X0.5-IN)4
107196429 SCREW-PAN HEAD (6-19X0.5-IN)8
4P813430 CLIP (LADDER)5
7Y317331 SCREW-BUTTON HEAD (M4X0.7X12-MM)4
9X204232 SCREW-TRUSS HEAD (M6X1X12-MM)12
8T419933 BOLT (M8X1.25X12-MM)2
7Y725634 SCREW-TRUSS HEAD (M4X0.7X35-MM)4
