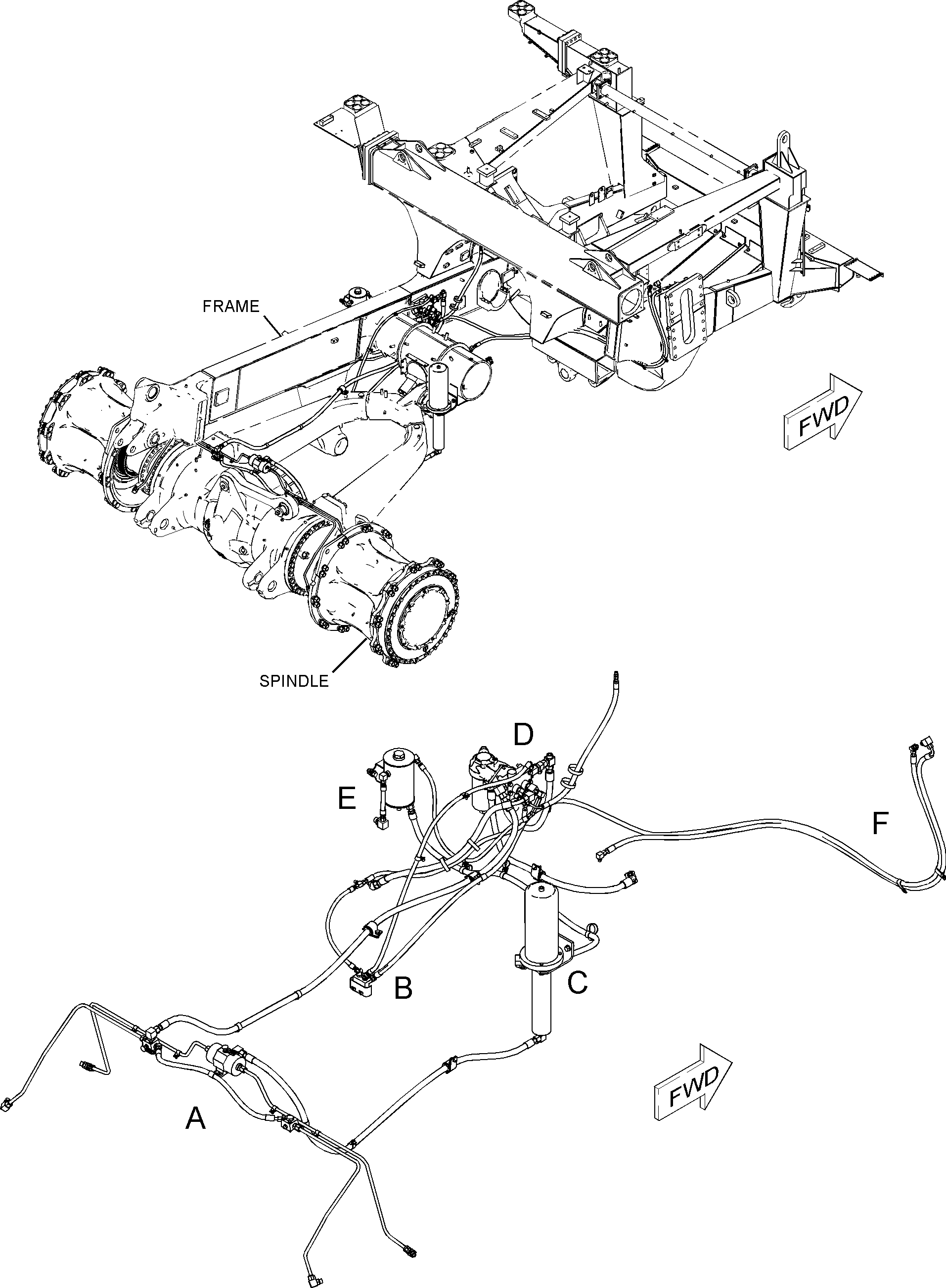

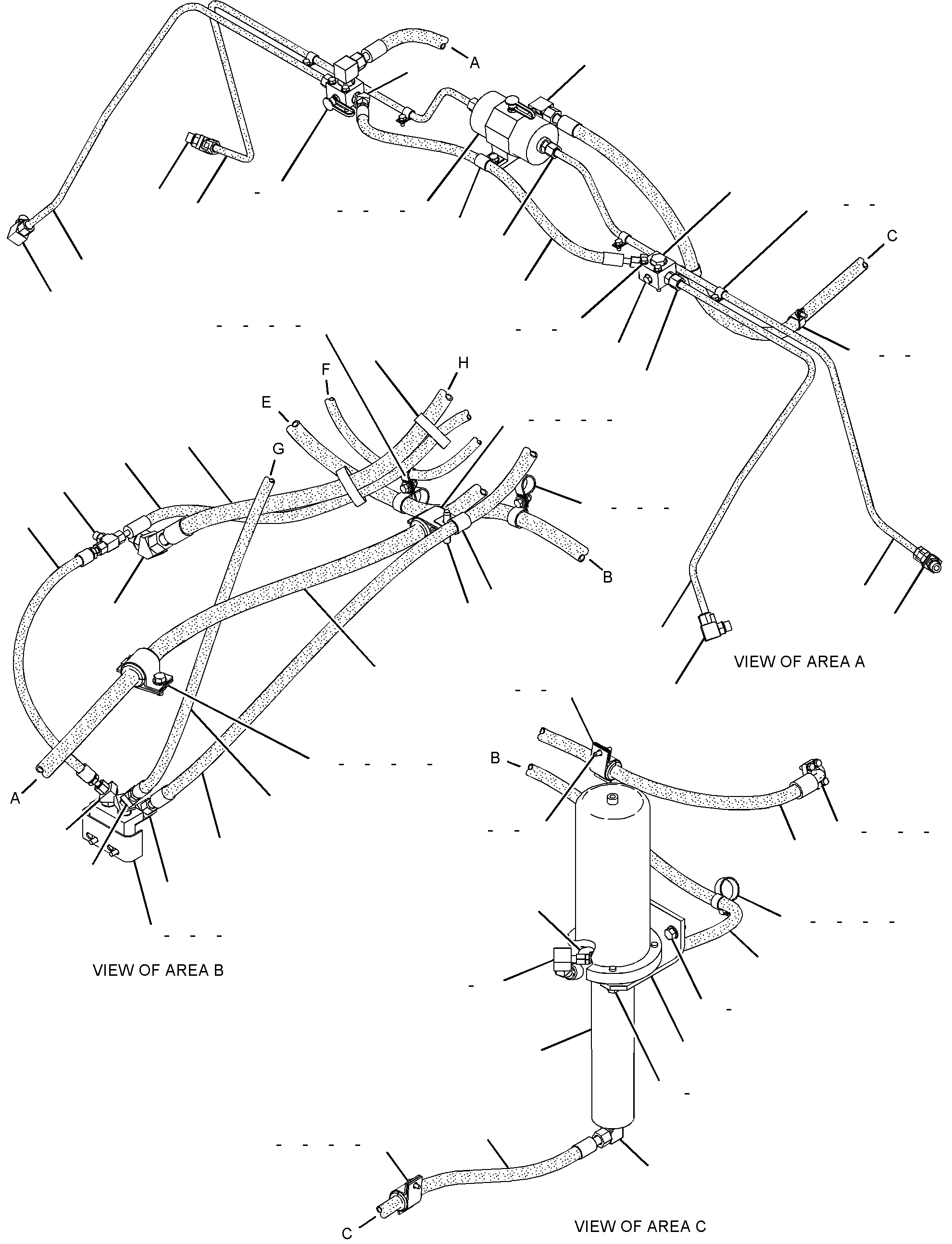

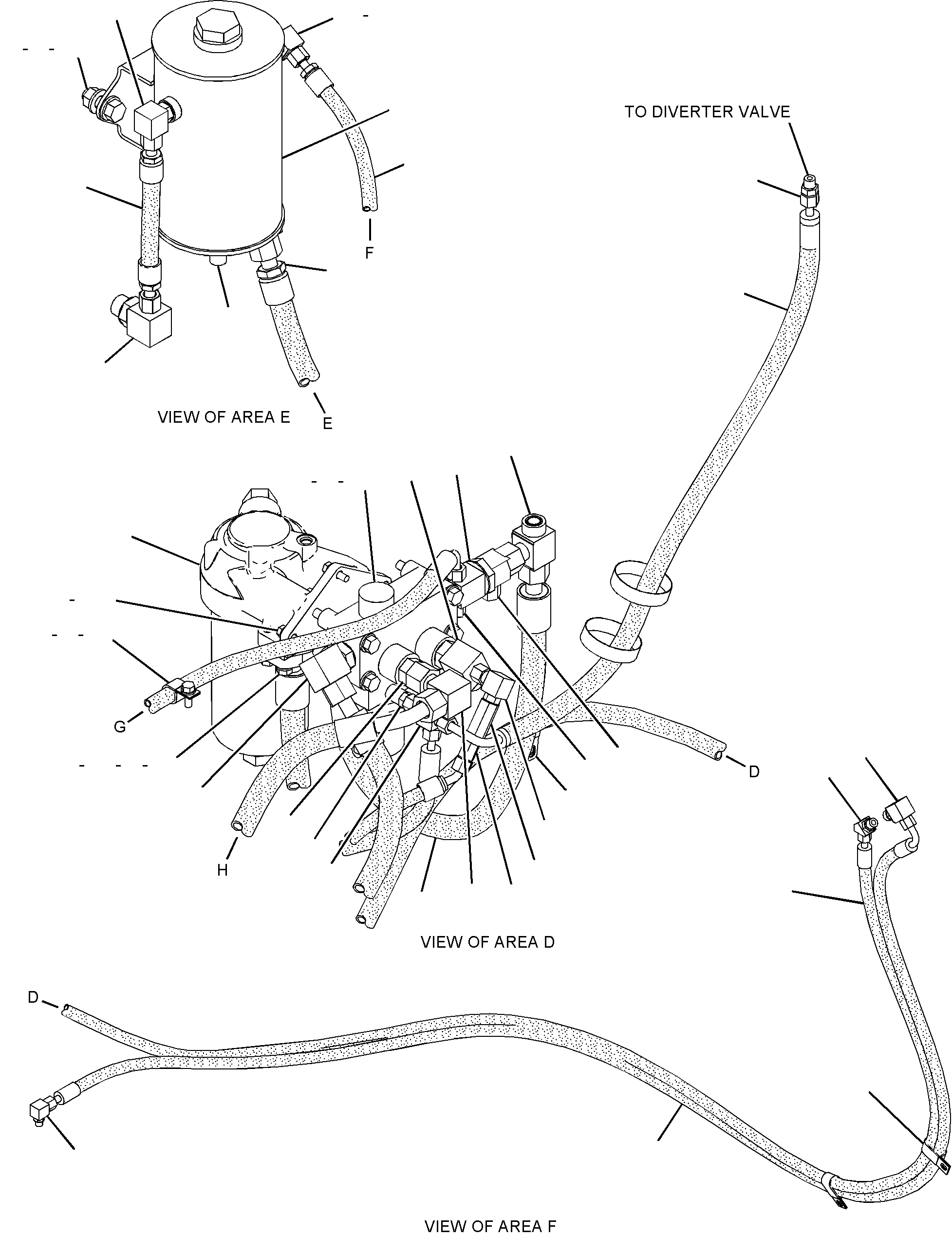

247-0169 LINES GP-HYDRAULIC -BRAKE, TORQUE CONVERTER OILS/N AFS93-UP
Group No: 247-0169
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 2G5900 | 1 SLACK ADJUSTER GP | 1 | |
| 3G2887 | 2 VALVE GP-DIVERTER | 1 | |
| 4D5371 | 3 CLIP | 4 | |
| 5T7484 | 4 JUNCTION BLOCK | 2 | |
| 5T9701 | 5 HOSE AS | 1 | |
| 5T9986 | 6 HOSE AS | 1 | |
| 8J5604 | 7 BREATHER AS (REAR BRAKE) | 1 | |
| 8W0340 | 8 HOSE AS | 1 | |
| 8W4516 | 9 HOSE AS | 1 | |
| 8W4733 | 10 BRACKET | 1 | |
| 8W6812 | 11 HOSE AS | 1 | |
| 8X1859 | 12 TUBE AS | 1 | |
| 8X1860 | 13 TUBE AS | 1 | |
| 8X1861 | 14 TUBE AS | 1 | |
| 8X1862 | 15 TUBE AS | 1 | |
| 8X1872 | 16 HOSE AS | 1 | |
| 8X9937 | 17 HOSE AS | 1 | |
| 9D6937 | 18 BRACKET | 1 | |
| 1125738 | 19 HOSE AS | 1 | |
| 1131543 | 20 VALVE GP-BRAKE (PARKING, SECONDARY) | 1 | |
| 1170138 | 21 HOSE AS | 1 | |
| 1192107 | 22 HOSE AS | 1 | |
| 1227765 | 23 PLUG-PIPE | 1 | |
| 1370279 | 24 CYLINDER GP-AIR/HYDRAULIC | 1 | |
| 1405856 | 25 HOSE AS | 1 | |
| 1439426 | 26 TANK GP-BRAKE (MAKEUP) | 1 | |
| 1488420 | 27 TEE AS | 1 | |
| 8T6338 | TEE-O-RING PORT | 1 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 1503032 | 28 ELBOW AS | 1 | |
| 8C8762 | ELBOW | 1 | |
| 6V9746 | SEAL-O-RING | 1 | |
| 1521953 | 29 HOSE AS | 1 | |
| 1536248 | 30 ADAPTER AS | 1 | |
| 8T6663 | ADAPTER-PORT | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 1536255 | 31 ELBOW AS | 1 | |
| 8C3324 | ELBOW | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V9746 | SEAL-O-RING | 1 | |
| 1550052 | 32 HOSE AS | 1 | |
| 1645567 | 33 COUPLER AS-QUICK DISCONNECT (MALE) | 2 | |
| 6V3965 | FITTING (QUICK DISCONNECT) | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 1723889 | 34 FILTER GP-OIL | 1 | |
| 1725602 | 35 VALVE AS (PARKING BRAKE) | 1 | |
| 1384732 | VALVE-CHECK | 1 | |
| 3D2824 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 2 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 6V9746 | SEAL-O-RING | 1 | |
| 1725603 | 36 SCREEN GP-HYDRAULIC | 1 | |
| 6E5065 | SCREEN AS (BRAKE COOLING) | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 1725605 | 37 ELBOW AS | 1 | |
| 3E7432 | ELBOW | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 1761722 | 38 HOSE AS | 1 | |
| 1761723 | 39 HOSE AS | 1 | |
| 1488315 | 40 CONNECTOR AS | 2 | |
| 6V8642 | CONNECTOR | 1 | |
| 2M9780 | SEAL-O-RING | 1 | |
| 7J9108 | SEAL-O-RING | 1 | |
| 1488326 | 41 CONNECTOR AS | 1 | |
| 6V9872 | CONNECTOR | 1 | |
| 3J7354 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 1488327 | 42 CONNECTOR AS | 1 | |
| 6V8637 | CONNECTOR | 1 | |
| 3D2824 | SEAL-O-RING | 1 | |
| 6V9746 | SEAL-O-RING | 1 | |
| 1488336 | 43 CONNECTOR AS | 1 | |
| 6V8636 | CONNECTOR | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 1488342 | 44 CONNECTOR AS | 2 | |
| 6V8632 | CONNECTOR | 1 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 7J9108 | SEAL-O-RING | 1 | |
| 1488347 | 45 ELBOW AS | 3 | |
| 6V9007 | ELBOW | 1 | |
| 3D2824 | SEAL-O-RING | 1 | |
| 6V9746 | SEAL-O-RING | 1 | |
| 1488354 | 46 ELBOW AS | 4 | |
| 6V9002 | ELBOW | 1 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 1488363 | 47 ELBOW AS | 2 | |
| 6V9876 | ELBOW | 1 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 1488364 | 48 ELBOW AS | 1 | |
| 6V8625 | ELBOW | 1 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 1488365 | 49 ELBOW AS | 1 | |
| 8T6876 | ELBOW | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 1488372 | 50 ELBOW AS | 1 | |
| 6V8721 | ELBOW | 1 | |
| 2M9780 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 1488381 | 51 ELBOW AS | 1 | |
| 8T5429 | ELBOW | 1 | |
| 3D2824 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 1488388 | 52 ELBOW AS | 1 | |
| 6V8629 | ELBOW | 1 | |
| 2M9780 | SEAL-O-RING | 1 | |
| 6V9746 | SEAL-O-RING | 1 | |
| 1488390 | 53 ELBOW AS | 2 | |
| 6V8626 | ELBOW | 1 | |
| 2M9780 | SEAL-O-RING | 1 | |
| 7J9108 | SEAL-O-RING | 1 | |
| 1488392 | 54 ELBOW AS | 1 | |
| 6V9853 | ELBOW | 1 | |
| 6V9746 | SEAL-O-RING | 1 | |
| 1488407 | 55 PLUG AS | 1 | |
| 9S4191 | PLUG (9/16-18-THD) | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 1488408 | 56 PLUG AS | 1 | |
| 9S4183 | PLUG (1-1/16-12-THD) | 1 | |
| 3D2824 | SEAL-O-RING | 1 | |
| 1488421 | 57 TEE AS | 1 | |
| 8T2883 | TEE | 1 | |
| 3D2824 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 6V9746 | SEAL-O-RING | 1 | |
| 1488433 | 58 TEE AS | 2 | |
| 6V9836 | TEE-SWIVEL | 1 | |
| 6V8397 | SEAL-O-RING | 2 | |
| 1488439 | 59 TEE AS | 1 | |
| 6V8774 | TEE | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 2 | |
| 1504033 | 60 ADAPTER AS | 1 | |
| 6V9846 | TEE | 1 | |
| 6V9746 | SEAL-O-RING | 2 | |
| 1504043 | 61 CONNECTOR AS | 1 | |
| 6V9873 | CONNECTOR | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 1504050 | 62 ELBOW AS | 1 | |
| 8T0788 | ELBOW | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 1536237 | 63 ELBOW AS | 1 | |
| 6V9004 | ELBOW | 1 | |
| 3D2824 | SEAL-O-RING | 1 | |
| 6V9746 | SEAL-O-RING | 1 | |
| 1553504 | 64 ELBOW AS | 2 | |
| 6V9003 | ELBOW | 1 | |
| 2M9780 | SEAL-O-RING | 1 | |
| 7J9108 | SEAL-O-RING | 1 | |
| 1P4576 | 65 FLANGE-HALF | 2 | |
| 1P4578 | 66 FLANGE-HALF | 4 | |
| 1S0994 | 67 CLIP (LOOP) | 2 | |
| 3D0472 | 68 STUD-TAPERLOCK (1/2-13X2.80-IN) | 1 | |
| 4J0522 | 69 SEAL-O-RING | 2 | |
| 4J5267 | 70 SEAL-O-RING | 1 | |
| 4L6454 | 71 BOLT (3/8-16X1-IN) | 6 | |
| 4L6459 | 72 BOLT (3/8-16X2.5-IN) | 4 | |
| 4M2743 | 73 STUD-TAPERLOCK (3/8-16-THD) | 1 | |
| 4S4455 | 74 CLIP | 4 | |
| 5M3062 | 75 BOLT (3/8-16X0.75-IN) | 8 | |
| 5P1075 | 76 WASHER-HARD (10.2X22.5X3-MM THK) | 12 | |
| 5P7466 | 77 CLIP (SLOT) | 4 | |
| 5P7467 | 78 CLIP (TAB) | 4 | |
| 5P8112 | 79 GROMMET | 4 | |
| 5S7382 | 80 BOLT (3/8-16X1.375-IN) | 4 | |
| 6D1641 | 81 CLIP (LOOP) | 2 | |
| 6V0852 | 82 CAP-DUST | 2 | |
| 6V1889 | 83 CLIP (LOOP) | 5 | |
| 6V2235 | 84 CLIP | 1 | |
| 6V8188 | 85 NUT (1/2-13-THD) | 1 | |
| 6V8801 | 86 NUT (3/8-16-THD) | 4 | |
| 6V9829 | 87 CAP (ORFS) | 1 | |
| 6V9830 | 88 CAP (ORFS) | 1 | |
| 7X0289 | 89 BOLT (3/8-16X1.875-IN) | 2 | |
| 7X0308 | 90 BOLT (7/16-14X1.375-IN) | 8 | |
| 7X0345 | 91 BOLT (5/8-11X1.75-IN) | 2 | |
| 7X0448 | 92 NUT (5/8-11-THD) | 2 | |
| 7X3192 | 93 BOLT (5/8-18X2-IN) | 3 | |
| 8C4436 | 94 BOLT (1/2-13X1.375-IN) | 1 | |
| 8J8197 | 95 CLIP | 2 | |
| 8M2773 | 96 CLIP (LOOP) | 1 | |
| 8T2502 | 97 BOLT (3/8-16X1.125-IN) | 3 | |
| 8T4122 | 98 WASHER-HARD (17X32X3.5-MM THK) | 9 | |
| 8T4223 | 99 WASHER-HARD (13.5X25.5X3-MM THK) | 8 | |
| 8T4896 | 100 WASHER-HARD (10.2X18.5X2.5-MM THK) | 19 | |
| 8T5360 | 101 WASHER (12X22.5X2.5-MM THK) | 8 | |
| 8T8917 | 102 BOLT (1/2-13X1.25-IN) | 1 | |
| 8T8919 | 103 BOLT (1/2-13X1.75-IN) | 1 | |
| 8T9391 | 104 BOLT (1/2-13X3.75-IN) | 4 | |
| 8T9393 | 105 BOLT (5/8-11X1.5-IN) | 2 | |
| 9M8406 | 106 CLIP (LOOP) | 4 | |
| 9X8250 | 107 CLIP (LOOP) | 1 |
