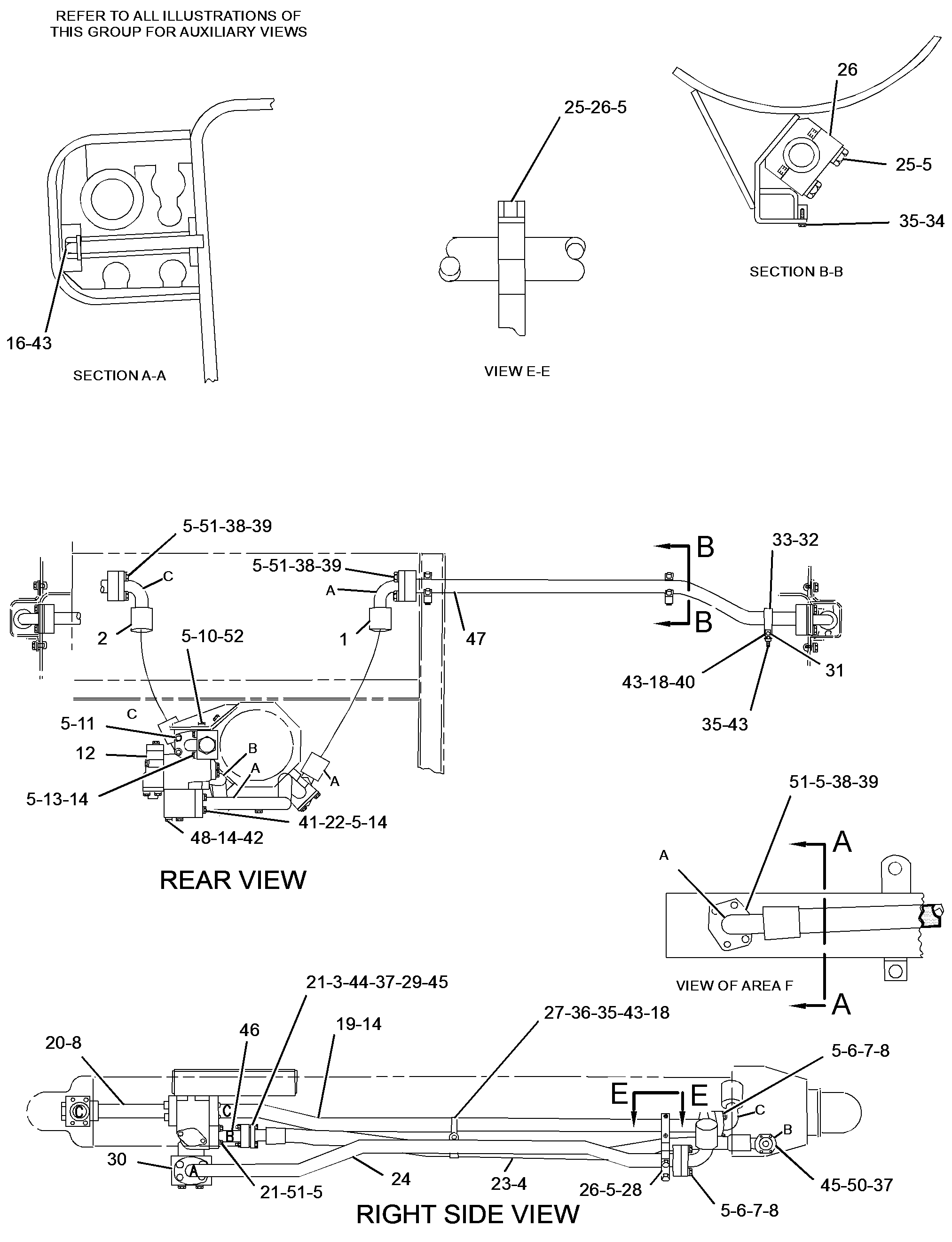

122-7205 LINES GP-EJECTORPART OF 161-9102 SCRAPER AR

Group No: 122-7205
Part NumberPart NameQty
8X32791 HOSE AS1
8X32802 HOSE AS1
3H55213 PLATE-CONNECTOR1
4J05224 SEAL-O-RING2
8T42235 WASHER-HARD (13.5X25.5X3-MM THK)57
5P25666 BOLT (1/2-13X1.5-IN)8
1P45827 FLANGE-HALF4
4J05278 SEAL-O-RING3
8I15489 NUT (3/8-16-THD)12
8C443610 BOLT (1/2-13X1.375-IN)4
9M726911 BOLT (1/2-13X6.75-IN)4
4J228012 VALVE GP-EJECTOR1
7X032813 BOLT (1/2-13X3.5-IN)4
1P370714 SEAL-RECTANGULAR4
8T891715 BOLT (1/2-13X1.25-IN)22
7X029016 BOLT (3/8-16X3.5-IN)6
8W375917 HOSE AS2
6V880118 NUT (3/8-16-THD)3
140004819 TUBE AS1
140004720 TUBE AS1
1P370521 SEAL-RECTANGULAR2
8T483522 BOLT (1/2-13X2-IN)4
8W751823 HOSE AS1
140004624 TUBE AS1
5P242425 BOLT (1/2-13X2.25-IN)10
5T183126 CLAMP7
5P236927 CLIP (LOOP)1
6V443228 BOLT (1/2-13X4-IN)2
7X031229 BOLT (7/16-14X2.5-IN)4
8W009530 BLOCK1
2P091131 ANGLE2
3G688332 CLIP (SLOT)2
3G688433 CLIP (TAB)2
5P107534 WASHER-HARD (10.2X22.5X3-MM THK)30
4L645435 BOLT (3/8-16X1-IN)9
7D155336 CLIP1
8T536037 WASHER (12X22.5X2.5-MM THK)8
1P457938 FLANGE-HALF8
4J052439 SEAL-O-RING6
9B723740 BOLT (3/8-16X1.25-IN)2
1P576341 FLANGE-HALF2
5P107642 WASHER-HARD (13.5X30X4-MM THK)58
8T489643 WASHER-HARD (10.2X18.5X2.5-MM THK)14
7X044744 NUT (7/16-14-THD)4
1P457845 FLANGE-HALF4
3G364446 TUBE AS1
123531547 TUBE AS2
7X033348 BOLT (1/2-13X4.75-IN)4
5P222849 BOLT (1/2-13X1-IN)18
8T891650 BOLT (7/16-14X1.5-IN)4
8T891951 BOLT (1/2-13X1.75-IN)21
6Y811452 SPACER (13.8X23.75X12.7-MM THK)3
4K309353 STUD12
8H172854 NUT-ACORN (3/8-16-THD)12
