System And Components
Assembly
100%

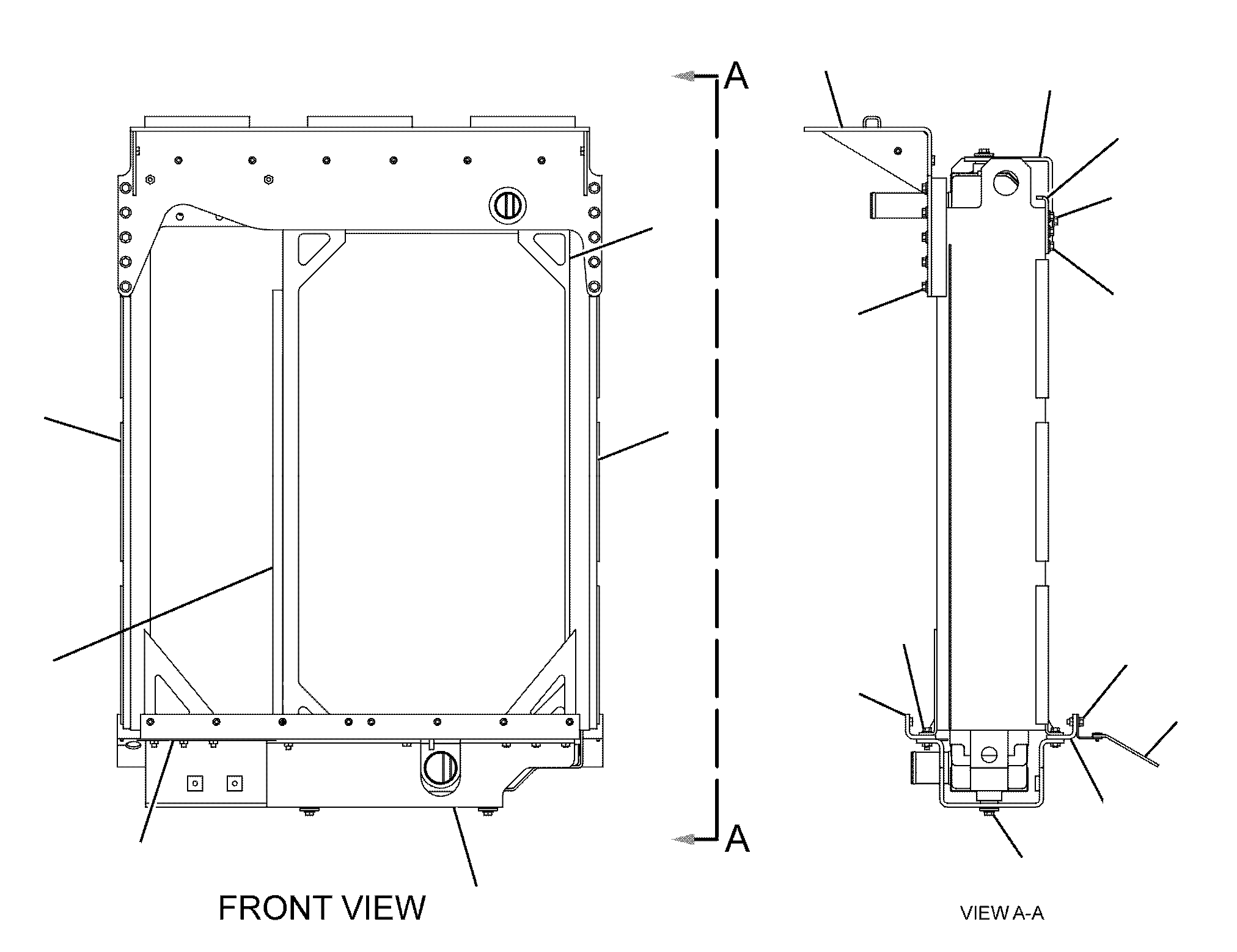

217-3240 RADIATOR GPS/N CEZ1-UP

Group No: 217-3240
Part NumberPart NameQty
19818981 CHANNEL AS (RH)1
1F0750NUT-WELD (3/8-16-THD)3
19818992 CHANNEL AS (LH)1
1F0750NUT-WELD (3/8-16-THD)3
19819013 ANGLE AS2
1F0750NUT-WELD (3/8-16-THD)8
19849664 BRACKET AS1
1F0750NUT-WELD (3/8-16-THD)4
19849675 PLATE AS1
1F0750NUT-WELD (3/8-16-THD)3
20000146 BRACKET AS1
1F0750NUT-WELD (3/8-16-THD)10
20000157 BAFFLE AS1
7D8635RIVET6
2007925STRIP1
21732538 SUPPORT AS1
1F0750NUT-WELD (3/8-16-THD)11
21732559 PLATE1
217981910 CORE AS-RADIATOR1
164441311 MOUNT3
4L645412 BOLT (3/8-16X1-IN)22
5P107513 WASHER-HARD (10.2X22.5X3-MM THK)18
8T412114 WASHER-HARD (11X21X2.5-MM THK)3
8T418615 BOLT (M10X1.5X40-MM)3
8T489616 WASHER-HARD (10.2X18.5X2.5-MM THK)18
9B723717 BOLT (3/8-16X1.25-IN)14
9L878118 WASHER (0.406X1.5X0.188-IN THK)3
6V249919 SEAL (.9M)
