System And Components
Assembly
100%

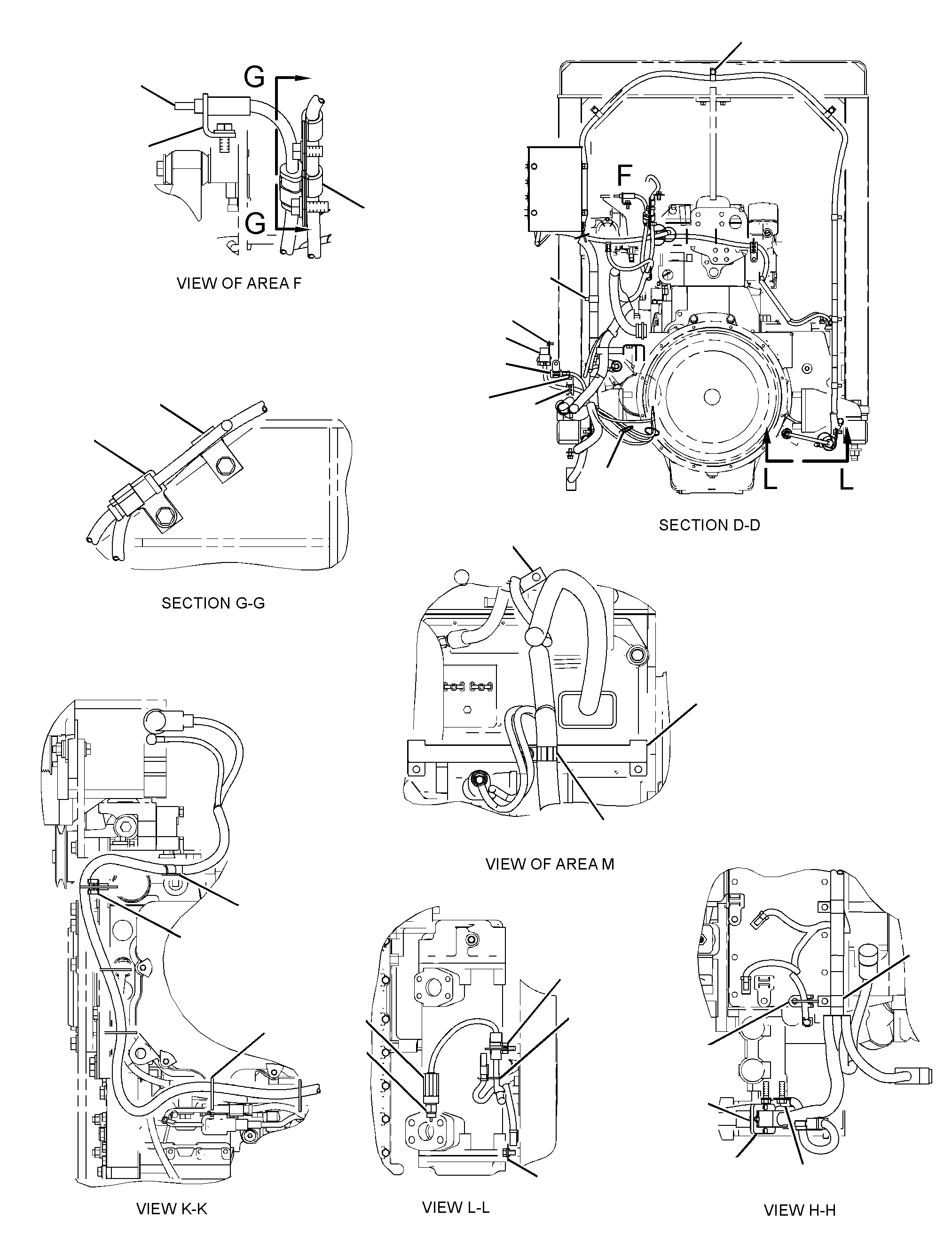

228-6891 WIRING GP-SCRAPERS/N CEZ400-UP

Group No: 228-6891
Part NumberPart NameQty
3E52391 RELAY AS (24-VOLT)(MAIN)1
3E52391A RELAY AS (24-VOLT)(START)1
3E52391B RELAY AS (24-VOLT)(HEATER)1
5N21262 CONNECTOR (THERMOCOUPLE)1
6V42833 PLATE-IDENTIFICATION (ALTERNATOR RESET)1
9F81254 LOCKWASHER2
9X32715 ADAPTER (1/2-14-THD)1
12513026 SWITCH GP-MAGNETIC (24-VOLT)1
12563907 PLATE-INFORMATION (ENGINE)3
13107848 SENSOR GP-TEMPERATURE (TRACTOR CONVERTER OIL)1
16199269 SENSOR GP-PRESSURE (TURBO INLET)1
165597010 SWITCH GP-TOGGLE (PRIMING PUMP)1
171220511 CIRCUIT BREAKER AS (40-AMPERE)(ALTERNATOR)1
2532111LOCKWASHER2
6V8187NUT (1/4-28-THD)2
8T4205WASHER-HARD (7.2X14.5X2-MM THK)2
175368712 BRACKET AS1
180635613 BRACKET1
200533214 PLATE AS1
200533515 COVER1
205539916 HARNESS AS-BOX1
213622317 HARNESS AS-TRANSMISSION1
1261774COVER-CONNECTOR2
6D8149PLUG AS-CONNECTOR (10-PIN)1
7X6222PLUG AS-CONNECTOR (24-PIN)2
1471446PLUG AS-CONNECTOR (70-PIN)1
1607690PLUG AS-CONNECTOR (70-PIN)1
1552270KIT-CONNECTING PLUG (2-PIN)3
219722418 PLATE AS1
228689419 HARNESS AS-ENGINE (REAR)1
1261774COVER-CONNECTOR1
9X1054PLUG AS-CONNECTOR (4-PIN)1
1028803KIT-RECEPTACLE (3-PIN)1
1028801KIT-RECEPTACLE (12-PIN)1
9X0145RECEPTACLE AS-CONNECTOR (24-PIN)1
1552260KIT-CONNECTING PLUG (3-PIN)1
1552270KIT-CONNECTING PLUG (2-PIN)4
3E5519PLUG AS-CONNECTOR (5-PIN)1
9X0141PLUG AS-CONNECTOR (40-PIN)1
9X1054PLUG AS-CONNECTOR (4-PIN)1
1552272PLUG AS-CONNECTOR (4-PIN)2
1607689PLUG AS-CONNECTOR (70-PIN)1
033824820 CLIP (LOOP)1
124147921 CLIP (LOOP)2
130530022 CLIP7
147038523 CLIP1
1H439324 LOCKWASHER6
1S099425 CLIP (LOOP)2
2S955626 SCREW-MACHINE (10-32X0.875-IN)2
3J190727 SEAL-O-RING1
3J735428 SEAL-O-RING1
4D779429 CLIP1
4L645430 BOLT (3/8-16X1-IN)3
4P758131 CLIP (LADDER)4
4P813432 CLIP (LADDER)1
4S196233 CLIP (LOOP)2
5M306234 BOLT (3/8-16X0.75-IN)30
5S734935 BOLT (1/4-20X0.5-IN)4
6D424436 CLIP (LOOP)3
6T364237 CIRCUIT BREAKER AS (10-AMPERE)(TRANSMISSION)1
6V8376SCREW-MACHINE (8-32X0.25-IN)2
9B7233LOCKWASHER2
6T364338 CIRCUIT BREAKER AS (15-AMPERE)(ENGINE CONTROL)1
6T364338A CIRCUIT BREAKER AS (15-AMPERE)(MAIN)1
6V8376SCREW-MACHINE (8-32X0.25-IN)2
9B7233LOCKWASHER2
6V188939 CLIP (LOOP)1
6V734540 SCREW-MACHINE (8-32X0.875-IN)6
7K118141 STRAP-CABLE15
8M277042 CLIP (LOOP)8
8M277343 CLIP (LOOP)2
8T418944 BOLT (M8X1.25X20-MM)2
8T420545 WASHER-HARD (7.2X14.5X2-MM THK)5
8T489646 WASHER-HARD (10.2X18.5X2.5-MM THK)37
8T940547 BOLT-SOCKET HEAD (M4X0.7X16-MM)4
9B723748 BOLT (3/8-16X1.25-IN)2
9X825049 CLIP (LOOP)2
8T936450 BOLT (1/4-20X0.625-IN)1
3S209351 STRAP-CABLE1
