System And Components

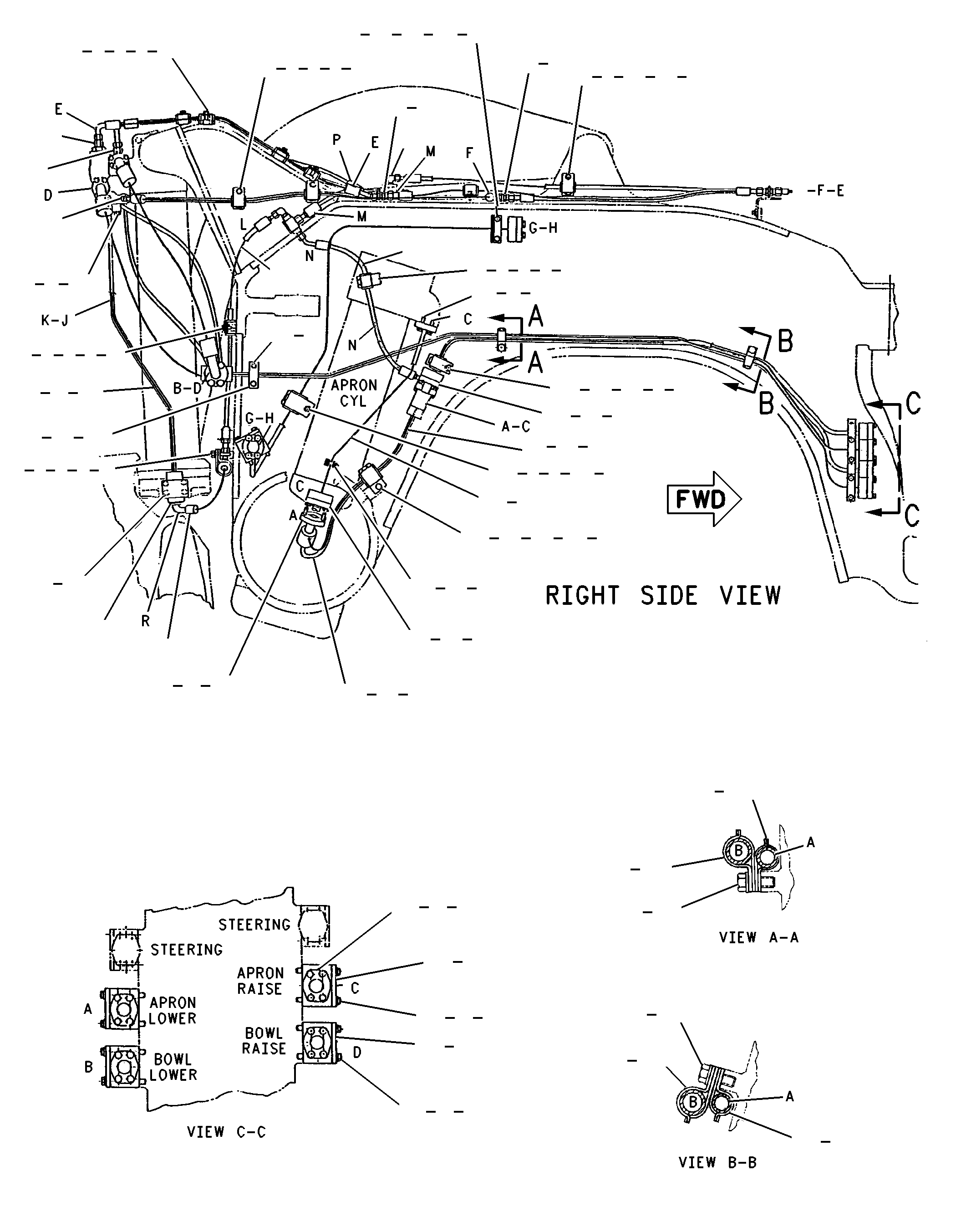

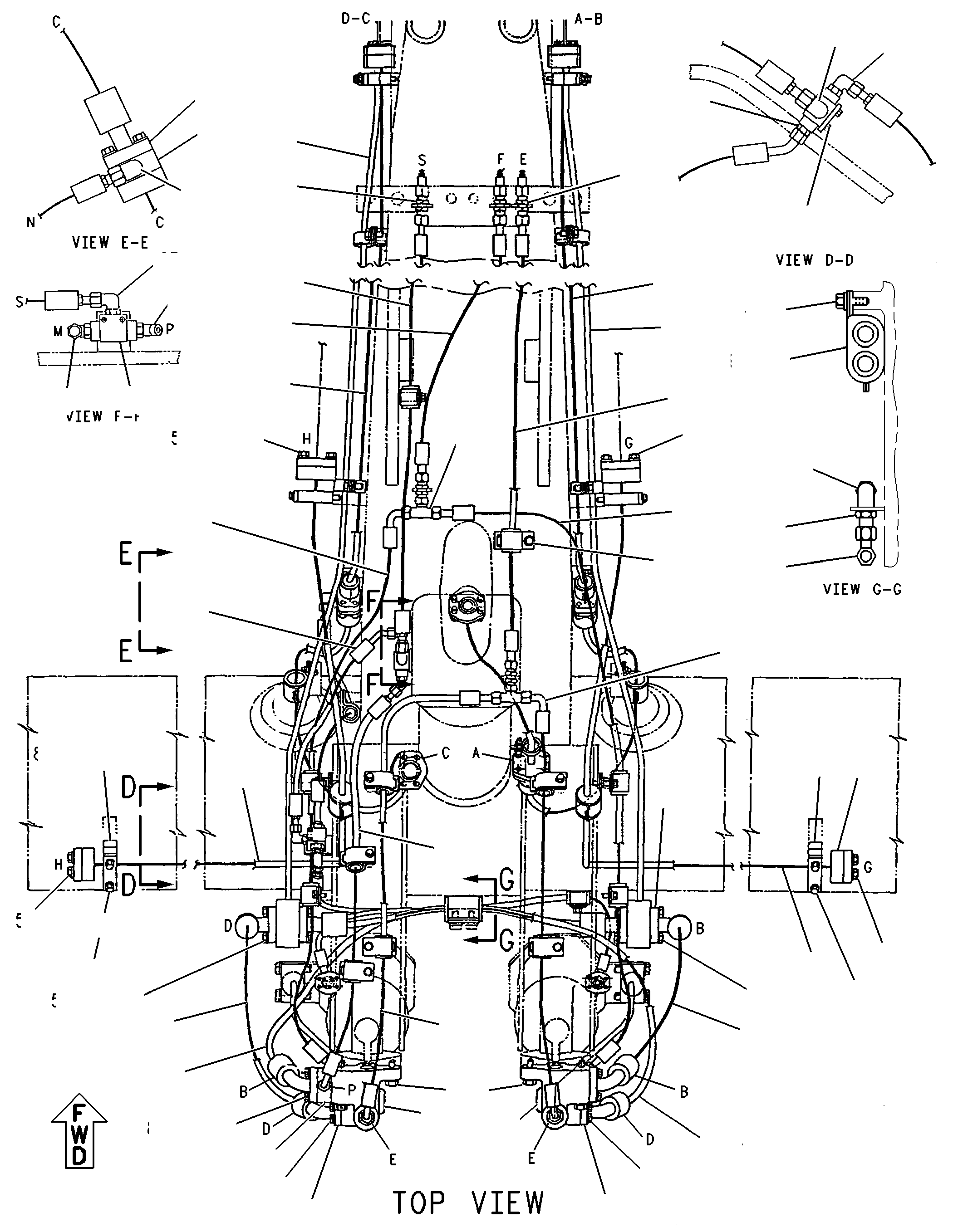

8X-6591 LINES GP-DRAFT FRAMES/N CEZ1-399
Group No: 8X-6591
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 1488338 | 1 CONNECTOR AS | 3 | |
| 8T0075 | CONNECTOR | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 8T4122 | 2 WASHER-HARD (17X32X3.5-MM THK) | 4 | |
| 5P7462 | 3 CLIP (SLOT) | 14 | |
| 5P7463 | 4 CLIP (TAB) | 14 | |
| 6V0683 | 5 GROMMET | 14 | |
| 4L6454 | 6 BOLT (3/8-16X1-IN) | 19 | |
| 5P1075 | 7 WASHER-HARD (10.2X22.5X3-MM THK) | 19 | |
| 6V9169 | 8 NUT (13/16-16-THD) | 2 | |
| 1488367 | 9 ELBOW AS | 2 | |
| 6V9850 | ELBOW | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 1P5761 | 10 FLANGE-HALF | 6 | |
| 8C6877 | 11 BOLT (7/16-14X1.75-IN) | 12 | |
| 8T5360 | 12 WASHER (12X22.5X2.5-MM THK) | 28 | |
| 4T4872 | 13 TUBE AS (LH) | 1 | |
| 1P3704 | 14 SEAL-RECTANGULAR | 5 | |
| 4T4871 | 15 TUBE AS (RH) | 1 | |
| 7X0313 | 16 BOLT (7/16-14X2.75-IN) | 8 | |
| 7I4938 | 17 HOSE AS | 2 | |
| 1P4574 | 18 FLANGE-HALF | 4 | |
| 4M6425 | 19 BOLT (5/16-18X1-IN) | 8 | |
| 8T4224 | 20 WASHER-HARD (8.8X16X2-MM THK) | 9 | |
| 1P4578 | 21 FLANGE-HALF | 4 | |
| 8T8916 | 22 BOLT (7/16-14X1.5-IN) | 8 | |
| 6V8918 | 23 BOLT (5/16-18X1.25-IN) | 1 | |
| 6V8189 | 24 NUT (5/16-18-THD) | 1 | |
| 4J0522 | 25 SEAL-O-RING | 2 | |
| 8W2340 | 26 HOSE AS | 1 | |
| 8W2343 | 27 HOSE AS | 1 | |
| 8X8394 | 28 TUBE AS | 1 | |
| 1P4577 | 29 FLANGE-HALF | 10 | |
| 5S7382 | 30 BOLT (3/8-16X1.375-IN) | 20 | |
| 8T4896 | 31 WASHER-HARD (10.2X18.5X2.5-MM THK) | 36 | |
| 5P7464 | 32 CLIP (SLOT) | 3 | |
| 5P7465 | 33 CLIP (TAB) | 3 | |
| 6V7359 | 34 GROMMET (25-MM ID, 37-MM OD) | 3 | |
| 7S3916 | 35 CLIP (TAB) | 4 | |
| 8X1146 | 36 SPACER (10.3X15.9X60.7-MM THK) | 12 | |
| 1S1445 | 37 PLATE | 6 | |
| 8X1143 | 38 CLAMP | 4 | |
| 8T8915 | 39 BOLT (3/8-16X3.25-IN) | 8 | |
| 8X1142 | 40 CLAMP | 8 | |
| 7X0290 | 41 BOLT (3/8-16X3.5-IN) | 4 | |
| 4J0520 | 42 SEAL-O-RING | 2 | |
| 7X0351 | 43 BOLT (5/8-11X3.75-IN) | 2 | |
| 8W0205 | 44 HOSE AS | 1 | |
| 7I4937 | 45 HOSE AS | 1 | |
| 5P7468 | 46 CLIP (SLOT) | 4 | |
| 8T8917 | 47 BOLT (1/2-13X1.25-IN) | 6 | |
| 8T4223 | 48 WASHER-HARD (13.5X25.5X3-MM THK) | 6 | |
| 1S1445 | 49 PLATE | 4 | |
| 8T9378 | 50 BOLT (3/8-16X4-IN) | 4 | |
| 8S0023 | 51 CLIP (SLOT) | 4 | |
| 8W2345 | 52 HOSE AS | 1 | |
| 6V7359 | 53 GROMMET (25-MM ID, 37-MM OD) | 1 | |
| 1P4578 | 54 FLANGE-HALF | 16 | |
| 8T8916 | 55 BOLT (7/16-14X1.5-IN) | 32 | |
| 8T5360 | 56 WASHER (12X22.5X2.5-MM THK) | 32 | |
| 9C7527 | 57 HOSE AS | 1 | |
| 5P7465 | 58 CLIP (TAB) | 1 | |
| 5T9462 | 59 TUBE AS | 1 | |
| 5T9460 | 60 TUBE AS | 1 | |
| 1488457 | 61 UNION AS (STRAIGHT) | 3 | |
| 6V8995 | UNION (STRAIGHT) | 1 | |
| 6V8398 | SEAL-O-RING | 2 | |
| 6V9169 | 62 NUT (13/16-16-THD) | 3 | |
| 8W3489 | 63 HOSE AS | 2 | |
| 5T9461 | 64 TUBE AS | 1 | |
| 5T9463 | 65 TUBE AS | 1 | |
| 1488434 | 66 TEE AS | 3 | |
| 6V9843 | TEE | 1 | |
| 6V8397 | SEAL-O-RING | 2 | |
| 8W2344 | 67 HOSE AS | 1 | |
| 4L6454 | 68 BOLT (3/8-16X1-IN) | 1 | |
| 5P7464 | 69 CLIP (SLOT) | 1 | |
| 8W2346 | 70 HOSE AS | 1 | |
| 8E3082 | 71 HOSE AS | 1 | |
| 7I4939 | 72 HOSE AS | 1 | |
| 8W6298 | 73 HOSE AS | 1 | |
| 1488336 | 74 CONNECTOR AS | 1 | |
| 6V8636 | CONNECTOR | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 7G5985 | 75 CLIP (SLOT) | 1 | |
| 1488378 | 76 ELBOW AS | 4 | |
| 6V8724 | ELBOW | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 8J6875 | 77 VALVE GP-SHUTTLE (AUXILIARY PILOT SUPPLY) | 2 | |
| 2M9780 | SEAL-O-RING | 2 | |
| 4B9784 | BALL | 1 | |
| 4T9905 | ADAPTER | 2 | |
| 8T4205 | 78 WASHER-HARD (7.2X14.5X2-MM THK) | 8 | |
| 6V8185 | 79 NUT (1/4-20-THD) | 4 | |
| 8T9101 | 80 BOLT (3/8-16X2.75-IN) | 8 | |
| 1P4577 | 81 FLANGE-HALF | 10 | |
| 9J3866 | 82 ADAPTER | 2 | |
| 1488365 | 83 ELBOW AS | 1 | |
| 8T6876 | ELBOW | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 1488353 | 84 ELBOW AS | 1 | |
| 6V9001 | ELBOW | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 6V9168 | 85 NUT (11/16-16-THD) | 1 | |
| 8T9378 | 87 BOLT (3/8-16X4-IN) | 4 | |
| 8T4896 | 88 WASHER-HARD (10.2X18.5X2.5-MM THK) | 24 | |
| 8X1141 | 89 CLAMP | 4 | |
| 5T9465 | 90 TUBE AS | 1 | |
| 4J0522 | 91 SEAL-O-RING | 4 | |
| 8W2342 | 92 HOSE AS | 2 | |
| 4J0520 | 93 SEAL-O-RING | 6 | |
| 8W2341 | 94 HOSE AS | 1 | |
| 5T9464 | 95 TUBE AS | 1 | |
| 7G5986 | 96 GROMMET | 1 | |
| 5S7382 | 97 BOLT (3/8-16X1.375-IN) | 12 | |
| 1328617 | 98 VALVE GP-CHECK (CARRY AND QUICK-DROP-LH) | 1 | |
| 4J0527 | 99 SEAL-O-RING | 2 | |
| 1328618 | 100 VALVE GP-CHECK (CARRY AND QUICK-DROP-RH) | 1 | |
| 7X0346 | 101 BOLT (5/8-11X2-IN) | 2 | |
| 1488377 | 102 ELBOW AS | 1 | |
| 6V8980 | ELBOW | 1 | |
| 6V8397 | SEAL-O-RING | 2 | |
| 5C6565 | 103 BOLT (1/2-13X1.125-IN) | 2 | |
| 8T4223 | 104 WASHER-HARD (13.5X25.5X3-MM THK) | 2 | |
| 7G5984 | 105 CLIP (TAB) | 1 | |
| 8W7174 | 106 HOSE AS | 1 | |
| 1853365 | 107 UNION AS | 2 | |
| 8T0129 | UNION | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 4J5140 | 108 SEAL-O-RING | 2 | |
| 7S3919 | 109 CLIP (SLOT) | 4 | |
| 5P7469 | 110 CLIP (TAB) | 4 | |
| 5P8444 | 111 GROMMET (37-MM ID) | 4 | |
| 8X1141 | 112 CLAMP | 4 | |
| 8X1147 | 113 SPACER (10.3X15.9X74.7-MM THK) | 4 | |
| 8S0024 | 114 CLIP (TAB) | 4 | |
| 8T9367 | 115 BOLT (1/4-20X2-IN) | 4 | |
| 8X1147 | 116 SPACER (10.3X15.9X74.7-MM THK) | 4 | |
| 5P1075 | 117 WASHER-HARD (10.2X22.5X3-MM THK) | 1 |
