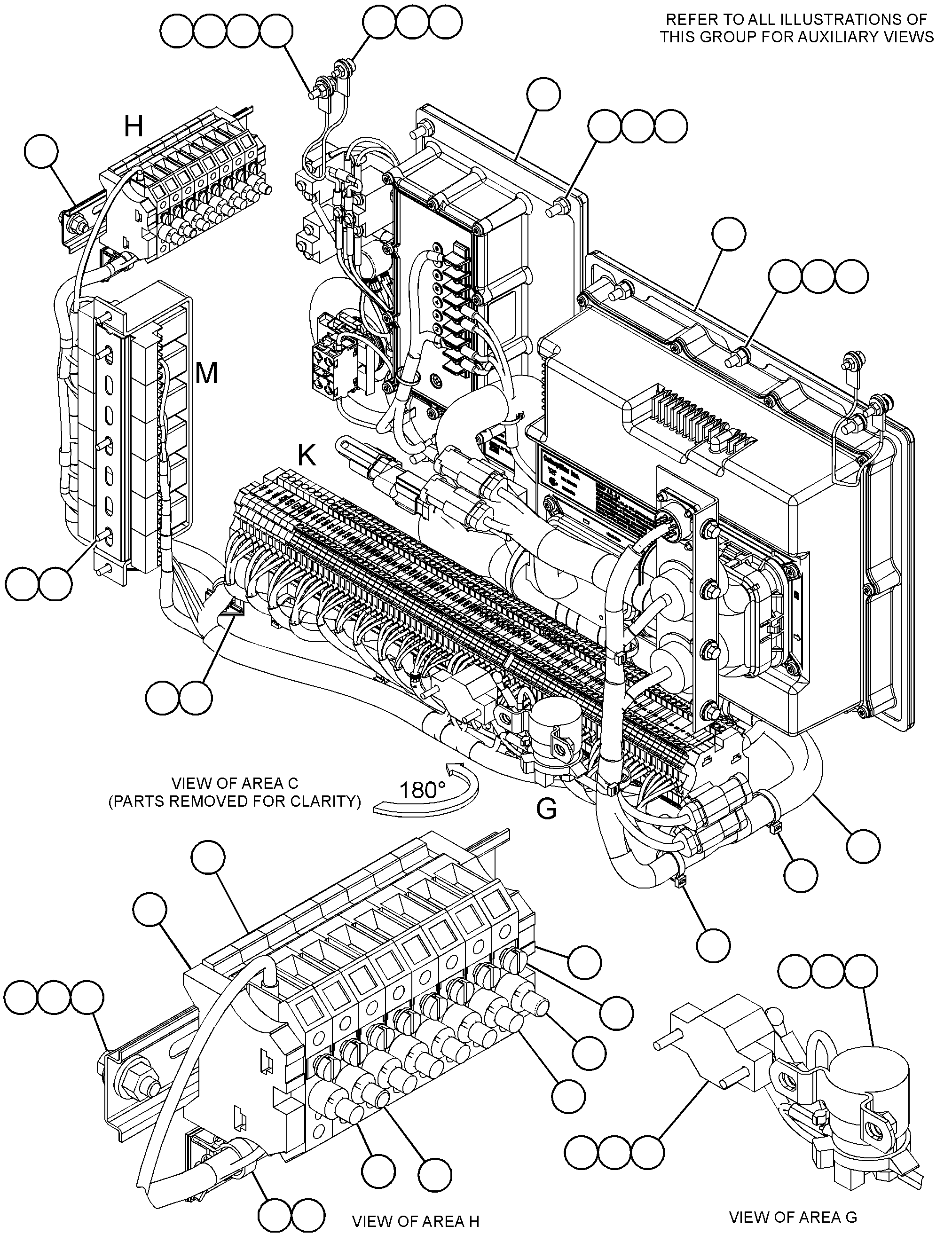

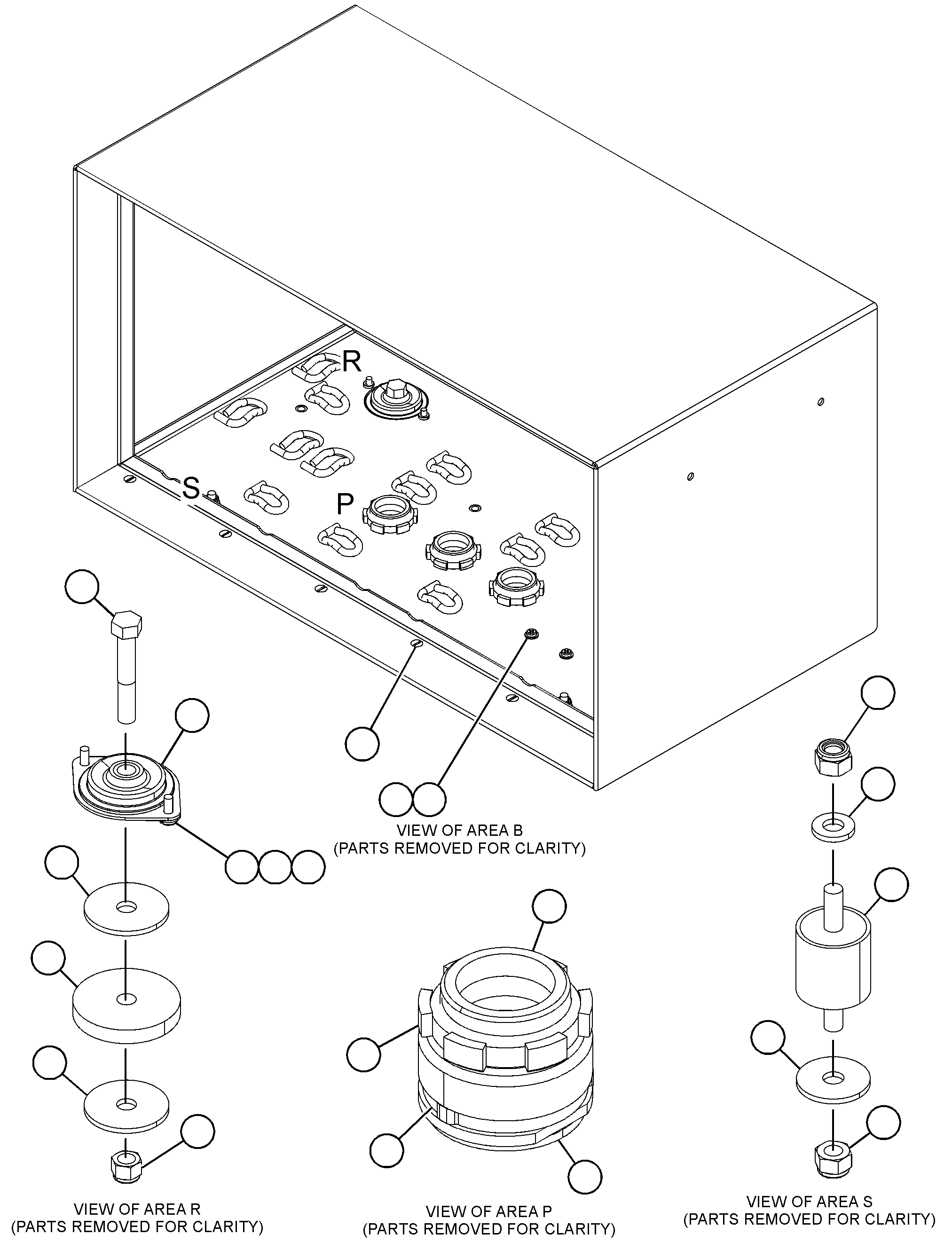

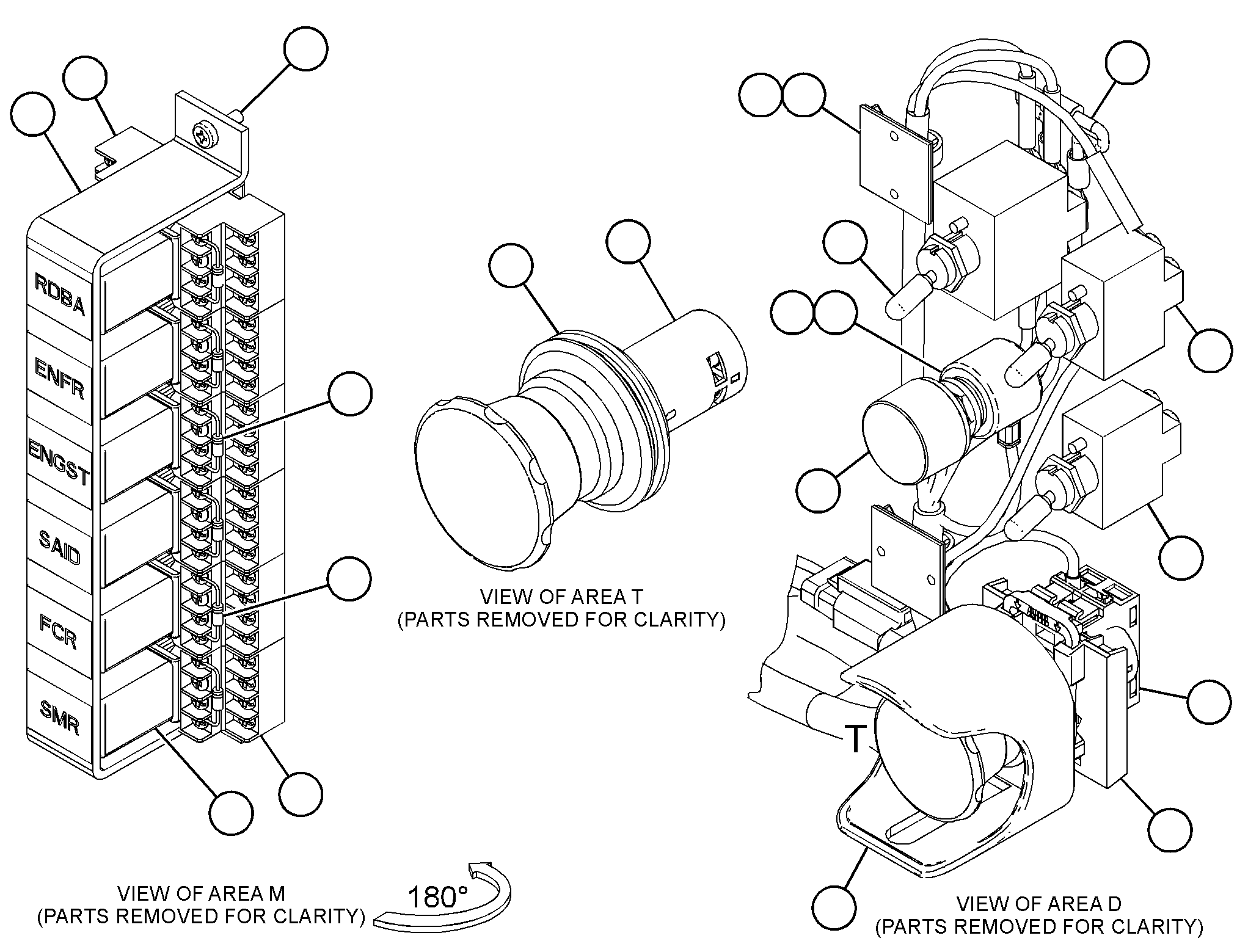

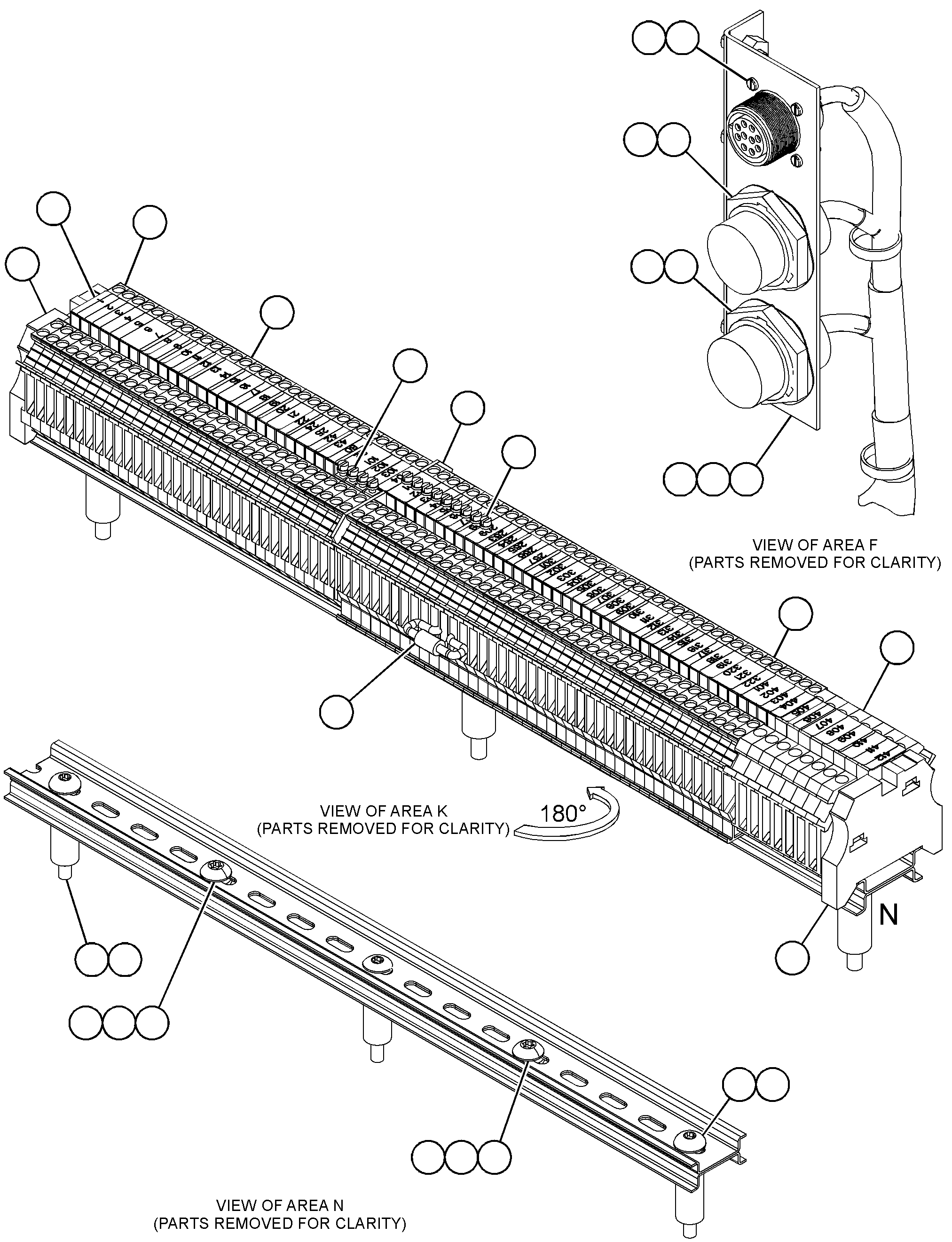

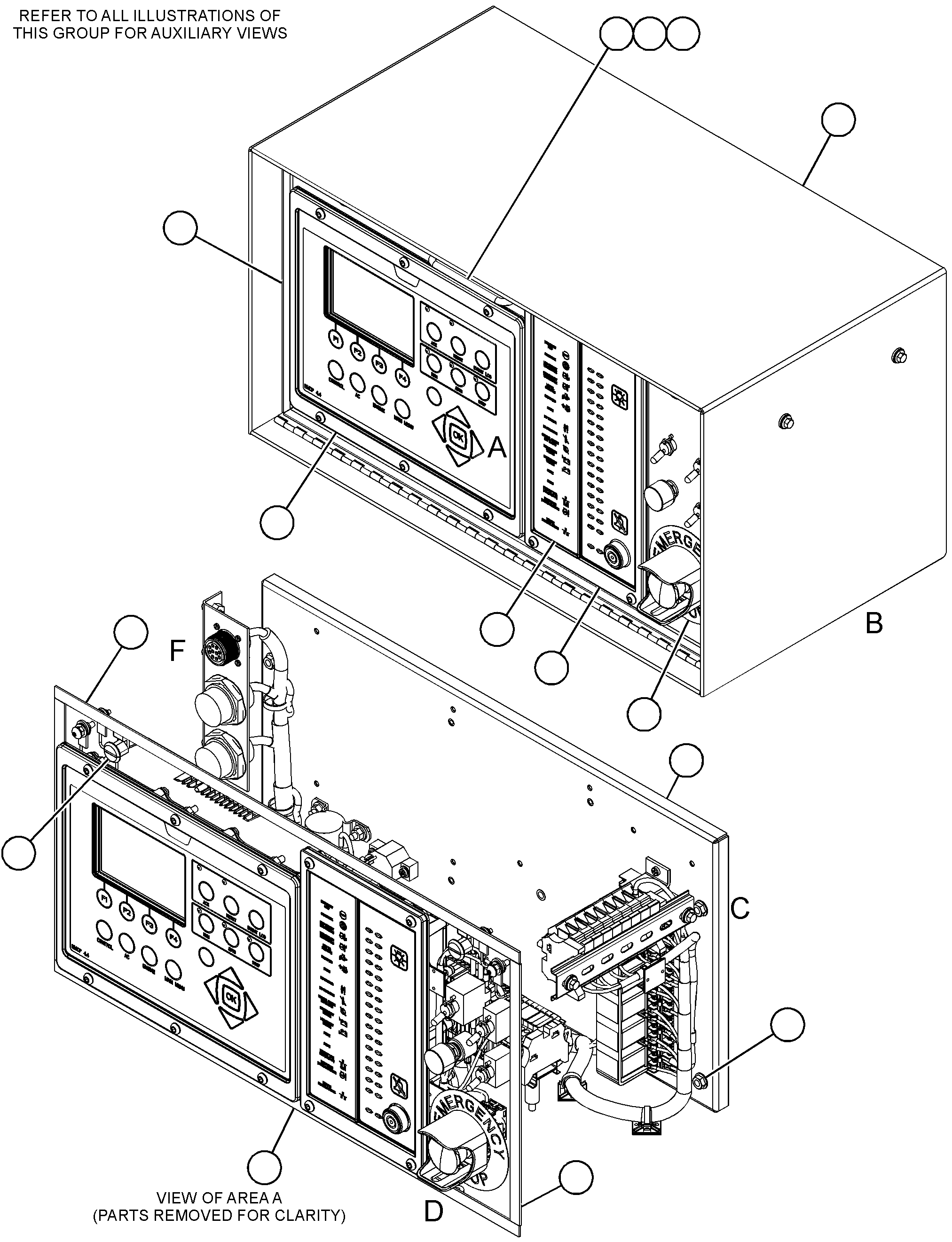

452-9414 PANEL GP-ELECTRONIC -EMCP 4.4S/N 6DA4802-UP
Group No: 452-9414
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 7C6121 | 1 MOUNT-FLEXIBLE | 2 | |
| 1036272 | 2 SEAL | 1 | |
| 3E0105 | 3 MOUNT | 5 | |
| 3E2286 | 4 STRIP-CONTACT | 2 | |
| 3N5611 | 5 MOUNT AS | 2 | |
| 3S2093 | 6 STRAP-CABLE | 20 | |
| 4W5972 | 7 KNOB | 1 | |
| 5D6912 | 8 DIODE-RECTIFIER | 6 | |
| 5N9067 | 9 COLLAR | 3 | |
| 5N9072 | 10 CLIP | 3 | |
| 5N9117 | 11 ADAPTER | 3 | |
| 8T2882 | 12 HANDLE-PULL | 1 | |
| 0870546 | 13 RELAY (24-VOLT) | 6 | |
| 1057542 | 14 STRIP-CONTACT | 1 | |
| 1057543 | 15 BLOCK-FUSE | 8 | |
| 1152538 | 16 COVER-END | 1 | |
| 1157948 | 17 SOCKET-RELAY | 6 | |
| 1214722 | 18 STRIP-DUST SEAL | 3 | |
| 1229458 | 19 POTENTIOMETER (1000-OHM) | 1 | |
| 1250171 | 20 LOCK AS | 2 | |
| 1251302 | 21 SWITCH GP-MAGNETIC (24-VOLT) | 1 | |
| 1471960 | 22 RAIL | 1 | |
| 1267491 | 23 STRAP | 2 | |
| 1328487 | 24 NUT-RING | 1 | |
| 2353008 | 25 FUSE (30-AMPERE) | 1 | |
| 2449613 | 26 GASKET | 1 | |
| 3118715 | 27 WASHER (5X11X1-MM THK) | 7 | |
| 3149101 | 28 BRACKET-END | 4 | |
| 5034417 | 29 CONTROL GP-GENERATOR SET | 1 | |
| 4221193 | 31 FILM-IDENTIFICATION (ANNUNCIATOR) | 1 | |
| 4221194 | 32 FILM-IDENTIFICATION (CONTROL PANEL) | 1 | |
| 4426212 | 34 SWITCH-STOP (EMERGENCY STOP) | 1 | |
| 4426215 | 35 BLOCK-CONTACT | 1 | |
| 4426217 | 36 HOLDER | 1 | |
| 4426219 | 37 SHROUD | 1 | |
| 4432546 | 38 ADAPTER | 1 | |
| 4615739 | 39 FUSE (0.75-AMPERE) | 1 | |
| 1H3338 | 40 LOCKWASHER | 10 | |
| 3680571 | 41 SCREW-MACHINE (M4X0.7X16-MM) | 2 | |
| 1043651 | 42 LOCKNUT (1-11-1/2 NPT THD) | 3 | |
| 1045604 | 43 WASHER (7.2X25X2-MM THK) | 2 | |
| 1151322 | 44 TERMINAL (DOUBLE) | 8 | |
| 1165140 | 45 TERMINAL | 72 | |
| 1219195 | 46 RESISTOR AS | 1 | |
| 3T9377 | RESISTOR | 1 | |
| 5P9912 | TUBE-HEAT SHRINK (3.2-MM DIA)(0.1-M) | 1 | |
| 1224983 | END-WIRE (20-GA) | 2 | |
| 1267573 | 47 SCREW-PAN HEAD | 2 | |
| 1783339 | 48 SCREW (8-32X0.5-IN) | 7 | |
| 1912276 | 49 SCREW-TRUSS HEAD (M5X0.8X20-MM) | 2 | |
| 2039007 | 50 NUT (1-1/2-18-THD) | 2 | |
| 2110089 | 51 NUT (1/4-20-THD) | 4 | |
| 2253322 | 52 SCREW-TRUSS HEAD (M6X1X10-MM) | 2 | |
| 2354451 | 53 BOLT-FLANGE HEAD (M6X1X16-MM) | 6 | |
| 3E6924 | 54 SCREW-TRUSS HEAD (M6X1X50-MM) | 3 | |
| 2702679 | 55 LOCKWASHER | 2 | |
| 2N3479 | 56 SCREW (10-24X0.5-IN) | 4 | |
| 3035893 | 57 MODULE GP-ALARM | 1 | |
| 3E9865 | 58 LOCKNUT (1/4-20-THD) | 4 | |
| 3K6060 | 59 LOCKNUT (3/8-16-THD) | 2 | |
| 4395041 | 60 PANEL AS | 1 | |
| 3W4871 | NUT (6-32-THD) | 6 | |
| 7T1099 | LINK | 2 | |
| 9F6445 | NUT-WELD (1/4-20-THD) | 2 | |
| 9X2032 | NUT-WELD (M4X0.7-THD) | 4 | |
| 1403943 | STUD (M6X1X16-MM) | 2 | |
| 4395042 | 61 PANEL AS | 1 | |
| 4395043 | 62 BOX AS-CONTROL | 1 | |
| 5P7846 | NUT-WELD (10-24-THD) | 6 | |
| 6V9632 | NUT-WELD (M6X1-THD) | 3 | |
| 7T1099 | LINK | 13 | |
| 4420635 | 63 BRACKET AS | 1 | |
| 6V9632 | NUT-WELD (M6X1-THD) | 4 | |
| 4532306 | 64 HARNESS AS-PANEL | 1 | |
| 4553328 | 65 BRACKET-RELAY | 1 | |
| 4591873 | 66 MARKER AS-TERMINAL | 1 | |
| 8T7922 | 67 SCREW-HEX SOCKET (10-24X0.383-IN) | 6 | |
| 4B4274 | 68 WASHER (5.5X13X1.2-MM THK) | 12 | |
| 4D1836 | 69 SWITCH-TOGGLE (SINGLE POLE) | 1 | |
| 5716760 | 70 SPACER | 3 | |
| 5C2874 | 71 NUT (M5X0.8-THD) | 4 | |
| 5C2890 | 72 NUT (M6X1-THD) | 16 | |
| 5C8312 | 73 NUT (M4X0.7-THD) | 2 | |
| 5S3552 | 74 PLATE | 2 | |
| 6V2480 | 75 SCREW (4-40X0.5-IN) | 4 | |
| 7C4550 | 76 SEAL (ROTATING SHAFT) | 1 | |
| 7N8008 | 77 SWITCH AS-TOGGLE (GOVERNOR) | 1 | |
| 3L8187 | LOCKWASHER | 6 | |
| 6T3631 | NUT-HEX (15/32-32-THD) | 2 | |
| 6T3632 | LOCKWASHER | 1 | |
| 6T3633 | RING-LOCKING | 1 | |
| 6V8374 | SCREW-MACHINE (6-32X0.25-IN) | 6 | |
| 8C7507 | 78 LOCKWASHER | 4 | |
| 6V1232 | 79 SCREW-BUTTON HEAD (8-32X9.52-MM) | 2 | |
| 8C9812 | 80 SWITCH AS-TOGGLE (STARTING AID) | 1 | |
| 3L8187 | LOCKWASHER | 3 | |
| 6T3631 | NUT-HEX (15/32-32-THD) | 2 | |
| 6T3632 | LOCKWASHER | 1 | |
| 6T3633 | RING-LOCKING | 1 | |
| 6V8374 | SCREW-MACHINE (6-32X0.25-IN) | 3 | |
| 8T4205 | 81 WASHER-HARD (7.2X14.5X2-MM THK) | 14 | |
| 8T4226 | 82 WASHER-PLATED (10.5X45X3-MM THK) | 4 | |
| 8T9377 | 83 BOLT (3/8-16X2.25-IN) | 2 | |
| 0960192 | 84 LOCKWASHER | 2 | |
| 9M9085 | 85 CIRCUIT BREAKER AS (15-AMPERE) | 1 | |
| 6V8376 | SCREW-MACHINE (8-32X0.25-IN) | 2 | |
| 9B7233 | LOCKWASHER | 2 | |
| 9X8256 | 86 WASHER (6.6X12X2-MM THK) | 10 | |
| 9Y6027 | 87 FUSE-CERAMIC (10-AMPERE) | 6 | |
| 9Y8412 | 88 DIODE AS | 1 | |
| 5P1475 | TERMINAL-FORK (14-GA TO 16-GA, NO. 8 SCREW) | 2 | |
| 6V1614 | TUBE-HEAT SHRINK (9.52-MM DIA)(0.1-M) | 1 | |
| 3559023 | ELECTRONICS GP-GENERATOR SET | 1 | |
| 5947239 | SOFTWARE GP-GENERATOR SET | 1 | |
| 4422378 | INSTALLATION GP-COMMUNICATION | 1 |
