System And Components

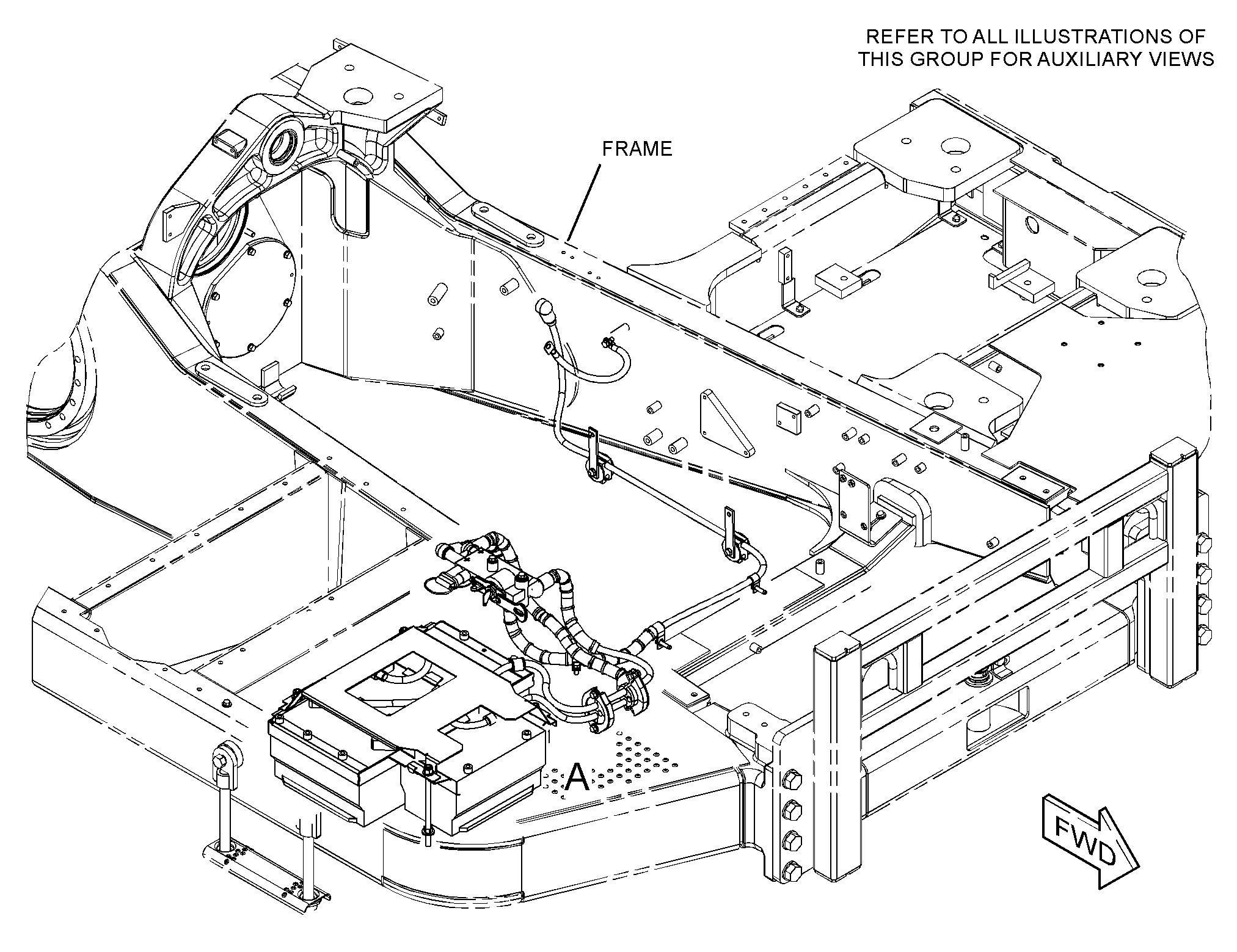

228-6831 BATTERY & WIRING GPS/N DBB701-UP
Group No: 228-6831 · Commonality
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 2G4177 | 1 CABLE AS | 1 | |
| 1S7251 | TERMINAL-CABLE (00-GA, 1/2-IN SCREW) | 1 | |
| 1S7252 | TERMINAL-CABLE (00-GA, 3/8-IN SCREW) | 1 | |
| 5P0747 | CABLE (00-GA, BLACK)(46-CM) | ||
| 2G8767 | 2 WASHER (10.5X60X3-MM THK) | 2 | |
| 3S2093 | 3 STRAP-CABLE | 35 | |
| 5T3907 | 4 CLAMP | 4 | |
| 6G2256 | 5 CLAMP | 1 | |
| 6G2263 | 6 SPACER (10.5X19X28.5-MM THK) | 1 | |
| 7T0266 | 7 BRACKET AS | 2 | |
| 8W0301 | 8 FLANGE | 2 | |
| 8W8460 | 9 GUARD | 5 | |
| 9G2758 | 10 LOCKOUT-SWITCH (BATTERY DISCONNECT) | 1 | |
| 1532446 | 11 BRACKET | 1 | |
| 1783620 | 12 STRAP-DUAL CLAMP | 2 | |
| 2306368 | 13 BATTERY (12-VOLT, MAINTENANCE FREE, WET) | 4 | |
| 2377602 | 14 SWITCH GP-DISCONNECT (BATTERY) | 1 | |
| 2396895 | 15 CABLE AS | 2 | |
| 5P0761 | CABLE (00-GA, RED)(31-CM) | ||
| 9G0002 | COVER AS-TERMINAL (RED) | 1 | |
| 9G0005 | COVER AS-TERMINAL (BLACK) | 1 | |
| 8C5917 | TERMINAL AS-BATTERY (POSITIVE) | 1 | |
| 8T9757 | TERMINAL AS-BATTERY (NEGATIVE) | 1 | |
| 1M6119 | BOLT (5/16-18X1.375-IN) | 1 | |
| 1M6120 | NUT (5/16-18-THD) | 1 | |
| 2397250 | 16 HOLD-DOWN AS (BATTERY) | 1 | |
| 2726675 | 17 ROD | 4 | |
| 3137401 | 18 CABLE AS (BATTERY POSITIVE) | 1 | |
| 7T4924 | COVER-TERMINAL (RED) | 1 | |
| 8N1725 | COVER AS-TERMINAL (RED) | 1 | |
| 3S6049 | TERMINAL AS-BATTERY (POSITIVE) | 1 | |
| 1M6119 | BOLT (5/16-18X1.375-IN) | 1 | |
| 1M6120 | NUT (5/16-18-THD) | 1 | |
| 9X9825 | TERMINAL-CABLE (00-GA, 1/2-IN SCREW) | 1 | |
| 1598049 | CABLE (00-GA, RED)(170-CM) | ||
| 2761786 | COVER-TERMINAL (RED) | 1 | |
| 3137402 | 19 CABLE AS (BATTERY NEGATIVE) | 1 | |
| 7T4925 | COVER-TERMINAL (BLACK) | 1 | |
| 1S7251 | TERMINAL-CABLE (00-GA, 1/2-IN SCREW) | 1 | |
| 9S5755 | TERMINAL AS (NEGATIVE) | 1 | |
| 1M6119 | BOLT (5/16-18X1.375-IN) | 1 | |
| 1M6120 | NUT (5/16-18-THD) | 1 | |
| 7N5274 | COVER AS-TERMINAL (BLACK) | 1 | |
| 9G8909 | COVER-TERMINAL (BLACK) | 1 | |
| 3S6050 | TERMINAL AS-BATTERY (NEGATIVE) | 1 | |
| 1M6119 | BOLT (5/16-18X1.375-IN) | 1 | |
| 1M6120 | NUT (5/16-18-THD) | 1 | |
| 1598050 | CABLE (00-GA, BLACK)(137-CM) | ||
| 3137405 | 20 CABLE AS (STARTING MOTOR) | 1 | |
| 1S7251 | TERMINAL-CABLE (00-GA, 1/2-IN SCREW) | 1 | |
| 9X9825 | TERMINAL-CABLE (00-GA, 1/2-IN SCREW) | ||
| 1598049 | CABLE (00-GA, RED)(266-CM) | ||
| 2761786 | COVER-TERMINAL (RED) | 1 | |
| 3010091 | COVER-TERMINAL (RED) | 1 | |
| 1S0996 | 21 CLIP | 1 | |
| 2V1771 | 22 GROMMET | 11 | |
| 5M3062 | 23 BOLT (3/8-16X0.75-IN) | 1 | |
| 5P1075 | 24 WASHER-HARD (10.2X22.5X3-MM THK) | 18 | |
| 5P1076 | 25 WASHER-HARD (13.5X30X4-MM THK) | 4 | |
| 5S7379 | 26 BOLT (3/8-16X0.875-IN) | 5 | |
| 6D4246 | 27 CLIP (LOOP) | 5 | |
| 6D4636 | 28 CLIP (LOOP)(25-CM) | 4 | |
| 6V8188 | 29 NUT (1/2-13-THD) | 4 | |
| 6V8801 | 30 NUT (3/8-16-THD) | 4 | |
| 7X0291 | 31 BOLT (3/8-16X3.75-IN) | 2 | |
| 8M1047 | 32 STUD-TAPERLOCK (3/8-16X1.67-IN) | 3 | |
| 8S0948 | 33 CLIP | 1 | |
| 8T2502 | 34 BOLT (3/8-16X1.125-IN) | 1 | |
| 8T4123 | 35 WASHER (22X35X3.5-MM THK) | 1 | |
| 8T4192 | 36 BOLT (M12X1.75X25-MM) | 3 | |
| 8T4223 | 37 WASHER-HARD (13.5X25.5X3-MM THK) | 7 | |
| 8T9371 | 38 BOLT (3/8-16X0.5-IN) | 4 | |
| 8T9377 | 39 BOLT (3/8-16X2.25-IN) | 1 | |
| 9X0941 | 40 LOCKNUT (1/2-13-THD) | 4 |
