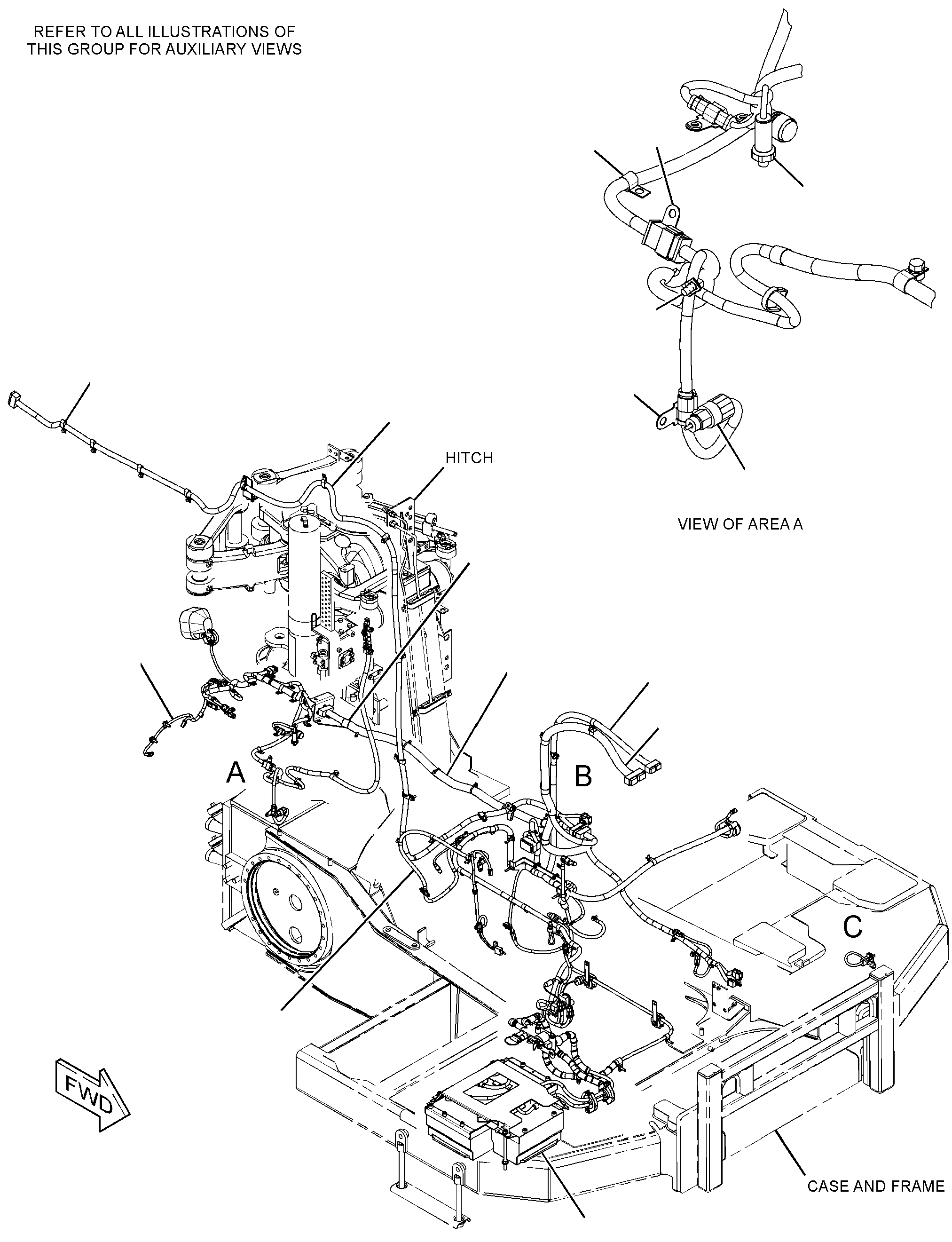

228-6878 BATTERY & WIRING GPS/N DBB250-607

Group No: 228-6878 · Commonality

Part Number	Part Name	Qty
3E5169	1 GUARD-SWITCH	1
7K1181	2 STRAP-CABLE	13
1342252	3 SENSOR GP-TEMPERATURE (8-VOLT)(CONVERTER, RETARDER)	1
1342252	3A SENSOR GP-TEMPERATURE (8-VOLT)(HYDRAULIC TANK OIL)	1
1358659	4 GUARD	1
1392116	5 SWITCH GP-TOGGLE (ENGINE SHUTDOWN)	1
1655970	6 SWITCH GP-TOGGLE (FUEL PRIMING PUMP)	1
1695414	7 CLIP	1
2286824	8 WIRING GP-ENGINE	1
2286831	9 BATTERY & WIRING GP	1
2286983	10 WIRING GP-POWER TRAIN	1
2388665	11 SWITCH AS-PRESSURE (PARKING BRAKE AIR)	1
1028803	KIT-RECEPTACLE (3-PIN)	1
1863735	PIN-CONNECTOR (16-GA TO 18-GA)	3
9X1813	SLEEVE (15-CM)
2442182	12 WIRING GP-HITCH	1
2460479	13 HARNESS AS-FUEL TANK	1
1148843	SLEEVE-PLASTIC (100-CM)
1028803	KIT-RECEPTACLE (3-PIN)	1
1552255	KIT-CONNECTING PLUG (12-PIN)	1
1552260	KIT-CONNECTING PLUG (3-PIN)	1
1552270	KIT-CONNECTING PLUG (2-PIN)	3
2637125	14 HARNESS AS-CHASSIS	1
1148843	SLEEVE-PLASTIC (80-CM)
1148845	SLEEVE-PLASTIC (40-CM)
1193662	TUBE-HEAT SHRINK (10.85-MM DIA)(7-CM)
1257875	TUBE-HEAT SHRINK (7.44-MM DIA)(50-CM)
9X0141	PLUG AS-CONNECTOR (40-PIN)	2
9X4391	PLUG AS-CONNECTOR (70-PIN)	1
1028802	KIT-RECEPTACLE (2-PIN)	2
1028801	KIT-RECEPTACLE (12-PIN)	1
1552255	KIT-CONNECTING PLUG (12-PIN)	1
1552270	KIT-CONNECTING PLUG (2-PIN)	2
1305300	15 CLIP	6
1488313	16 ADAPTER AS	2
5P6944	ADAPTER	1
3K0360	SEAL-O-RING	1
3J1907	17 SEAL-O-RING	2
4D7388	18 CLIP	1
4K8864	19 CLIP (LOOP)	2
4L6454	20 BOLT (3/8-16X1-IN)	6
4P7581	21 CLIP (LADDER)	1
2R1939	22 CLIP (LOOP)	6
5M3062	23 BOLT (3/8-16X0.75-IN)	14
5P7854	24 CLIP (LOOP)	4
5S7379	26 BOLT (3/8-16X0.875-IN)	3
6D4244	27 CLIP (LOOP)	5
6D4636	28 CLIP (LOOP)	1
8M2770	29 CLIP (LOOP)	4
8M2773	30 CLIP (LOOP)	1
8T4896	31 WASHER-HARD (10.2X18.5X2.5-MM THK)	23
8T9405	32 BOLT-SOCKET HEAD (M4X0.7X16-MM)	4
8W3635	33 PLATE AS	1
