System And Components

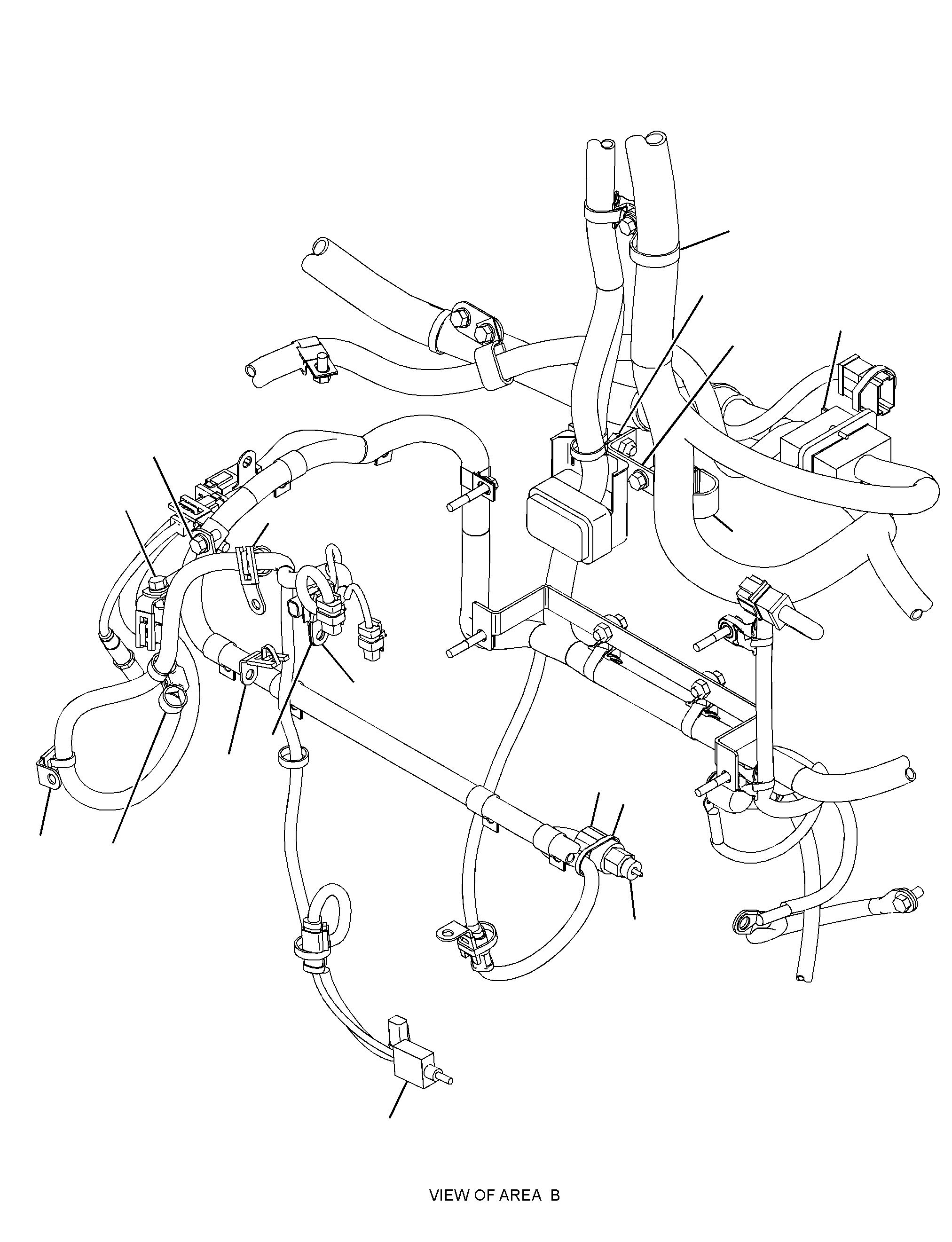

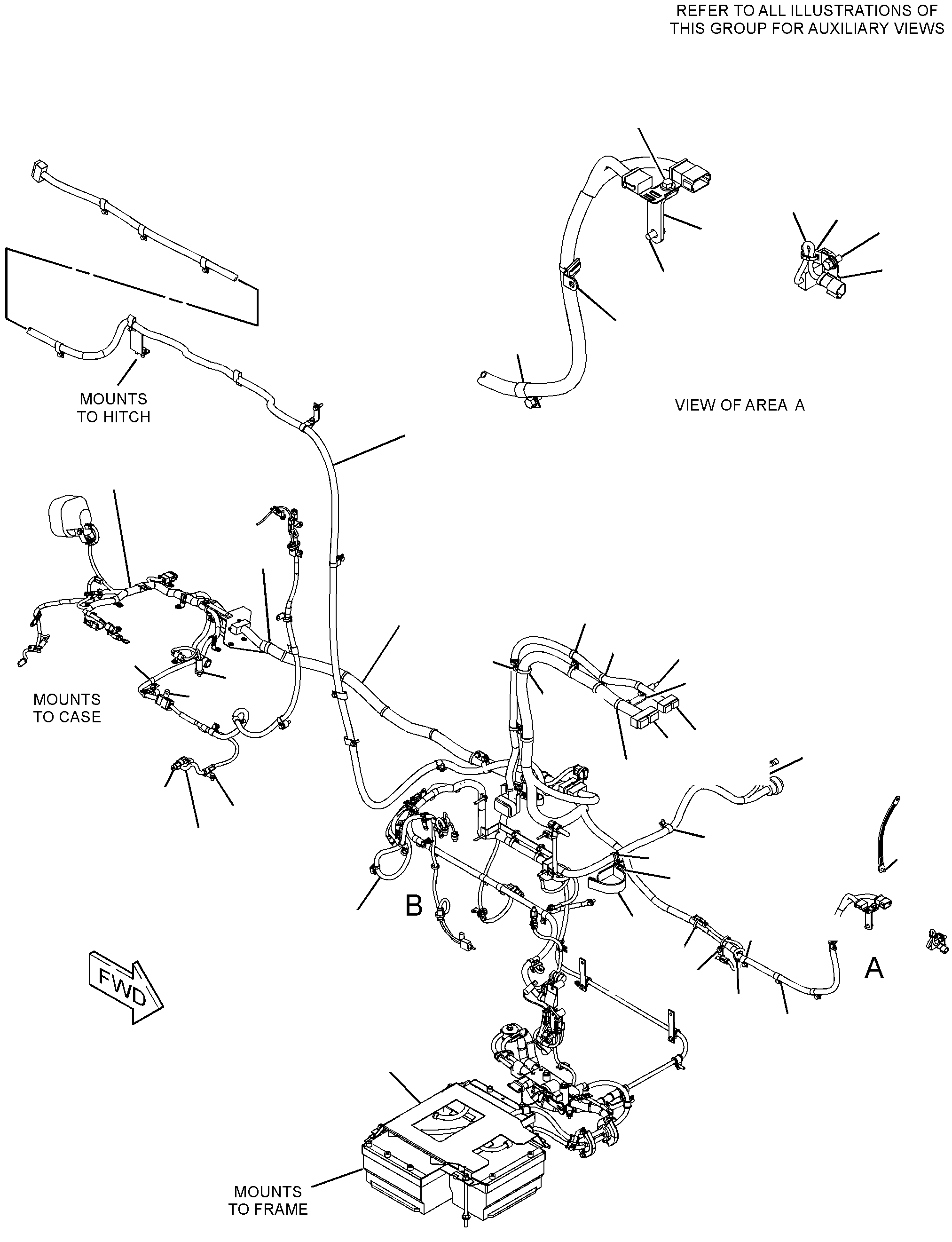

228-6878 BATTERY & WIRING GPS/N DBB701-UP
Group No: 228-6878 · Commonality
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 3E5169 | 1 GUARD-SWITCH | 1 | |
| 3S2093 | 2 STRAP-CABLE | 5 | |
| 4P8221 | 3 BRACKET AS | 1 | |
| 9N5550 | BRACKET | 1 | |
| 1F0750 | NUT-WELD (3/8-16-THD) | 1 | |
| 7K1181 | 4 STRAP-CABLE | 18 | |
| 9L1566 | 5 SUPPORT | 1 | |
| 9X9365 | 6 BRACKET (LAMP) | 1 | |
| 1342252 | 7 SENSOR GP-TEMPERATURE (8-VOLT)(CONVERTER, RETARDER) | 1 | |
| 1342252 | 7A SENSOR GP-TEMPERATURE (8-VOLT)(HYDRAULIC TANK OIL) | 1 | |
| 1358659 | 8 GUARD | 1 | |
| 1392116 | 9 SWITCH GP-TOGGLE (ENGINE SHUTDOWN) | 1 | |
| 1539480 | 10 ANGLE AS | 1 | |
| 8W9466 | ANGLE | 1 | |
| 1F0750 | NUT-WELD (3/8-16-THD) | 1 | |
| 1655970 | 11 SWITCH GP-TOGGLE (FUEL PRIMING PUMP) | 1 | |
| 1695414 | 12 CLIP | 1 | |
| 1783620 | 13 STRAP-DUAL CLAMP | 2 | |
| 2042281 | 14 STRAP-CABLE | 9 | |
| 2048000 | 15 MOUNTING-CABLE TIE | 9 | |
| 2286824 | 16 WIRING GP-ENGINE | 1 | |
| 2286831 | 17 BATTERY & WIRING GP | 1 | |
| 2286983 | 18 WIRING GP-POWER TRAIN | 1 | |
| 2388665 | 19 SWITCH AS-PRESSURE (PARKING BRAKE AIR) | 1 | |
| 1028803 | KIT-RECEPTACLE (3-PIN) | 1 | |
| 1863735 | PIN-CONNECTOR (16-GA TO 18-GA) | 3 | |
| 9X1813 | SLEEVE (15-CM) | ||
| 2442182 | 20 WIRING GP-HITCH | 1 | |
| 3092491 | 21 HARNESS AS-CHASSIS | 1 | |
| 1028802 | KIT-RECEPTACLE (2-PIN) | 2 | |
| 1028801 | KIT-RECEPTACLE (12-PIN) | 1 | |
| 8T8729 | PIN-CONNECTOR (16-GA TO 20-GA) | 6 | |
| 8T8730 | SOCKET-CONNECTOR (16-GA TO 20-GA) | 142 | |
| 8T8737 | PLUG-SEAL | 30 | |
| 9W0844 | SOCKET-CONNECTOR (14-GA TO 16-GA) | 3 | |
| 9W0852 | PIN-CONNECTOR (14-GA TO 16-GA) | 1 | |
| 9X0141 | PLUG AS-CONNECTOR (40-PIN) | 2 | |
| 3E4367 | RING-RETAINING | 1 | |
| 3E8557 | BOLT (M5X0.8X39.37-MM) | 1 | |
| 9X3490 | SEAL-CONNECTOR (40-PIN) | 2 | |
| 9X4391 | PLUG AS-CONNECTOR (70-PIN) | 1 | |
| 3E4367 | RING-RETAINING | 1 | |
| 3E8557 | BOLT (M5X0.8X39.37-MM) | 1 | |
| 9X5615 | SEAL (INTERFACE, 70-PIN) | 2 | |
| 1148843 | SLEEVE-PLASTIC (80-CM) | ||
| 1148844 | SLEEVE-PLASTIC (40-CM) | ||
| 1148845 | SLEEVE-PLASTIC (40-CM) | ||
| 1193662 | TUBE-HEAT SHRINK (10.85-MM DIA)(7-CM) | ||
| 1552255 | KIT-CONNECTING PLUG (12-PIN) | 1 | |
| 1552270 | KIT-CONNECTING PLUG (2-PIN) | 2 | |
| 3137491 | 22 HARNESS AS (FUEL) | 1 | |
| 8T8737 | PLUG-SEAL | 4 | |
| 9X3401 | PIN-CONNECTOR (16-GA TO 18-GA) | 2 | |
| 9X3402 | SOCKET-CONNECTOR (16-GA TO 18-GA) | 18 | |
| 1148843 | SLEEVE-PLASTIC (100-CM) | ||
| 1552255 | KIT-CONNECTING PLUG (12-PIN) | 1 | |
| 1552260 | KIT-CONNECTING PLUG (3-PIN) | 1 | |
| 1552270 | KIT-CONNECTING PLUG (2-PIN) | 1 | |
| 2304011 | PLUG AS-CONNECTOR (2-PIN) | 1 | |
| 2647029 | SEAL-CONNECTOR | 1 | |
| 2304012 | RECEPTACLE AS-CONNECTOR (2-PIN) | 1 | |
| 2370227 | PLUG AS-CONNECTOR (3-PIN) | 1 | |
| 2647030 | SEAL-CONNECTOR | 1 | |
| 1305300 | 23 CLIP | 5 | |
| 1325789 | 24 CLIP (LADDER) | 1 | |
| 1488313 | 25 ADAPTER AS | 2 | |
| 5P6944 | ADAPTER | 1 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 1F7854 | 26 SPACER (11.01X19.05X49.21-MM THK) | 1 | |
| 3J1907 | 27 SEAL-O-RING | 2 | |
| 4D7794 | 28 CLIP | 1 | |
| 4K8864 | 29 CLIP (LOOP) | 1 | |
| 4L9337 | 30 BOLT (3/8-16X1.5-IN) | 3 | |
| 4P7428 | 31 CLIP (LADDER) | 1 | |
| 4P7581 | 32 CLIP (LADDER) | 3 | |
| 4P8134 | 33 CLIP (LADDER) | 4 | |
| 5M3062 | 34 BOLT (3/8-16X0.75-IN) | 11 | |
| 5N2840 | 35 CLIP | 1 | |
| 5P1075 | 36 WASHER-HARD (10.2X22.5X3-MM THK) | 3 | |
| 5S7379 | 37 BOLT (3/8-16X0.875-IN) | 5 | |
| 6D4244 | 38 CLIP (LOOP) | 1 | |
| 6D4636 | 39 CLIP (LOOP) | 1 | |
| 6V6782 | 40 CLIP (SLOT) | 1 | |
| 6V6783 | 41 CLIP (TAB) | 1 | |
| 6V8188 | 42 NUT (1/2-13-THD) | 1 | |
| 6V8801 | 43 NUT (3/8-16-THD) | 2 | |
| 8C4436 | 44 BOLT (1/2-13X1.375-IN) | 1 | |
| 8M2773 | 45 CLIP (LOOP) | 3 | |
| 8T2502 | 46 BOLT (3/8-16X1.125-IN) | 1 | |
| 8T4121 | 47 WASHER-HARD (11X21X2.5-MM THK) | 1 | |
| 8T4178 | 48 BOLT (M10X1.5X90-MM) | 1 | |
| 8T4223 | 49 WASHER-HARD (13.5X25.5X3-MM THK) | 2 | |
| 8T4896 | 50 WASHER-HARD (10.2X18.5X2.5-MM THK) | 22 | |
| 9B7237 | 51 BOLT (3/8-16X1.25-IN) | 1 |
