System And Components

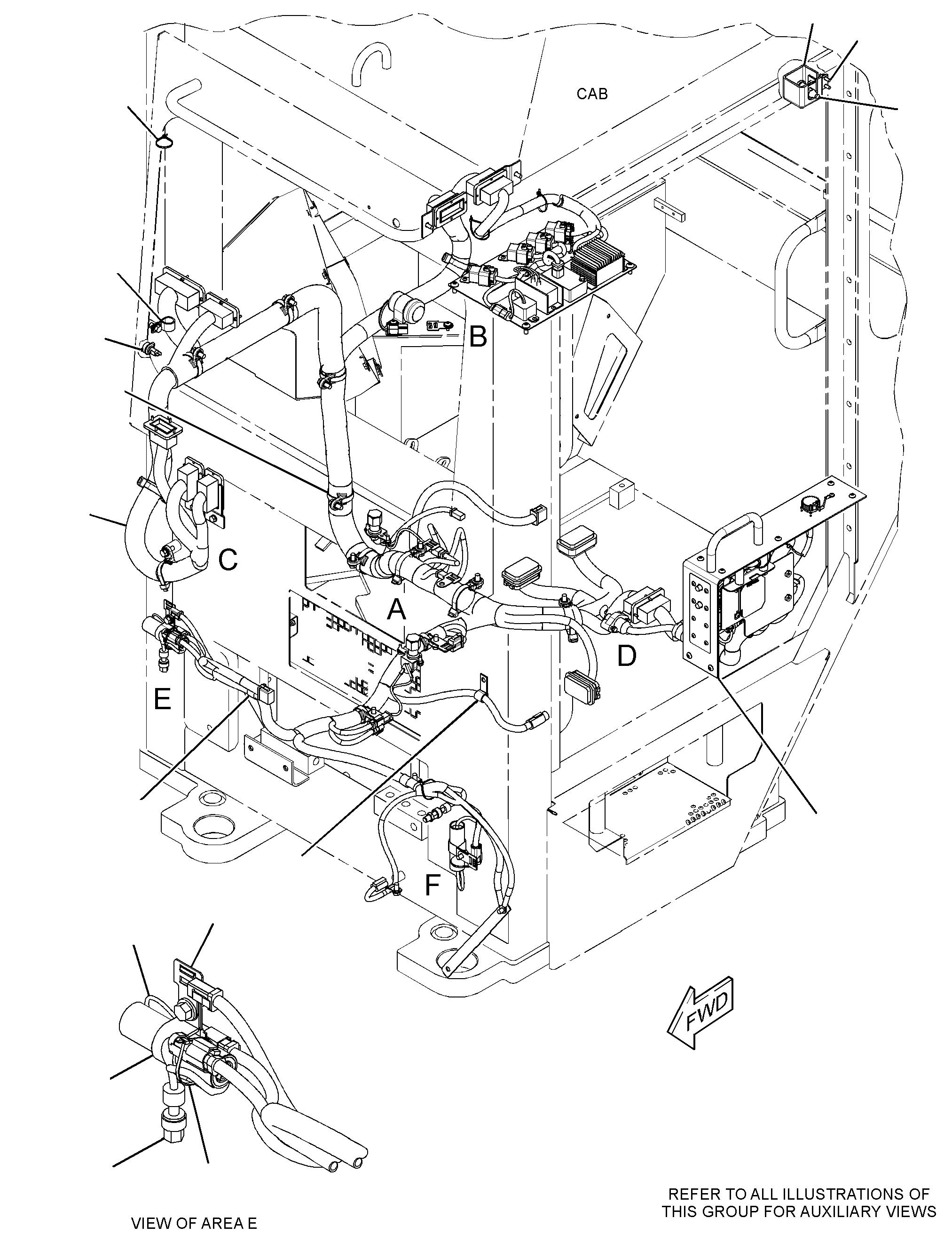

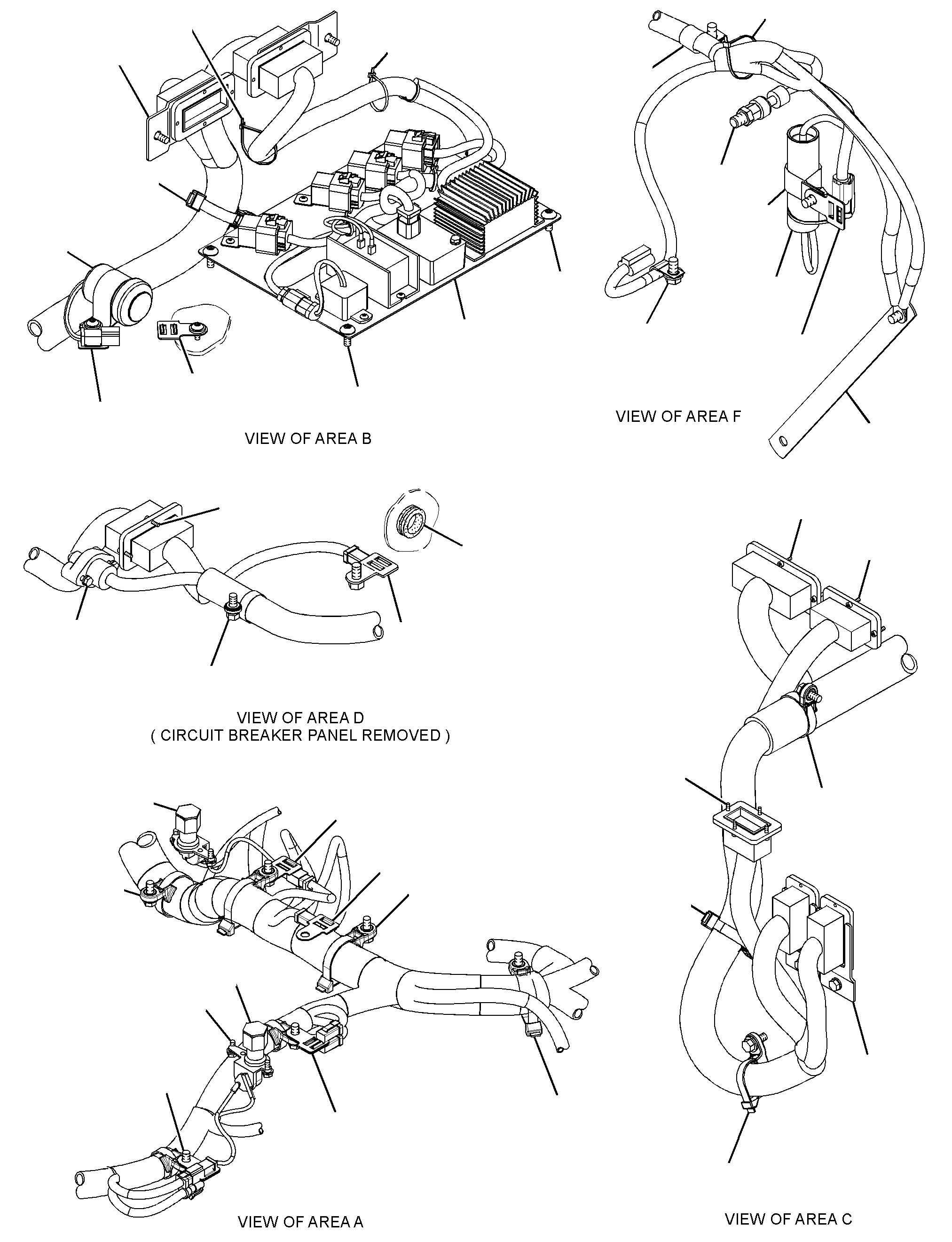

259-2624 WIRING GP-CABS/N DBB1-UP
Group No: 259-2624 · Commonality
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 3E6328 | 1 ALARM GP (24-VOLT)(ACTION) | 1 | |
| 3S2093 | 2 STRAP-CABLE | 7 | |
| 7G1060 | 3 STRAP AS-GROUND | 1 | |
| 9R7935 | 4 WASHER-SHOULDER (18.5X27X2-MM THK) | 1 | |
| 9R7941 | 5 SOCKET AS | 1 | |
| 9R7980 | COVER | 1 | |
| 9X0435 | 6 CONNECTOR | 1 | |
| 1358833 | 7 WIRE AS (16-GA, BLACK) | 1 | |
| 1471380 | 8 SWITCH AS-FOOT (DIFFERENTIAL LOCK, RH) | 1 | |
| 1471380 | 8A SWITCH AS-FOOT (DIFFERENTIAL LOCK, LH) | 1 | |
| 1863735 | PIN-CONNECTOR (16-GA TO 18-GA) | 2 | |
| 1028802 | KIT-RECEPTACLE (2-PIN) | 1 | |
| 1668065 | 9 COVER | 1 | |
| 1864095 | 10 SENSOR GP-PRESSURE (SCRAPER AIR) | 1 | |
| 1864095 | 10A SENSOR GP-PRESSURE (TRACTOR AIR) | 1 | |
| 1915075 | 11 BRACKET AS | 1 | |
| 6V9632 | NUT-WELD (M6X1-THD) | 1 | |
| 2042281 | 12 STRAP-CABLE | 14 | |
| 2048000 | 13 MOUNTING-CABLE TIE | 14 | |
| 2253304 | 14 PANEL GP-CIRCUIT BREAKER | 1 | |
| 2418488 | 15 PLATE | 4 | |
| 2568678 | 16 HARNESS AS-FRONT (CAB) | 1 | |
| 1552270 | KIT-CONNECTING PLUG (2-PIN) | 8 | |
| 1552260 | KIT-CONNECTING PLUG (3-PIN) | 5 | |
| 1552255 | KIT-CONNECTING PLUG (12-PIN) | 2 | |
| 9X0145 | RECEPTACLE AS-CONNECTOR (24-PIN) | 1 | |
| 9X1343 | RECEPTACLE AS-CONNECTOR (40-PIN) | 4 | |
| 9X7148 | RECEPTACLE AS-CONNECTOR (40-PIN) | 2 | |
| 1030213 | RECEPTACLE AS-CONNECTOR (70-PIN) | 1 | |
| 1886210 | RECEPTACLE AS-CONNECTOR (1-PIN) | 1 | |
| 1275483 | PLUG AS-CONNECTOR (1-PIN) | 1 | |
| 1471446 | PLUG AS-CONNECTOR (70-PIN) | 1 | |
| 1607690 | PLUG AS-CONNECTOR (70-PIN) | 1 | |
| 1261774 | COVER-CONNECTOR | 3 | |
| 9X6772 | STRAP-CABLE | 2 | |
| 1148843 | SLEEVE-PLASTIC (310-CM) | ||
| 1148845 | SLEEVE-PLASTIC (20-CM) | ||
| 1193662 | TUBE-HEAT SHRINK (10.85-MM DIA)(91-CM) | ||
| 1257875 | TUBE-HEAT SHRINK (7.44-MM DIA)(90-CM) | ||
| 1257876 | TUBE-HEAT SHRINK (17.78-MM DIA)(30-CM) | ||
| 2614877 | 17 PANEL GP-RELAY | 1 | |
| 0310216 | 18 BOLT (1/4-20X0.75-IN) | 2 | |
| 0672551 | 19 CLIP | 1 | |
| 1272170 | 20 SCREW-TRUSS HEAD (M8X1.25X20-MM) | 4 | |
| 1305300 | 21 CLIP | 12 | |
| 3T3133 | 22 SWITCH AS-PUSH BUTTON (DOME LIGHT) | 1 | |
| 2H3922 | LOCKWASHER | 1 | |
| 6V8363 | SCREW (10-32X0.312-IN) | 2 | |
| 6V8370 | NUT-HEX (3/4-32-THD) | 1 | |
| 8F1434 | LOCKWASHER | 2 | |
| 9X0199 | BOOT-SWITCH | 1 | |
| 4D7794 | 23 CLIP | 1 | |
| 4L6454 | 24 BOLT (3/8-16X1-IN) | 1 | |
| 5C9553 | 25 BOLT (M6X1X16-MM) | 2 | |
| 5M3062 | 26 BOLT (3/8-16X0.75-IN) | 6 | |
| 5P7854 | 27 CLIP (LOOP) | 2 | |
| 6D4244 | 28 CLIP (LOOP) | 2 | |
| 6V5048 | 29 SEAL-O-RING | 1 | |
| 8T4121 | 30 WASHER-HARD (11X21X2.5-MM THK) | 22 | |
| 8T4189 | 31 BOLT (M8X1.25X20-MM) | 4 | |
| 8T4205 | 32 WASHER-HARD (7.2X14.5X2-MM THK) | 6 | |
| 8T4224 | 33 WASHER-HARD (8.8X16X2-MM THK) | 4 | |
| 8T4896 | 34 WASHER-HARD (10.2X18.5X2.5-MM THK) | 2 | |
| 8T9364 | 35 BOLT (1/4-20X0.625-IN) | 4 | |
| 8T9405 | 36 BOLT-SOCKET HEAD (M4X0.7X16-MM) | 16 | |
| 9P0719 | 37 GROMMET | 1 | |
| 9X2042 | 38 SCREW-TRUSS HEAD (M6X1X12-MM) | 1 | |
| 9X2044 | 39 SCREW-TRUSS HEAD (M6X1X16-MM) | 2 | |
| 9X8256 | 40 WASHER (6.6X12X2-MM THK) | 2 | |
| 6K8178 | 41 CLIP (LOOP) | 1 | |
| 8T4137 | 42 BOLT (M10X1.5X20-MM) | 14 | |
| 8T4136 | 43 BOLT (M10X1.5X25-MM) | 1 |
