System And Components

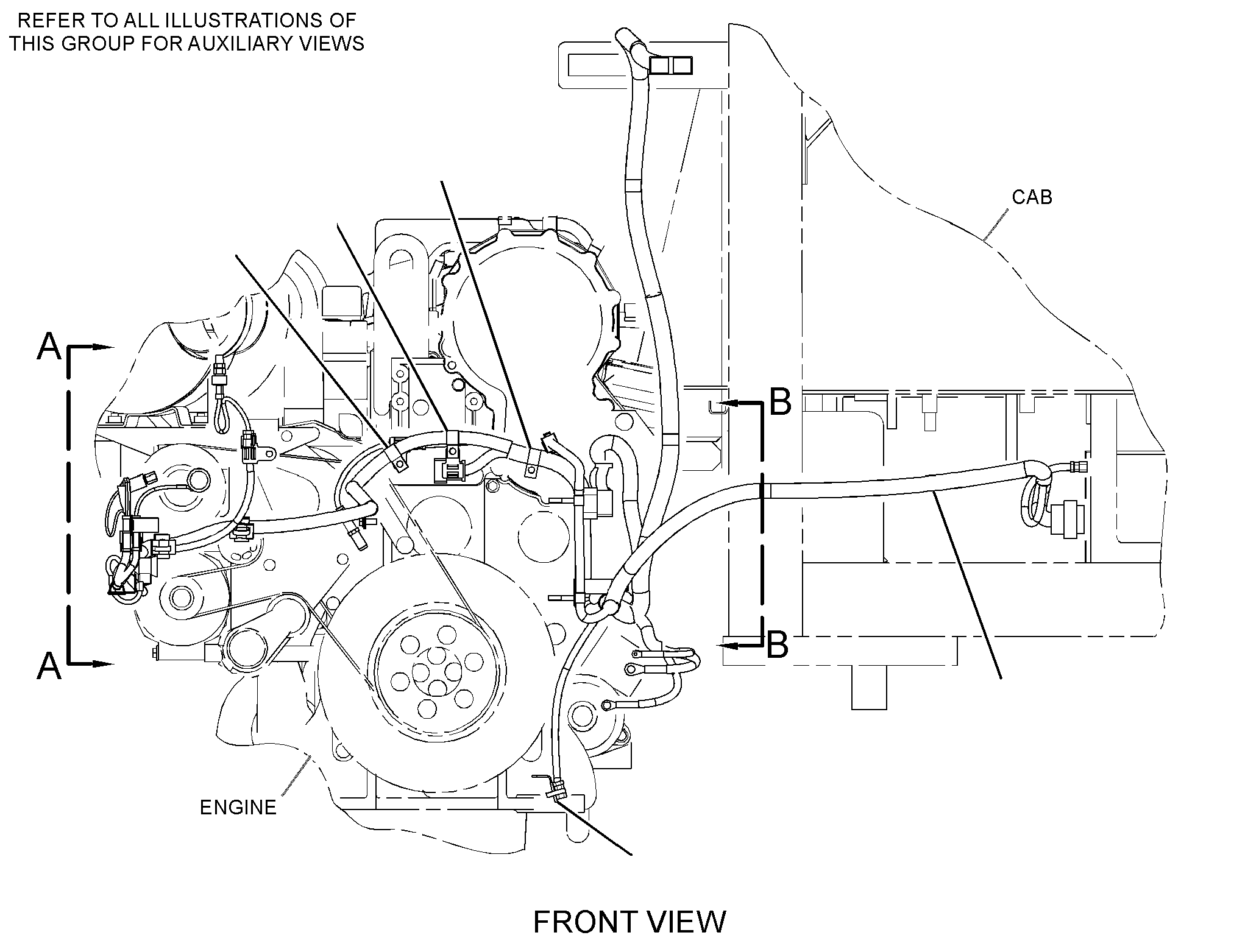

228-6824 WIRING GP-ENGINES/N DBB1-664
Group No: 228-6824 · Commonality
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 5N2126 | 1 CONNECTOR (THERMOCOUPLE) | 1 | |
| 7K1181 | 2 STRAP-CABLE | 7 | |
| 1145333 | 3 SWITCH AS-PRESSURE (COMPRESSOR, HIGH SIDE) | 1 | |
| 9X1386 | SLEEVE (25-CM) | ||
| 1863735 | PIN-CONNECTOR (16-GA TO 18-GA) | 2 | |
| 1028802 | KIT-RECEPTACLE (2-PIN) | 1 | |
| 1153973 | 4 SPACER (10.5X25X45-MM THK) | 1 | |
| 1496371 | 5 SWITCH AS-PRESSURE (A/C COMPRESSOR CLUTCH)(COMPRESSOR, LOW SIDE) | 1 | |
| 1028802 | KIT-RECEPTACLE (2-PIN) | 1 | |
| 1863735 | PIN-CONNECTOR (16-GA TO 18-GA) | 2 | |
| 1619926 | 6 SENSOR GP-PRESSURE (ATMOSPHERIC AIR) | 1 | |
| 1695414 | 7 CLIP | 2 | |
| 1697443 | 8 TIMER AS-ON DELAY (24-VOLT)(COMPRESSOR CYCLE LIMITER) | 1 | |
| 1028804 | KIT-RECEPTACLE (4-PIN) | 1 | |
| 1863735 | PIN-CONNECTOR (16-GA TO 18-GA) | 4 | |
| 1895746 | 9 SENSOR GP-SPEED (ENGINE SPEED) | 1 | |
| 2448780 | 10 PLATE AS | 1 | |
| 2637127 | 11 HARNESS AS-ENGINE | 1 | |
| 3T4688 | TERMINAL-RING (4-GA, 7/16-IN SCREW) | 1 | |
| 8N1518 | PLUG AS-CONNECTOR (25-PIN) | 1 | |
| 8N1521 | BELL AS-END | 1 | |
| 8N1545 | SOCKET-CONNECTOR (8-GA) | 1 | |
| 8N1549 | SOCKET-CONNECTOR (4-GA) | 2 | |
| 8T8737 | PLUG-SEAL | 81 | |
| 8T8827 | BOOT (RED) | 1 | |
| 9X0141 | PLUG AS-CONNECTOR (40-PIN) | 1 | |
| 9X3401 | PIN-CONNECTOR (16-GA TO 18-GA) | 1 | |
| 9X3402 | SOCKET-CONNECTOR (16-GA TO 18-GA) | 1 | |
| 1108769 | WIRE AS (16-GA, BLACK) | 1 | |
| 9X6772 | STRAP-CABLE | 3 | |
| 9X6857 | SOCKET-CONNECTOR (16-GA TO 18-GA) | 4 | |
| 1148843 | SLEEVE-PLASTIC (185-CM) | ||
| 1148845 | SLEEVE-PLASTIC (40-CM) | ||
| 1193662 | TUBE-HEAT SHRINK (10.85-MM DIA)(13-CM) | ||
| 1261768 | SOCKET-CONNECTOR (14-GA TO 16-GA) | 7 | |
| 9G4344 | TERMINAL-RING (4-GA, 1/2-IN SCREW) | 1 | |
| 2L8049 | TERMINAL-RING (6-GA, NO. 10 SCREW) | 1 | |
| 2L8057 | TERMINAL-RING (8-GA, NO. 10 SCREW) | 1 | |
| 2L8054 | TERMINAL-RING (6-GA, 1/2-IN SCREW) | 1 | |
| 2L8061 | TERMINAL-RING (8-GA, 1/2-IN SCREW) | 1 | |
| 1607689 | PLUG AS-CONNECTOR (70-PIN) | 1 | |
| 1599322 | SEAL-O-RING | 1 | |
| 2370336 | COVER (CONNECTOR) | 1 | |
| 1028803 | KIT-RECEPTACLE (3-PIN) | 1 | |
| 1028806 | KIT-RECEPTACLE (8-PIN) | 1 | |
| 1028801 | KIT-RECEPTACLE (12-PIN) | 1 | |
| 1552260 | KIT-CONNECTING PLUG (3-PIN) | 2 | |
| 1552270 | KIT-CONNECTING PLUG (2-PIN) | 5 | |
| 8N1521 | BELL AS-END | 1 | |
| 2370336 | COVER (CONNECTOR) | 1 | |
| 1305300 | 12 CLIP | 3 | |
| 3J7354 | 13 SEAL-O-RING | 1 | |
| 4L6454 | 14 BOLT (3/8-16X1-IN) | 2 | |
| 4P8134 | 15 CLIP (LADDER) | 1 | |
| 4S1962 | 16 CLIP (LOOP) | 1 | |
| 2006345 | 17 SADDLE-MOUNTING (DUAL SWIVEL) | 2 | |
| 5S7379 | 18 BOLT (3/8-16X0.875-IN) | 1 | |
| 6D4244 | 19 CLIP (LOOP) | 1 | |
| 6D4246 | 20 CLIP (LOOP) | 10 | |
| 8M2770 | 21 CLIP (LOOP) | 2 | |
| 1566175 | 22 CLIP (LADDER) | 1 | |
| 3S2093 | 23 STRAP-CABLE | 2 | |
| 8T4896 | 24 WASHER-HARD (10.2X18.5X2.5-MM THK) | 5 | |
| 8T8911 | 25 BOLT (5/16-18X2-IN) | 2 | |
| 2B2694 | 26 BOLT (5/16-18X2-IN) | 1 | |
| 9X7378 | 27 SEAL-O-RING | 2 |
