System And Components

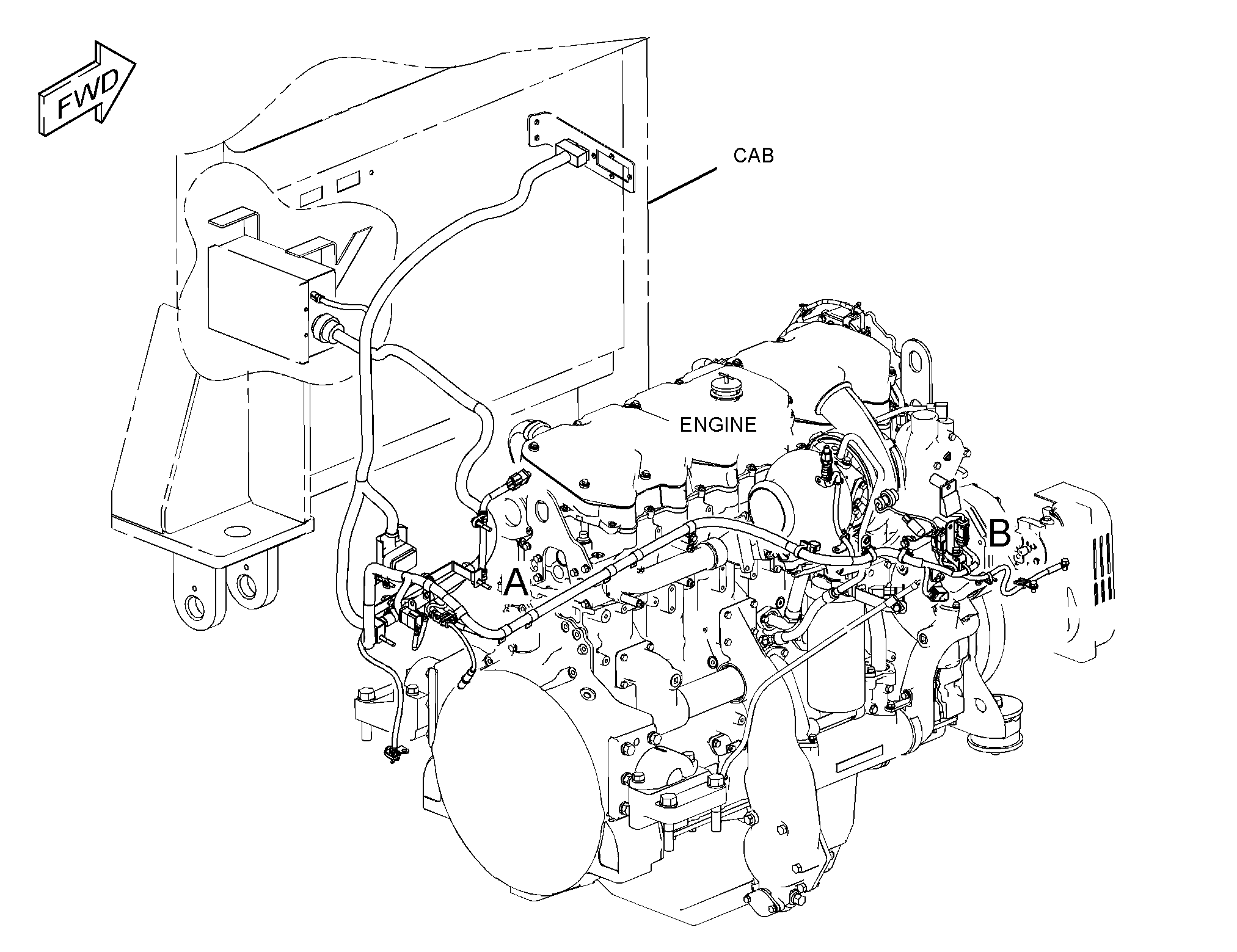

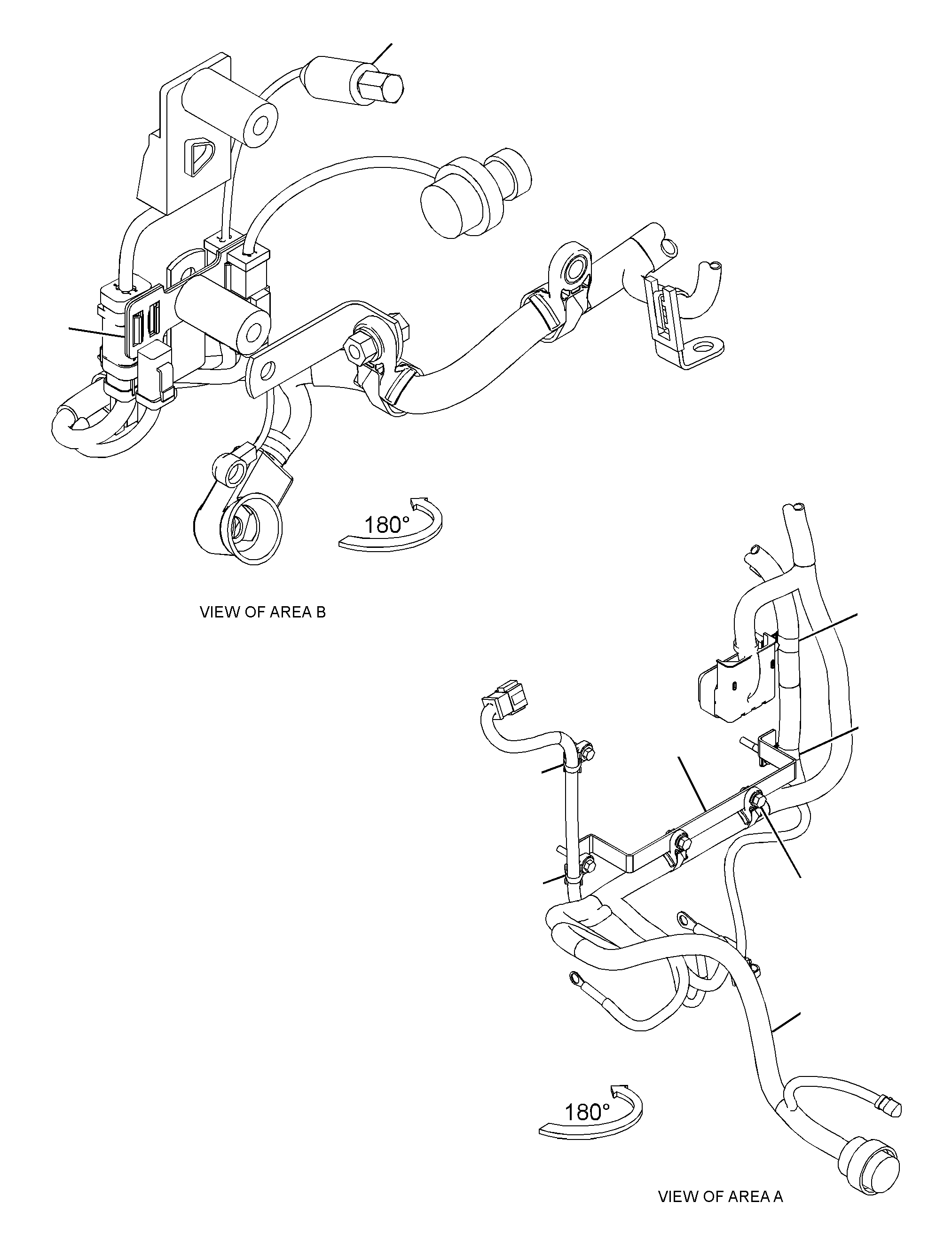

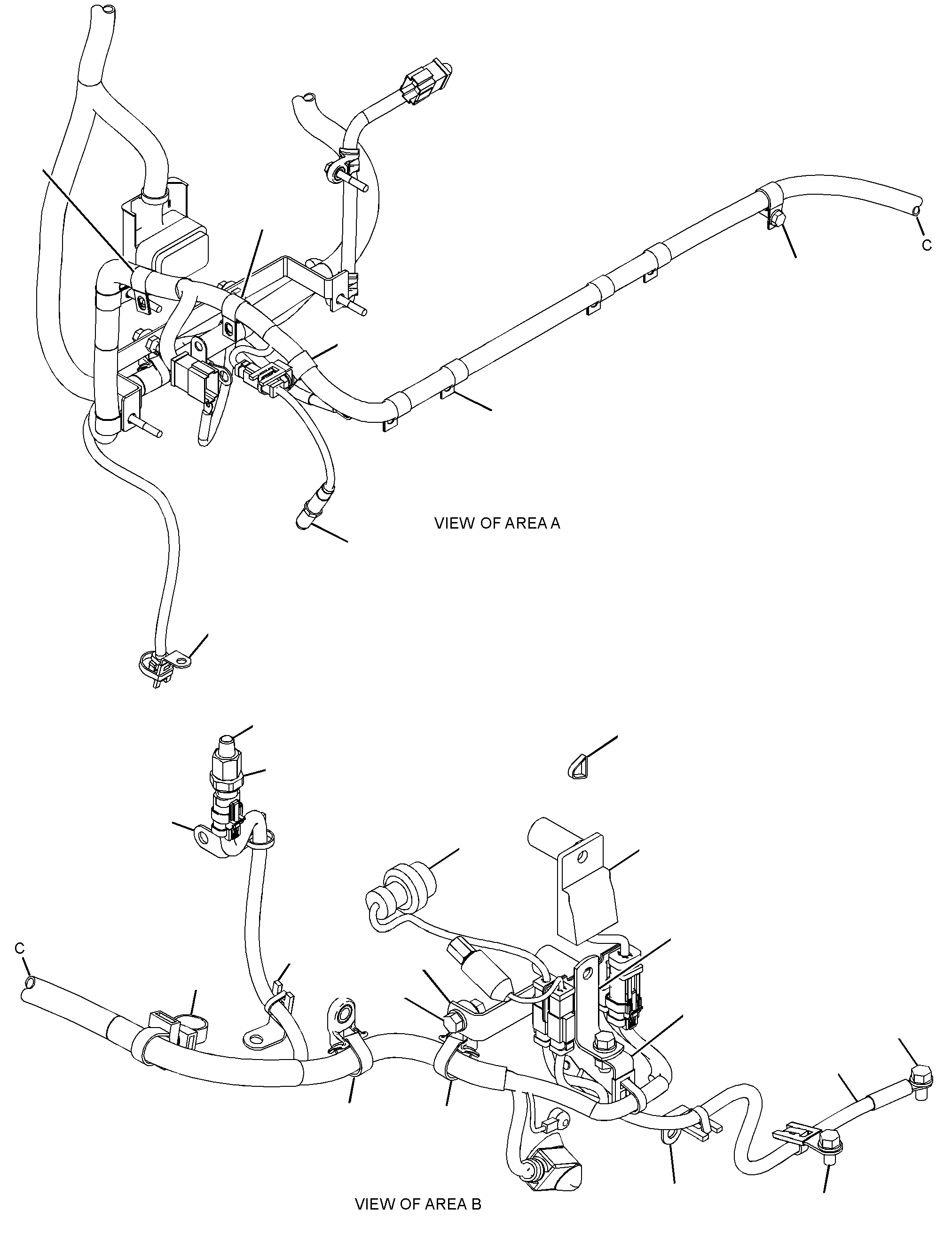

228-6824 WIRING GP-ENGINES/N DBB701-UP
Group No: 228-6824 · Commonality
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 3S2093 | 1 STRAP-CABLE | 5 | |
| 6V9601 | 2 ADAPTER | 1 | |
| 7K1181 | 3 STRAP-CABLE | 7 | |
| 9L1566 | 4 SUPPORT | 2 | |
| 1145333 | 5 SWITCH AS-PRESSURE (COMPRESSOR, HIGH SIDE) | 1 | |
| 9X1386 | SLEEVE (25-CM) | ||
| 1863735 | PIN-CONNECTOR (16-GA TO 18-GA) | 2 | |
| 1028802 | KIT-RECEPTACLE (2-PIN) | 1 | |
| 1153973 | 6 SPACER (10.5X25X45-MM THK) | 2 | |
| 1496371 | 7 SWITCH AS-PRESSURE (A/C COMPRESSOR CLUTCH)(COMPRESSOR, LOW SIDE) | 1 | |
| 1028802 | KIT-RECEPTACLE (2-PIN) | 1 | |
| 1863735 | PIN-CONNECTOR (16-GA TO 18-GA) | 2 | |
| 1695414 | 8 CLIP | 2 | |
| 1895746 | 9 SENSOR GP-SPEED (ENGINE SPEED) | 1 | |
| 2006345 | 10 SADDLE-MOUNTING (DUAL SWIVEL) | 1 | |
| 2042281 | 11 STRAP-CABLE | 6 | |
| 2048000 | 12 MOUNTING-CABLE TIE | 6 | |
| 2448780 | 13 PLATE AS | 1 | |
| 2746717 | 14 SENSOR-PRESSURE | 1 | |
| 3137406 | 15 HARNESS AS-ENGINE | 1 | |
| 3T4688 | TERMINAL-RING (4-GA, 7/16-IN SCREW) | 1 | |
| 8N1518 | PLUG AS-CONNECTOR (25-PIN) | 1 | |
| 8N1521 | BELL AS-END | 1 | |
| 8N1545 | SOCKET-CONNECTOR (8-GA) | 1 | |
| 8N1549 | SOCKET-CONNECTOR (4-GA) | 2 | |
| 8T8737 | PLUG-SEAL | 63 | |
| 8T8827 | BOOT (RED) | 1 | |
| 9X0141 | PLUG AS-CONNECTOR (40-PIN) | 1 | |
| 3E4367 | RING-RETAINING | 1 | |
| 3E8557 | BOLT (M5X0.8X39.37-MM) | 1 | |
| 9X3490 | SEAL-CONNECTOR (40-PIN) | 2 | |
| 9X3401 | PIN-CONNECTOR (16-GA TO 18-GA) | 18 | |
| 9X3402 | SOCKET-CONNECTOR (16-GA TO 18-GA) | 57 | |
| 9X6772 | STRAP-CABLE | 3 | |
| 1108769 | WIRE AS (16-GA, BLACK) | 1 | |
| 9X6857 | SOCKET-CONNECTOR (16-GA TO 18-GA) | 4 | |
| 1148843 | SLEEVE-PLASTIC (185-CM) | ||
| 1148844 | SLEEVE-PLASTIC (40-CM) | ||
| 1148845 | SLEEVE-PLASTIC (40-CM) | ||
| 1193662 | TUBE-HEAT SHRINK (10.85-MM DIA)(7-CM) | ||
| 1257875 | TUBE-HEAT SHRINK (7.44-MM DIA)(5-CM) | ||
| 1261768 | SOCKET-CONNECTOR (14-GA TO 16-GA) | 13 | |
| 1261774 | COVER-CONNECTOR | 2 | |
| 9G4344 | TERMINAL-RING (4-GA, 1/2-IN SCREW) | 1 | |
| 1311487 | TERMINAL AS (6-GA TO 8-GA) | 1 | |
| 1311492 | TERMINAL AS-RING (6-GA TO 8-GA) | 1 | |
| 1607689 | PLUG AS-CONNECTOR (70-PIN) | 1 | |
| 1599322 | SEAL-O-RING | 1 | |
| 1028806 | KIT-RECEPTACLE (8-PIN) | 1 | |
| 1028801 | KIT-RECEPTACLE (12-PIN) | 1 | |
| 1552260 | KIT-CONNECTING PLUG (3-PIN) | 2 | |
| 1552270 | KIT-CONNECTING PLUG (2-PIN) | 4 | |
| 7G7917 | PLUG-SEAL | 12 | |
| 7G7918 | PLUG-SEAL | 4 | |
| 7G7919 | PLUG-SEAL | 2 | |
| 1599322 | SEAL-O-RING | 1 | |
| 2304013 | PLUG AS-CONNECTOR (3-PIN) | 1 | |
| 2305008 | PLUG AS-CONNECTOR (4-PIN) | 1 | |
| 3381678 | 16 CABLE AS | 1 | |
| 3381942 | 17 TIMER AS-ON DELAY (24-VOLT)(REFRIGERANT COMPRESSOR) | 1 | |
| 2434507 | RECEPTACLE AS-CONNECTOR (4-PIN) | 1 | |
| 1441636 | PIN-CONNECTOR (14-GA TO 18-GA) | 4 | |
| 1305300 | 18 CLIP | 1 | |
| 1325789 | 19 CLIP (LADDER) | 5 | |
| 3J1907 | 20 SEAL-O-RING | 1 | |
| 4L6454 | 21 BOLT (3/8-16X1-IN) | 4 | |
| 4P7581 | 22 CLIP (LADDER) | 1 | |
| 4P8134 | 23 CLIP (LADDER) | 1 | |
| 5M3062 | 24 BOLT (3/8-16X0.75-IN) | 2 | |
| 5P4116 | 25 WASHER-HARD (8.8X20.5X2-MM THK) | 4 | |
| 5S7379 | 26 BOLT (3/8-16X0.875-IN) | 2 | |
| 6D4246 | 27 CLIP (LOOP) | 10 | |
| 6V8801 | 28 NUT (3/8-16-THD) | 2 | |
| 8T4896 | 29 WASHER-HARD (10.2X18.5X2.5-MM THK) | 10 | |
| 8T8911 | 30 BOLT (5/16-18X2-IN) | 4 | |
| 9X7378 | 31 SEAL-O-RING | 2 |
