System And Components

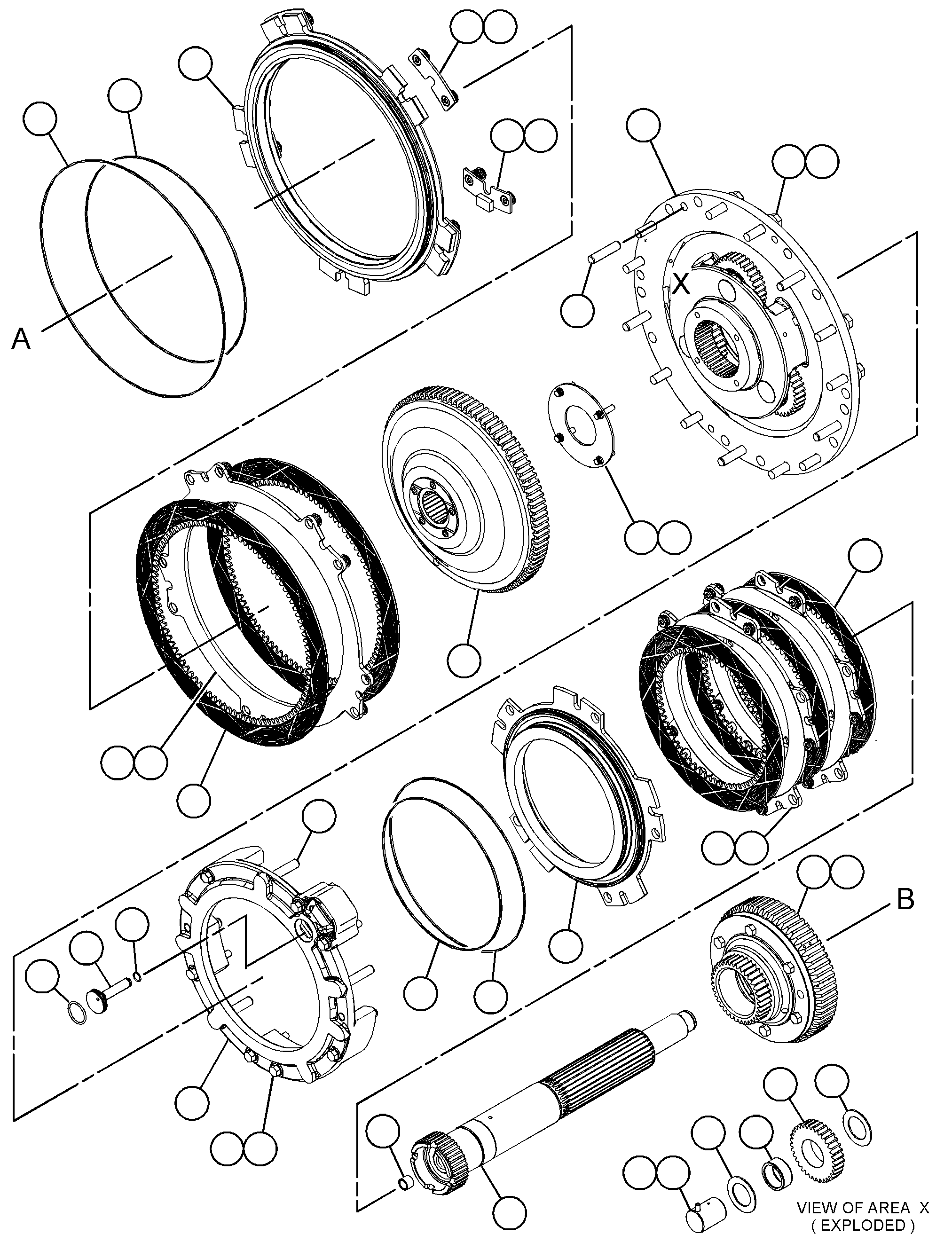

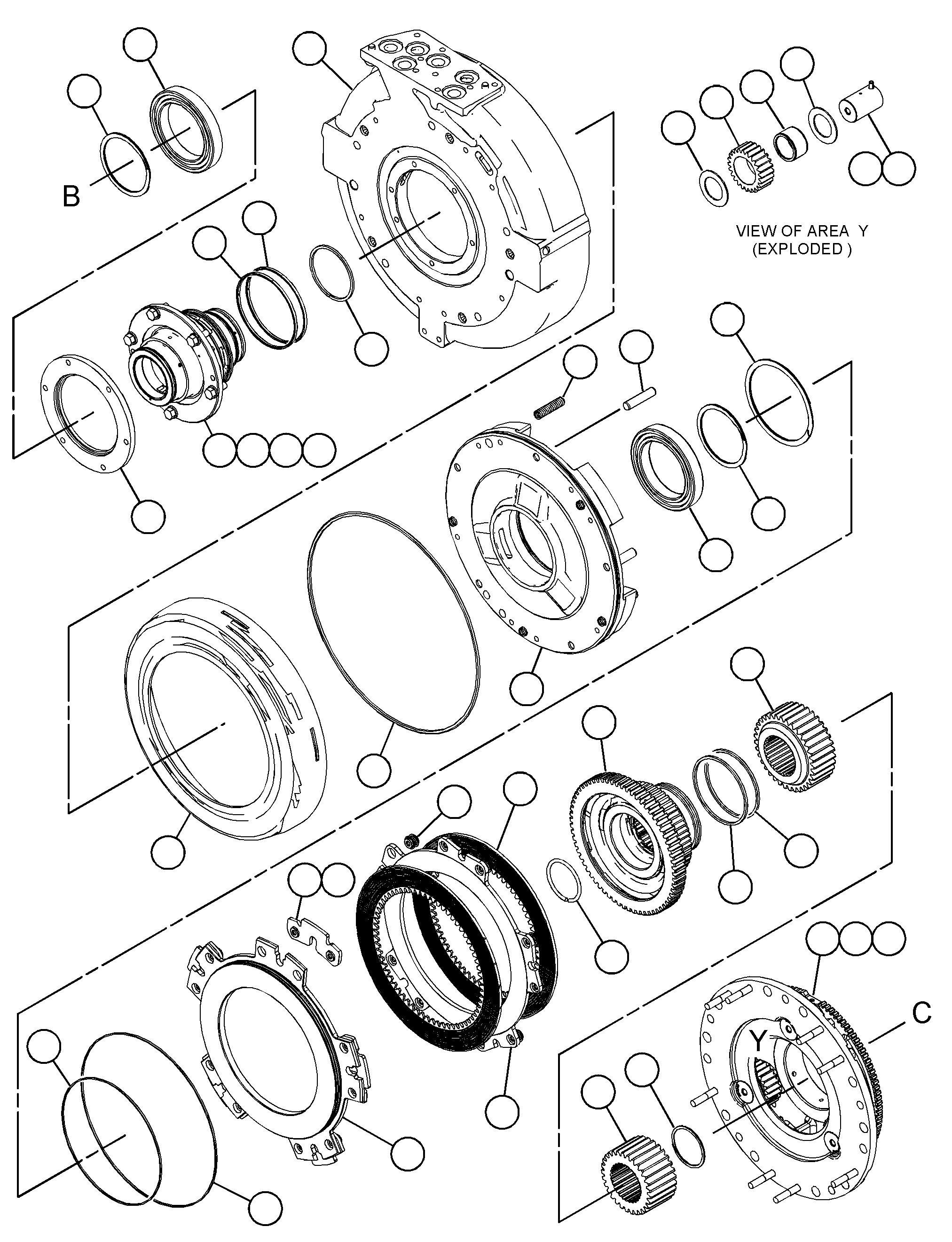

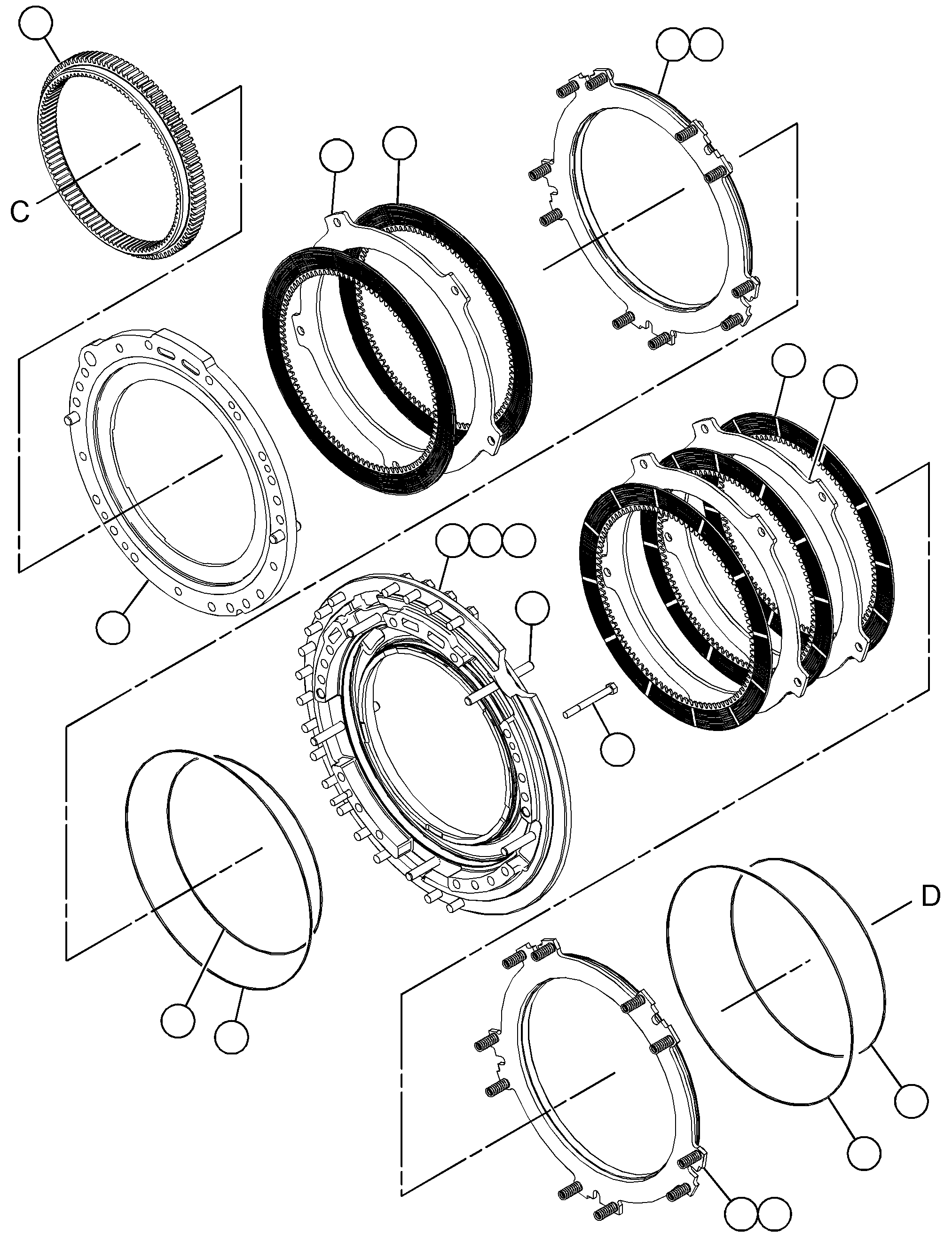

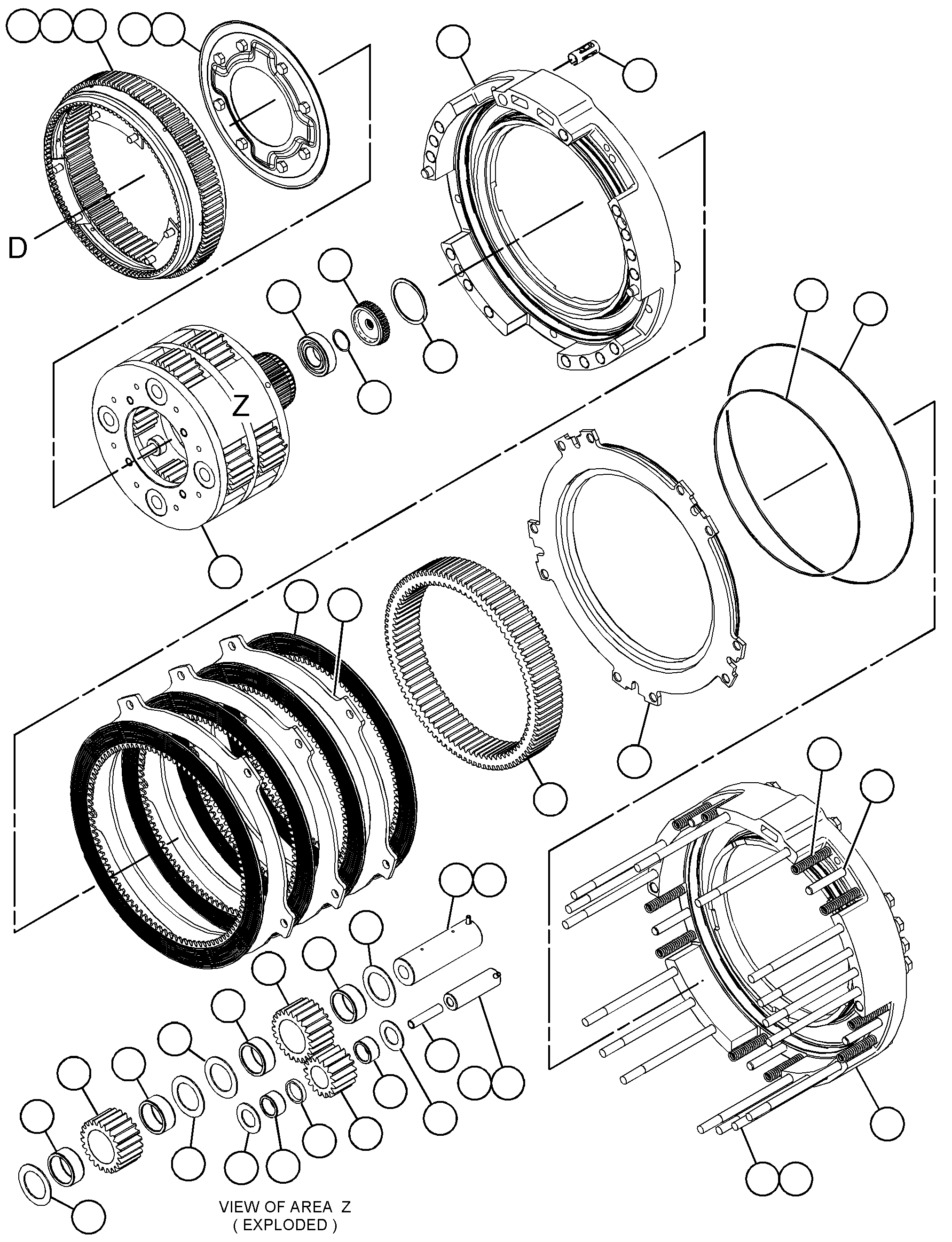

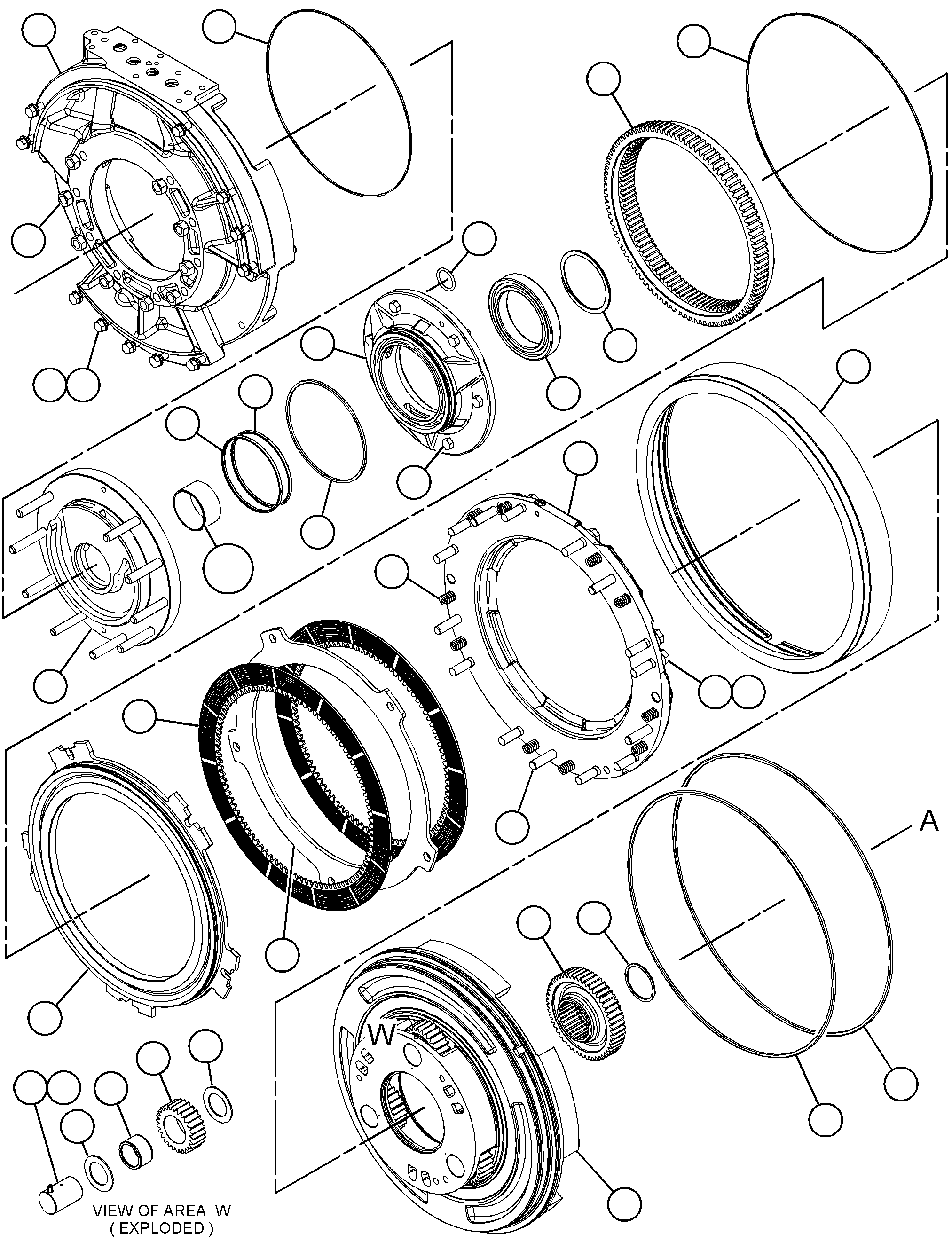

9W-2418 PLANETARY GP-TRANSMISSIONS/N M1R1-UP
Group No: 9W-2418 · Commonality
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 9W3436 | 1 HOUSING AS-CLUTCH | 1 | |
| 7M8480 | DOWEL | 2 | |
| 8S9004 | 2 PISTON-CLUTCH | 2 | |
| 3S1278 | 3 RING-SEAL | 4 | |
| 3S1281 | 4 RING-SEAL | 2 | |
| 1P4110 | 5 DISC-FRICTION | 5 | |
| 1A1460 | 6 BOLT (1/2-13X2-IN) | 20 | |
| 2M0849 | 7 WASHER-HARD (13.5X25.5X5-MM THK) | 36 | |
| 8M6541 | 8 SEAL | 1 | |
| 3P0797 | 9 PISTON-BALANCE | 1 | |
| 4S5804 | 10 SEAL-O-RING | 1 | |
| 3S1284 | 11 RING-SEAL | 1 | |
| 3P0793 | 12 PLATE | 4 | |
| 1S7347 | 13 RING-SEAL | 1 | |
| 3S0040 | 14 PLATE-CLUTCH | 1 | |
| 9P4251 | 15 DISC-FRICTION | 2 | |
| 3680297 | 16 PLATE-CLUTCH | 7 | |
| 3S9965 | 17 SHAFT AS | 3 | |
| 3S0036 | PLUG-CORE | 1 | |
| 8M1112 | 18 SEAL-O-RING | 1 | |
| 8S3373 | 19 RING-SEAL | 1 | |
| 5M5018 | 20 BEARING-ROLLER | 6 | |
| 4S5811 | 21 PLUG | 1 | |
| 9W4662 | 22 DISC-FRICTION | 3 | |
| 8S9184 | 23 GEAR AS | 1 | |
| 8S9181 | GEAR-SUN (36-TEETH) | 1 | |
| 8S9182 | RING-LOCK | 1 | |
| 8S9183 | HUB-CLUTCH | 1 | |
| 4869750 | 24 CAGE AS | 1 | |
| 4869752 | 24A BEARING-SLEEVE | 1 | |
| 6P7706 | CARRIER-RING | 1 | |
| 6B6863 | PIN-SPRING | 1 | |
| 9M2001 | DOWEL | 2 | |
| 8P6949 | 25 PLATE-RETAINER | 1 | |
| 9G0599 | 26 MANIFOLD AS | 1 | |
| 4B9784 | BALL | 2 | |
| 8B1312 | DOWEL | 2 | |
| 6P1037 | 27 RING-RETAINING | 1 | |
| 4S5805 | 28 SEAL-O-RING | 1 | |
| 3S1283 | 29 RING-SEAL | 1 | |
| 3S0044 | 30 PLATE-CLUTCH | 3 | |
| 4S8724 | 31 DISC-FRICTION | 2 | |
| 9W5235 | 32 GEAR-RING (101-TEETH) | 1 | |
| 8P4520 | 33 PISTON-CLUTCH | 2 | |
| 0T0065 | 34 BOLT (3/8-16X3.5-IN) | 2 | |
| 9M6193 | 35 SPRING AS | 55 | |
| 7G2501 | 36 GEAR-PLANETARY (24-TEETH) | 3 | |
| 2S4900 | 37 SHAFT AS | 6 | |
| 2S4899 | SHAFT-PLANETARY | 1 | |
| 3S0036 | PLUG-CORE | 1 | |
| 1S5623 | 38 PLATE-LOCK | 3 | |
| 2S4993 | 39 SLINGER-OIL | 1 | |
| 8M0139 | 40 BOLT (1/2-13X10.5-IN) | 16 | |
| 1S9756 | 41 GEAR-RING (81-TEETH) | 1 | |
| 1S5621 | 42 GEAR-RING (81-TEETH) | 1 | |
| 5M2054 | 43 BEARING | 3 | |
| 6K4936 | 44 BOLT-LOCKING (3/8-16X0.625-IN) | 14 | |
| 7T2336 | 45 DISC-FRICTION | 6 | |
| 8P6439 | 46 SHAFT-PLANETARY | 4 | |
| 6F0155 | 47 RING-METAL SEAL | 2 | |
| 7G2500 | 48 GEAR-PLANETARY (23-TEETH) | 8 | |
| 3S1282 | 49 RING-SEAL | 2 | |
| 8E8307 | 50 DISC-THRUST | 16 | |
| 3S1395 | 51 GEAR-SUN (29-TEETH) | 1 | |
| 2K5967 | 52 RING-RETAINING | 1 | |
| 5S7779 | 53 RING-RETAINING | 1 | |
| 5S4426 | 54 ADAPTER-DRIVE | 1 | |
| 8H3981 | 55 RING-RETAINING | 1 | |
| 5S4442 | 56 BALL BEARING | 1 | |
| 7S4610 | 57 CARRIER AS | 1 | |
| 5S7780 | 58 SHAFT AS | 1 | |
| 3D8823 | 58A BUSHING | 1 | |
| 5S4441 | DOWEL | 1 | |
| 3S2619 | 59 RING-RETAINING | 1 | |
| 7G2512 | 60 GEAR-PLANETARY (17-TEETH) | 4 | |
| 3S2710 | 61 SHAFT-PLANETARY | 4 | |
| 3S2660 | 62 SPACER (0.26-IN THK) | 4 | |
| 3S1394 | 63 GEAR-SUN (35-TEETH) | 1 | |
| 1067799 | 64 BALL BEARING | 2 | |
| 5M6212 | 65 TUBE | 4 | |
| 8E8300 | 66 DISC-THRUST | 8 | |
| 3S0110 | 67 HOUSING-CLUTCH | 1 | |
| 4M1677 | 68 DOWEL-REACTION | 5 | |
| 1S9496 | 69 RING-SEAL | 2 | |
| 6Y4441 | 70 HOUSING AS | 1 | |
| 7M8480 | DOWEL | 4 | |
| 4M1641 | 71 DOWEL-REACTION | 5 | |
| 0S1585 | 72 BOLT (1/2-13X1.5-IN) | 18 | |
| 5M2894 | 73 WASHER-HARD (10.2X18.5X2.5-MM THK) | 32 | |
| 3P1667 | 74 HOUSING-CLUTCH | 1 | |
| 6H7201 | 75 RING-METAL SEAL | 1 | |
| 0L2070 | 76 BOLT (3/8-16X2.25-IN) | 8 | |
| 3S0147 | 77 PLATE AS-CENTER | 1 | |
| 7M8479 | DOWEL | 2 | |
| 3S0123 | 78 CARRIER-ROTATION CLUTCH | 1 | |
| 1M8649 | 79 RING-RETAINING | 1 | |
| 3P4270 | 80 PLATE-LOCK | 5 | |
| 8E1894 | 81 GEAR-COUPLING & SUN (55-TEETH) | 1 | |
| 3P4265 | 82 PISTON-CLUTCH | 1 | |
| 6F6678 | 83 SPRING | 5 | |
| 3P4269 | 84 PISTON-BALANCE | 1 | |
| 3S0120 | 85 HOUSING AS | 1 | |
| 7M8480 | DOWEL | 2 | |
| 4M8871 | 86 DOWEL | 5 | |
| 5P6230 | 87 BALL BEARING | 1 | |
| 4M9592 | 88 SPRING | 30 | |
| 8P3512 | 89 PISTON-CLUTCH | 1 | |
| 8P3514 | 90 HOUSING AS-CLUTCH | 1 | |
| 7M8480 | DOWEL | 2 | |
| 0T0573 | 91 BOLT (3/8-16X2.75-IN) | 7 | |
| 0S1594 | 92 BOLT (3/8-16X1-IN) | 18 | |
| 3P0796 | 93 PLATE AS | 1 | |
| 1M9691 | 94 SPRING | 10 | |
| 3P0798 | 95 PISTON-CLUTCH | 1 | |
| 3S0034 | 96 PLATE AS-FRONT END | 1 | |
| 4B9782 | BALL | 1 | |
| 2S0044 | 97 DOWEL-REACTION | 15 | |
| 1A2029 | 98 BOLT (3/8-16X1.125-IN) | 11 | |
| 4S5812 | 99 CARRIER AS | 1 | |
| 7M8480 | DOWEL | 2 | |
| 6P0218 | 100 CAGE-BEARING | 1 | |
| 1F7958 | 101 NUT-FULL (1/2-13-THD) | 9 | |
| 8M5248 | 102 SEAL-O-RING | 3 | |
| 4S5815 | 103 GEAR AS-RING (102-TEETH) | 1 | |
| 6B1369 | RIVET | 5 | |
| 8P1958 | WASHER-THRUST (2.48X3.72X0.125-IN THK) | 2 | |
| 5S0978 | 104 CARRIER AS | 1 | |
| 2D6642 | BALL | 1 | |
| 1M8652 | 105 RING-RETAINING | 3 | |
| 3S0109 | 106 PLATE-THRUST | 1 | |
| 1T0414 | 107 BOLT-12 POINT HEAD (5/16-18X1-IN) | 4 | |
| 3D2907 | 108 RING-RETAINING | 1 | |
| 6P7707 | 109 MANIFOLD AS | 1 | |
| 2042460 | 109A BUSHING | 1 | |
| 6B6863 | PIN-SPRING | 1 | |
| 2D8426 | STUD-TAPERLOCK (1/2-13X3.19-IN) | 9 | |
| 6P7706 | CARRIER-RING | 1 | |
| 9M2001 | DOWEL | 1 | |
| 9S8839 | 110 GEAR-SUN (50-TEETH) | 1 | |
| 6Y5888 | 111 RING-SEAL | 4 | |
| 2S0669 | 112 BEARING | 8 | |
| 1M4169 | 113 RING-METAL SEAL | 1 | |
| 7G2489 | 114 GEAR-PLANETARY (26-TEETH) | 3 | |
| 8E8304 | 115 DISC-THRUST | 18 | |
| 4M3915 | 116 BEARING-CAGED | 16 | |
| 3S2708 | 117 PIN-SPRING | 17 | |
| 3S0037 | 118 GEAR-RING (103-TEETH) | 1 | |
| 7G2499 | 119 GEAR-PLANETARY (33-TEETH) | 3 | |
| 9M4355 | 120 DAMPER-BOLT | 16 | |
| 3H7654 | 121 WASHER-HARD (13.5X22.5X3-MM THK) | 18 |
