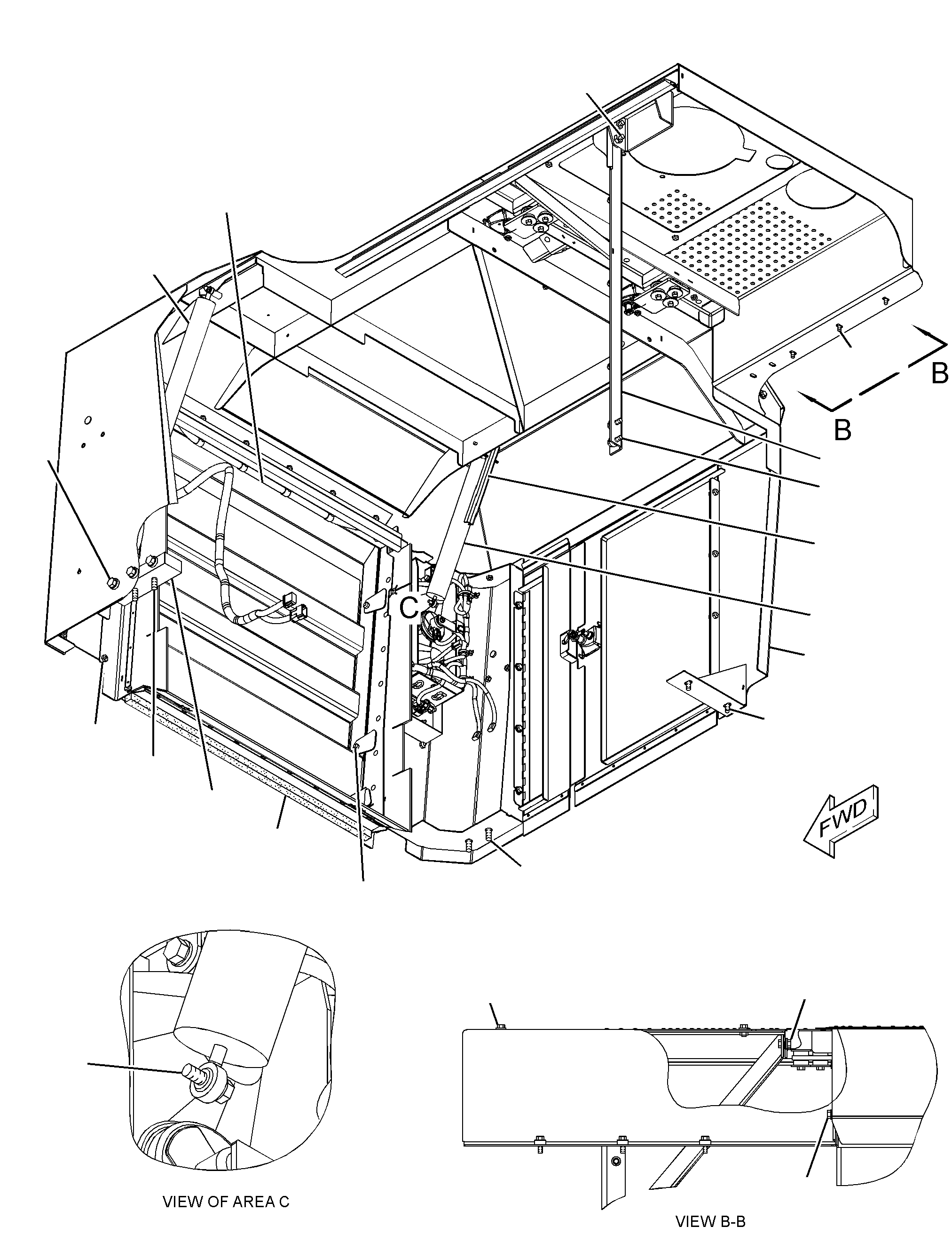

228-8408 HOOD GP-TRACTORS/N DBB396-453

Group No: 228-8408 · Commonality
Part NumberPart NameQty
24091101 HOOD GP-TRACTOR1
24094672 SUPPORT AS1
24094683 GRILL AS1
24239934 PLATE1
24351165 PLATE1
25262836 BLOCK-MOUNTING1
27215207 STRUT (MECHANICAL)2
27215238 STRUT-LOCKING1
27215249 SPRING (EXTENSION)1
288632510 PLATE AS1
198477711 WASHER-HARD (11X25X10-MM THK)11
198477812 WASHER-HARD (13.5X30X12-MM THK)4
198478013 WASHER-HARD (17.5X32X8-MM THK)7
3E986014 LOCKNUT (5/16-18-THD)2
4L645415 BOLT (3/8-16X1-IN)1
4M528116 BOLT (1/4-20X0.75-IN)4
5M306217 BOLT (3/8-16X0.75-IN)20
5P107518 WASHER-HARD (10.2X22.5X3-MM THK)14
5P107619 WASHER-HARD (13.5X30X4-MM THK)2
5P256620 BOLT (1/2-13X1.5-IN)2
5P295521 BOLT (5/16-18X2.5-IN)2
6V891822 BOLT (5/16-18X1.25-IN)2
7X034523 BOLT (5/8-11X1.75-IN)2
7X057824 WASHER-HARD (10.2X32X2.5-MM THK)4
7X772925 WASHER (11X25X3-MM THK)3
8C443626 BOLT (1/2-13X1.375-IN)2
8T250227 BOLT (3/8-16X1.125-IN)7
8T420528 WASHER-HARD (7.2X14.5X2-MM THK)4
8T422429 WASHER-HARD (8.8X16X2-MM THK)2
8T687130 BOLT (5/8-11X2.5-IN)3
8T891731 BOLT (1/2-13X1.25-IN)2
8T939632 BOLT (5/8-11X3.25-IN)2
9B723733 BOLT (3/8-16X1.25-IN)4
