System And Components

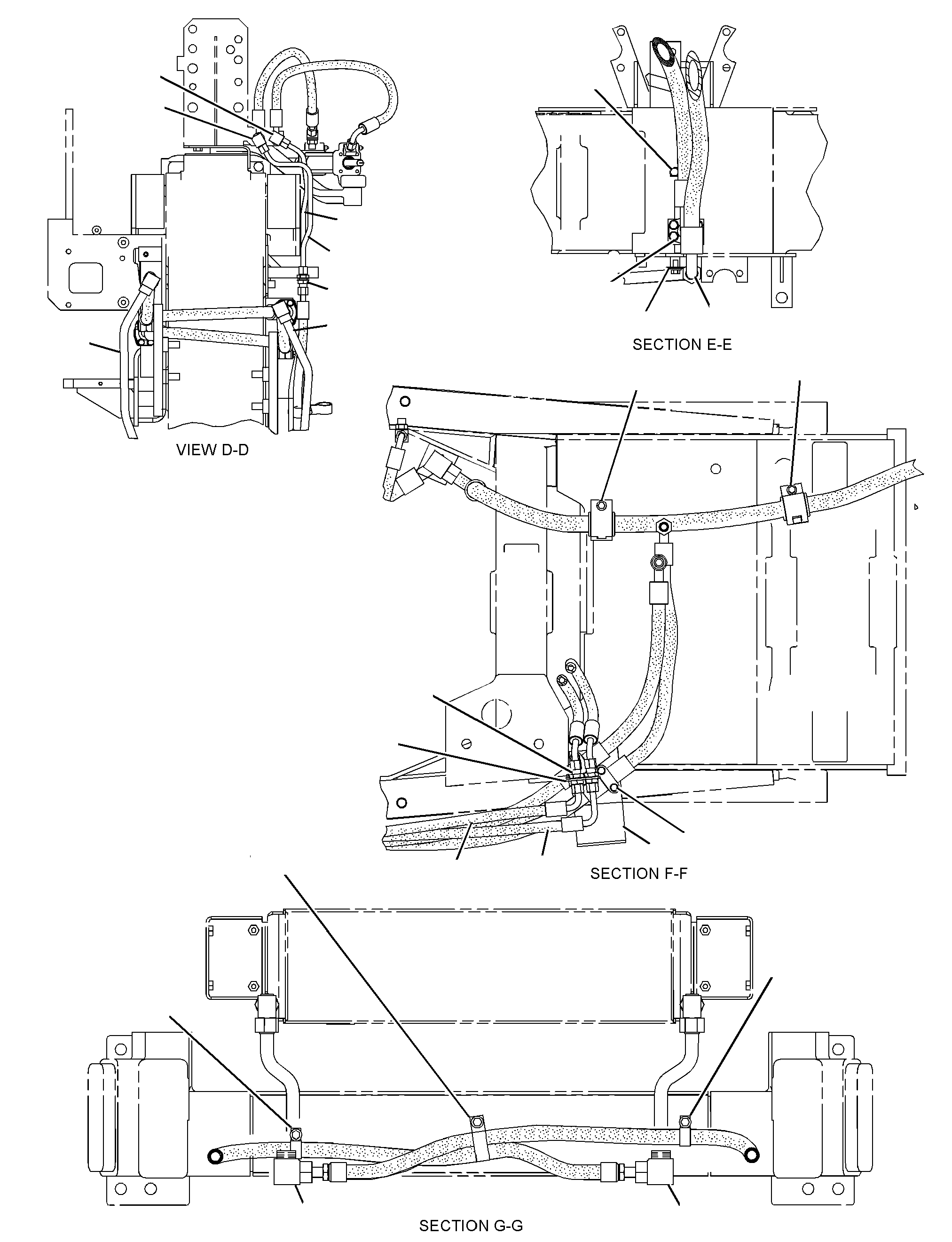

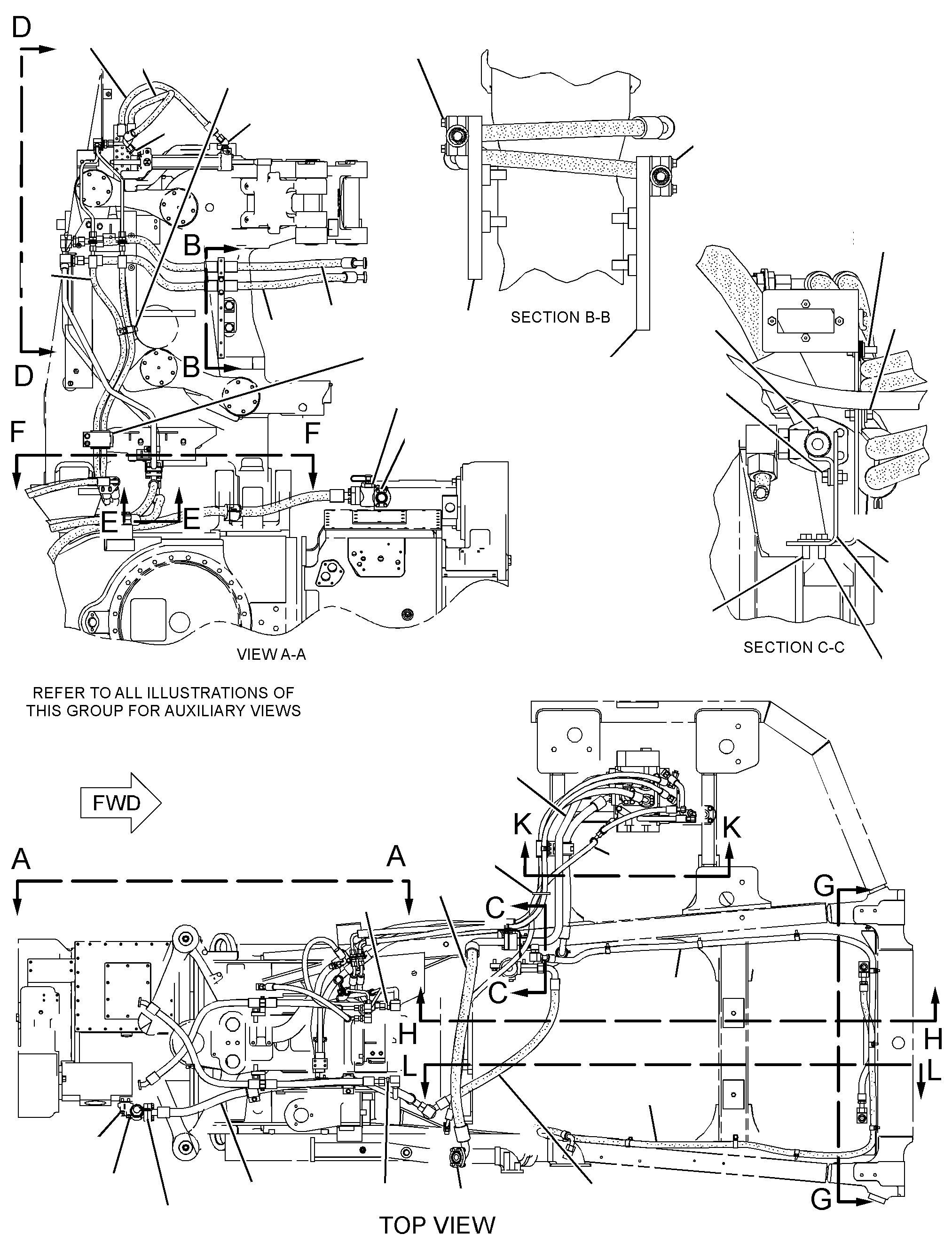

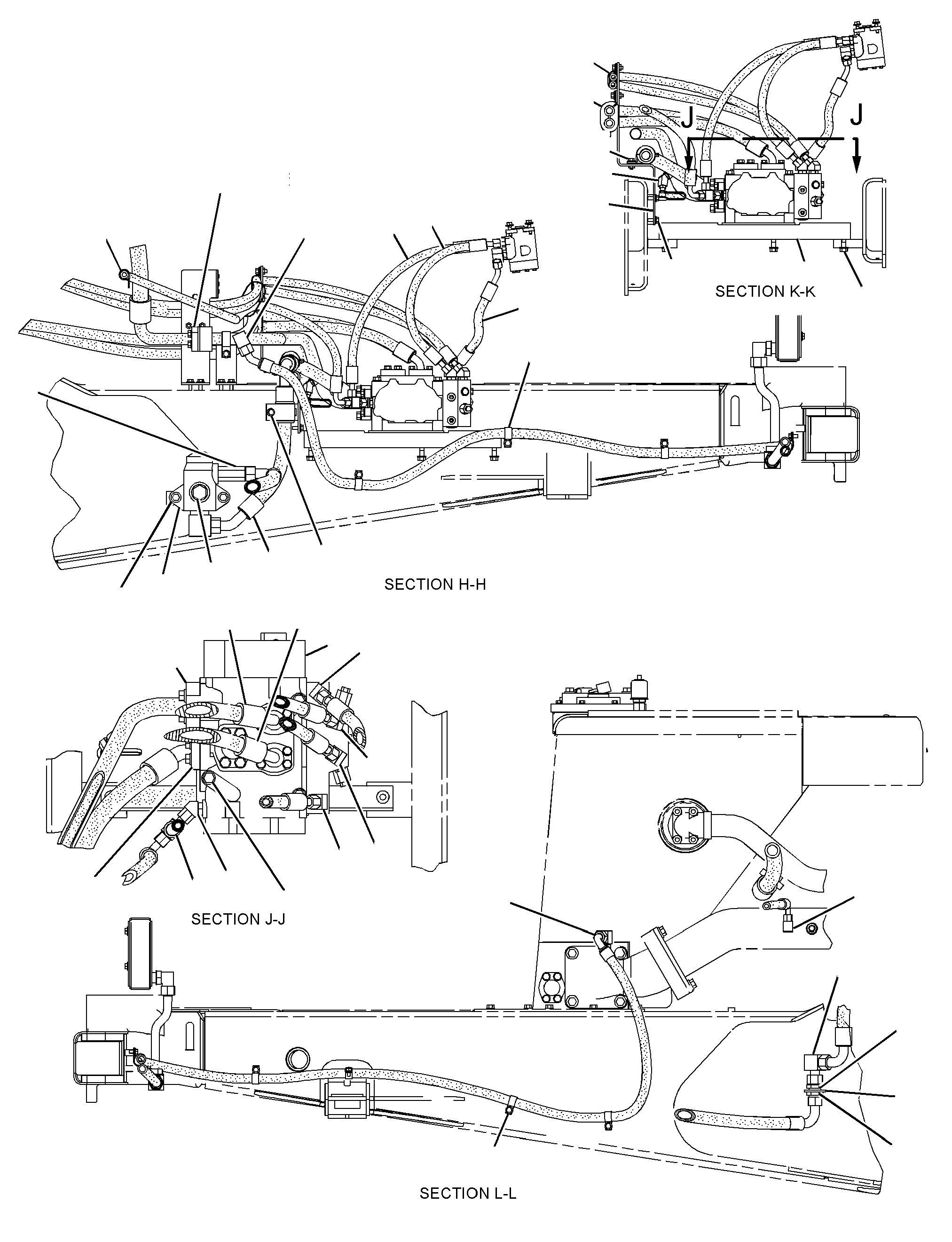

242-0999 LINES GP-STEERINGS/N DBB573-UP
Group No: 242-0999 · Commonality
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 2A6826 | 1 BRACKET AS | 1 | |
| 1F0750 | NUT-WELD (3/8-16-THD) | 2 | |
| 2G5341 | 2 ELBOW | 1 | |
| 2P3572 | 3 CLAMP | 1 | |
| 5T2794 | 4 BRACKET AS | 1 | |
| 5T2795 | 5 CLAMP | 8 | |
| 5T2798 | 6 BRACKET AS | 1 | |
| 5T9804 | 7 HOSE AS | 2 | |
| 6E4069 | 8 VALVE GP-STEERING | 1 | |
| 7I4673 | 9 TUBE AS | 1 | |
| 8W6113 | 10 HOSE AS | 1 | |
| 8W8535 | 11 TUBE AS | 1 | |
| 8W8536 | 12 TUBE AS | 1 | |
| 8X6159 | 13 HOSE AS | 1 | |
| 8X7072 | 14 HOSE AS | 1 | |
| 8X8883 | 15 HOSE AS | 1 | |
| 8X8885 | 16 HOSE AS | 1 | |
| 8X8886 | 17 HOSE AS | 1 | |
| 8X8887 | 18 HOSE AS | 1 | |
| 2928598 | 19 HOSE AS | 1 | |
| 8X8920 | 20 PLATE AS | 1 | |
| 4D8388 | RETAINER | 1 | |
| 6J0499 | LUG (1/2-13-THD) | 6 | |
| 8X9520 | 21 BRACKET AS | 1 | |
| 1F0750 | NUT-WELD (3/8-16-THD) | 1 | |
| 9T4996 | 22 SCREEN GP | 1 | |
| 1108512 | 23 HOSE AS | 1 | |
| 1559560 | 24 HOSE AS | 2 | |
| 1645602 | 25 PLUG AS | 1 | |
| 2S4078 | SEAL-O-RING | 1 | |
| 8J5914 | PLUG | 1 | |
| 1671766 | 26 HOSE AS | 1 | |
| 1780581 | 27 PLATE | 1 | |
| 1784196 | 28 BRACKET AS | 1 | |
| 1F0750 | NUT-WELD (3/8-16-THD) | 4 | |
| 2032063 | 29 PLATE AS | 1 | |
| 2066276 | 30 TUBE AS | 1 | |
| 2337916 | 31 TUBE AS | 1 | |
| 2420994 | 32 HOSE AS | 1 | |
| 2550853 | 33 HOSE AS | 1 | |
| 2550855 | 34 HOSE AS | 1 | |
| 2620833 | 35 HOSE AS | 1 | |
| 6V8188 | 36 NUT (1/2-13-THD) | 1 | |
| 1488347 | 37 ELBOW AS | 2 | |
| 6V9007 | ELBOW | 1 | |
| 3D2824 | SEAL-O-RING | 1 | |
| 6V9746 | SEAL-O-RING | 1 | |
| 1488352 | 38 ELBOW AS | 1 | |
| 6V9854 | ELBOW (SWIVEL) | 1 | |
| 5K9090 | SEAL-O-RING | 1 | |
| 1488354 | 39 ELBOW AS | 7 | |
| 6V9002 | ELBOW | 1 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 1488364 | 40 ELBOW AS | 1 | |
| 6V8625 | ELBOW | 1 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 1488375 | 41 ELBOW AS | 2 | |
| 6V8981 | ELBOW | 1 | |
| 6V8398 | SEAL-O-RING | 2 | |
| 1488444 | 42 TEE AS-SWIVEL | 1 | |
| 6V9837 | TEE-SWIVEL | 1 | |
| 6V8398 | SEAL-O-RING | 2 | |
| 1488457 | 43 UNION AS (STRAIGHT) | 4 | |
| 6V8995 | UNION (STRAIGHT) | 1 | |
| 6V8398 | SEAL-O-RING | 2 | |
| 1503068 | 44 UNION AS | 2 | |
| 6V9649 | ELBOW | 1 | |
| 5K9090 | SEAL-O-RING | 2 | |
| 1552026 | 45 UNION AS | 1 | |
| 6V8998 | UNION | 1 | |
| 5K9090 | SEAL-O-RING | 2 | |
| 1644180 | 46 PLUG AS | 1 | |
| 9S4181 | PLUG (1-5/16-12-THD) | 1 | |
| 7M8485 | SEAL-O-RING | 1 | |
| 1645567 | 47 COUPLER AS-QUICK DISCONNECT (MALE) | 2 | |
| 6V3965 | FITTING (QUICK DISCONNECT) | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 1654931 | 48 ELBOW AS | 1 | |
| 6V8077 | ELBOW | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 1970398 | 49 CONNECTOR AS | 1 | |
| 8C3443 | CONNECTOR | 1 | |
| 5K9090 | SEAL-O-RING | 1 | |
| 7M8485 | SEAL-O-RING | 1 | |
| 1P3707 | 50 SEAL-RECTANGULAR | 1 | |
| 1P4576 | 51 FLANGE-HALF | 2 | |
| 1P4578 | 52 FLANGE-HALF | 4 | |
| 1P4579 | 53 FLANGE-HALF | 2 | |
| 1S1015 | 54 CLIP (LOOP) | 1 | |
| 2619662 | 55 HOSE AS | 1 | |
| 2619663 | 56 HOSE AS | 1 | |
| 2P1293 | 57 LOCKNUT (1-3/16-12-THD) | 2 | |
| 3E4321 | 58 CLIP (LOOP) | 2 | |
| 3G8047 | 59 GROMMET | 1 | |
| 3G8054 | 60 CLIP (TAB) | 1 | |
| 3G8057 | 61 CLIP (SLOT) | 1 | |
| 3K7942 | 62 CLAMP | 2 | |
| 4J0520 | 63 SEAL-O-RING | 4 | |
| 4J0522 | 64 SEAL-O-RING | 4 | |
| 4J0524 | 65 SEAL-O-RING | 1 | |
| 4J5267 | 66 SEAL-O-RING | 1 | |
| 4J5573 | 67 SEAL-O-RING | 1 | |
| 4L6454 | 68 BOLT (3/8-16X1-IN) | 13 | |
| 4L6459 | 69 BOLT (3/8-16X2.5-IN) | 8 | |
| 4S1962 | 70 CLIP (LOOP) | 3 | |
| 5K1094 | 71 LOCKWASHER | 6 | |
| 5M3062 | 72 BOLT (3/8-16X0.75-IN) | 12 | |
| 5P1075 | 73 WASHER-HARD (10.2X22.5X3-MM THK) | 30 | |
| 5P1076 | 74 WASHER-HARD (13.5X30X4-MM THK) | 2 | |
| 5P2566 | 75 BOLT (1/2-13X1.5-IN) | 4 | |
| 5P7468 | 76 CLIP (SLOT) | 4 | |
| 5P7469 | 77 CLIP (TAB) | 4 | |
| 5P8444 | 78 GROMMET (37-MM ID) | 4 | |
| 5S7382 | 79 BOLT (3/8-16X1.375-IN) | 6 | |
| 6V0852 | 80 CAP-DUST | 2 | |
| 6V1889 | 81 CLIP (LOOP) | 9 | |
| 6V8801 | 82 NUT (3/8-16-THD) | 1 | |
| 6V9169 | 83 NUT (13/16-16-THD) | 6 | |
| 6V9172 | 84 NUT (1-7/16-12-THD) | 1 | |
| 6V9746 | 85 SEAL-O-RING | 3 | |
| 7G3832 | 86 GROMMET | 2 | |
| 7G3833 | 87 CLIP (TAB) | 2 | |
| 7G3834 | 88 CLIP (SLOT) | 2 | |
| 7K1181 | 89 STRAP-CABLE | 1 | |
| 7X0312 | 90 BOLT (7/16-14X2.5-IN) | 2 | |
| 7X0315 | 91 BOLT (7/16-14X3.25-IN) | 2 | |
| 7X0341 | 92 BOLT (1/2-13X7-IN) | 3 | |
| 7X0366 | 93 BOLT (3/4-10X2-IN) | 4 | |
| 8C6877 | 94 BOLT (7/16-14X1.75-IN) | 4 | |
| 8T2502 | 95 BOLT (3/8-16X1.125-IN) | 5 | |
| 8T4223 | 96 WASHER-HARD (13.5X25.5X3-MM THK) | 12 | |
| 8T4835 | 97 BOLT (1/2-13X2-IN) | 3 | |
| 8T4896 | 98 WASHER-HARD (10.2X18.5X2.5-MM THK) | 17 | |
| 8T4994 | 99 WASHER-HARD (20X36.5X3.5-MM THK) | 4 | |
| 8T5360 | 100 WASHER (12X22.5X2.5-MM THK) | 12 | |
| 8T8916 | 101 BOLT (7/16-14X1.5-IN) | 4 | |
| 8T8919 | 102 BOLT (1/2-13X1.75-IN) | 3 | |
| 8V2080 | 103 PLATE | 1 | |
| 9B7237 | 104 BOLT (3/8-16X1.25-IN) | 1 | |
| 9D4958 | 105 CLAMP | 1 | |
| 1309984 | 106 CLIP (LOOP) | 1 | |
| 5S7379 | 107 BOLT (3/8-16X0.875-IN) | 1 | |
| 9X8259 | 108 WASHER (39X66X6-MM THK) | 1 |
