System And Components

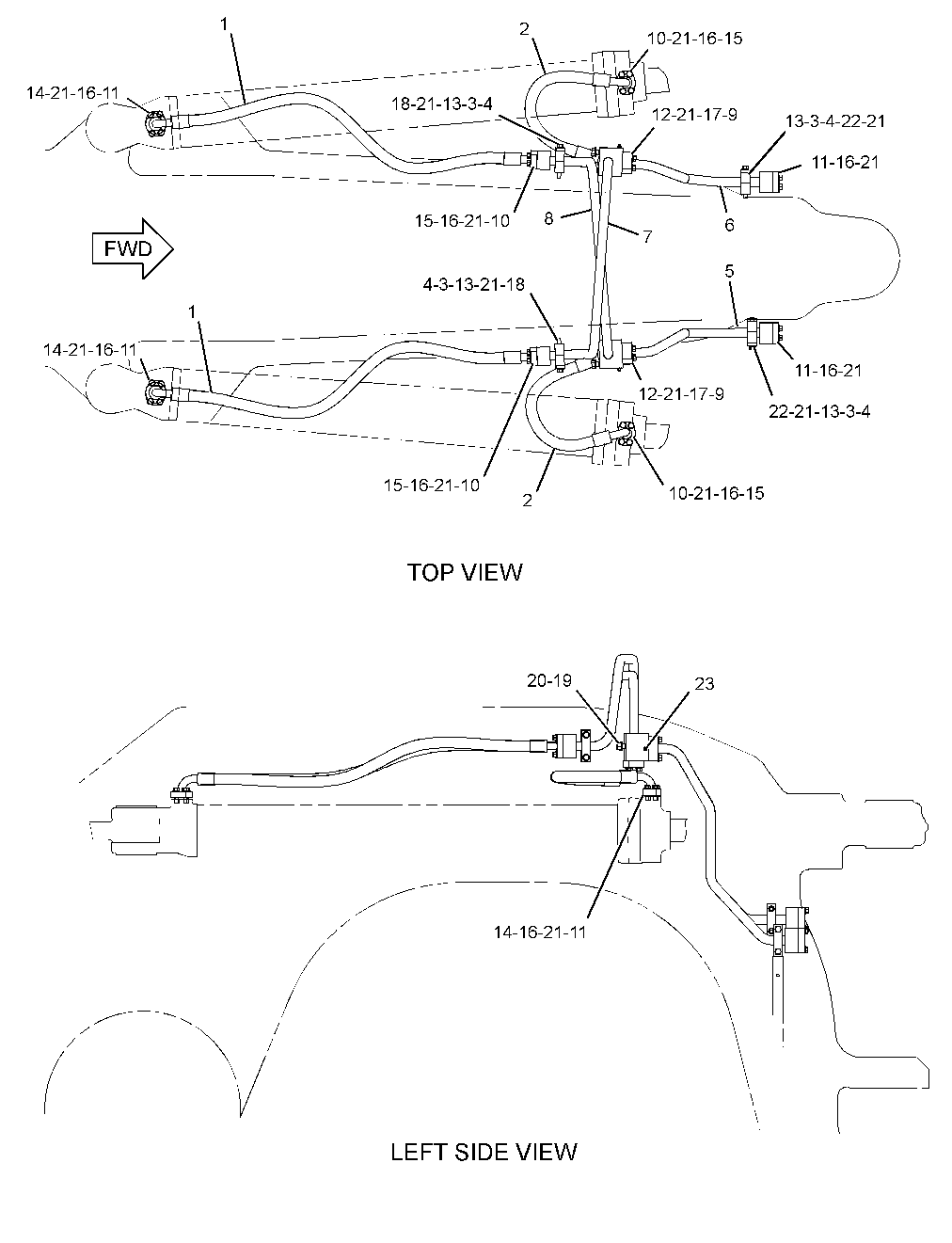

8W-0575 LINES GP-STEERINGS/N DBB1-UP
Group No: 8W-0575 · Commonality
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 8J7577 | 1 HOSE AS | 2 | |
| 8J7734 | 2 HOSE AS | 2 | |
| 8X1143 | 3 CLAMP | 8 | |
| 8X1146 | 4 SPACER (10.3X15.9X60.7-MM THK) | 8 | |
| 2527712 | 5 TUBE AS | 1 | |
| 2527713 | 6 TUBE AS | 1 | |
| 2527714 | 7 TUBE AS | 1 | |
| 2527715 | 8 TUBE AS | 1 | |
| 1P3703 | 9 SEAL-RECTANGULAR | 2 | |
| 1P4576 | 10 FLANGE-HALF | 8 | |
| 1P4577 | 11 FLANGE-HALF | 12 | |
| 1P5760 | 12 FLANGE-HALF | 4 | |
| 1S1445 | 13 PLATE | 4 | |
| 4J0520 | 14 SEAL-O-RING | 4 | |
| 4J5267 | 15 SEAL-O-RING | 4 | |
| 5S7382 | 16 BOLT (3/8-16X1.375-IN) | 40 | |
| 5S7383 | 17 BOLT (3/8-16X1.75-IN) | 8 | |
| 7X0290 | 18 BOLT (3/8-16X3.5-IN) | 4 | |
| 8C4436 | 19 BOLT (1/2-13X1.375-IN) | 4 | |
| 8T4223 | 20 WASHER-HARD (13.5X25.5X3-MM THK) | 4 | |
| 8T4896 | 21 WASHER-HARD (10.2X18.5X2.5-MM THK) | 56 | |
| 8T8915 | 22 BOLT (3/8-16X3.25-IN) | 4 | |
| 9F2167 | 23 SCREW-PURGE (3/8-24X1.164-IN) | 2 |
