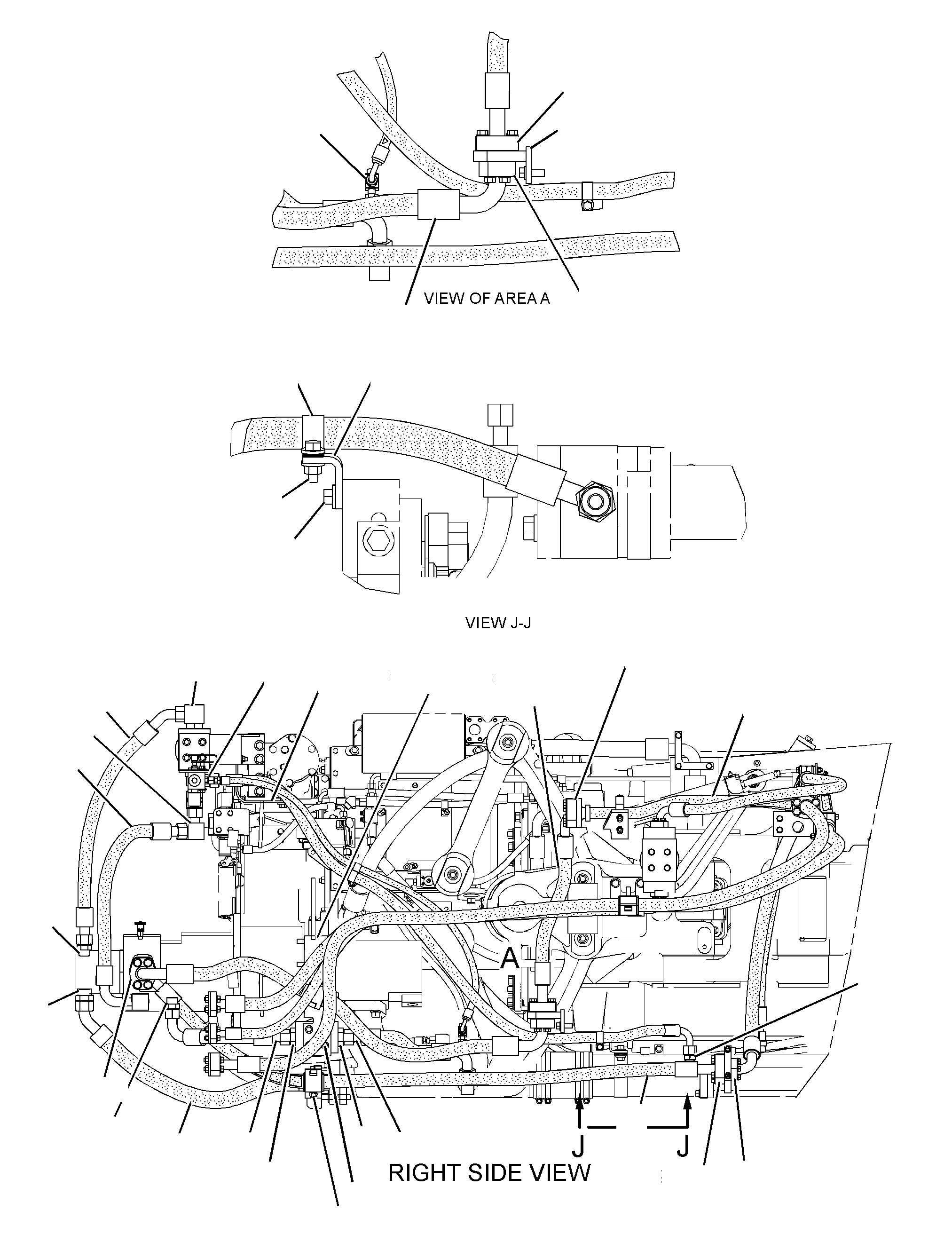

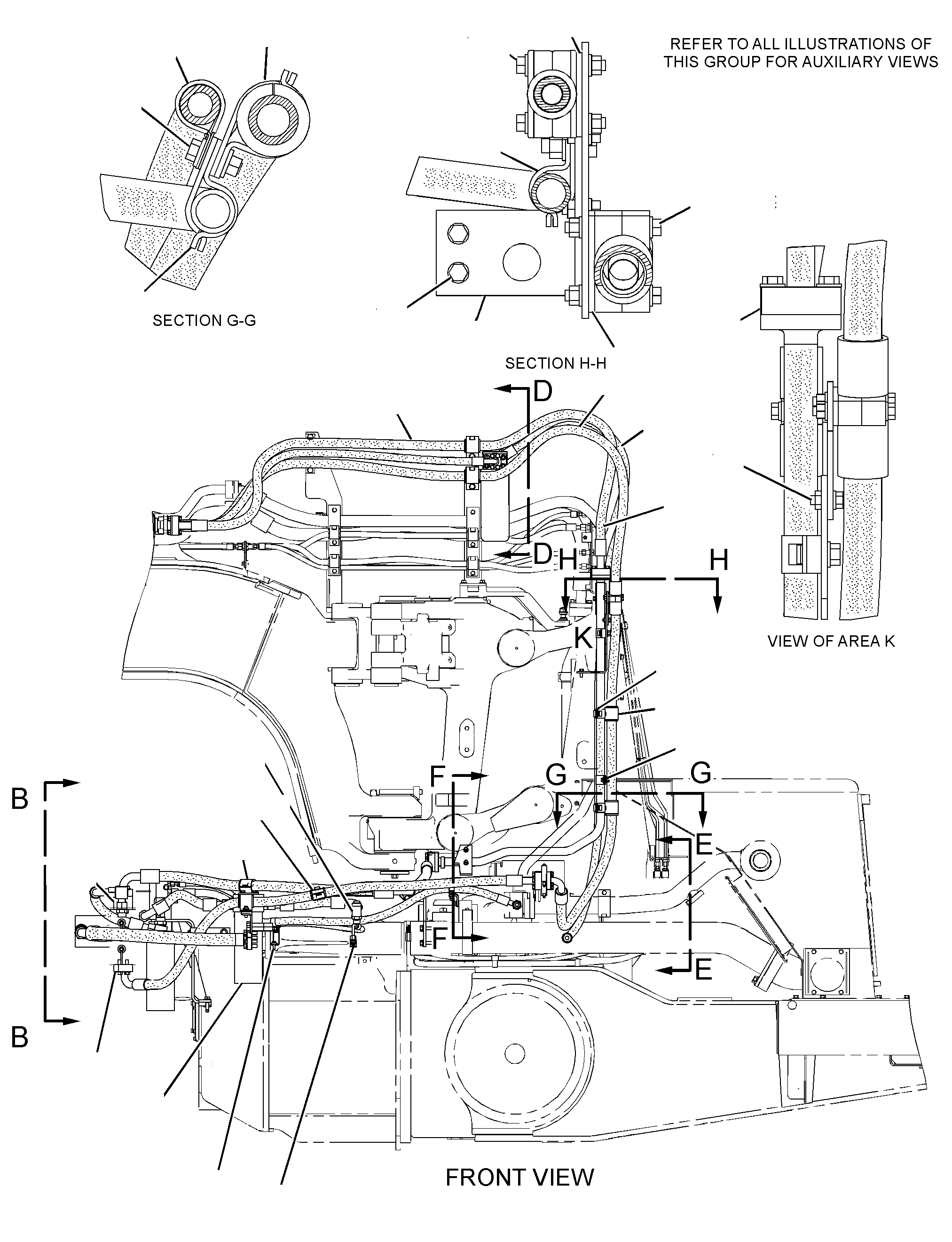

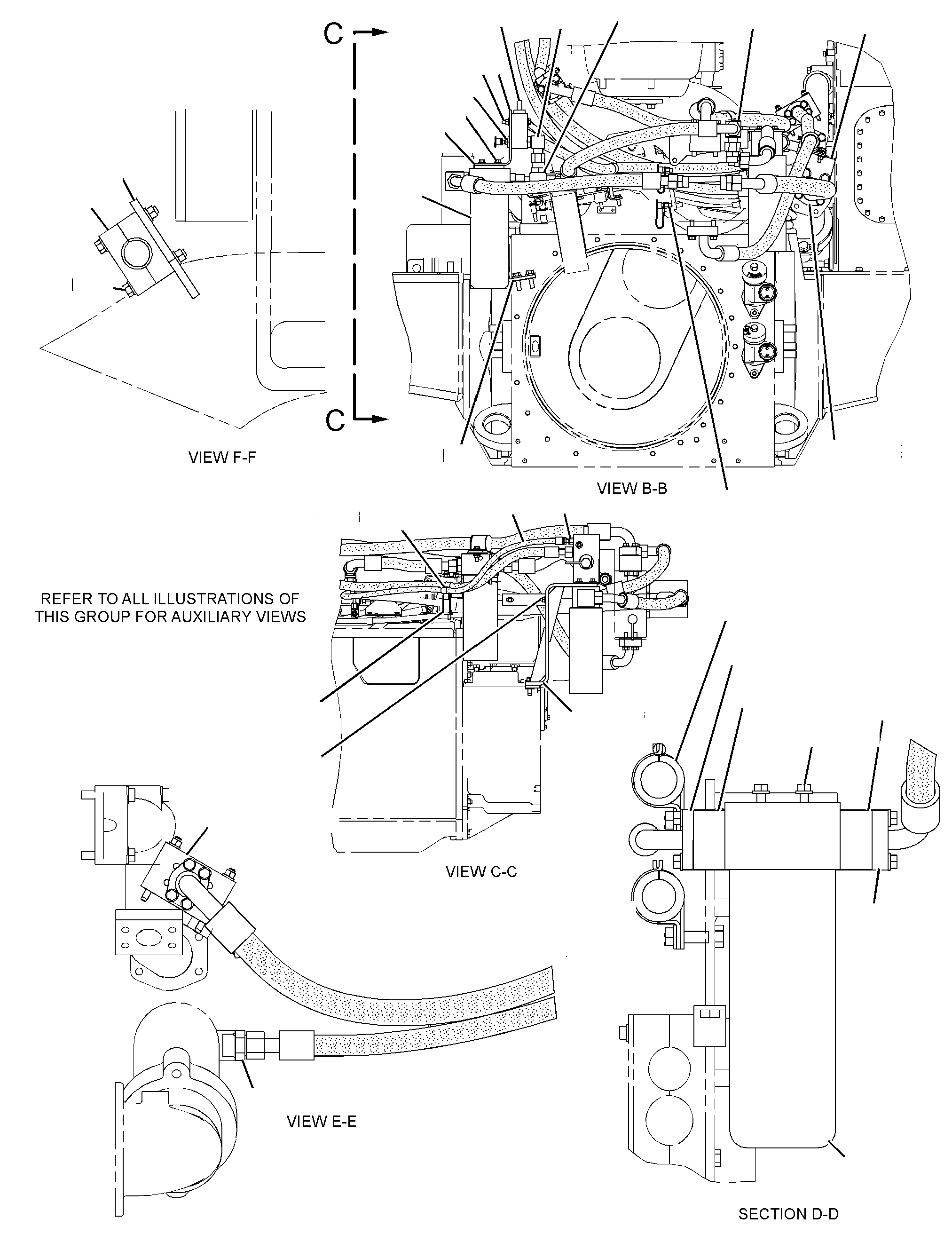

242-1335 LINES GP-AUGER MOTORS/N DBB1-575
Group No: 242-1335 · Commonality
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 4W5178 | 1 BRACKET | 1 | |
| 5T2795 | 2 CLAMP | 2 | |
| 6E6198 | 3 VALVE GP-RELIEF (AUGER MOTOR) | 1 | |
| 6G1439 | 4 CLAMP | 2 | |
| 6G5065 | 5 CLAMP | 2 | |
| 6V0852 | 6 CAP-DUST | 3 | |
| 8D7032 | 7 ANGLE | 1 | |
| 8L5095 | 8 LINK-LEVER | 1 | |
| 9C4000 | 9 CONNECTOR | 1 | |
| 9G7101 | 10 SPACER (11X20X30-MM THK) | 1 | |
| 1013834 | 11 FILTER GP-OIL (CASE DRAIN) | 1 | |
| 1013834 | 11A FILTER GP-OIL (CHARGE PUMP) | 1 | |
| 1057678 | 12 PLATE | 1 | |
| 1069041 | 13 BRACKET AS | 1 | |
| 1075914 | 14 FILTER GP-OIL (MOTOR CASE DRAIN) | 1 | |
| 1122858 | 15 PLATE | 1 | |
| 1168524 | 16 ADAPTER | 2 | |
| 1180343 | 17 HOSE AS | 1 | |
| 1180347 | 18 HOSE AS | 2 | |
| 1180350 | 19 PLATE | 1 | |
| 1180351 | 20 ANGLE | 1 | |
| 1180352 | 21 BLOCK | 1 | |
| 1180356 | 22 BRACKET AS | 1 | |
| 1180361 | 23 PLATE | 1 | |
| 1185442 | 24 HOSE AS | 1 | |
| 1198660 | 25 HOSE AS | 1 | |
| 1198661 | 26 HOSE AS | 1 | |
| 1447090 | 27 CLIP (SLOT) | 4 | |
| 1645567 | 28 COUPLER AS-QUICK DISCONNECT (MALE) | 1 | |
| 6V3965 | FITTING (QUICK DISCONNECT) | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 2347986 | 29 HOSE AS | 1 | |
| 2419645 | 30 HOSE AS | 1 | |
| 2419648 | 31 HOSE AS | 1 | |
| 2419650 | 32 HOSE AS | 1 | |
| 2419675 | 34 LINK-LEVER | 1 | |
| 2419727 | 35 BRACKET AS | 1 | |
| 2486415 | 36 PLATE | 1 | |
| 2519681 | 37 TUBE AS | 1 | |
| 1106349 | 38 FITTING AS (QUICK DISCONNECT) | 2 | |
| 1447091 | 39 CLIP (TAB) | 4 | |
| 1488309 | 40 ADAPTER AS | 1 | |
| 2P8421 | ADAPTER-O-RING | 1 | |
| 3D2824 | SEAL-O-RING | 1 | |
| 1488323 | 41 CONNECTOR AS | 3 | |
| 6V9875 | CONNECTOR | 1 | |
| 2S4078 | SEAL-O-RING | 1 | |
| 5K9090 | SEAL-O-RING | 1 | |
| 1488327 | 42 CONNECTOR AS | 2 | |
| 6V8637 | CONNECTOR | 1 | |
| 3D2824 | SEAL-O-RING | 1 | |
| 6V9746 | SEAL-O-RING | 1 | |
| 1488334 | 43 CONNECTOR AS | 1 | |
| 8T3611 | CONNECTOR | 1 | |
| 2S4078 | SEAL-O-RING | 1 | |
| 6V8400 | SEAL-O-RING | 1 | |
| 1488335 | 44 CONNECTOR AS | 3 | |
| 6V8635 | CONNECTOR | 1 | |
| 5K9090 | SEAL-O-RING | 1 | |
| 7M8485 | SEAL-O-RING | 1 | |
| 1488336 | 45 CONNECTOR AS | 1 | |
| 6V8636 | CONNECTOR | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 1488339 | 46 CONNECTOR AS | 1 | |
| 6V8716 | CONNECTOR (STRAIGHT) | 1 | |
| 6V9746 | SEAL-O-RING | 1 | |
| 7M8485 | SEAL-O-RING | 1 | |
| 1488352 | 47 ELBOW AS | 2 | |
| 6V9854 | ELBOW (SWIVEL) | 1 | |
| 5K9090 | SEAL-O-RING | 1 | |
| 1488362 | 48 ELBOW AS | 1 | |
| 8T6684 | ELBOW (90-DEG)(90-DEG) | 1 | |
| 3D2824 | SEAL-O-RING | 1 | |
| 5K9090 | SEAL-O-RING | 1 | |
| 1488391 | 49 ELBOW AS | 1 | |
| 8T8987 | ELBOW (90-DEG) | 1 | |
| 2S4078 | SEAL-O-RING | 1 | |
| 5K9090 | SEAL-O-RING | 1 | |
| 1488429 | 50 TEE AS | 1 | |
| 6V9840 | TEE-SWIVEL | 1 | |
| 5K9090 | SEAL-O-RING | 2 | |
| 1488433 | 51 TEE AS | 1 | |
| 6V9836 | TEE-SWIVEL | 1 | |
| 6V8397 | SEAL-O-RING | 2 | |
| 1536236 | 52 REDUCER AS | 1 | |
| 6V8946 | REDUCER | 1 | |
| 6V9746 | SEAL-O-RING | 1 | |
| 1716725 | 53 ELBOW AS | 1 | |
| 8T6451 | ELBOW | 1 | |
| 3D2824 | SEAL-O-RING | 1 | |
| 1P3703 | 54 SEAL-RECTANGULAR | 6 | |
| 1P3704 | 55 SEAL-RECTANGULAR | 2 | |
| 1P3705 | 56 SEAL-RECTANGULAR | 1 | |
| 1P4576 | 57 FLANGE-HALF | 4 | |
| 1P4577 | 58 FLANGE-HALF | 2 | |
| 1P4579 | 59 FLANGE-HALF | 2 | |
| 1P5766 | 60 FLANGE-HALF | 6 | |
| 1P5767 | 61 FLANGE-HALF | 4 | |
| 2419646 | 62 HOSE AS | 1 | |
| 2419647 | 63 HOSE AS | 1 | |
| 2433800 | 64 HOSE AS | 1 | |
| 2433801 | 65 HOSE AS | 1 | |
| 2P0911 | 66 ANGLE | 1 | |
| 2P1974 | 67 STUD-TAPERLOCK (3/8-16X4.2-IN) | 2 | |
| 3F7147 | 68 BOLT (1/2-13X1.5-IN) | 8 | |
| 3J7354 | 69 SEAL-O-RING | 2 | |
| 4J0520 | 70 SEAL-O-RING | 2 | |
| 4J0522 | 71 SEAL-O-RING | 1 | |
| 4J0524 | 72 SEAL-O-RING | 3 | |
| 4J5267 | 73 SEAL-O-RING | 2 | |
| 4L6454 | 74 BOLT (3/8-16X1-IN) | 13 | |
| 4L6459 | 75 BOLT (3/8-16X2.5-IN) | 2 | |
| 4L9337 | 76 BOLT (3/8-16X1.5-IN) | 2 | |
| 5P1075 | 77 WASHER-HARD (10.2X22.5X3-MM THK) | 27 | |
| 5P1076 | 78 WASHER-HARD (13.5X30X4-MM THK) | 9 | |
| 5P2566 | 79 BOLT (1/2-13X1.5-IN) | 5 | |
| 5P7468 | 80 CLIP (SLOT) | 8 | |
| 5P7469 | 81 CLIP (TAB) | 8 | |
| 5P7854 | 82 CLIP (LOOP) | 2 | |
| 5P8444 | 83 GROMMET (37-MM ID) | 5 | |
| 5S7382 | 84 BOLT (3/8-16X1.375-IN) | 14 | |
| 5S7383 | 85 BOLT (3/8-16X1.75-IN) | 1 | |
| 5T6374 | 86 SPACER (11X20X40-MM THK) | 1 | |
| 6V0400 | 87 FLANGE-HALF | 4 | |
| 6V1889 | 88 CLIP (LOOP) | 2 | |
| 6V4432 | 89 BOLT (1/2-13X4-IN) | 4 | |
| 6V8188 | 90 NUT (1/2-13-THD) | 4 | |
| 6V8801 | 91 NUT (3/8-16-THD) | 19 | |
| 7X0351 | 92 BOLT (5/8-11X3.75-IN) | 2 | |
| 8C6877 | 93 BOLT (7/16-14X1.75-IN) | 12 | |
| 8M2773 | 94 CLIP (LOOP) | 1 | |
| 8T2525 | 95 GROMMET | 3 | |
| 8T4122 | 96 WASHER-HARD (17X32X3.5-MM THK) | 2 | |
| 8T4184 | 97 BOLT (M12X1.75X45-MM) | 8 | |
| 8T4223 | 98 WASHER-HARD (13.5X25.5X3-MM THK) | 26 | |
| 8T4835 | 99 BOLT (1/2-13X2-IN) | 4 | |
| 8T4896 | 100 WASHER-HARD (10.2X18.5X2.5-MM THK) | 37 | |
| 8T5360 | 101 WASHER (12X22.5X2.5-MM THK) | 12 | |
| 8T7008 | 102 BOLT (3/8-16X3-IN) | 2 | |
| 8T8915 | 103 BOLT (3/8-16X3.25-IN) | 3 | |
| 8T8917 | 104 BOLT (1/2-13X1.25-IN) | 3 | |
| 8T8919 | 105 BOLT (1/2-13X1.75-IN) | 8 | |
| 8T9101 | 106 BOLT (3/8-16X2.75-IN) | 2 | |
| 9B7237 | 107 BOLT (3/8-16X1.25-IN) | 6 |
