System And Components

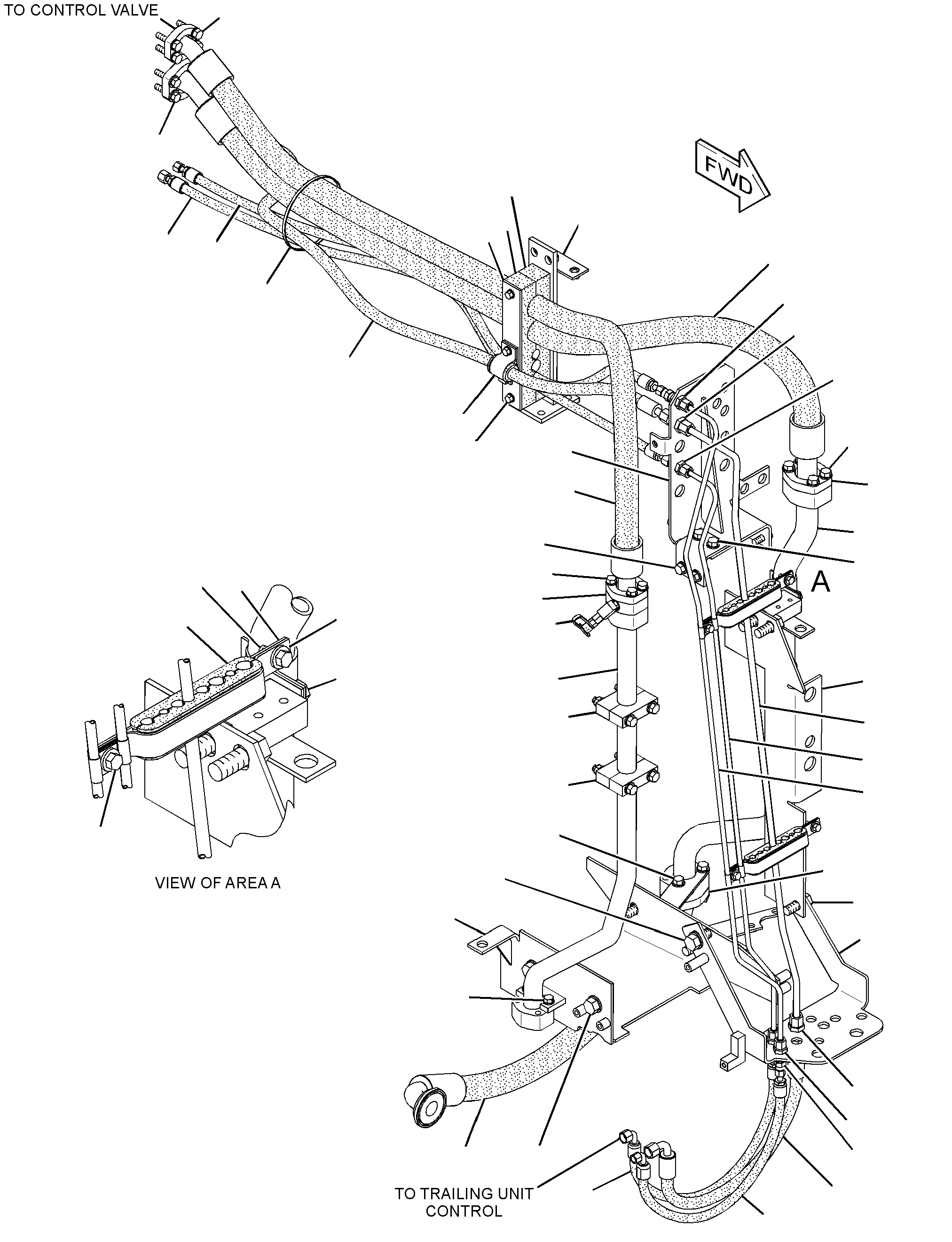

227-8273 LINES GP-HYDRAULIC -HITCHS/N DBB531-575
Group No: 227-8273 · Commonality
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 5T2440 | 1 TUBE AS | 1 | |
| 6V8367 | 2 LOCKWASHER | 4 | |
| 7I5473 | 3 PLATE AS | 2 | |
| 8W1152 | 4 SPACER (11.11X19.05X74-MM THK) | 3 | |
| 8W4099 | 5 PLATE | 1 | |
| 8W8342 | 6 CLAMP | 2 | |
| 1137749 | 7 HOSE AS | 1 | |
| 1707704 | 8 CLAMP | 4 | |
| 2278392 | 9 SUPPORT AS | 1 | |
| 2301579 | 10 HOSE AS | 1 | |
| 2301582 | 11 TUBE AS | 1 | |
| 2301583 | 12 TUBE AS | 1 | |
| 2301585 | 13 TUBE AS | 1 | |
| 2301586 | 14 TUBE AS | 1 | |
| 2307708 | 15 HOSE AS | 1 | |
| 2309566 | 16 SUPPORT AS | 1 | |
| 2309575 | 18 CLAMP | 2 | |
| 2309645 | 19 PLATE | 1 | |
| 2310874 | 20 PLATE AS | 1 | |
| 2317315 | 21 PLATE AS | 1 | |
| 2336384 | 22 BRACKET AS | 1 | |
| 1298509 | 23 HOSE AS | 1 | |
| 2479972 | 24 HOSE AS | 1 | |
| 1417763 | 25 HOSE AS | 1 | |
| 1488457 | 26 UNION AS (STRAIGHT) | 2 | |
| 6V8995 | UNION (STRAIGHT) | 1 | |
| 6V8398 | SEAL-O-RING | 2 | |
| 1495452 | 27 UNION AS (STRAIGHT) | 4 | |
| 6V8994 | UNION (STRAIGHT) | 1 | |
| 6V8397 | SEAL-O-RING | 2 | |
| 1P4578 | 28 FLANGE-HALF | 4 | |
| 1P4579 | 29 FLANGE-HALF | 6 | |
| 8C3451 | 30 CAP-DUST (HYDRAULIC OIL) | 1 | |
| 2048206 | 31 CLAMP | 4 | |
| 2128755 | 32 HOSE AS | 1 | |
| 4J0522 | 33 SEAL-O-RING | 3 | |
| 4J0524 | 34 SEAL-O-RING | 3 | |
| 4L6454 | 35 BOLT (3/8-16X1-IN) | 4 | |
| 5C6565 | 36 BOLT (1/2-13X1.125-IN) | 2 | |
| 5K1094 | 37 LOCKWASHER | 2 | |
| 5P1075 | 38 WASHER-HARD (10.2X22.5X3-MM THK) | 4 | |
| 5P2228 | 39 BOLT (1/2-13X1-IN) | 3 | |
| 5P2566 | 40 BOLT (1/2-13X1.5-IN) | 4 | |
| 5P6863 | 41 CLIP (TAB) | 1 | |
| 5P6864 | 42 CLIP (SLOT) | 1 | |
| 5P7464 | 43 CLIP (SLOT) | 1 | |
| 5P7465 | 44 CLIP (TAB) | 1 | |
| 1488305 | 45 ADAPTER AS | 1 | |
| 5P9617 | ADAPTER | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V1249 | 46 GROMMET (22-MM ID) | 1 | |
| 6V4432 | 47 BOLT (1/2-13X4-IN) | 4 | |
| 6V8188 | 48 NUT (1/2-13-THD) | 2 | |
| 6V9168 | 49 NUT (11/16-16-THD) | 4 | |
| 6V9169 | 50 NUT (13/16-16-THD) | 2 | |
| 2295466 | 51 FITTING AS (HYDRAULIC OIL) | 1 | |
| 2295465 | FITTING | 1 | |
| 3J7354 | SEAL-O-RING | 1 | |
| 7X0365 | 52 BOLT (3/4-10X1.5-IN) | 5 | |
| 4D7794 | 53 CLIP | 4 | |
| 8T4223 | 54 WASHER-HARD (13.5X25.5X3-MM THK) | 27 | |
| 8T4896 | 55 WASHER-HARD (10.2X18.5X2.5-MM THK) | 3 | |
| 8T4994 | 56 WASHER-HARD (20X36.5X3.5-MM THK) | 8 | |
| 8T5360 | 57 WASHER (12X22.5X2.5-MM THK) | 10 | |
| 7X0313 | 58 BOLT (7/16-14X2.75-IN) | 4 | |
| 8T8917 | 59 BOLT (1/2-13X1.25-IN) | 4 | |
| 8T8919 | 60 BOLT (1/2-13X1.75-IN) | 4 | |
| 1654931 | 61 ELBOW AS | 1 | |
| 6V8077 | ELBOW | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 8T9398 | 62 BOLT (3/4-10X1.75-IN) | 3 | |
| 9K5028 | 63 HOSE AS | 1 | |
| 7X0293 | 64 BOLT (3/8-16X4.75-IN) | 3 | |
| 7X0310 | 65 BOLT (7/16-14X2-IN) | 4 | |
| 8T4835 | 66 BOLT (1/2-13X2-IN) | 4 | |
| 2479971 | 67 HOSE AS | 1 | |
| 1488413 | 68 REDUCER AS | 2 | |
| 6V8934 | ADAPTER | 1 | |
| 4J5477 | SEAL-O-RING | 1 | |
| 8T9382 | 69 BOLT (7/16-14X1.25-IN) | 2 | |
| 7K1181 | 70 STRAP-CABLE | 1 | |
| 3P6308 | 71 ADAPTER | 1 |
