System And Components

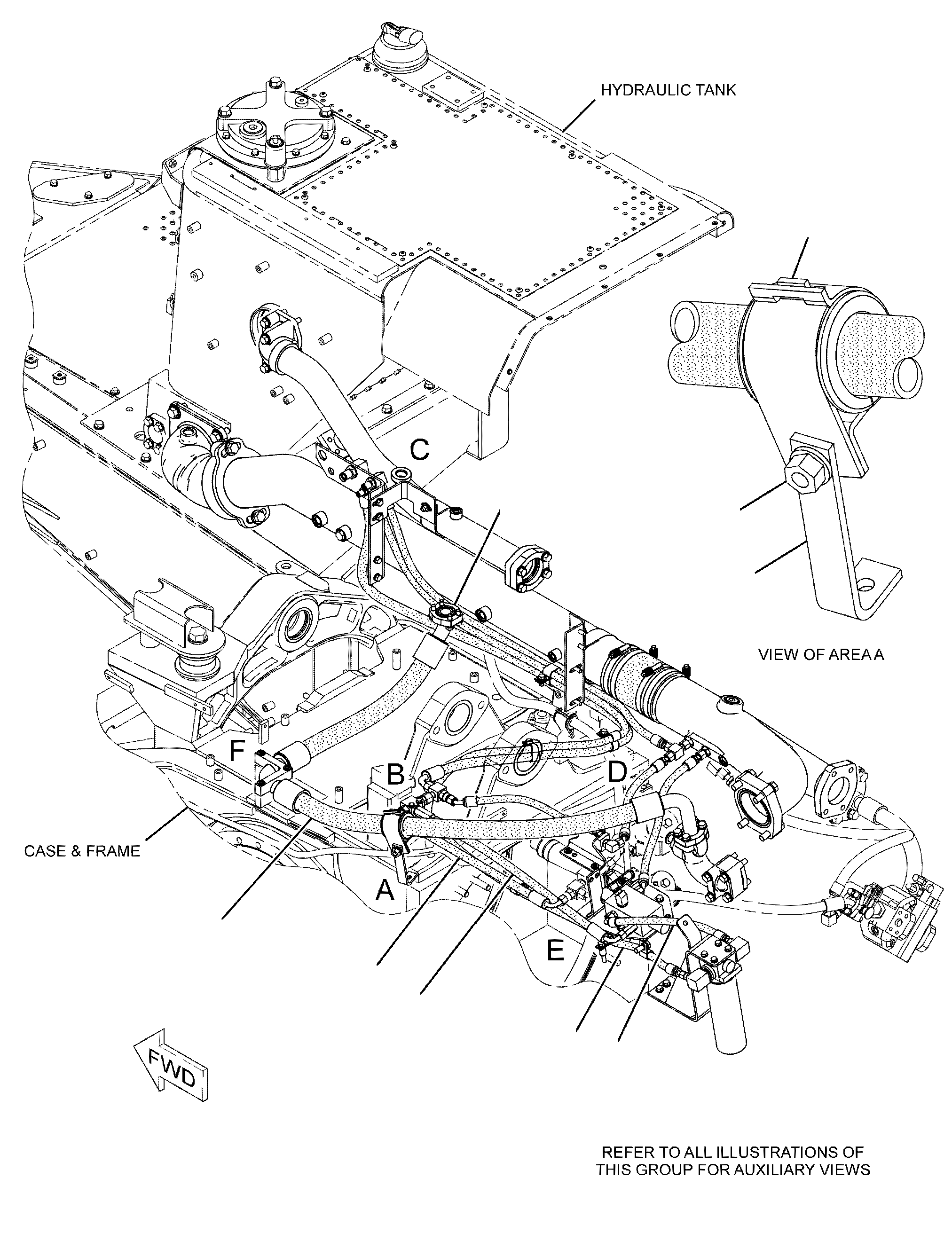

227-8276 LINES GP-PUMPS/N DBB1-259
Group No: 227-8276 · Commonality
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 5T0711 | 1 ELBOW | 1 | |
| 6E5065 | 2 SCREEN AS (PUMP LINES) | 1 | |
| 6S9885 | 3 BUSHING-TERMINAL | 1 | |
| 5P1270 | 4 HOSE (18-CM) | ||
| 8J6875 | 5 VALVE GP-SHUTTLE (PUMP LINES) | 1 | |
| 8W0084 | 6 CLIP | 1 | |
| 8W3204 | 7 BRACKET AS | 1 | |
| 8X7855 | 8 ELBOW | 1 | |
| 8X9922 | 9 HOSE AS | 1 | |
| 0923206 | 10 SPACER (12.5X35X30-MM THK) | 2 | |
| 1121817 | 11 VALVE-BALL (DEAD ENGINE LOWER) | 1 | |
| 1181032 | 12 HOSE AS | 1 | |
| 1362615 | 13 HOSE AS | 1 | |
| 1645567 | 14 COUPLER AS-QUICK DISCONNECT (MALE) | 2 | |
| 6V3965 | FITTING (QUICK DISCONNECT) | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 1645602 | 15 PLUG AS | 1 | |
| 8J5914 | PLUG | 1 | |
| 2S4078 | SEAL-O-RING | 1 | |
| 1671814 | 16 HOSE AS | 1 | |
| 1671827 | 17 HOSE AS | 1 | |
| 1671830 | 18 HOSE AS | 1 | |
| 1671853 | 19 BRACKET AS | 1 | |
| 1671855 | 20 PLATE AS | 1 | |
| 1678380 | 21 TUBE AS | 1 | |
| 1688039 | 22 ELBOW | 1 | |
| 1688040 | 23 ANGLE | 1 | |
| 1705319 | 24 VALVE GP-SOLENOID & PRESS REDC (PILOT, IMPLEMENT) | 1 | |
| 1780561 | 25 FILTER GP-OIL (ULTRA HIGH EFFICIENCY) | 1 | |
| 2024006 | 26 HOSE AS | 1 | |
| 2342920 | 27 TUBE AS | 1 | |
| 2343427 | 28 BRACKET | 1 | |
| 2344978 | 29 HOSE AS | 1 | |
| 2344980 | 30 CLAMP | 1 | |
| 2469935 | 31 HOSE AS | 1 | |
| 2472992 | 32 BRACKET | 1 | |
| 2479970 | 33 HOSE AS | 1 | |
| 2526526 | 34 PLATE | 1 | |
| 1488318 | 35 CONNECTOR AS | 2 | |
| 6V8634 | CONNECTOR | 1 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 1488336 | 36 CONNECTOR AS | 4 | |
| 6V8636 | CONNECTOR | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 1488375 | 37 ELBOW AS | 1 | |
| 6V8981 | ELBOW | 1 | |
| 6V8398 | SEAL-O-RING | 2 | |
| 1488377 | 38 ELBOW AS | 1 | |
| 6V8980 | ELBOW | 1 | |
| 6V8397 | SEAL-O-RING | 2 | |
| 1488378 | 39 ELBOW AS | 2 | |
| 6V8724 | ELBOW | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 1488384 | 40 ELBOW AS | 1 | |
| 6V8979 | ELBOW | 1 | |
| 4J5477 | SEAL-O-RING | 2 | |
| 1488409 | 41 PLUG AS | 1 | |
| 9S8008 | PLUG (1-1/16-12-THD) | 1 | |
| 3D2824 | SEAL-O-RING | 1 | |
| 1488411 | 42 PLUG AS | 1 | |
| 9S4185 | PLUG (3/4-16-THD) | 1 | |
| 3K0360 | SEAL-O-RING | 1 | |
| 1488413 | 43 REDUCER AS | 1 | |
| 6V8934 | ADAPTER | 1 | |
| 4J5477 | SEAL-O-RING | 1 | |
| 1488415 | 44 REDUCER AS | 1 | |
| 6V8936 | REDUCER | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 1488433 | 45 TEE AS | 1 | |
| 6V9836 | TEE-SWIVEL | 1 | |
| 6V8397 | SEAL-O-RING | 2 | |
| 1504037 | 46 TEE AS | 1 | |
| 6V9844 | TEE-SWIVEL | 1 | |
| 6V8398 | SEAL-O-RING | 2 | |
| 1504043 | 47 CONNECTOR AS | 1 | |
| 6V9873 | CONNECTOR | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8398 | SEAL-O-RING | 1 | |
| 1539301 | 48 BOLT-SOCKET HEAD (M4X0.7X10-MM) | 4 | |
| 1649869 | 49 CONNECTOR AS | 1 | |
| 9X2297 | CONNECTOR | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 1654931 | 50 ELBOW AS | 1 | |
| 6V8077 | ELBOW | 1 | |
| 3J1907 | SEAL-O-RING | 1 | |
| 1P4578 | 51 FLANGE-HALF | 4 | |
| 1P4584 | 52 FLANGE-HALF | 2 | |
| 2053692 | 53 ELBOW AS | 2 | |
| 9X2134 | ELBOW | 1 | |
| 2M9780 | SEAL-O-RING | 1 | |
| 6V8397 | SEAL-O-RING | 1 | |
| 2H3922 | 54 LOCKWASHER | 1 | |
| 2P1279 | 55 LOCKNUT (9/16-18-THD) | 1 | |
| 3F9559 | 56 LOCKWASHER | 2 | |
| 3J1907 | 57 SEAL-O-RING | 1 | |
| 3S1223 | 58 SEAL-O-RING | 1 | |
| 4D7733 | 59 CLIP (LOOP) | 1 | |
| 4D7735 | 60 CLIP | 2 | |
| 4F7507 | 61 SEAL-O-RING | 1 | |
| 4J0522 | 62 SEAL-O-RING | 2 | |
| 4J0524 | 63 SEAL-O-RING | 1 | |
| 4L6454 | 64 BOLT (3/8-16X1-IN) | 2 | |
| 5K1094 | 65 LOCKWASHER | 1 | |
| 5M3038 | 66 SEAL-O-RING | 1 | |
| 5P1075 | 67 WASHER-HARD (10.2X22.5X3-MM THK) | 7 | |
| 5P1076 | 68 WASHER-HARD (13.5X30X4-MM THK) | 2 | |
| 5P4295 | 69 CLIP | 1 | |
| 5P7470 | 70 CLIP (SLOT) | 1 | |
| 5P7471 | 71 CLIP (TAB) | 1 | |
| 5P8182 | 72 GROMMET (46-MM ID) | 1 | |
| 5S7379 | 73 BOLT (3/8-16X0.875-IN) | 9 | |
| 6J2680 | 74 SEAL-O-RING | 1 | |
| 6V0852 | 75 CAP-DUST | 2 | |
| 6V1572 | 76 CLIP (SLOT) | 1 | |
| 6V1573 | 77 CLIP (TAB) | 1 | |
| 6V4432 | 78 BOLT (1/2-13X4-IN) | 2 | |
| 6V8185 | 79 NUT (1/4-20-THD) | 2 | |
| 6V8188 | 80 NUT (1/2-13-THD) | 2 | |
| 6V8801 | 81 NUT (3/8-16-THD) | 3 | |
| 6V9168 | 82 NUT (11/16-16-THD) | 1 | |
| 6V9169 | 83 NUT (13/16-16-THD) | 1 | |
| 7X0326 | 84 BOLT (1/2-13X3-IN) | 2 | |
| 7X0333 | 85 BOLT (1/2-13X4.75-IN) | 2 | |
| 7X0346 | 86 BOLT (5/8-11X2-IN) | 2 | |
| 7X0347 | 87 BOLT (5/8-11X2.25-IN) | 4 | |
| 7X0515 | 88 WASHER-HARD (17X35X5-MM THK) | 2 | |
| 8C4436 | 89 BOLT (1/2-13X1.375-IN) | 1 | |
| 8M2773 | 90 CLIP (LOOP) | 3 | |
| 8T2501 | 91 BOLT (3/8-16X2-IN) | 3 | |
| 8T4121 | 92 WASHER-HARD (11X21X2.5-MM THK) | 2 | |
| 8T4122 | 93 WASHER-HARD (17X32X3.5-MM THK) | 8 | |
| 8T4136 | 94 BOLT (M10X1.5X25-MM) | 2 | |
| 8T4189 | 95 BOLT (M8X1.25X20-MM) | 4 | |
| 8T4205 | 96 WASHER-HARD (7.2X14.5X2-MM THK) | 4 | |
| 8T4223 | 97 WASHER-HARD (13.5X25.5X3-MM THK) | 15 | |
| 8T4224 | 98 WASHER-HARD (8.8X16X2-MM THK) | 4 | |
| 8T4896 | 99 WASHER-HARD (10.2X18.5X2.5-MM THK) | 22 | |
| 8T4987 | 100 CLAMP-HOSE | 4 | |
| 8T5360 | 101 WASHER (12X22.5X2.5-MM THK) | 8 | |
| 8T8916 | 102 BOLT (7/16-14X1.5-IN) | 4 | |
| 8T8917 | 103 BOLT (1/2-13X1.25-IN) | 1 | |
| 8T8919 | 104 BOLT (1/2-13X1.75-IN) | 5 | |
| 8T9367 | 105 BOLT (1/4-20X2-IN) | 2 | |
| 8T9377 | 106 BOLT (3/8-16X2.25-IN) | 3 | |
| 8T9382 | 107 BOLT (7/16-14X1.25-IN) | 4 | |
| 8T9389 | 108 BOLT (1/2-13X2.75-IN) | 2 | |
| 8T9393 | 109 BOLT (5/8-11X1.5-IN) | 4 | |
| 9B7237 | 110 BOLT (3/8-16X1.25-IN) | 3 | |
| 9F7283 | 111 SEAL-O-RING | 1 | |
| 9X8250 | 112 CLIP (LOOP) | 3 |
