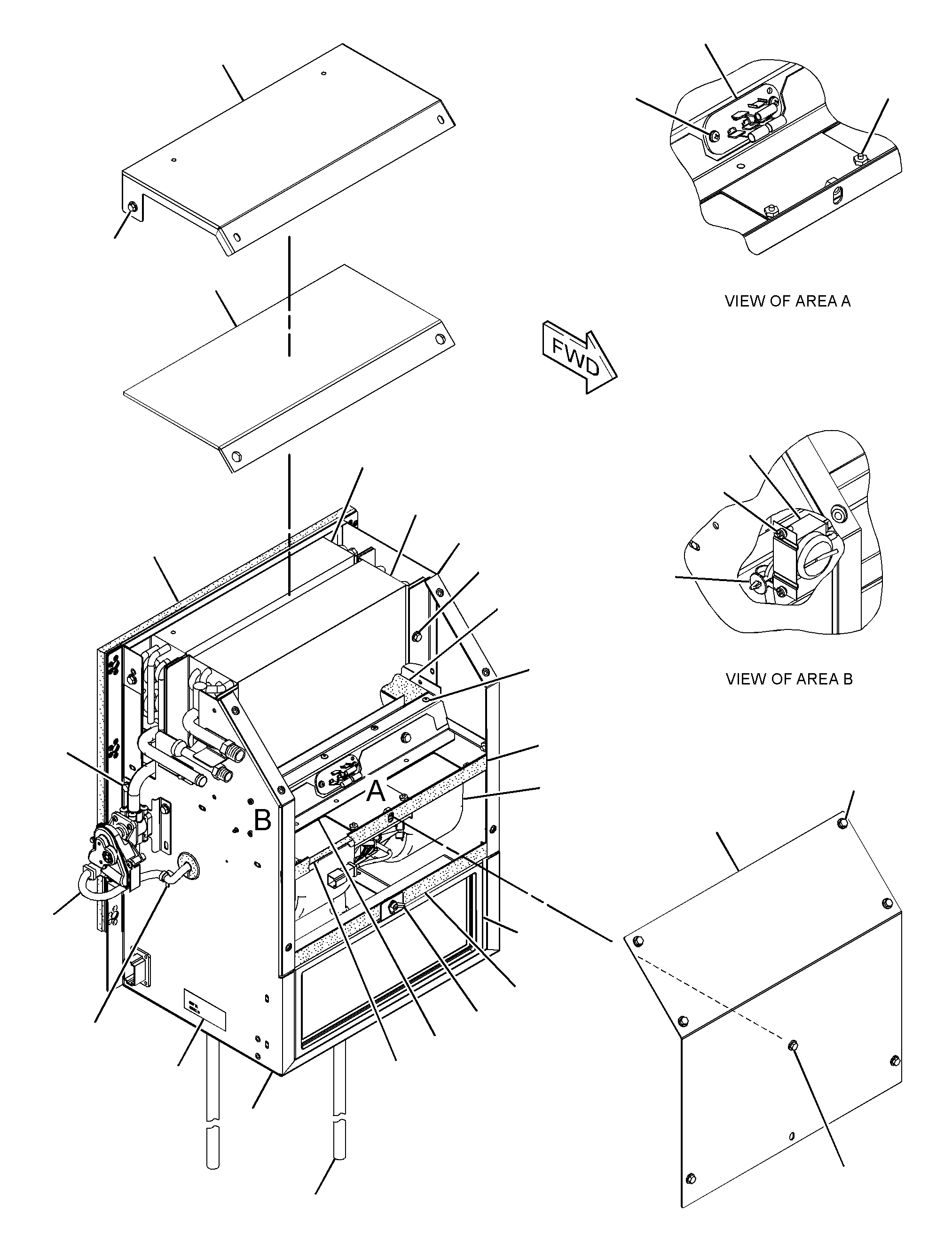

271-9204 AIR CONDITIONER GPS/N DBB1-UP

Group No: 271-9204 · Commonality

Part Number	Part Name	Qty
3E5464	1 SWITCH AS-THERMOSTAT (HVAC)	1
8C3756	2 FILM-IDENTIFICATION (AIR CONDITIONER)	1
1343518	3 TIE-PUSH MOUNT	2
2478302	5 RIVET	8
2575029	6 RESISTOR AS	1
2593222	7 FILTER ELEMENT-AIR (STANDARD EFFICIENCY)	1
2994728	8 CASE AS	1
2756658	9 PAN GP-DRAIN (AIR CONDITIONER)	1
3522194	10 HARNESS AS-MOTOR (AIR CONDITIONER)	1
9V2818	GROMMET	1
2U4729	GROMMET-BLIND	1
6T6505	HOUSING-RECEPTACLE (BLADE, POSITIVE LOCK)	2
9X3401	PIN-CONNECTOR (16-GA TO 18-GA)	11
1261767	PIN-CONNECTOR (14-GA TO 16-GA)	11
1552270	KIT-CONNECTING PLUG (2-PIN)	1
1552271	KIT-CONNECTING PLUG (4-PIN)	1
8T8737	PLUG-SEAL	1
1665229	KIT-RECEPTACLE (12-PIN)	1
1945226	TERMINAL AS (16-GA)	6
1945227	TERMINAL AS (14-GA)	6
0655071	TERMINAL-BLADE (14-GA TO 16-GA)	4
6T6506	TERMINAL-BLADE (14-GA TO 18-GA)	2
1193662	TUBE-HEAT SHRINK (10.85-MM DIA)(13-CM)
1257874	TUBE-HEAT SHRINK (5.72-MM DIA)(5-CM)
2756687	12 GASKET	1
2756688	13 GASKET	1
2756689	14 GASKET	1
3511770	15 COIL GP-HEATER	1
2756697	16 GASKET	1
2756699	17 GASKET	2
2756701	18 COIL AS-EVAPORATOR	1
2756702	19 PLATE AS	1
2756704	20 GASKET	2
1536932	21 GASKET	1
2756706	22 MOTOR AS-BLOWER (24-VOLT)	1
1028802	KIT-RECEPTACLE (2-PIN)	1
9W0852	PIN-CONNECTOR (14-GA TO 16-GA)	2
2756708	23 PLATE	1
2756709	24 PLATE	1
2756710	25 RETAINER (PUSH ON)	1
0964034	26 BOLT-WING (M6X1X15-MM)	1
0966166	27 WASHER-HARD (4.5X9X1-MM THK)	10
3B4501	28 LOCKWASHER	2
5C9553	29 BOLT (M6X1X16-MM)	21
8C8514	30 SCREW-MACHINE (8-32X0.375-IN)	2
8T0337	31 SCREW-MACHINE (M4X0.7X12-MM)	10
8T4205	33 WASHER-HARD (7.2X14.5X2-MM THK)	22
2922905	34 PLATE AS	1
6V9632	NUT-WELD (M6X1-THD)	3
9X2032	NUT-WELD (M4X0.7-THD)	8
3620658	35 GASKET	1
2948679	KIT-GASKET (AIR CONDITIONER)	1
