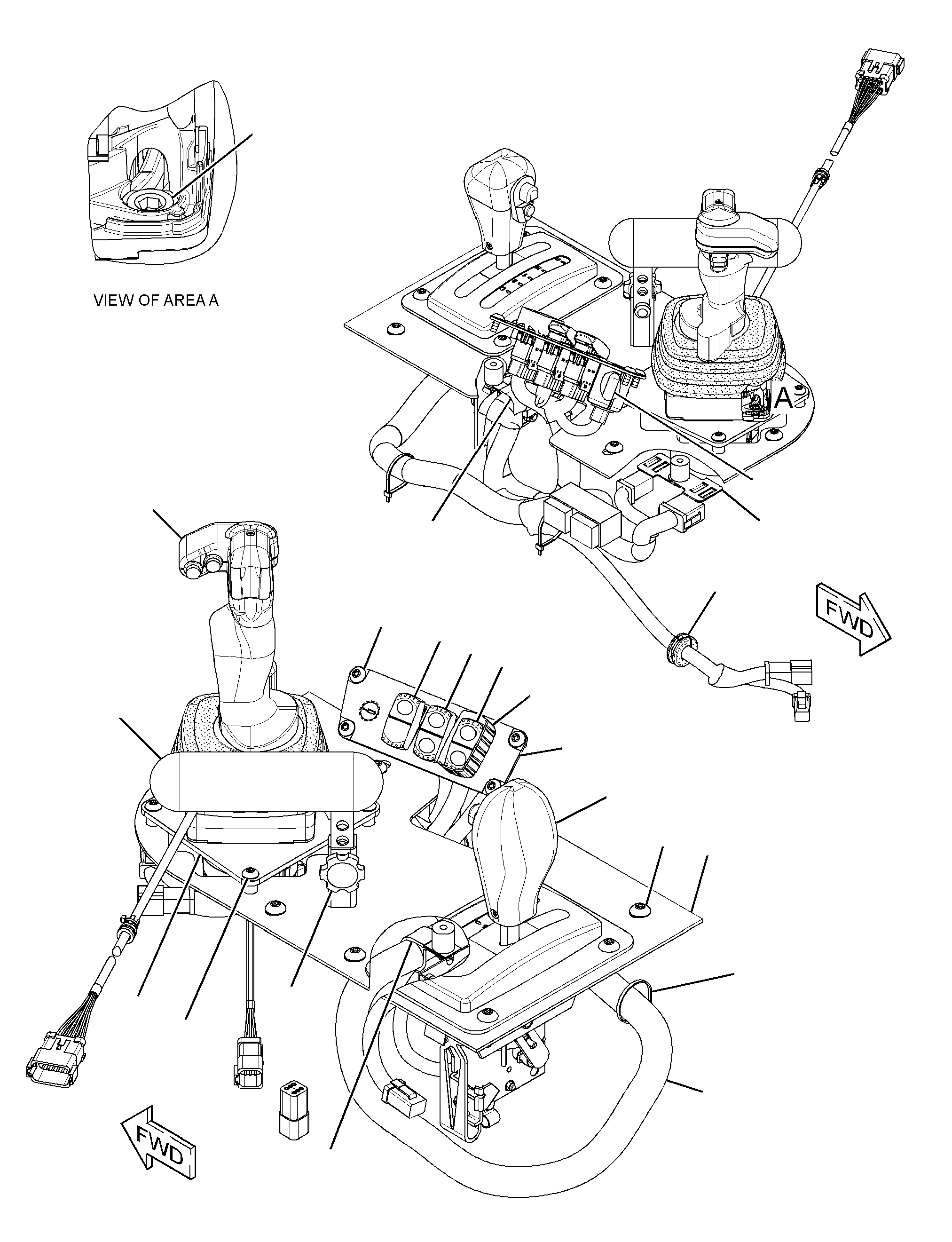

257-8936 CONSOLE GP-OPERATORS/N DBB564-UP

Group No: 257-8936 · Commonality

Part Number	Part Name	Qty
3S2093	1 STRAP-CABLE	2
3360067	2 LAMP-LED (24-VOLT, WHITE)	1
2227890	3 SWITCH AS-ROCKER (24-VOLT)(PARKING BRAKE ON, OFF)	1
2292580	4 SWITCH AS-ROCKER (24-VOLT)(ENGINE, HIGH IDLE, HOLD)	1
3006859	5 CONTROL GP-TRANSMISSION	1
3179368	6 CONTROL GP-JOYSTICK (C/H, IMPLEMENT, XMSN HOLD)	1
2834304	7 SCREW-THUMB (3/8-24X1.5-IN)	1
2430770	8 SWITCH AS-ROCKER (LIMITED SLIP)	1
2568681	9 HARNESS AS-PANEL	1
1028804	KIT-RECEPTACLE (4-PIN)	1
8T8729	PIN-CONNECTOR (16-GA TO 20-GA)	4
8T8730	SOCKET-CONNECTOR (16-GA TO 20-GA)	20
8T8737	PLUG-SEAL	18
9X0141	PLUG AS-CONNECTOR (40-PIN)	1
3E4367	RING-RETAINING	1
3E8557	BOLT (M5X0.8X39.37-MM)	1
9X3490	SEAL-CONNECTOR (40-PIN)	2
9X3402	SOCKET-CONNECTOR (16-GA TO 18-GA)	30
1071984	SOCKET-LAMP	1
1071985	TERMINAL	2
1193662	TUBE-HEAT SHRINK (10.85-MM DIA)(7-CM)
1257874	TUBE-HEAT SHRINK (5.72-MM DIA)(10-CM)
1257875	TUBE-HEAT SHRINK (7.44-MM DIA)(20-CM)
1552255	KIT-CONNECTING PLUG (12-PIN)	1
1552270	KIT-CONNECTING PLUG (2-PIN)	1
1552271	KIT-CONNECTING PLUG (4-PIN)	1
1552274	KIT-CONNECTING PLUG (6-PIN)	1
1800050	KIT-CONNECTING PLUG (4-PIN)	1
1851861	SEAL-WIRE	19
2025397	PLUG	11
2457434	KIT-CONNECTING PLUG (10-PIN)	3
2834297	10 PLATE AS	1
2578938	11 PLATE AS	1
2834296	12 CUSHION AS	1
2614920	13 PLATE	1
2616750	14 FILM-IDENTIFICATION (OPERATOR CONSOLE)	1
1272170	15 SCREW-TRUSS HEAD (M8X1.25X20-MM)	9
1305300	16 CLIP	2
4H2558	17 GROMMET	1
5C9553	18 BOLT (M6X1X16-MM)	3
6V4369	19 CLIP	1
7C4354	20 CLIP	1
8T4224	21 WASHER-HARD (8.8X16X2-MM THK)	3
9X2043	22 SCREW-TRUSS HEAD (M6X1X14-MM)	4
9X2044	23 SCREW-TRUSS HEAD (M6X1X16-MM)	4
2464311	24 GUARD (SWITCH)	1
8T0269	25 BOLT-SOCKET HEAD (M6X1X20-MM)	4
