System And Components

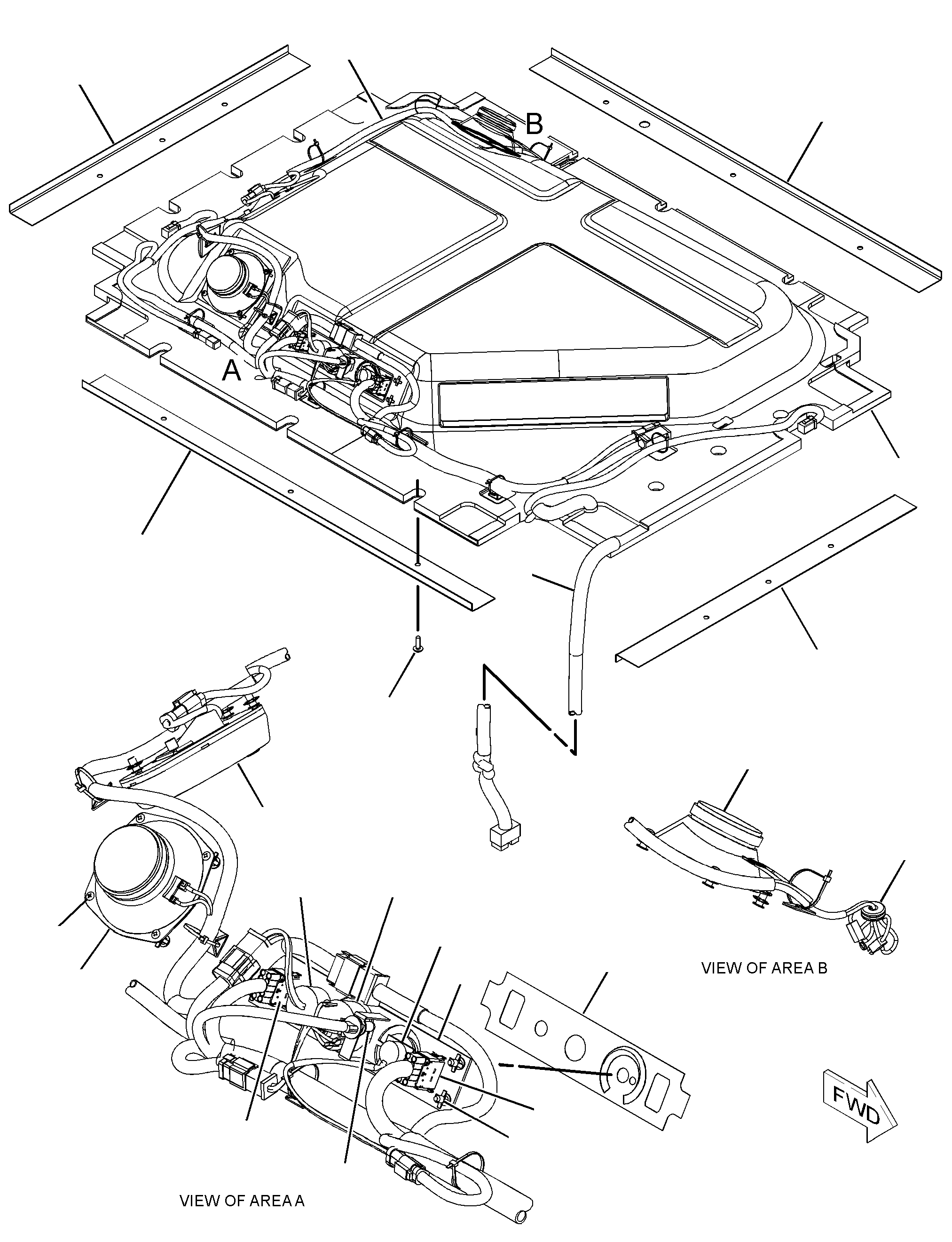

266-9694 LINER GP-CABS/N DBB1-UP
Group No: 266-9694 · Commonality
| Part Number | Part Name | Qty | |
|---|---|---|---|
| 3E6389 | 1 LAMP GP-DOME (24-VOLT)(WITH SWITCH) | 1 | |
| 6T7695 | 2 SPEAKER AS-RADIO | 2 | |
| 6V8369 | 3 NUT (7/16-28-THD) | 1 | |
| 9F8125 | 4 LOCKWASHER | 8 | |
| 3360067 | 5 LAMP-LED (24-VOLT, WHITE) | 1 | |
| 1106109 | 6 KNOB-CONTROL (FAN SPEED) | 1 | |
| 1106109 | 6A KNOB-CONTROL (TEMPERATURE SELECT) | 1 | |
| 1107885 | 7 KNOB AS-WIPER SWITCH | 1 | |
| 0140816 | SETSCREW (8-32X0.5-IN) | 1 | |
| 1126174 | 8 SWITCH GP-ROTARY (WIPER, WASHER) | 1 | |
| 2H3920 | LOCKWASHER | 1 | |
| 6V8369 | NUT (7/16-28-THD) | 1 | |
| 8T8729 | PIN-CONNECTOR (16-GA TO 20-GA) | 6 | |
| 8T8737 | PLUG-SEAL | 2 | |
| 1028806 | KIT-RECEPTACLE (8-PIN) | 1 | |
| 2912165 | 9 POTENTIOMETER AS (TEMPERATURE SELECT) | 1 | |
| 2368722 | WASHER (10.5X22.2X1.6-MM THK) | 1 | |
| 1863735 | PIN-CONNECTOR (16-GA TO 18-GA) | 1 | |
| 1028803 | KIT-RECEPTACLE (3-PIN) | 1 | |
| 1571361 | 10 SWITCH AS-ROTARY (TEMPERATURE, FAN SPEED) | 1 | |
| 9W0852 | PIN-CONNECTOR (14-GA TO 16-GA) | 6 | |
| 1028805 | KIT-RECEPTACLE (6-PIN) | 1 | |
| 1640952 | 11 HARNESS AS-RADIO | 1 | |
| 5P1475 | TERMINAL-FORK (14-GA TO 16-GA, NO. 8 SCREW) | 2 | |
| 8T8730 | SOCKET-CONNECTOR (16-GA TO 20-GA) | 10 | |
| 8T8737 | PLUG-SEAL | 5 | |
| 5P4571 | TERMINAL-BLADE (14-GA TO 16-GA) | 2 | |
| 0977234 | TERMINAL-BLADE (18-GA TO 22-GA) | 2 | |
| 1552255 | KIT-CONNECTING PLUG (12-PIN) | 1 | |
| 1552260 | KIT-CONNECTING PLUG (3-PIN) | 1 | |
| 1794840 | 12 ANGLE | 1 | |
| 1794842 | 13 ANGLE | 2 | |
| 1794844 | 14 ANGLE | 1 | |
| 1912276 | 15 SCREW-TRUSS HEAD (M5X0.8X20-MM) | 4 | |
| 2495480 | 16 SWITCH AS-ROCKER (24-VOLT)(WORK LIGHT) | 1 | |
| 2364610 | 17 SWITCH AS-ROCKER (AIR CONDITIONER, HEATER)(A/C, HEATER) | 1 | |
| 2505866 | 18 LINER AS-CAB | 1 | |
| 3502765 | 19 HARNESS AS-CAB | 1 | |
| 1552265 | KIT-CONNECTING PLUG (8-PIN) | 2 | |
| 1552260 | KIT-CONNECTING PLUG (3-PIN) | 1 | |
| 1552270 | KIT-CONNECTING PLUG (2-PIN) | 2 | |
| 1552274 | KIT-CONNECTING PLUG (6-PIN) | 4 | |
| 2457434 | KIT-CONNECTING PLUG (10-PIN) | 2 | |
| 1028802 | KIT-RECEPTACLE (2-PIN) | 2 | |
| 1028806 | KIT-RECEPTACLE (8-PIN) | 1 | |
| 1028801 | KIT-RECEPTACLE (12-PIN) | 1 | |
| 1284249 | LOCKWASHER | 1 | |
| 2110052 | NUT (1-11/16-18-THD) | 1 | |
| 8T8729 | PIN-CONNECTOR (16-GA TO 20-GA) | 32 | |
| 9W0852 | PIN-CONNECTOR (14-GA TO 16-GA) | 2 | |
| 8T8737 | PLUG-SEAL | 32 | |
| 1673692 | RECEPTACLE AS-CONNECTOR (31-PIN) | 1 | |
| 1851861 | SEAL-WIRE | 17 | |
| 8T8730 | SOCKET-CONNECTOR (16-GA TO 20-GA) | 35 | |
| 9W0844 | SOCKET-CONNECTOR (14-GA TO 16-GA) | 1 | |
| 1071984 | SOCKET-LAMP | 1 | |
| 9X0194 | TERMINAL AS | 1 | |
| 5P4571 | TERMINAL-BLADE (14-GA TO 16-GA) | 1 | |
| 5P5618 | TERMINAL-BLADE (10-GA TO 12-GA) | 1 | |
| 5P4571 | TERMINAL-BLADE (14-GA TO 16-GA) | 1 | |
| 1071985 | TERMINAL | 2 | |
| 2354123 | TERMINAL (18-GA TO 20-GA) | 2 | |
| 1193662 | TUBE-HEAT SHRINK (10.85-MM DIA)(26-CM) | 2 | |
| 1257875 | TUBE-HEAT SHRINK (7.44-MM DIA)(30-CM) | ||
| 2603938 | 20 PLATE AS | 1 | |
| 2616749 | 21 FILM-IDENTIFICATION (TEMPERATURE, FAN SPEED) | 1 | |
| 1043601 | 22 SCREW-MACHINE (M5X0.8X25-MM) | 3 | |
| 2H3920 | 23 LOCKWASHER | 1 | |
| 5P8439 | 24 GROMMET | 1 | |
| 8T6693 | 25 SCREW-MACHINE (M5X0.8X16-MM) | 8 | |
| 9X2045 | 26 SCREW-TRUSS HEAD (M6X1X20-MM) | 12 |
